1080P Waterproof Stainless Steel Backup Camera

1080P Waterproof Stainless Steel Backup Camera

FHD657

STONKAM® supplies the best automotive backup cameras featuring 1080P high definition, IP69K waterproof, night vision, etc. With the great R&D support, we also offer ODM & OEM services; please kindly contact for details.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

1080P high definition
IP69K waterproof
Wide viewing angle: 130° / 110° / 100° / 70° / 50° / 35°
Night vision distance: 8m ~ 10m (26.25ft ~ 32.81ft)
Anti-vibration: ISO 16750-3 2012 (5.9G)
Wide power supply: DC 12V
Working temperature: -20ºC ~ +70ºC
Mirror / normal image

Image Device	1/2.9” CMOS
Frame Rate	25/30
Effective Pixels	1920 (H) x 1080 (V)
Pixel Size	2.8 μm x 2.8 μm
Scanning System	Progressive Scanning
Sync. System	Internal
Resolution	1080P
Video Output	1.0Vp-p, 75Ohm
Gamma Consumption	0.45
AGC	Auto
Signal to Noise Ratio	Better than 52dB
White Balance	Auto
Electronic Shutter	1/30（1/25）～1/50,000 Seconds
BLC	Auto
Operating Temp. & Humidity	–20℃ ~ 70℃, RH95%MAX.
Storage Temp. & Humidity	–30℃ ~ 80℃, RH95%MAX.
Power Supply	DC12V / DC10~32V
Waterproof Rating	IP69K
Viewing Angle	130°, 110°,100°, 70°, 50°, 35°
Audio	Yes
Minimum Illumination	0 Lux (with IR)
Night Vision Distance	8~10m
Image Mode	Mirror/Normal image switch

Applications

STONKAM® 1080P night vision backup cameras can be applied to various vehicles and work well with our MDVRs.

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

1080P high definition

IP69K waterproof

Wide viewing angle: 130° / 110° / 100° / 70° / 50° / 35°

Night vision distance: 8m ~ 10m (26.25ft ~ 32.81ft)

Anti-vibration: ISO 16750-3 2012 (5.9G)

Wide power supply: DC 12V

Working temperature: -20ºC ~ +70ºC

Mirror / normal image

Image Device

1/2.9” CMOS

Frame Rate

25/30

Effective Pixels

1920 (H) x 1080 (V)

Pixel Size

2.8 μm x 2.8 μm

Scanning System

Progressive Scanning

Sync. System

Internal

Resolution

1080P

Video Output

1.0Vp-p, 75Ohm

Gamma Consumption

0.45

AGC

Auto

Signal to Noise Ratio

Better than 52dB

White Balance

Auto

Electronic Shutter

1/30（1/25）～1/50,000 Seconds

BLC

Auto

Operating Temp. & Humidity

–20℃ ~ 70℃, RH95%MAX.

Storage Temp. & Humidity

–30℃ ~ 80℃, RH95%MAX.

Power Supply

DC12V / DC10~32V

Waterproof Rating

IP69K

Viewing Angle

130°, 110°,100°, 70°, 50°, 35°

Audio

Yes

Minimum Illumination

0 Lux (with IR)

Night Vision Distance

8~10m

Image Mode

Mirror/Normal image switch

Applications

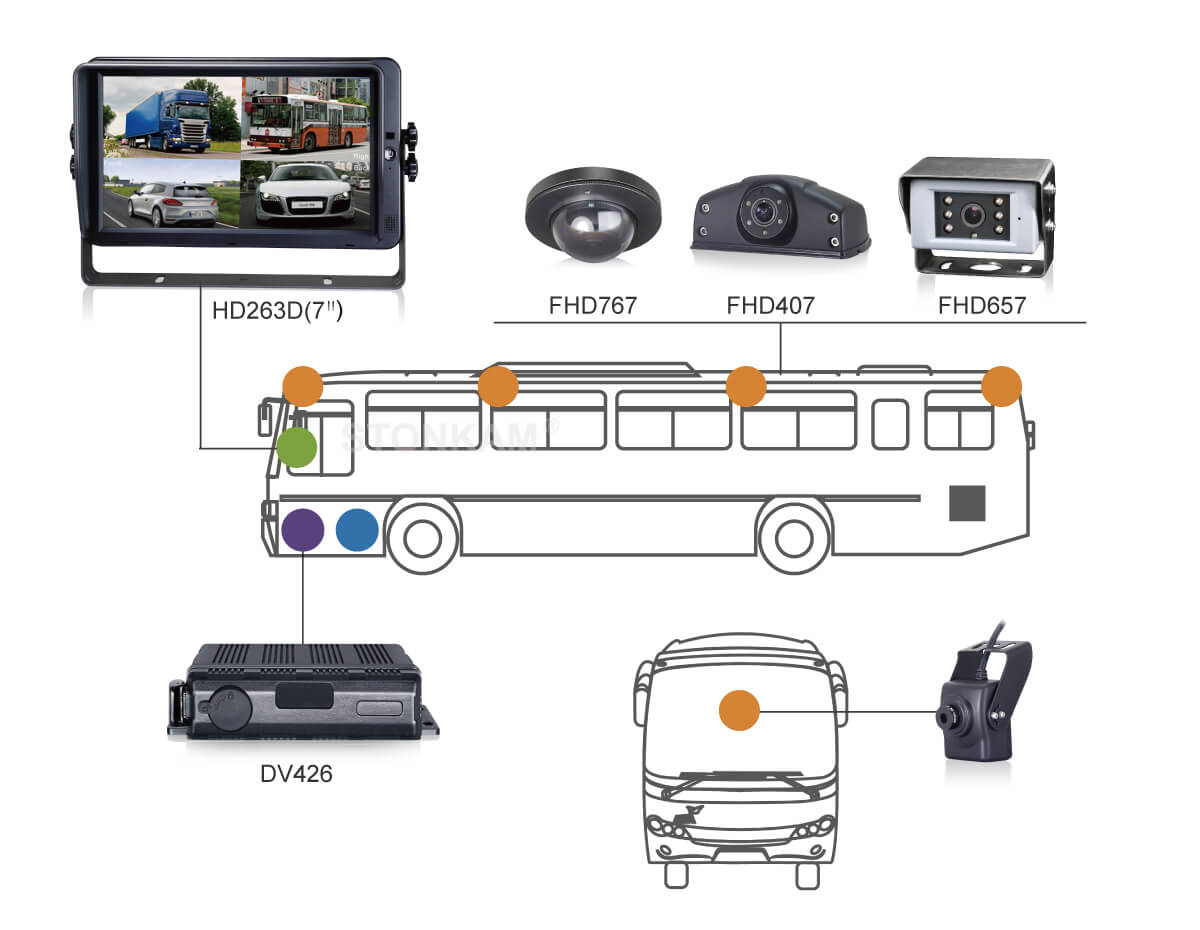

STONKAM® 1080P night vision backup cameras can be applied to various vehicles and work well with our MDVRs.

E.g. for buses

For ships
