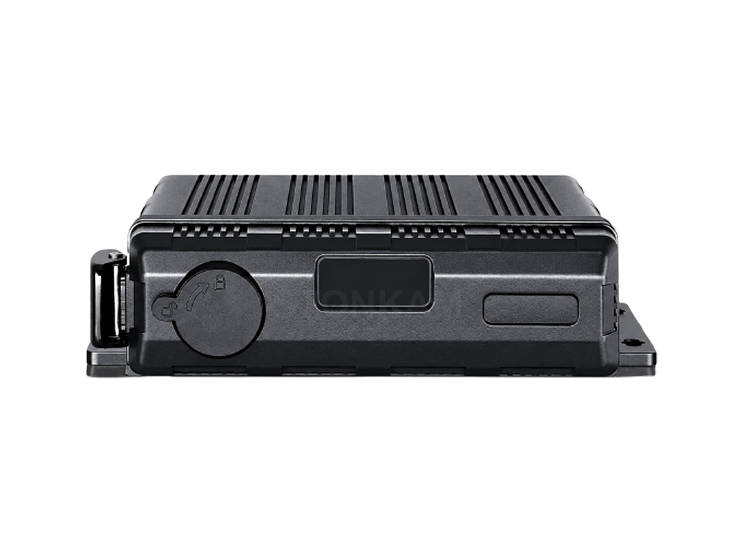

Intelligent Waterproof 8CH HD MDVR All-in-one Device

DV454

Intelligent Waterproof 8CH HD MDVR All-in-one Device adopts H.264/H.265 compression technology and supports real-time remote monitoring, which makes fleet management more efficient. Thanks to its multi-core processor and neural networks inference engine, the intelligent MDVR is able to integrate ADAS, DMS, BSD, AVS algorithm in one device and provide various systems featured with different driving assistance functions. It can be combined with ADAS and DMS function, blind spot monitoring function, or 360 degree around view function, which allows the driver to have a safer driving without spending extra time and money for separate installation.Click to view more Intelligent HD MDVR.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

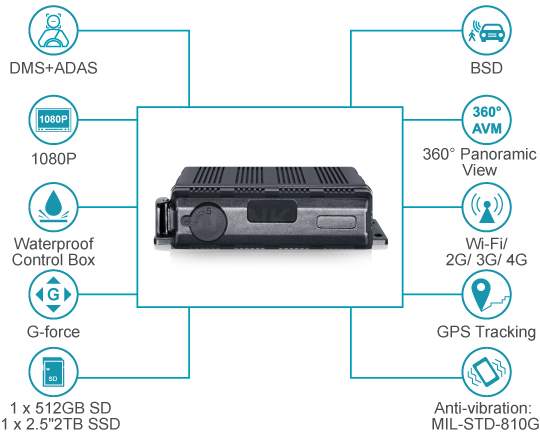

Features

  • Integrated with DMS and ADAS algorithm, the intelligent MDVR has recognition, warning, recording and remote reporting functions to improve driving safety in fleet management.

  • Integrated with BSD algorithm, the intelligent MDVR can detect pedestrians at the front, side and rear of the vehicle in real time, avoiding accidents caused by blind spots.

  • Integrated with 360° around view algorithm, the intelligent MDVR can realize true 360° bird-view monitoring with wide angle cameras , ensuring driving safety.

  • GPS tracking adopts adaptive sparse algorithm and supports offline upload.

  • Multiple trigger recording modes with 15 seconds pre-recording function: motion trigger, G-sensor trigger, over-speeding trigger, 6-channel customized alarm input trigger, panic button trigger recording, and DMS+ADAS+BSD warning trigger.

  • Support3G/4G/ WIFI/ GPS tracking; can achieve real-time remote monitoring on iOS, Android and Windows client.

  • DVIR Compliance-Address driver vehicle inspection needs to ensure fleet safety compliance.

  • MDVR can be linked to the server to provide API for customers to realize the docking with customer systems.

  • With WiFi station and AP mode; AP mode can support that mobile directly connects to device for easy preview and configuration on mobile through WebUI.

  • Automatically upload data for remotely intelligent data analysis and management, including data: alarm recording, alarm information, log information, GPS trajectory, real-time videos and images.

  • Support HD touch screen control, IR remote control, and flat human-device interaction interface, convenient for customers to operate.

  • IP69K waterproof and dustproof control box, which could be applied even if in bad weather

  • .Support H.264/H.265 Encode, improving the usage of storage space and wireless network traffic.

System

Operating system

Linux

Operating interface

Graphical menu operation interface(OSD)

Video permission

Administrator & user setting

Video

Video input

Max 8CH 1080P analog high definition

Video output

CVBS/VGA/ AHD

Video display

1、2、3、4、8、9 CH

Compression

H.264/H.265

Audio

Audio input

8 CH

Audio output

1 CH

Record format

Synchronized video & audio recording

Audio compression

ADPCM

Digital processing & storage

Video resolution

8*1080P(1920*1080)

Video bit rate

64kbps~4Mbps/CH

Storage consumption

56~2700MB/(CH*hour)

Audio bit rate

32kbps

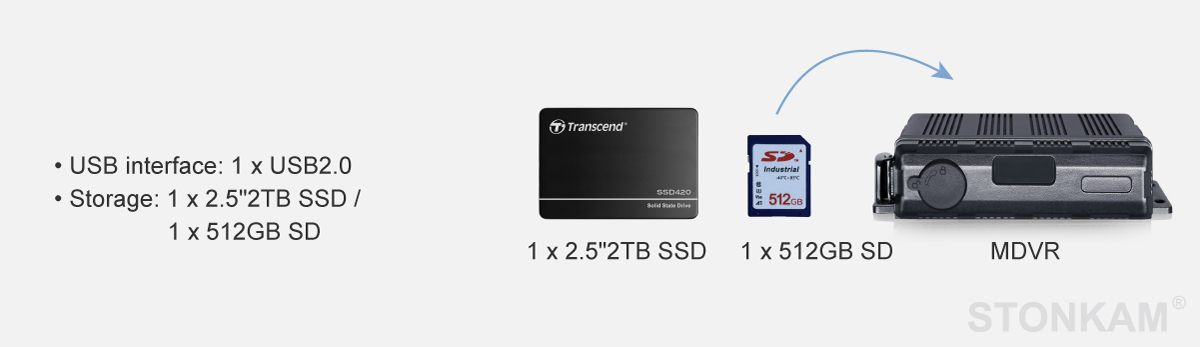

Storage

SSD * 1, max 2TB; SD card * 1, max 512GB

Alarm

Alarm input

6 CH

Alarm output

2 CH, 1 buzzer

Motion detection

Adjustable high / low sensitivity

Interface for communication

RS232

1 CH

RS485

1 CH

CAN

2 CH

RJ45

1 CH

USB2.0

1 CH

Wireless

2G/3G/4G

Optional

WIFI

Standard

WIFI hotspot/AP

Optional

GPS

Tracking and speed recorded

G-Sensor/Gyroscope

Optional

Software

Windows client

Optional

iOS client

Optional

WebClient

Support windows,android,mac, ios and more

Power

Input

DC 10~32V

Output

12V@4A

Power Supply

less than 60W

Standby Power

Consumption

50mW

Electrical specifications

Operating temp. & humidity

-20~70 ℃, RH 80%MAX

Electronic Clock

Built-in clock, Calendar

Super Capacitor

Optional



Why we need Intelligent Waterproof 8CH HD MDVR All-in-one Device?

Have you ever been disturbed by following questions?
Where to find the perfect fleet management solution?
How to achieve abnormal situations' monitoring of people, vehicle, and road?
How can we quickly provide evidence when encountering accidents or thefts?
......

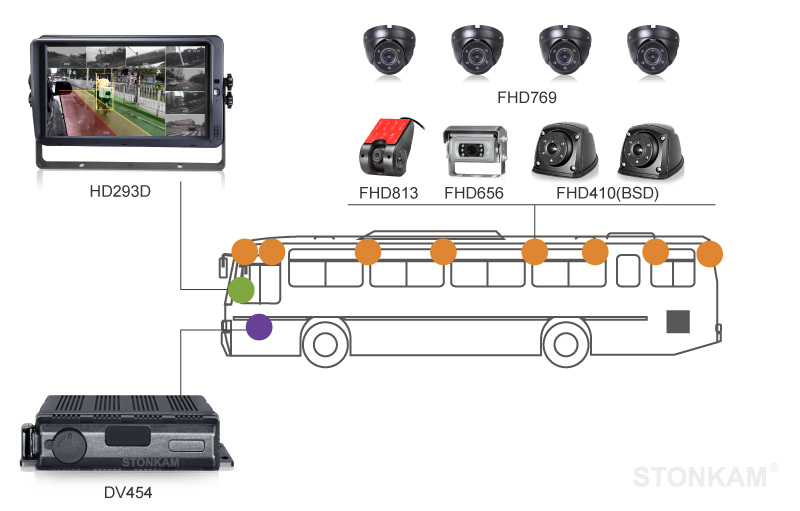

Intelligent AI MDVR System



All your worries can be settled by STONKAM Intelligent Waterproof 8CH HD MDVR All-in-one Device with multiple optional functions!


STONKAM Intelligent Waterproof 8CH HD MDVR All-in-one Device is integrated with ADAS, DMS, BSD, 360 and other algorithms, speically designed reliable vehicle management solution for all kinds of vehicles, widely applied in buses, tourist buses, escort vehicles, school buses, cargo van,  fire engines, emergency vehicles, passenger vehicles, etc, providing security for customers, effectively improving the operation efficiency.

Intelligent AI MDVR System




Option One: MDVR System Combined with ADAS&DMS Function

Intelligent Waterproof 8CH HD MDVR All-in-one Device adopts ADAS&DMS technology to provide better performance. DMS can detect and warn against drivers’ misbehaviors like fatigue, distraction, making phone call, yawning, no driver, not wearing seat-belt or mask, as to contribute to safe driving and easy fleet management.

Intelligent MDVR integrated system




ADAS functions include forward collision warning (FCW), lane departure warning (LDW), pedestrian detection (PD), preceding car starting reminder, and speed sign recognition (SSR) & over speed alarm, which can warn drivers of potential collision risks and make driving safer.

Intelligent 8CH HD MDVR integrated with ADAS & DMS system

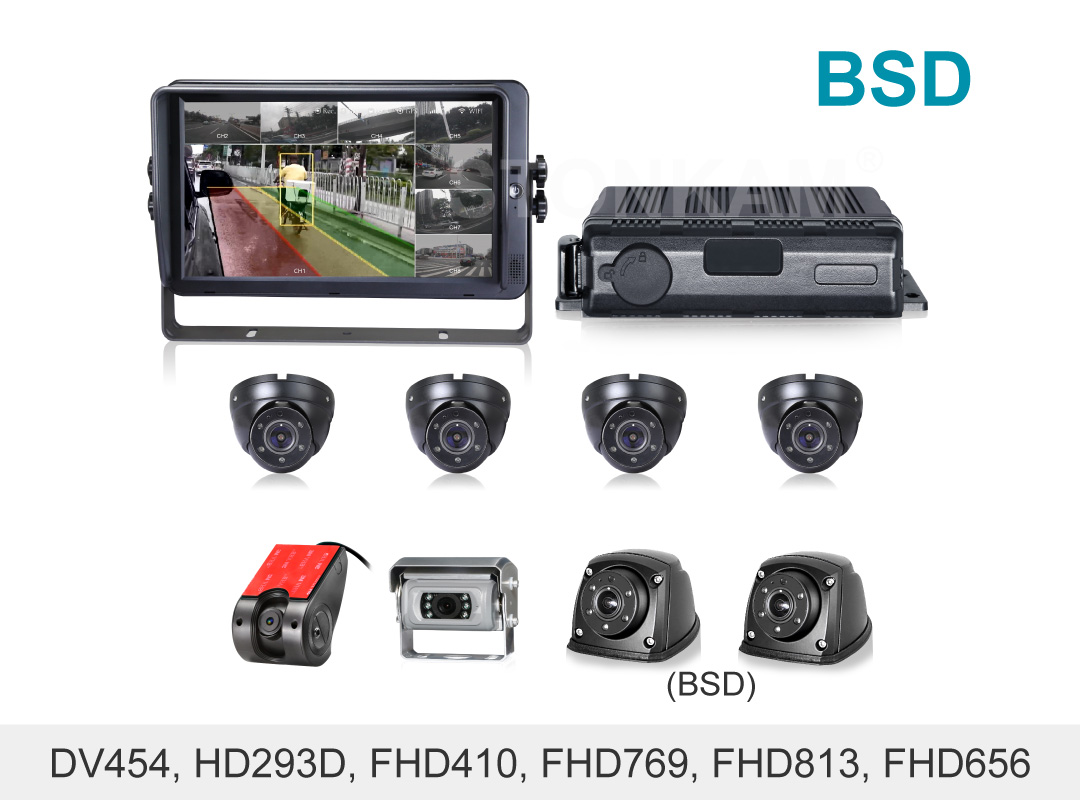

Option Two:MDVR System Combined with BSD Function

With BSD algorithm, the intelligent MDVR can detect pedestrians at the front, side and rear of the vehicle in real time, avoiding accidents caused by blind spots. Thus, this driving assistance device is essential for large-size vehicles like trucks, buses, construction machines, etc.

HD MDVR system

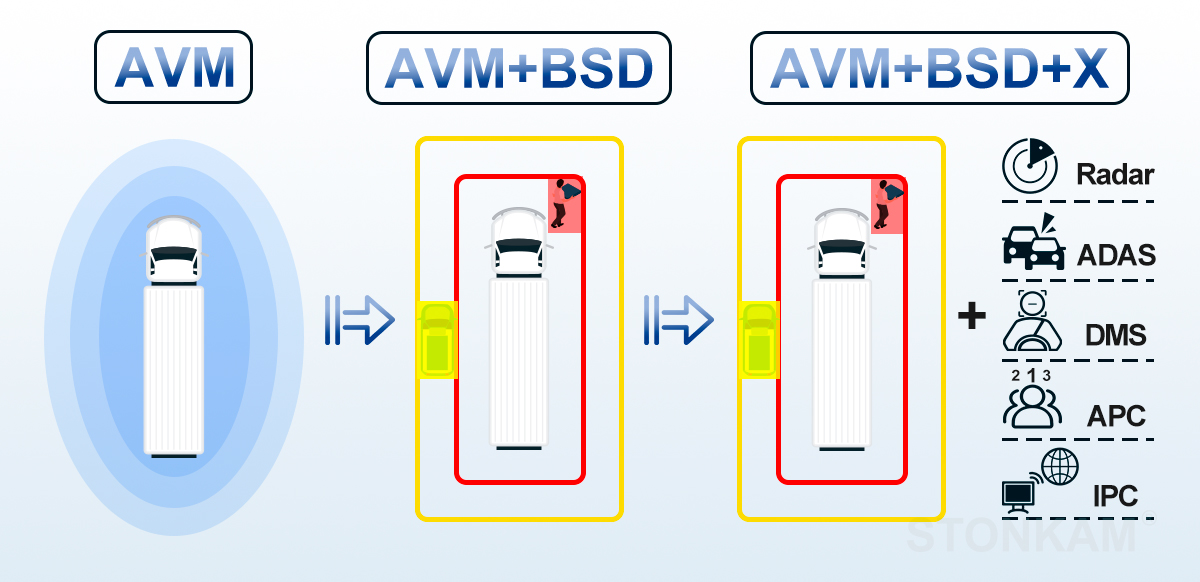

Option Three: MDVR System Combined with 360 Degree Around View Monitoring

With 360 AVS algorithm, the intelligent MDVR can be compatible with wide-angle camera and realize true 360° bird-view monitoring with no blind area. Meanwhile, the system supports auto calibration to save installation time and cost.

MDVR System Combined with 360 Degree Around View Monitoring

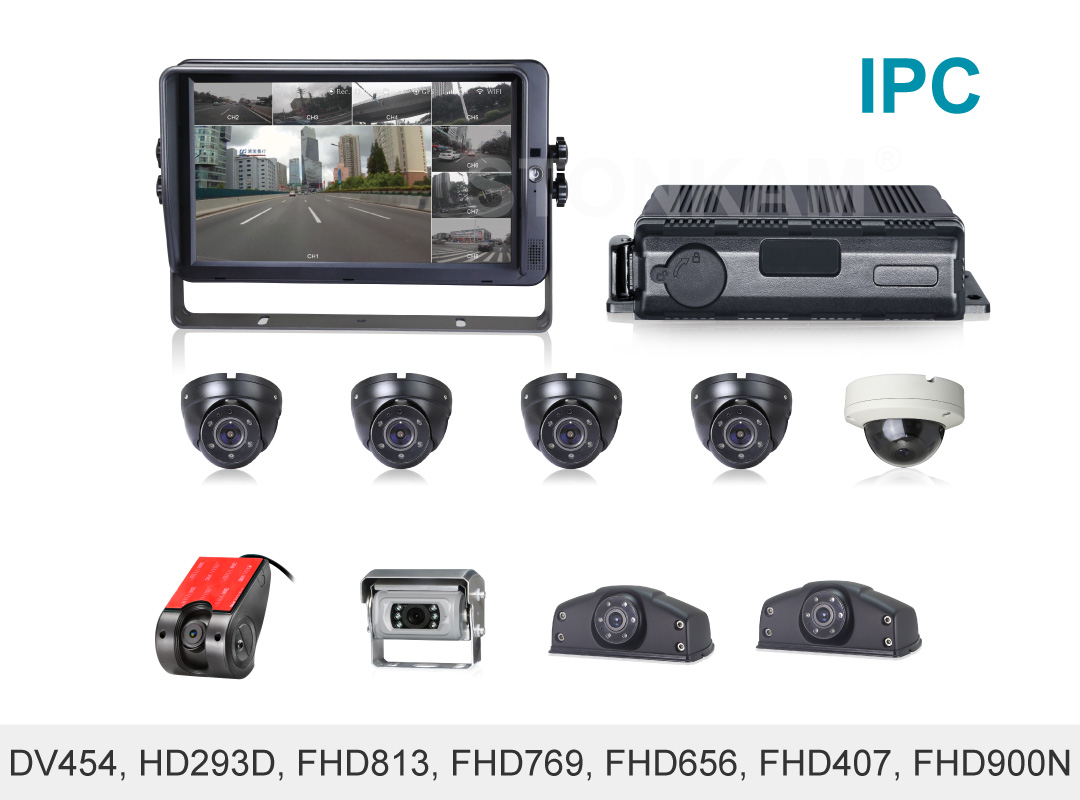

AVM algorithm, on top of the 360 bird's-eye view effect, adds up 4-way pedestrian detection function. When turned on, the DVR box can still connect peripheral devices such as radar and IPC, and run other algorithms like ADAS, DMS and APC, or customized contents.





Detailed Features of STONKAM Intelligent Waterproof 8CH HD MDVR All-in-one Device



GPS Vehicle Historical Track Playback

Through the PC CMS Client or Mobile APP, the current location and historical driving trajectory of vehicles can be clearly queried on OS map/ Google map/ Baidu map.

GPS Vehicle Historical Track Playback





Multiple Trigger Recording Modes with 15 Seconds Prerecording Function

Support motion trigger, G-sensor trigger, over-speeding trigger, 6-channel customized alarm input trigger, panic button trigger recording, and DMS+ADAS+BSD warning trigger. And the 15-sec prerecording can catch the scene before the accident so as to provide evidence.

AI HD MDVR integrated system





Achieve remote monitoring by DVR GPS tracking/ 3G/ 4G/ WiFi, convenient vehicle management on PC/ Mobile phone

Users can remotely manage and dispatch all vehicles through their mobile phones or computers via Windows Client and iOS APP. The mobile DVR supports real-time positioning, historical trajectory, file download and playback, electronic fence and other special features.

Intelligent MDVR System





DVIR Compliance Addresses Driver Vehicle Inspection Needs

The MDVR system helps drivers conduct daily vehicle inspections and automatically generates reports to streamline the inspection process and ensure fleet safety compliance.





Support API to realize the interface with customer's system

MDVR could be linked to the server to provide API for customers to realize the interface with customer systems. Customers can either use our client or connect to their own system through the API. Thus, data exchange and information sharing could be achieved.





Preview with WIFI Connection
With WiFi station and AP mode; AP mode can support directly connecting to device for easy preview and configuration on mobile phone through WebUI.

Intelligent AI MDVR System





Automatically uploading, data Statistics and Reminder for Alarm Recording, Alarm Information, Log Information

Help to analyze irregular situation easily while providing vehicle tracking and traceable information.

Intelligent AI MDVR System





Interface operation is more convenient for customers

Support HD touch screen control and IR Remote Control. Flat interactive interface makes operation easy.

Intelligent AI MDVR System





Waterproof and dustproof

IP69K waterproof, the whole device can be applied in various indoor and outdoor environments.

Waterproof and Dust-proof AI HD MDVR




Dual-stream Design for Better Storage
Intelligent HD MDVR All-in-one Device supports H.264/H.265 encoding so as to provide more storage space and increase the use of wireless network traffic.

Intelligent MDVR System





Keep recording all the time while event occurring on road, and support remote High Definition screenshot

The Vehicle DVR can set video recording quality—1080P/720P/D1.

Intelligent MDVR System





Powerful Recording

This vehicle camera DVR features diverse recording modes, stable video storage device, integration of vehicle information, and the double protection of recording data.

HD MDVR system





Watch Real-time Video on PC

User can watch the real time video by choosing the specific vehicle license number on the left side of the CMS Client. Each vehicle has a unique identification number in the CMS which can be set by the user.

HD MDVR system





Remotely Download Video

Video files can be remotely downloaded by logging in PC CMS Client or mobile APP.

Intelligent 8CH HD MDVR integrated with ADAS





Dual-stream Storage Design for More Secure Data Protection

Intelligent MDVR integrated system





Applications

STONKAM Intelligent Waterproof 8CH HD MDVR All-in-one Device can be widely applied, providing professional and reliable fleet management solutions to buses, coaches, tourist buses and school buses. With ADAS, DMS, BSD and AVS algorithm it can provide various solutions to  fully ensure driving safety.

Intelligent 8CH HD MDVR system for driving safety

HD MDVR system

HD MDVR system for bus
