12.3 inch HD IPS Screen Electronic Mirror For Blind Spot Monitoring

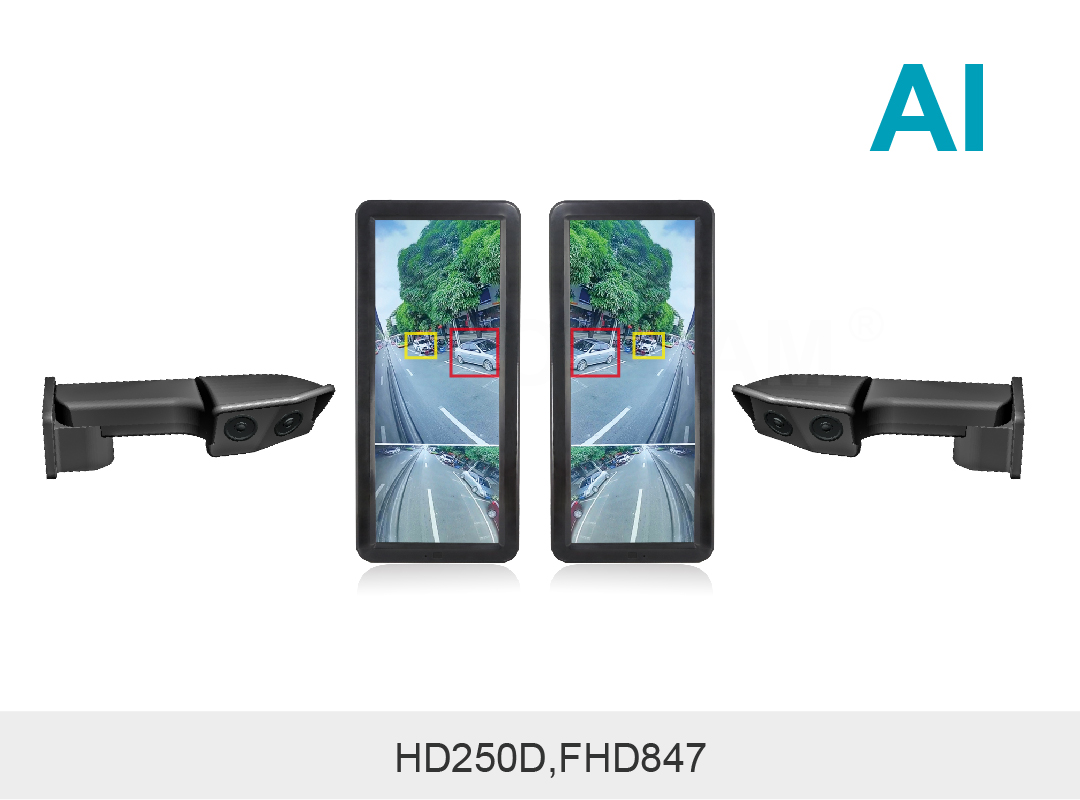

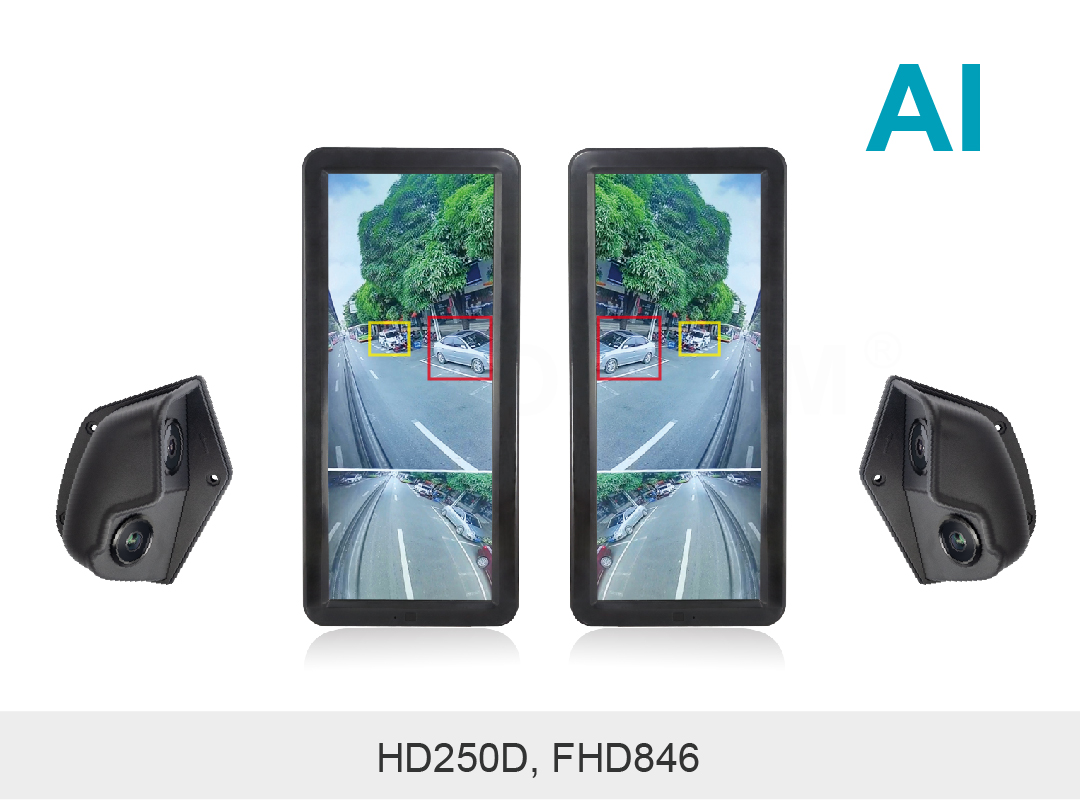

HD250D, FHD846, FHD847

STONKAM 12.3-inch electronic rearview mirror has been newly upgraded, now it integrates the functions of vehicle DVR and Monitor! It supports a larger viewing angle, higher night vision sensitivity, and is easier to adapt to complex weather conditions, which means broader and clearer side vision and more professional in safeguarding driving safety than traditional rear-view mirrors.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

Features

Compliant with UN ECE R46】The STONKAM electronic rearview mirror paired with the FHD846/FHD847 complies with UN ECE R46 regulations, providing exceptional visibility and safety

Pedestrians & Vehicle Detection and Warning】It can identify pedestrians and vehicles such as cyclists, electric bikers, and pedestrians on foot. Pedestrian and vehicle detection and warning function.

Two-in-one that combines in-vehicle DVR and monitor】a major upgrade of invehicle monitor! It can record and replay driving videos. With built-in G-sensor, support G-sensor alarm recording triggered by collision detection. All of these functions can help you free from unreasonable damage and responsibility.

1080P high definition video】support 2-channel camera input, provide split-view image; can be perfectly integrated with the rearview system to achieve comprehensive vehicle monitoring

3s output speed】 quick turn-on, start displaying images and recording videos within 3 seconds after powered.

IPS screen】  high contrast, high brightness. It could restore the true color, presenting the brighter and more delicate display with much higher resolution.

Replacement for Traditional Rearview Mirror】Having solved the problems of being poor  visibility at night, susceptible to rainy, snowy and foggy weather  and having strong reflection, etc.  on  traditional rear-view mirrors.

Data security】ACC time-lapse recording;  super capacitor power-down protection, to prevent the loss of video data.

LCD Dimension

12.3"

Resolution

1920x 3 (RGB) x 720

Brightness

1000cd/m2

Contrast

1000:1

Viewing Angle

U: 85, D: 85, L: 85, R: 85.

Aspect Ratio

24:9

Video Input

4-channel camera input, support mutiple resolutions(1080P25/1080P30)

Storage

SD Card, MAX 512GB

Operating temp. & humidity

-20~+70℃, RH90%MAX

Storage temp. & humidity

-30~-+80℃, RH90%MAX

Power Consumption

Max.32W(with cameras)

Power Supply

10-32V

Anti-vibration

ISO 16750-3 2012 (2.13G)









Why to install 12.3 inch High Definition Electronic Mirror  Monitor?





Your traditional rearview mirrors are having blurs in snowy and rainly days? or at night? Or when the rear car flashes strong light to the mirror?
Your traditional rearview mirrors are having high wind resistance and too easy to injure pedestrians because of the overhang installation?
Your traditional rearview mirrors are unable to show the huge blind spot of big trucks?



How do we pick electric mirrors?
If the mirror you pick is not bright enough, definition is not high enough, and the screen is too small, then you still won't be able to view the images clearly.
If your mirror cannot record video, it will be difficult to clarify responsibility in a car accident and tracethe cause,
if your mirror has has poor night vision, you will still be seeing blurs on it.

backup camera and monitor







Let the powerful STONKAM ® high-definition electronic rearview mirror solve your problems!







Compliant with UN ECE R46

 The STONKAM electronic rearview mirror paired with the FHD846/FHD847 complies with UN ECE R46 regulations, providing exceptional visibility and safety.

Electronic Mirror Monitor





Pedestrians & Vehicle Detection and Warning

 By utilizing deep learning technology, intelligent and high-precision detection of pedestrians and vehicles can be achieved. This system supports the recognition of various types of pedestrians and vehicles, including cyclists, electric scooter riders, and pedestrians on foot. It provides intelligent safety assistance to drivers, helping to prevent traffic accidents involving large vehicles such as buses and trucks. Additionally, it supports lane change warning functionality, aiding drivers in making lane changes with ease.

mirror monitor



mirror monitor





Two-in-one that combines in-vehicle DVR and monitor, make your driving safer

A major upgrade of in-vehicle monitor! It can record and replay driving videos, support mutiple rocording modes (regular recording, event recording, loop recording, time-planning recording, etc. ) With built-in G-sensor, support G-sensor alarm recording triggered by collision detection. Sufficient storage, support 512GB Micro SD card. All of these functions can help you free from unreasonable damage and responsibility.

Electronic Mirror Monitor





Fast startup speed, displaying images and recording within 3 seconds

Startup time is greatly shorten, and you get your images and video recording within 3 seconds.

Electronic Mirror Monitor for bus

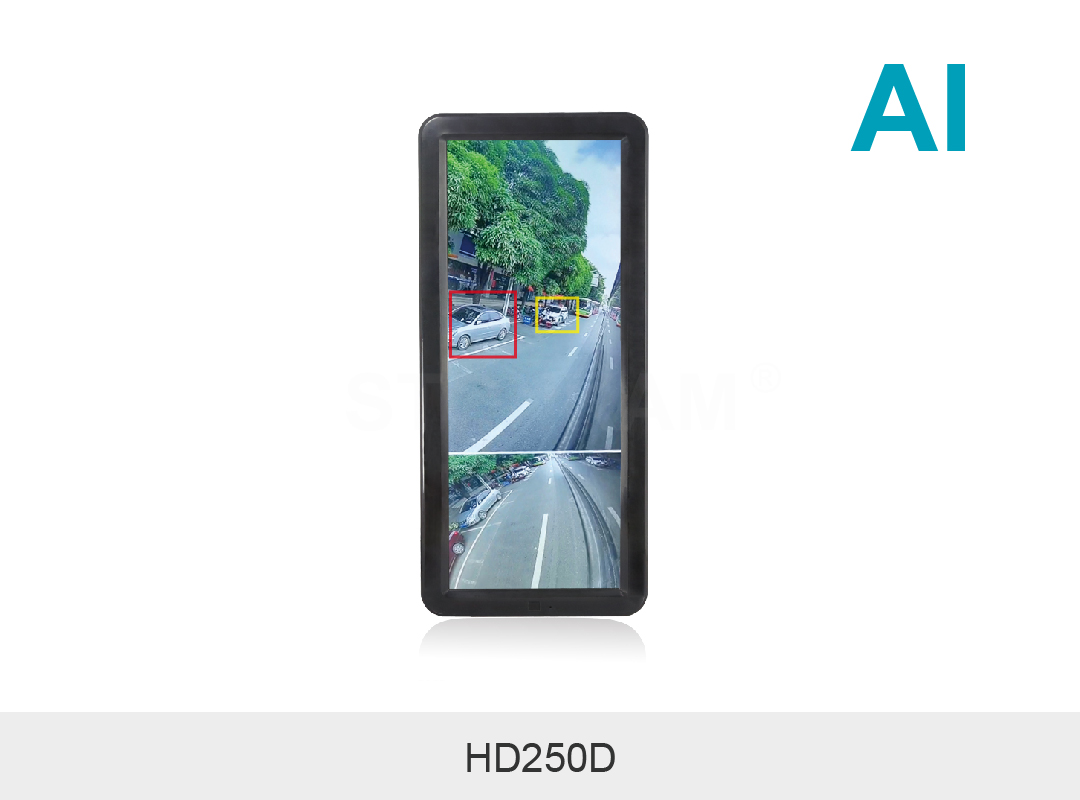

12.3" IPS Screen

High contrast, high brightness. It could restore the true color, presenting the brighter and more delicate display with much higher resolution.

backup camera monitor

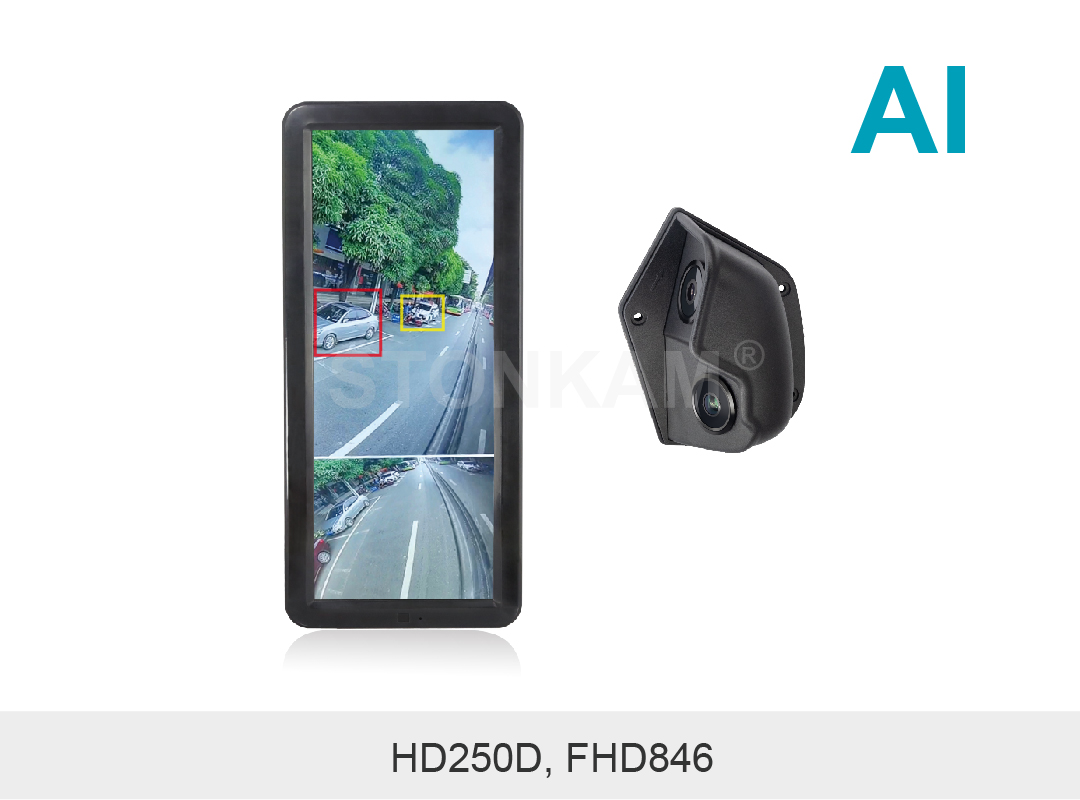

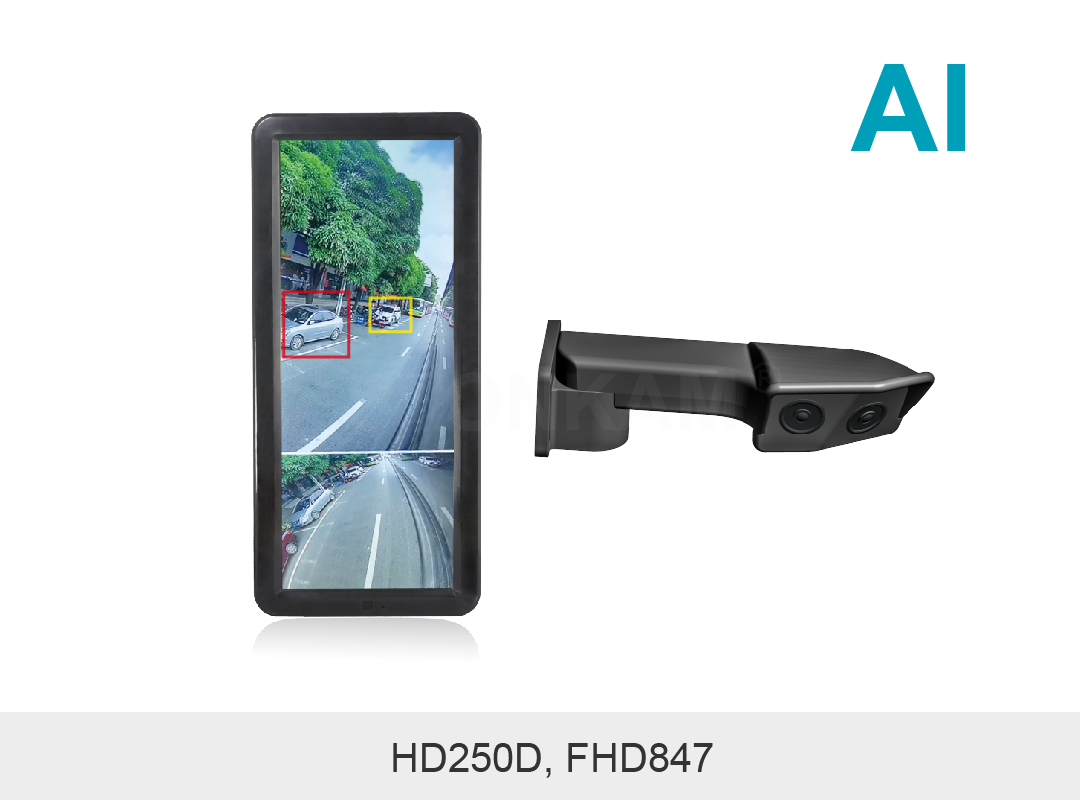

1080P real-time monitoring of the blind spot

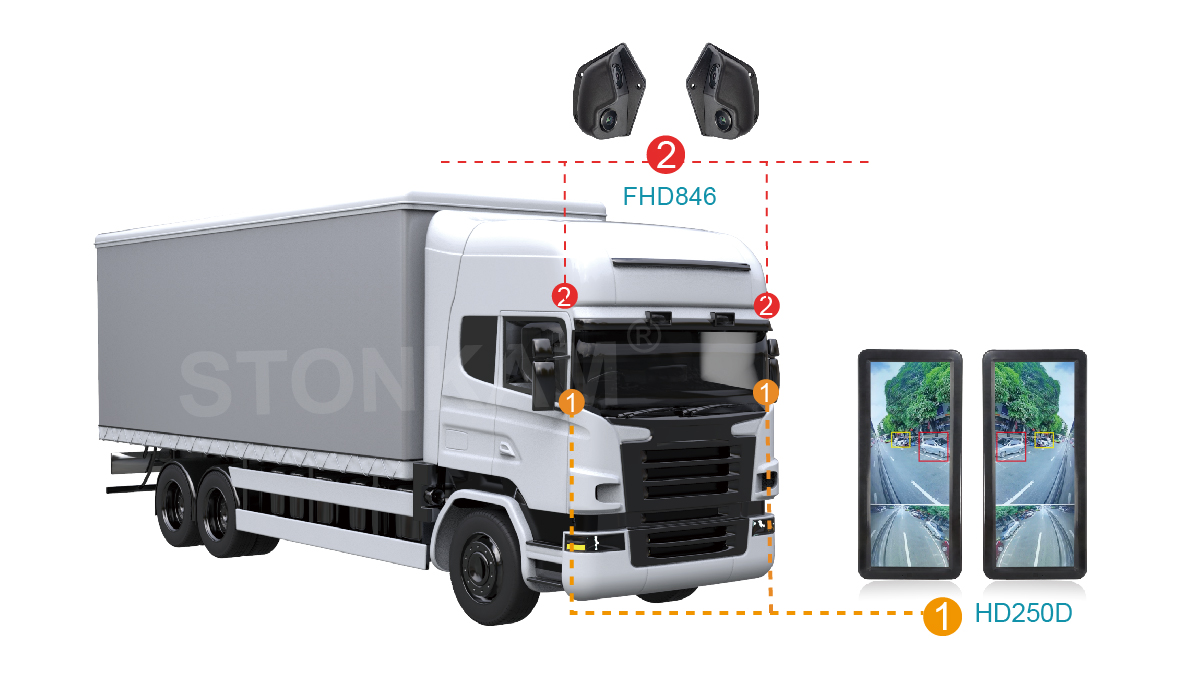

The system supports two 1080P camera inputs and displays the two camera inputs simultaneously in a vertically-split way. With this view, the driver will then be able to  see  the side view more clearly. The cameras provides the driver a wider viewing angle, tackling the problem of the traditional rearview mirror for having too much blind spots. This is indeed an initiative to improve driving safety, especially in a long trip.The electronic rearview mirror system can be perfectly integrated with the rearview system to achieve comprehensive vehicle monitoring.

Electronic Mirror Monitor





All-Weather Adaptability and Glare Prevention

When integrated with night-vision cameras, our electronic rearview mirror ensures clear night vision, addressing the poor visibility issue of traditional rearview mirrors. Placed inside the car, its surface remains clear after rain, snow, or fog, unlike traditional mirrors, significantly enhancing the rear view effect. Strong lighting from vehicles behind often causes reflections in traditional rearview mirrors, resulting in unclear rearview images. However, our electronic rearview mirror relies on digital camera signals rather than mirror imaging. This allows us to process strong light sources and rectify the glare problem. Furthermore, the WDR function enables the camera to better handle strong light contrasts.

Electronic Mirror Monitor for bus





Data security is guaranteed

ACC time-lapse recording;  super capacitor power-down protection, to prevent the loss of video data.

Electronic Mirror Monitor





Application

STONKAM® 12.3 inch High Definition Electronic Mirror Monitor can be easily applied to various vehicles for good vehicle surveilance.

rear view mirror camera

mirror monitor
