Supports up to 4-channel detection sensors, 5-meter detection range

STONKAM® 1080P visual and ultrasonic reversing radar system supports four channel of detection sensor input, with real time radar detection signals from front, rear, left, and right of the vehicle are transmitted to remind the driver of  obstacles and ensure driving safety.

High definition reverse display to assist safe parking with detection distance overlay in real time

Equipped with a 1080P high-definition in-vehicle camera, you can have real-time reverse image in hand, making it easy to reverse and park even when it is foggy or at night.

The alarming buzzer sends sound alarm

When it detects barriers, the buzzer will be automatically triggered to send sound alarming. The system has three optimal detection areas with different alarming sound: 0-0.6m, 0.6-1.5m and 1.5-3m, which can give drivers enough time to take reaction to make sure safe driving.

Voice announcement optional

The voice announcement optional with the detection range and distance broadcast to save drivers from checking the monitor.

Application

STONKAM® 1080P visual and ultrasonic reversing radar system is used to assist drivers to detect obstacles when reversing or parking, so as to avoid various accidents caused by blind spots. It is widely used in such commercial vehicles as buses, trucks, container trucks, garbage transporters and oil tanks, and also in non-road vehicles such as construction machinery and mining machinery.

Application scenario 1:

Due to the size of such vehicles like logistics transport trucks and engineering machineries, they have many blind spots. Moreover, such a heavy-duty vehicle is relatively difficult to operate, so the driver is prone to scratches and collisions when reversing or parking, resulting in traffic accidents. This system supports four channel of detection sensor input, can cover all the blind spots, fully detect obstacles encountered in the process of reversing, timely warn the driver of danger, and make sure safe driving.

Application scenario 2:

Buses, school buses and other vehicles often drive in crowded places, so they are very easy to collide and injure pedestrians when reversing and parking. This system, with a camera and four radar detectors, can visually show the obstacles and pedestrians that the driver may encounter in the process of reversing, provide the driver a better vision, greatly reduce the threat of blind spots.

Installation diagram

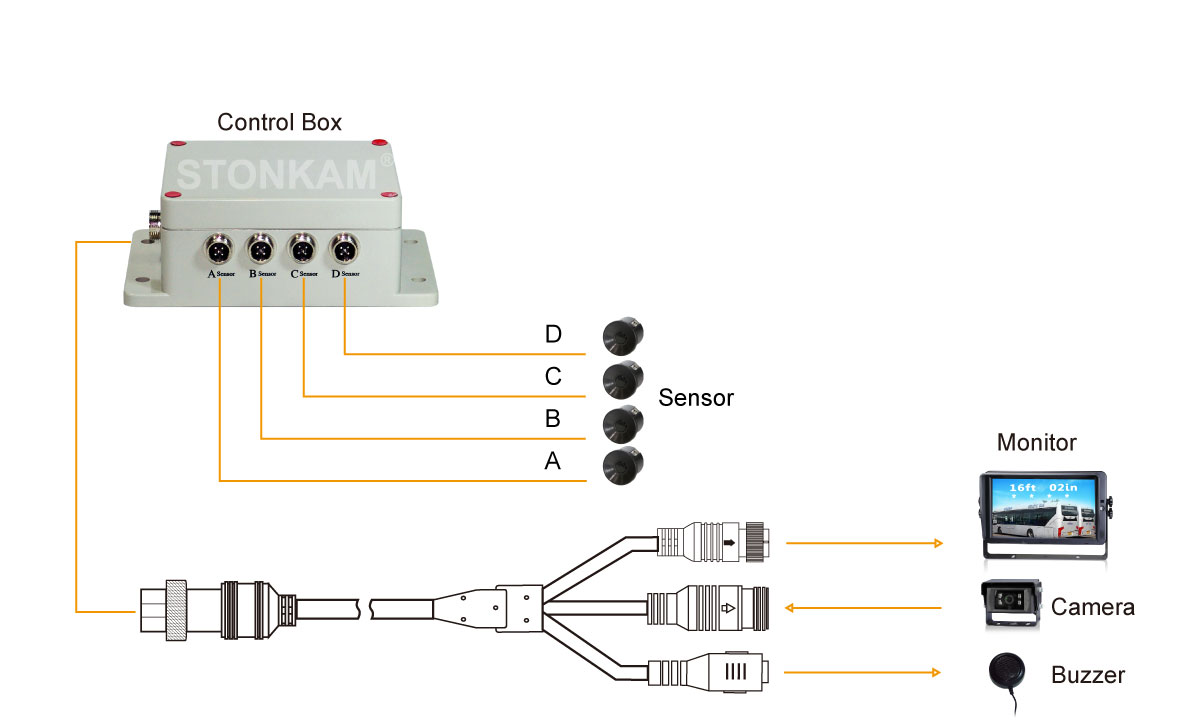

Connection
