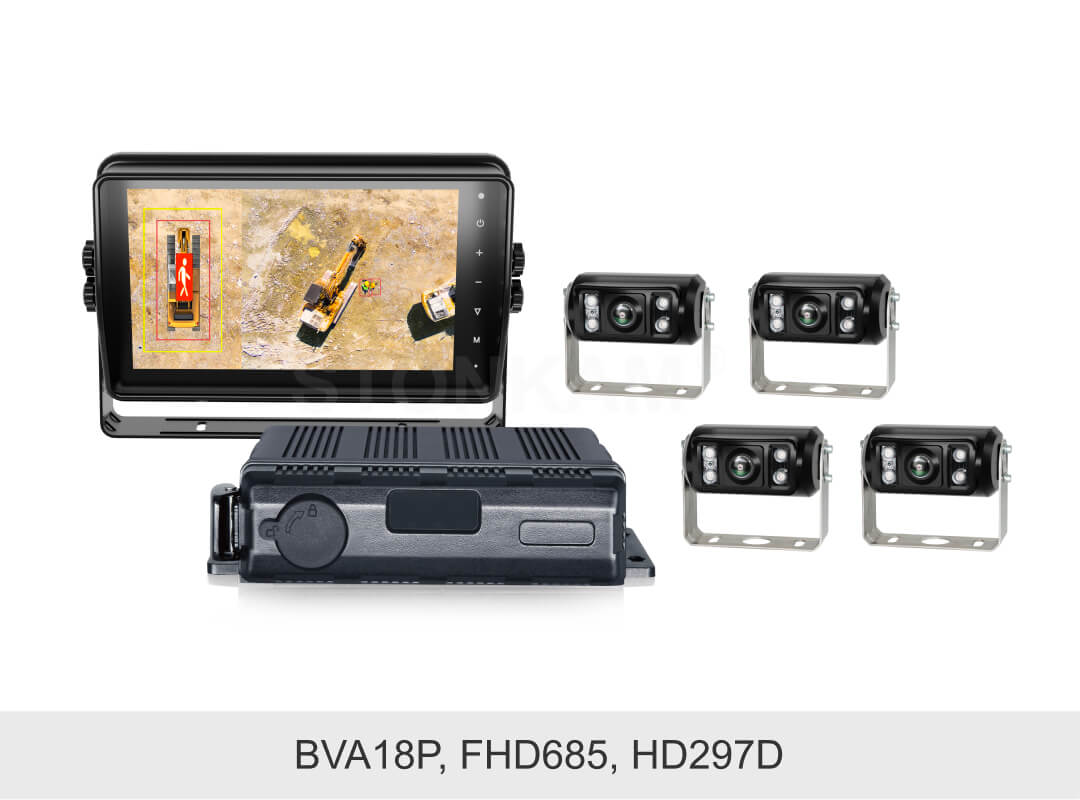

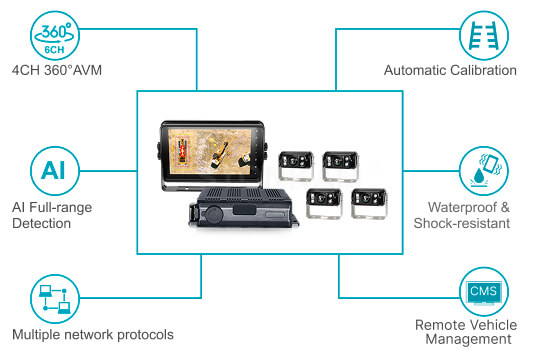

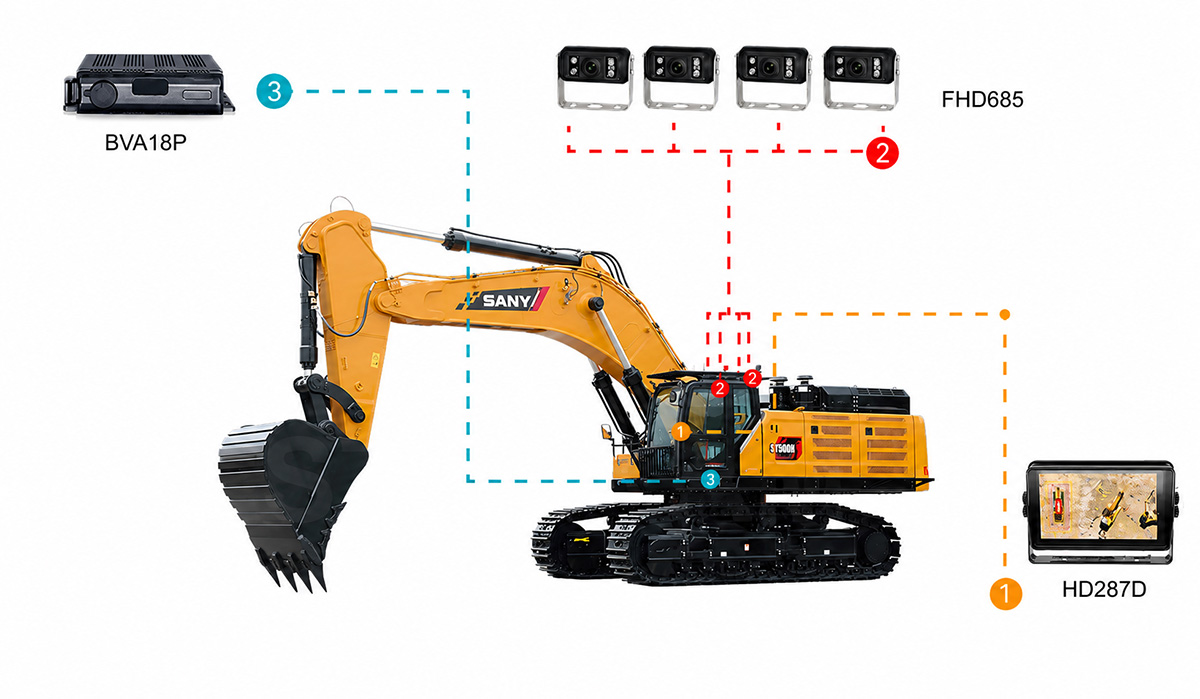

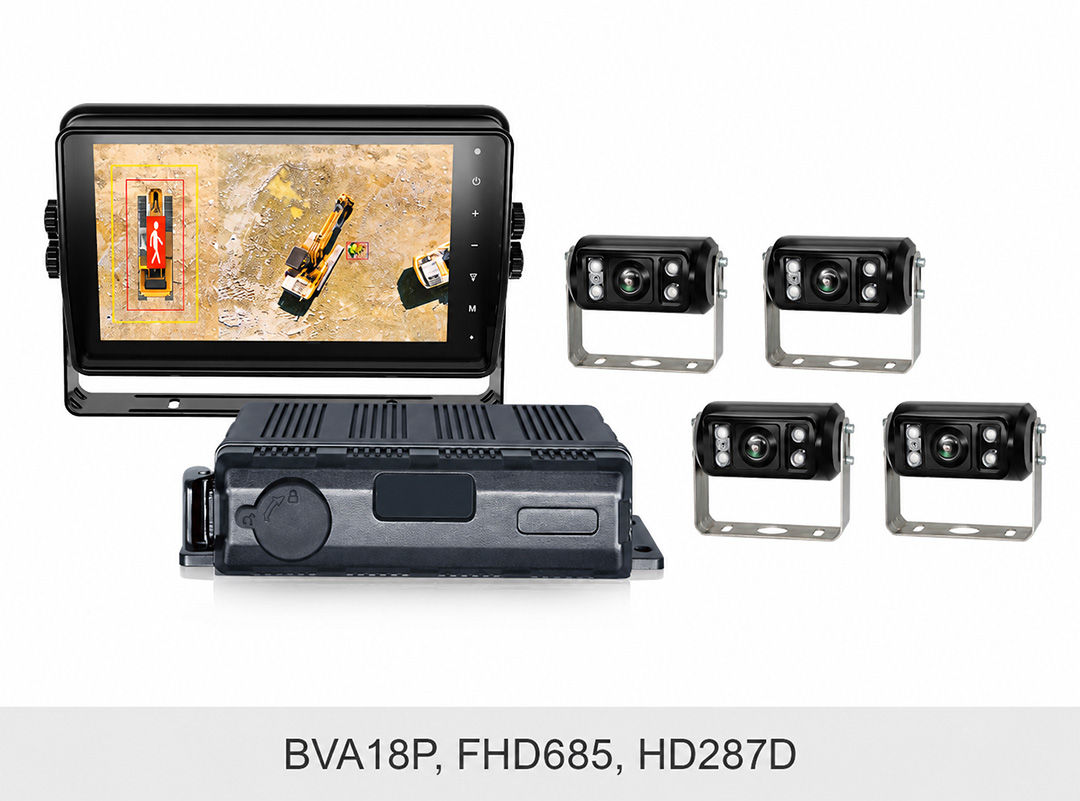

360 Degree Surround View Control box:

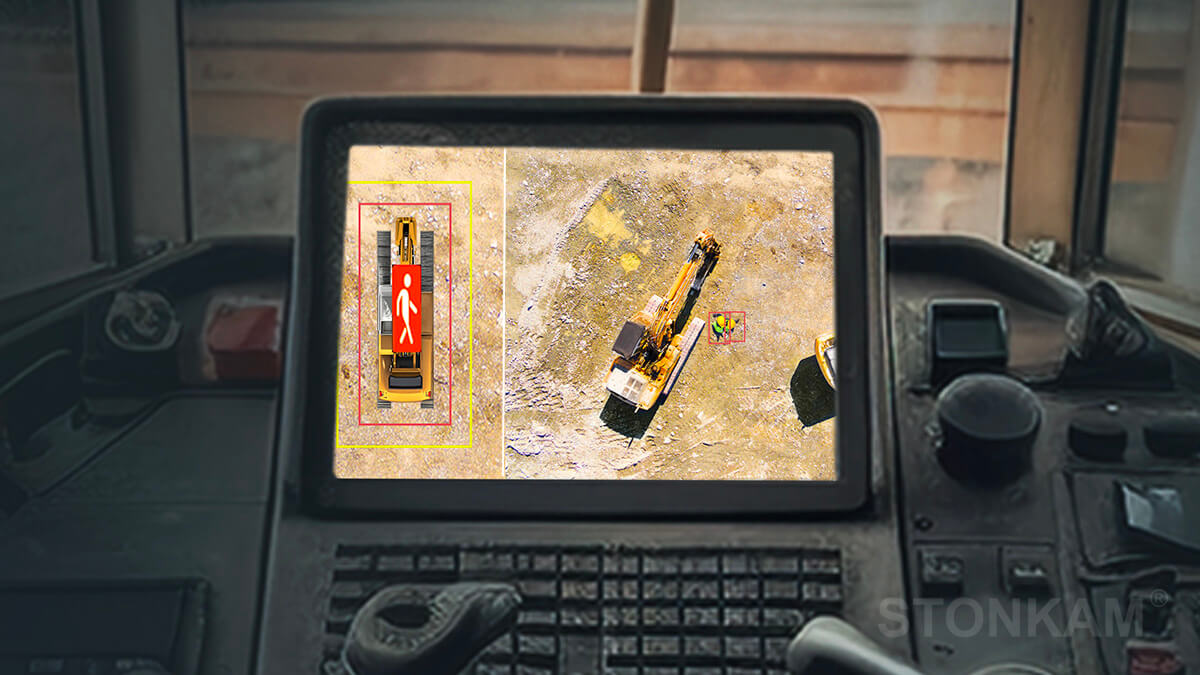

4CH 1080P image, 360° seamless splicing

The 4-channel ultra-wide-angle HD cameras seamlessly stitch together to achieve a true 360° panoramic bird's-eye view, providing blind-spot-free monitoring and helping to ensure safe excavator operations.

One-minute calibration

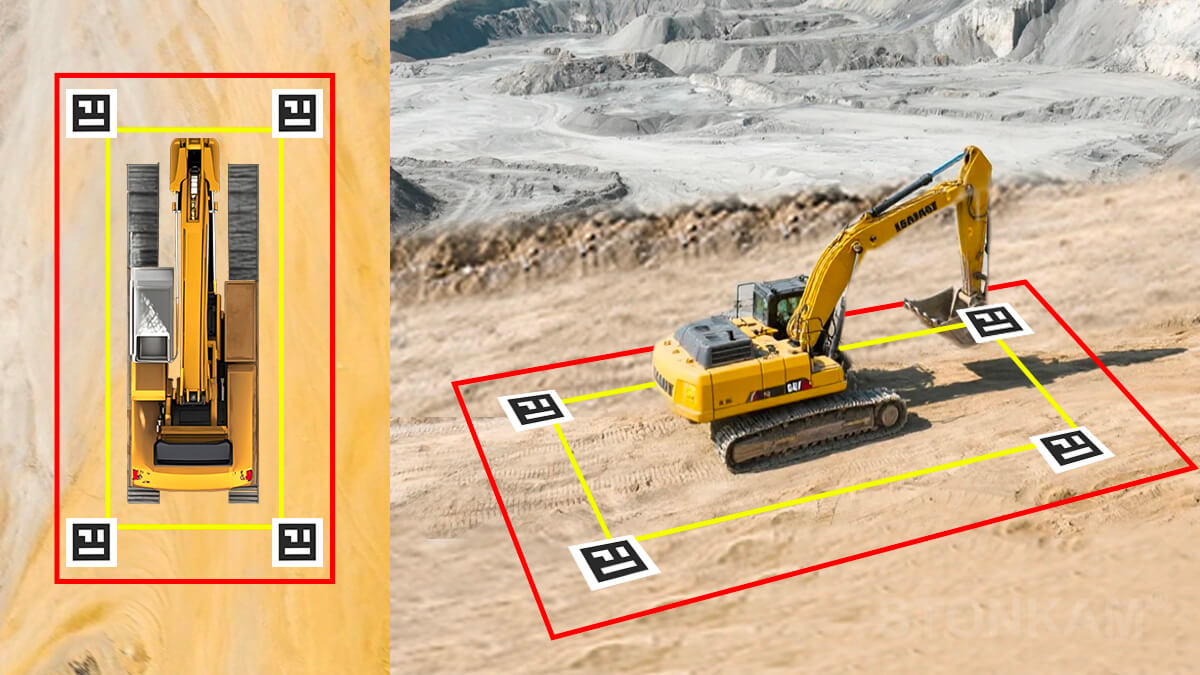

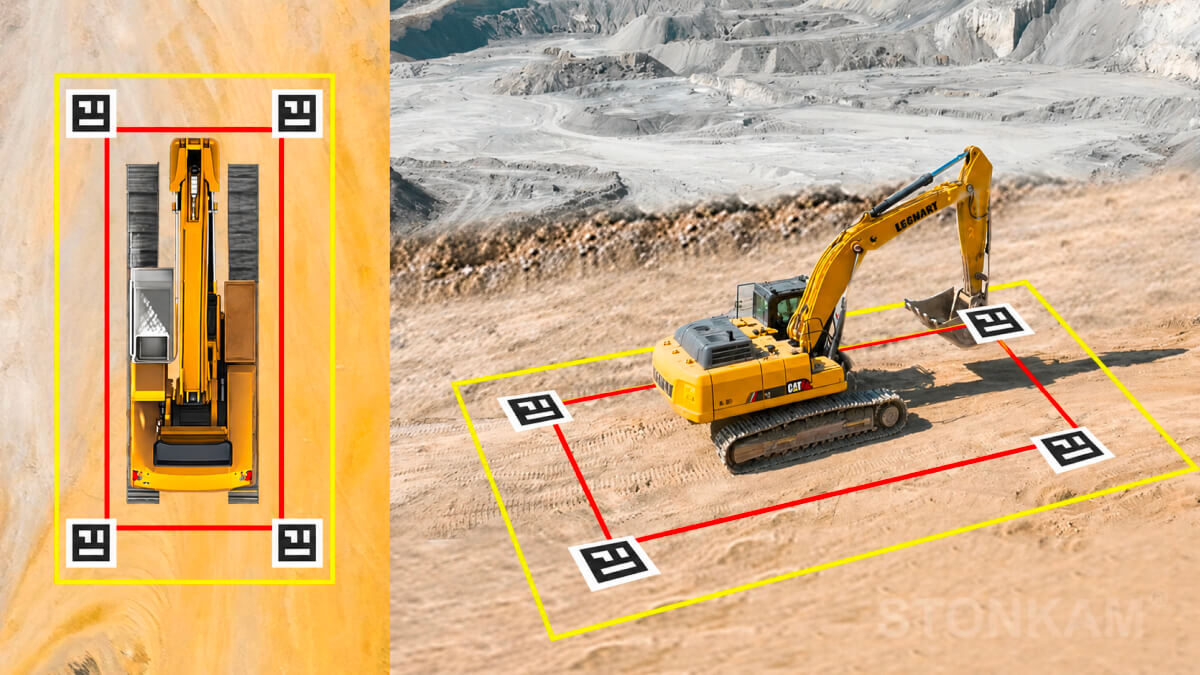

The 360 system comes with automatic calibration, which can be done in 1 minute through the touch screen or remote control. Only 4 calibration mats are needed, and they can be placed randomly to achieve accurate calibration.

Calibration of 4 channel surround view system

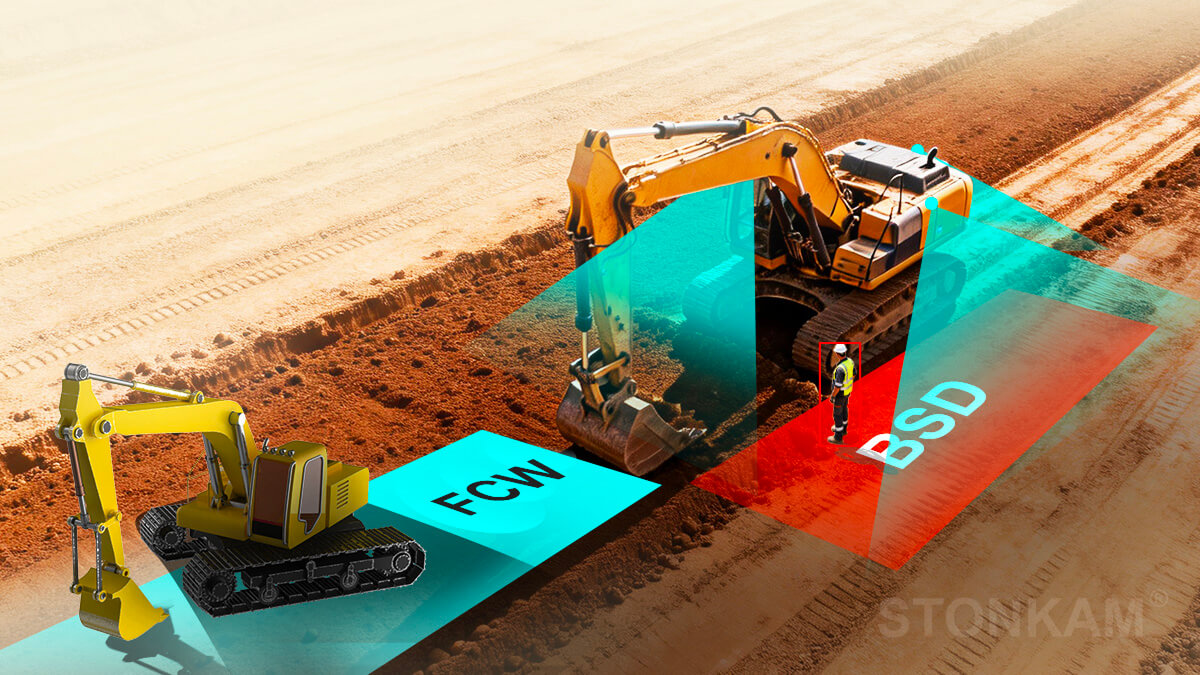

Supports FCW & BSD

FCW analyzes distance and relative speed to warn of rear-end collision risks in advance. BSD reliably detects pedestrians and vehicles on both sides, delivering stable performance in dynamic driving and complex lighting conditions.

Supports multiple network protocols

Supports network RTSP stream pulling, network touchscreen protocol/CAN touchscreen protocol. The 360° panoramic monitoring feed is displayed in real-time on the in-vehicle central control screen, enabling easy touch control via the central control program.

Remote vehicle management

The system connects to a platform via 4G network for remote vehicle management. It supports automatic alarm video uploads and remote viewing, allowing managers to respond promptly and make informed decisions. It also facilitates accident traceability, driver behavior analysis, and safety training, enhancing fleet operation efficiency.

Optional touchscreen, supports integration with GPS, radar, and DMS monitoring systems

Applications

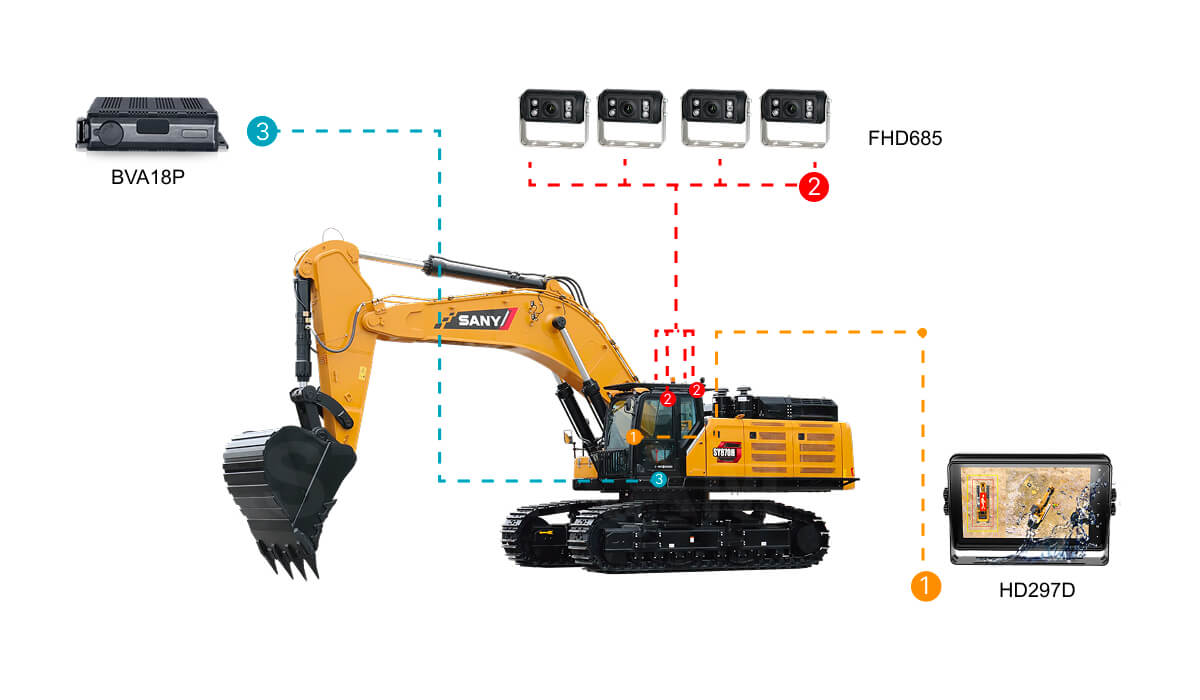

STONKAM  Heavy Equipment & Excavator 360-Degree Around View Monitor System offers HD imaging, intelligent 360° stitching, AI full-ruage detection, and high system compatibility, ensuring safety and operational support for engineering vehicles and excavators.
