10.1-inch HD Vehicle Wireless Monitor

HDW295B

STONKAM 10.1-inch HD digital wireless quad-split monitoring display features wireless connection and easy installation, and supports both video recording and touch screen functions. The open transmission distance is up to 984ft, and the signal is stable and anti-interference. It can be combined with HD wireless cameras to form a perfect HD digital wireless monitoring system, especially suitable for trucks, forklifts, excavators, etc.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

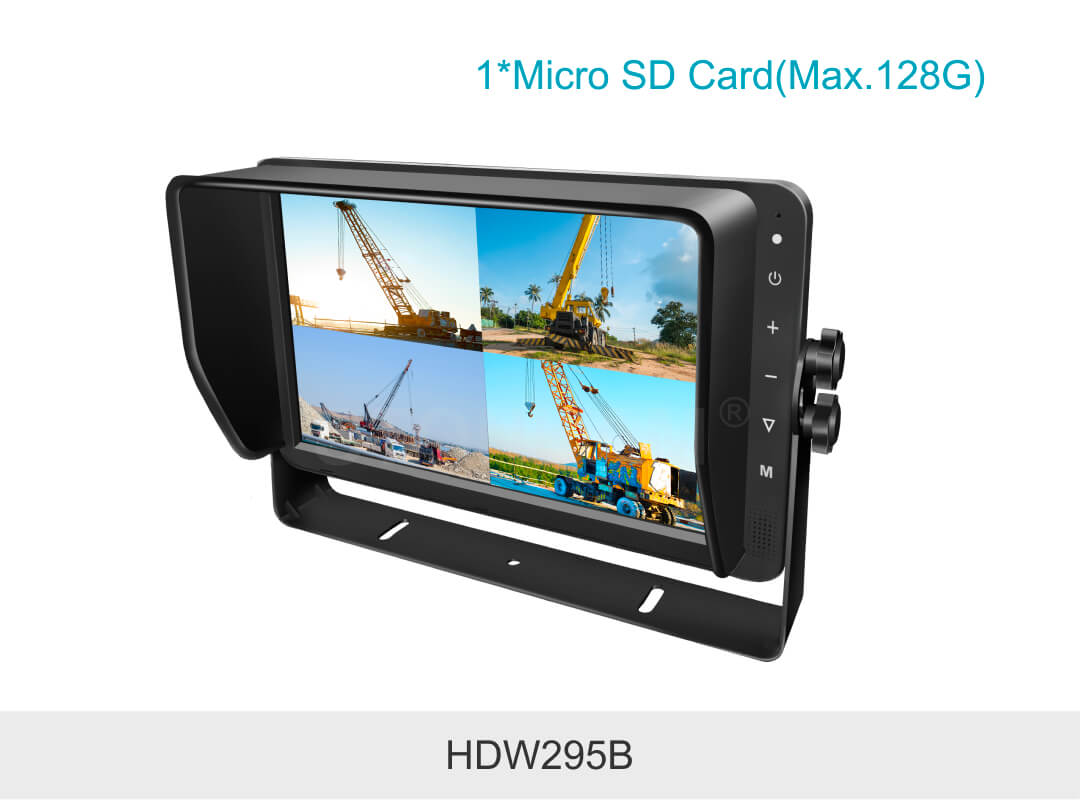

【Recording function】4-channel loop recording function, supporting local playback recording, Micro SD card can store up to 128G.

【Touch screen optional】 The operation is more convenient, simple and quick, more durable and smoother, and the service life is prolonged.

【Transmission distance up to 984ft】 The open transmission distance is as far as 984ft, and the signal is stable and anti-jamming. Even in high-speed or long-distance operation, the monitor will display the surrounding environment in real time, making your driving or operation more convenient without interference, flicker, blur or delay.

【Automatic pair】 Manual and automatic pair are supported, and the setting is quick and simple. After pairing, you only need to connect the power supply in the vehicle to work.

【4-channel monitoring system】 A variety of monitors modes, quad view, double view and single view to meet various monitoring needs and reduce blind spots

【Reverse cursor】The reverse cursor can be adjusted in any position and can be used for parking and reversing without relying on the rear view mirror alone.

LCD Dimension	10.1"
Resolution	1024x 3 (RGB) x600
Contrast	700:1
Brightness	600cd/m²
Viewing Angle	U:85 / D:85, R/L:85
Pixel Size	0.1506(W) x 0.1432(H)
Aspect Ratio	16:9
Channel	4 CH
Operating Frequency	2408MHz ~ 2478MHz(ISM band)
Receiving Sensitivity	-78dBm
Transmitting Distance	Max. 300m
Decompression Form	H.264
Modulation	FHSS
Delay	Min. 130ms
Storage	Micro SD Card, up to 128G
System Format	PAL / NTSC
Power Supply	DC 10-32V
Power Consumption	Max.10W
Loudspeaker	1.5W/8Ω
Operating Temp. & Humidity	-20~+70ºC,RH90%MAX
Storage Temp. & Humidity	-30~+80ºC,RH90%MAX

What are the benefits of STONKAM® 10.1-inch HD Wireless Vehicle Monitoring System?

All-round recording, safe storage

Equipped with 4-channel video recording function, it supports up to 128GB Micro SD card. Playing back of the recording is available on the monitor, making it easy to view and review records at any time. It supports super capacitor power-down save function, which can retain the video recording data even in the case of power-down to ensure that the key information is safe.

Wireless vehicle monitoring equipment

Touch screen optional and easy operation

Touch screen optional

Strong anti-interference ability, transmission distance in open area up to 984ft

The operating frequency is 2408-2478MHz and it adopts frequency hopping technology to ensure the secrecy of communication and anti-interference. With transmission distance in open area up to 300meters(984ft), even under high speed or long-distance operation, the monitor will show the surrounding environment in real time without interference, flickering, blurring or delay, which makes driving and operation more convenient.

Wireless vehicle monitor

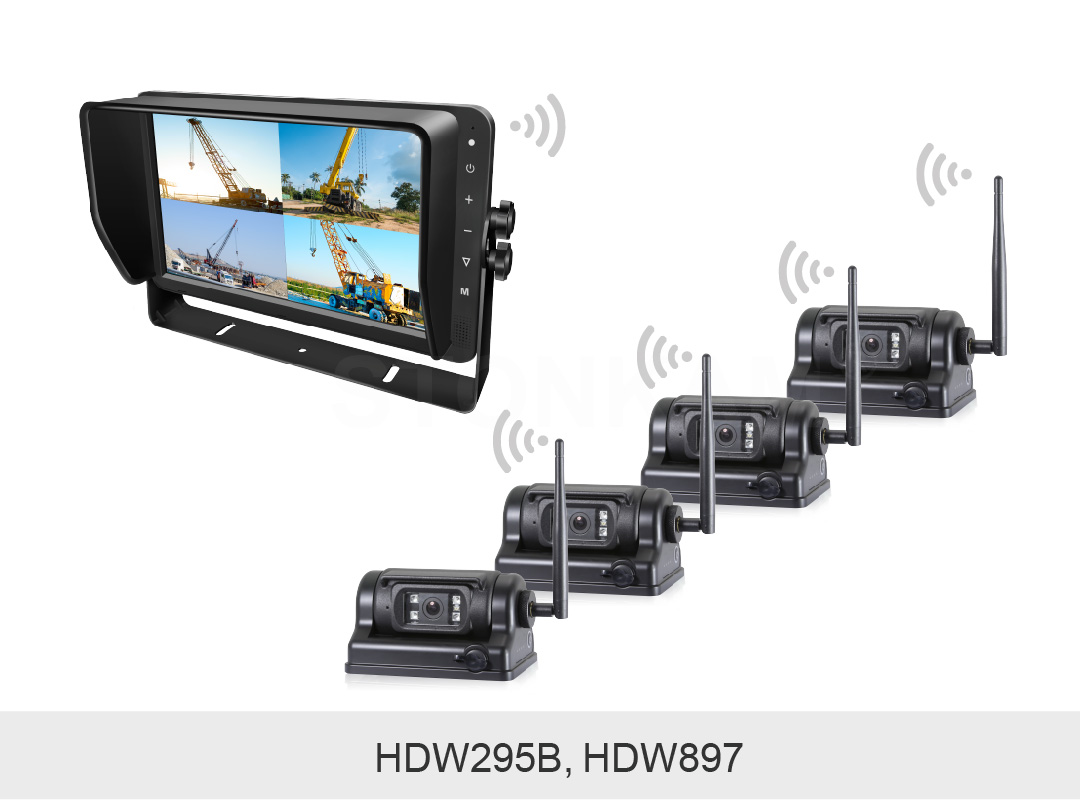

Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

wireless monitor and wireless camera

Support multiple display modes, such as quad-view mode, split-view mode, single view mode.

The channels for the quad-view and split-view can be set flexibly.

Wireless vehicle monitoring kit

Multiple Application Scenarios

With top grade high quality, STONKAM® HD Digital Wireless Vehicle Monitor System can be applied to various vehicles, such as forklift, crane, harvester, etc.


Harvester	Excavator

Farm	Forklift

Crane	Planter

Applications

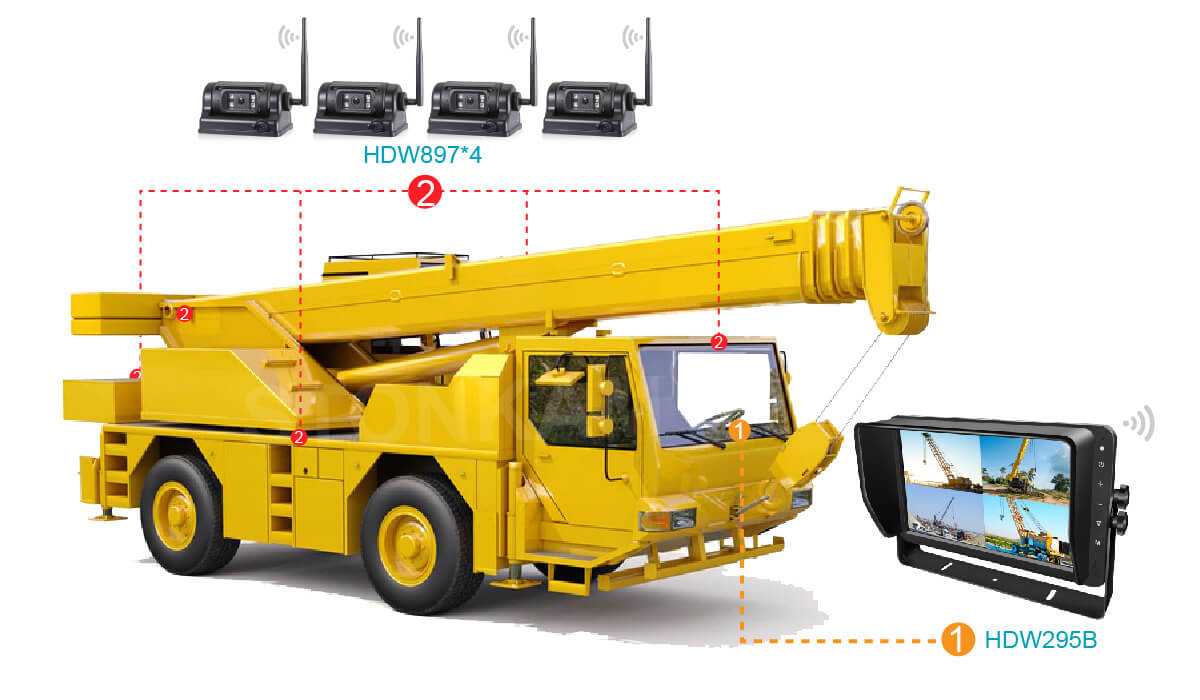

The 10.1-inch HD Vehicle Wireless Monitor requires no wiring. Through simple installation, it can be applied to a variety of vehicles such as trucks, forklifts, excavators, cranes, etc..

Wireless Vehicle Monitor System

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

【Recording function】4-channel loop recording function, supporting local playback recording, Micro SD card can store up to 128G.

【Touch screen optional】 The operation is more convenient, simple and quick, more durable and smoother, and the service life is prolonged.

【Automatic pair】 Manual and automatic pair are supported, and the setting is quick and simple. After pairing, you only need to connect the power supply in the vehicle to work.

【4-channel monitoring system】 A variety of monitors modes, quad view, double view and single view to meet various monitoring needs and reduce blind spots

【Reverse cursor】The reverse cursor can be adjusted in any position and can be used for parking and reversing without relying on the rear view mirror alone.

LCD Dimension

10.1"

Resolution

1024x 3 (RGB) x600

Contrast

700:1

Brightness

600cd/m²

Viewing Angle

U:85 / D:85, R/L:85

Pixel Size

0.1506(W) x 0.1432(H)

Aspect Ratio

16:9

Channel

4 CH

Operating Frequency

2408MHz ~ 2478MHz(ISM band)

Receiving Sensitivity

-78dBm

Transmitting Distance

Max. 300m

Decompression Form

H.264

Modulation

FHSS

Delay

Min. 130ms

Storage

Micro SD Card, up to 128G

System Format

PAL / NTSC

Power Supply

DC 10-32V

Power Consumption

Max.10W

Loudspeaker

1.5W/8Ω

Operating Temp. & Humidity

-20~+70ºC,RH90%MAX

Storage Temp. & Humidity

-30~+80ºC,RH90%MAX

What are the benefits of STONKAM® 10.1-inch HD Wireless Vehicle Monitoring System?

All-round recording, safe storage

Touch screen optional and easy operation

Strong anti-interference ability, transmission distance in open area up to 984ft

Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

The channels for the quad-view and split-view can be set flexibly.

Multiple Application Scenarios

With top grade high quality, STONKAM® HD Digital Wireless Vehicle Monitor System can be applied to various vehicles, such as forklift, crane, harvester, etc.

Harvester

Excavator

Farm

Forklift

Crane

Applications

The 10.1-inch HD Vehicle Wireless Monitor requires no wiring. Through simple installation, it can be applied to a variety of vehicles such as trucks, forklifts, excavators, cranes, etc..
