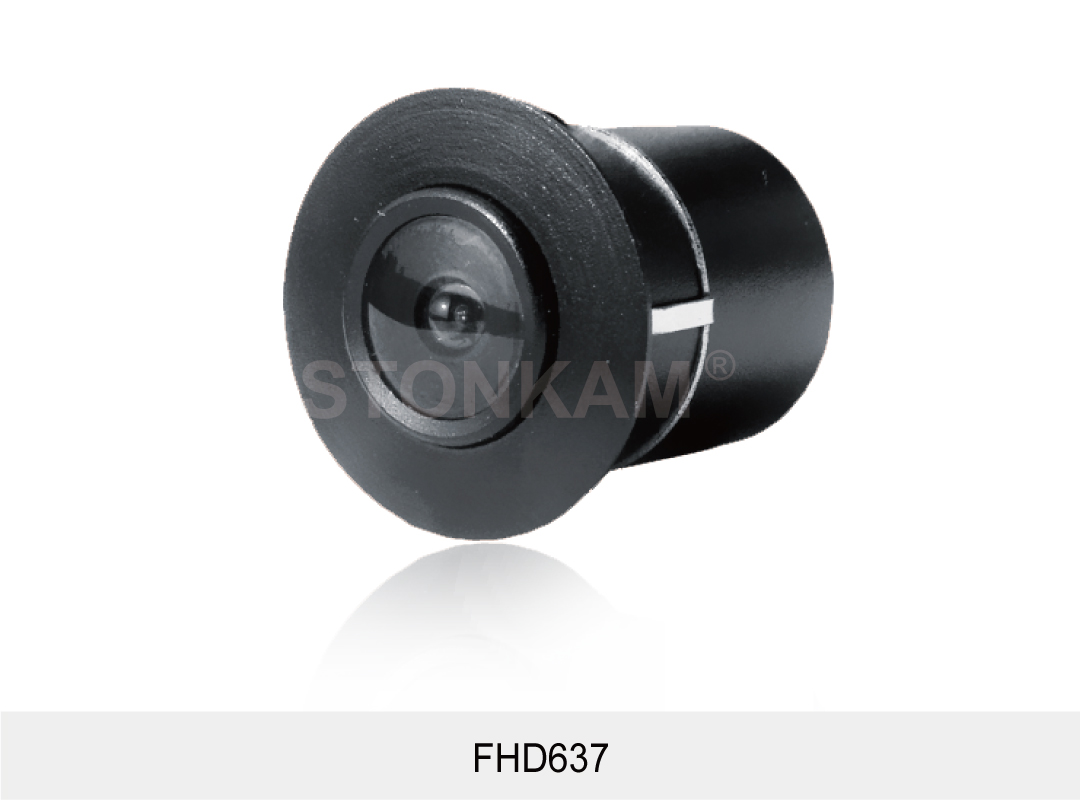

1080P Super Wide Angle Waterproof Mini Camera

1080P Super Wide Angle Waterproof Mini Camera

FHD637

STONKAM® 1080P Super Wide Angle Waterproof Mini Camera is good for use when reversing which can help the driver see the rear view of the vehicle. The camera is IP69K waterproof and has Anti-vibration.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

1080P high definition
IP69K waterproof
Anti-vibration:ISO 16750-3 2012 (5.9G)
Wide power suppy: DC power 12V
Working temperature:-20℃~+70℃
Wide viewing angle:170°

Effective Pixels	1920 (H) X 1080 (V)
Pixel Size	2.8um×2.8um
Scanning System	Progressive Scanning
Sync. System	Internal
Video Output	0.9 Vp-p, 75Ohm
Gamma Consumption	0.45
AGC	Auto
Signal to Noise Ratio	S/N(a-weighted) 38dB
White Balance	Auto
BLC	Auto
Frame Rate	25/30fps
Operating Temp. & Humidity	–20℃ ~ 70℃, RH95%MAX.
Storage Temp. & Humidity	–30℃ ~ 80℃, RH95%MAX.
Minimum Illumination	0.1Lux
Power Supply	DC12V
Waterproof Rating	IP69K
Audio	No
Lens	f =1.98 mm
Viewing Angle	170°

IP69K Waterproof rated; weatherproof, suitable for outdoor use

Super mini

Tiny in size, easy for installation.

Ultra-wide angle 170°

The super-wide viewing angle can effectively enlarge the driver’s view, enabling the driver to get the situation behind the vehicle, so as to reduce the traffic accidents caused by blind spots.

Applications

STONKAM® 1080P Super Wide Angle Waterproof Mini Camera can be applied to vehicles by easy installation.

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

1080P high definition

IP69K waterproof

Anti-vibration:ISO 16750-3 2012 (5.9G)

Wide power suppy: DC power 12V

Working temperature:-20℃~+70℃

Wide viewing angle:170°

Effective Pixels

1920 (H) X 1080 (V)

Pixel Size

2.8um×2.8um

Scanning System

Progressive Scanning

Sync. System

Internal

Video Output

0.9 Vp-p, 75Ohm

Gamma Consumption

0.45

AGC

Auto

Signal to Noise Ratio

S/N(a-weighted) 38dB

White Balance

Auto

BLC

Auto

Frame Rate

25/30fps

Operating Temp. & Humidity

–20℃ ~ 70℃, RH95%MAX.

Storage Temp. & Humidity

–30℃ ~ 80℃, RH95%MAX.

Minimum Illumination

0.1Lux

Power Supply

DC12V

Waterproof Rating

IP69K

Audio

No

Lens

f =1.98 mm

Viewing Angle

170°

IP69K Waterproof rated; weatherproof, suitable for outdoor use

Super mini

Tiny in size, easy for installation.

Ultra-wide angle 170°

The super-wide viewing angle can effectively enlarge the driver’s view, enabling the driver to get the situation behind the vehicle, so as to reduce the traffic accidents caused by blind spots.

Applications

STONKAM® 1080P Super Wide Angle Waterproof Mini Camera can be applied to vehicles by easy installation.

Eg.for truck

Eg.for car
