Waterproof 1080P 4 Channel MDVR System
(Model:DV-428, HD-263D, FHD-228, FHD-410, FHD-656)

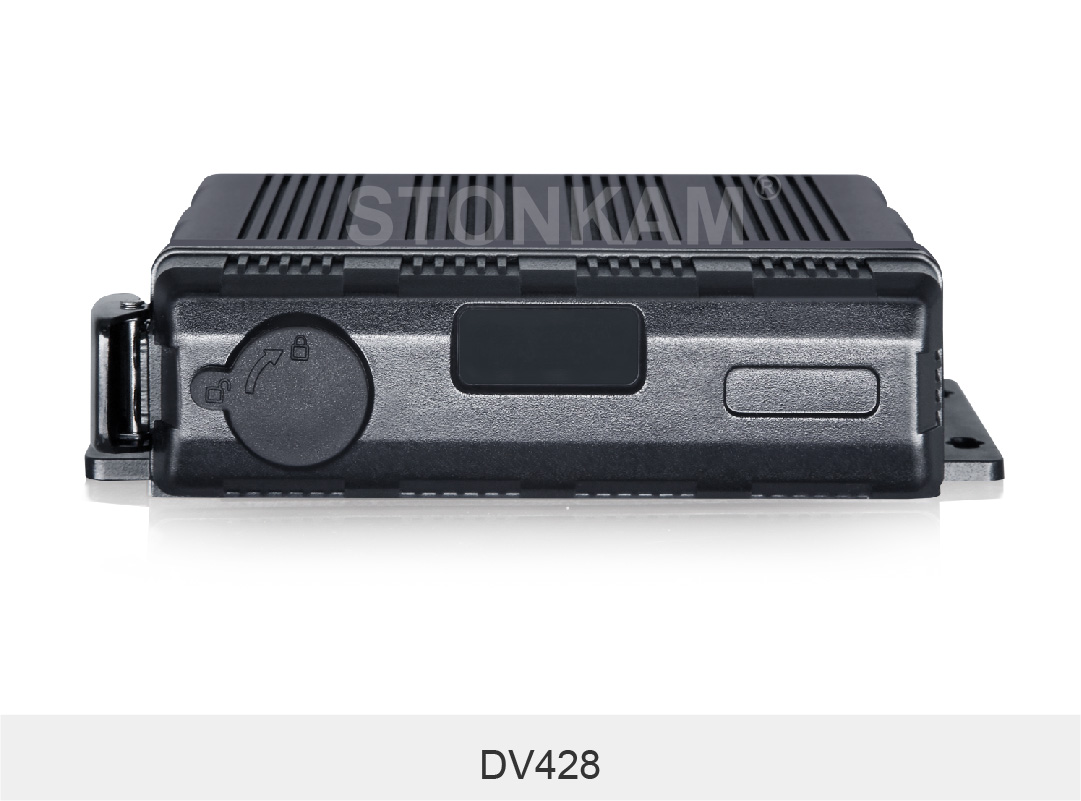

Waterproof 1080P 4 Channel MDVR System
Features

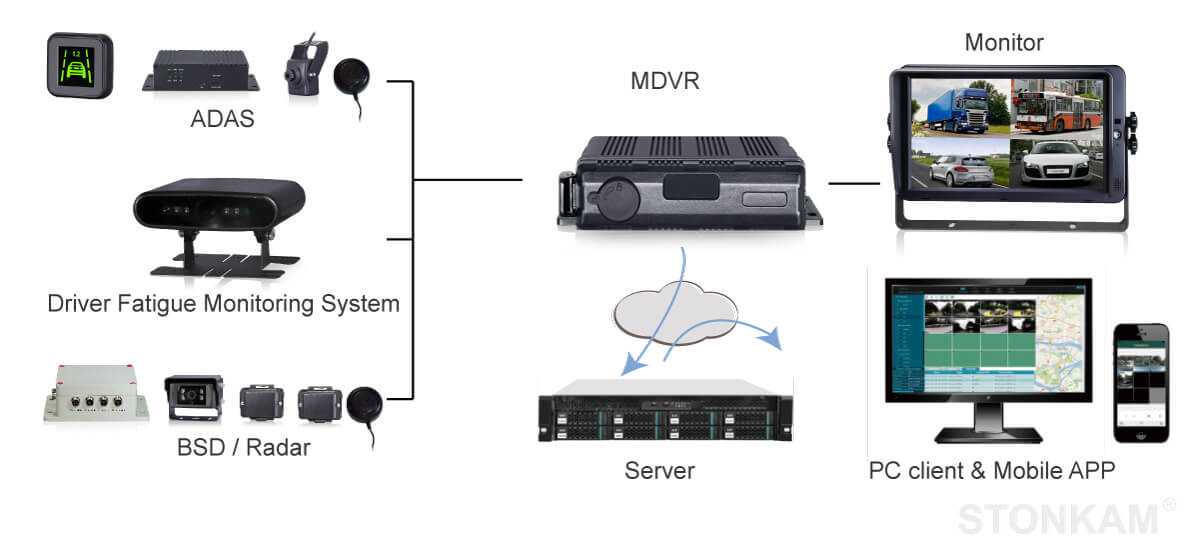

STONKAM® IP69K Waterproof MDVR System enables real-time remote monitoring, and can work with our ADAS and Driver Status Monitoring System for effective vehicle surveillance and fleet management. (Contact for details). Click to see more MDVR Systems.


  • This mobile DVR supports 4 channel AHD 1080P input and High Definition VGA output
  • 4x1080P, 4x720P, 4xD1 and 4 mixed-resolution recording, with 10 seconds pre-recording function
  • Multiple recording modes: Power on recording, scheduled recording, motion trigger recording, G-sensor trigger recording, over-speeding trigger recording, 6-channel customized alarm input trigger recording, panic button recording
  • 3G/4G/WIFI/GPS tracking and G-sensor nine-axis acceleration sensor technology
  • Real-time remote monitoring; support CMS server, Amazon Cloud server, iOS, Android and Windows Client
  • With WiFi station and AP mode; AP mode can support that mobile directly connects to device for easy preview and configuration at mobile terminal by WebUI
  • Automatically upload data for remotely intelligent data analysis and management, including data: alarm recording, alarm information, log information, GPS trajectory, real-time videos and images
  • Support Max.4 x 128GB SD card for data storage
  • Support sub-stream and HD jpeg pictures network transmission

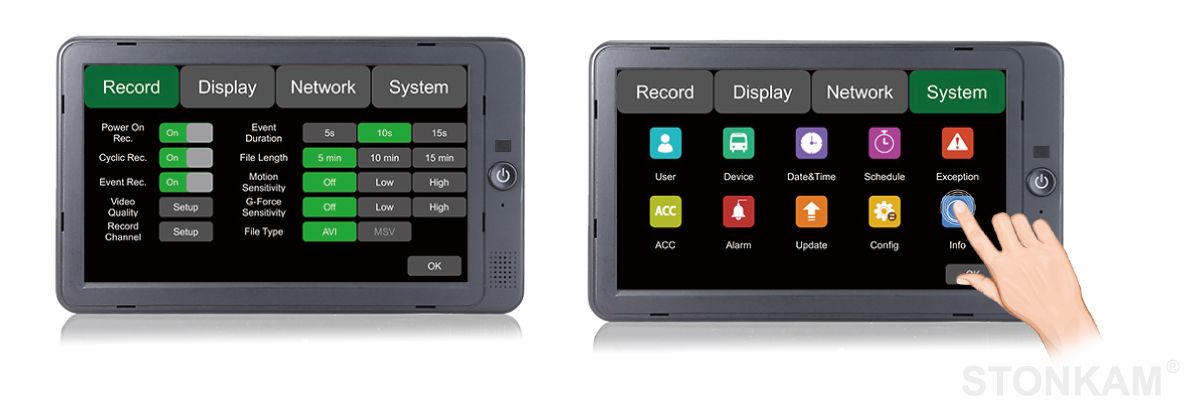

  • Operated by high definition touch-screen and infrared remote control
  • Well protected by super-capacitor
  • IP69K Waterproof and MIL-STD 810G shockproof

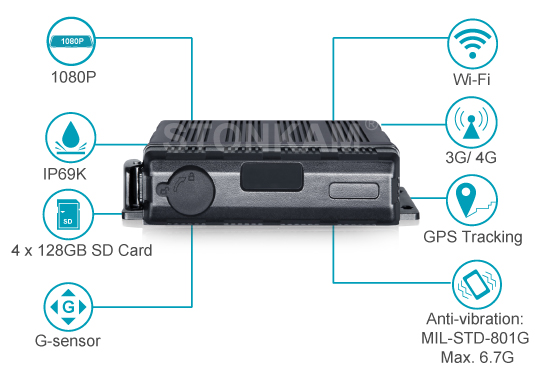

  • STONKAM® IP69K Waterproof MDVR System-Features


Specification


System

Operating system

Linux

Operating interface

Graphical menu operation interface(OSD)

Video permission

Administrator & user setting

Video

Video input

Max 4ch 1080P analog high definition

CVBS output

1CH 6pin aviation connector output PAL/NSTC

VGA output

1CH VGA connector output, 1080P

Video display

1 or 4 CH

Video standard

PAL: 25FPS, NTSC: 30FPS

Compression

H.264 main profile

Total resources

1080P  PAL: 100FPS, NTSC: 120FPS

Audio

Audio input

4 channels

Audio output

2 channels

Record format

Synchronized video & audio recording

Audio compression

ADPCM

Digital processing & storage

Video resolution

4*1080P(1920*1080)

Video bit rate

512kbps~6Mbps/channel

Storage

224~2700MB/(channel*hour)

Playback resolution

4*1080P (encoding & decoding at the same time)

Audio bit rate

32kbps

Storage

4CH SD card (Max4 x 128GB)

Alarm

Alarm input

6 channels

Alarm output

2 channels

Motion detection

OFF/LOW/HIGH

Interface for communication

IR

1 channel

RS232

1 channel

RS485

1 channel

RJ45

1 channel

USB2.0

1 channel for file backup and firmware upgrade

CAN

2 channel

Wireless

3G/4G

HSPDA/EVDO/FDD-LTE/TDD-LTE module optional

WIFI

optional

WIFI hotspot/AP

optional

GPS

Internal GPS/GLONASS module, coordinate/speed  can be encoded in video stream and upload to server by wireless communication

G-Sensor/Gyroscope

G-Sensor and Gyroscope

Software

Windows client

Available

iOS client

Available

Android client

Available

Web portal

Available

Power

Input

10~32V

Output

12V@3.5A

Max Power Consumption

60W

Standby Power Consumption

100mW

Electrical spec

Operating temp & humidity

-2070 degree / < 100%

Clock

Built-in clock, Calendar

Super Capacitor

Available

Video input impedance

75ohm

Video output voltage

1Vpp CVBS output




Are You Always Wondering...




  • How to get a perfect fleet management solution?
  • How to quickly know whether the driver drives illegally?
  • How to quickly provide evidence for traffic accident, theft, racketeering, etc.? ……

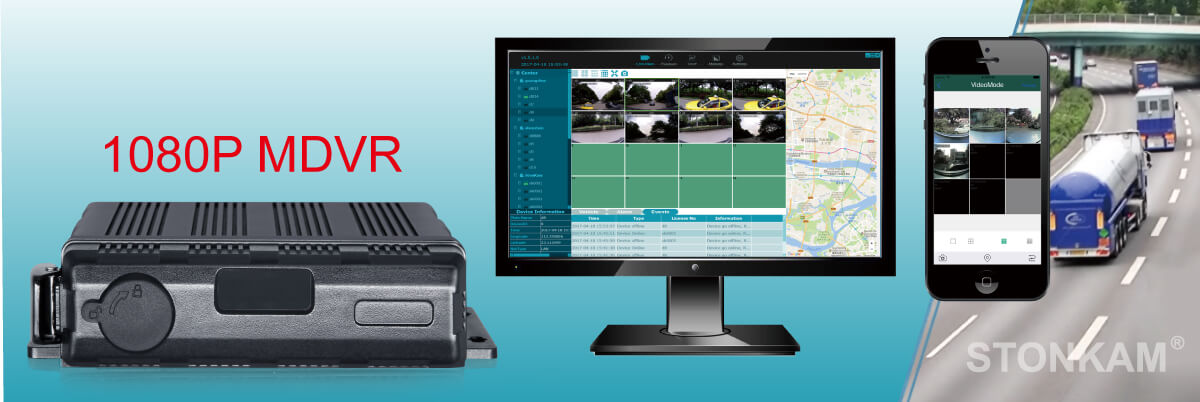

STONKAM® 1080P MDVR System-The Necessity



STONKAM® 1080P Vehicle MDVR System can solve your worries!

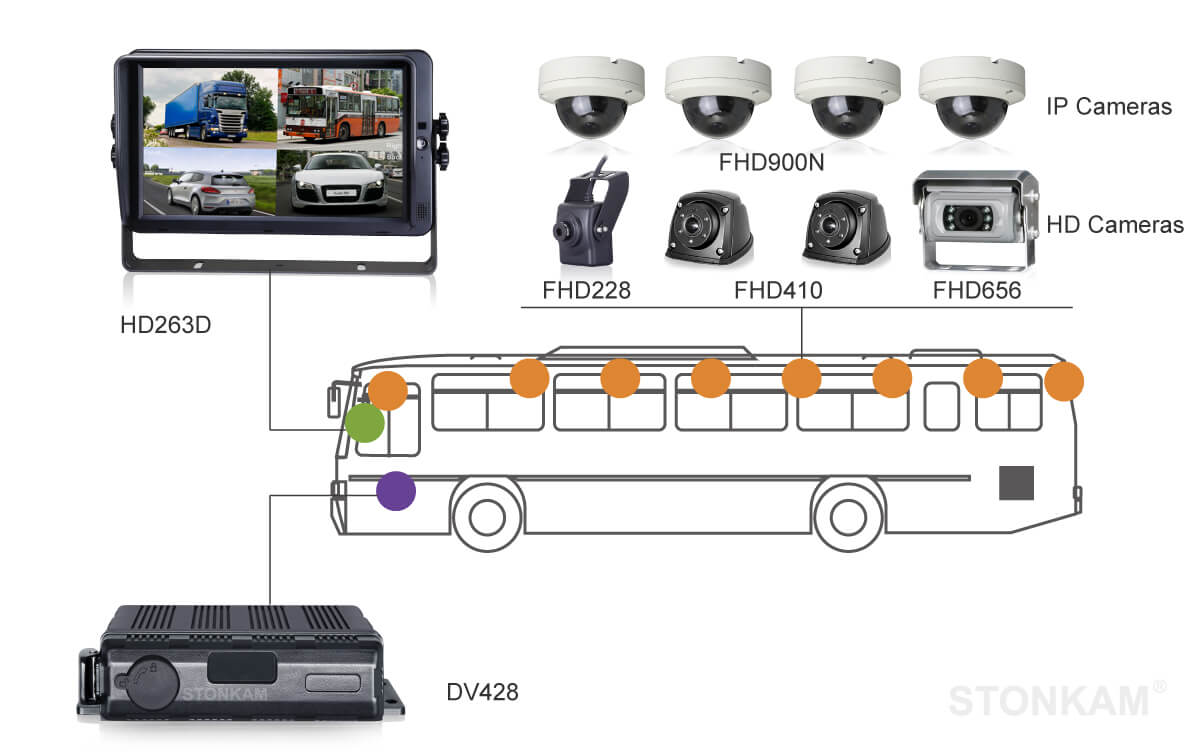

STONKAM® 4 Channel 1080P Bus DVR System


Professional 4 Channel MDVR system for effective fleet management

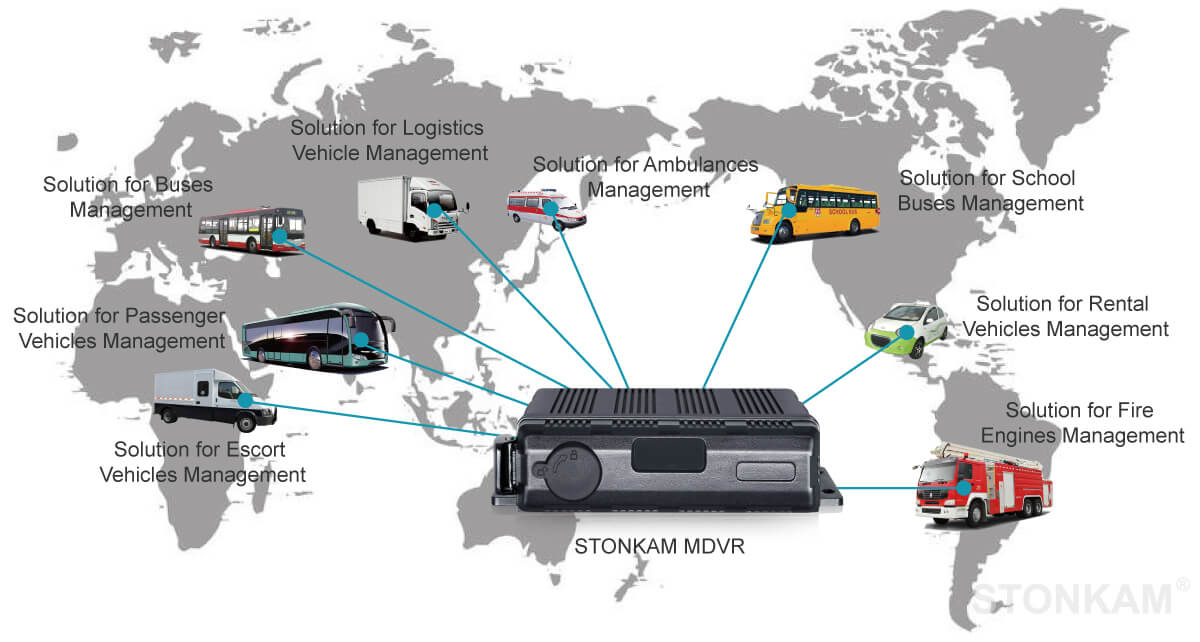

It’s designed for various vehicles management, and widely used in buses, coaches, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.

STONKAM® Professional 4CH Waterproof MDVR System for Effective Fleet Management

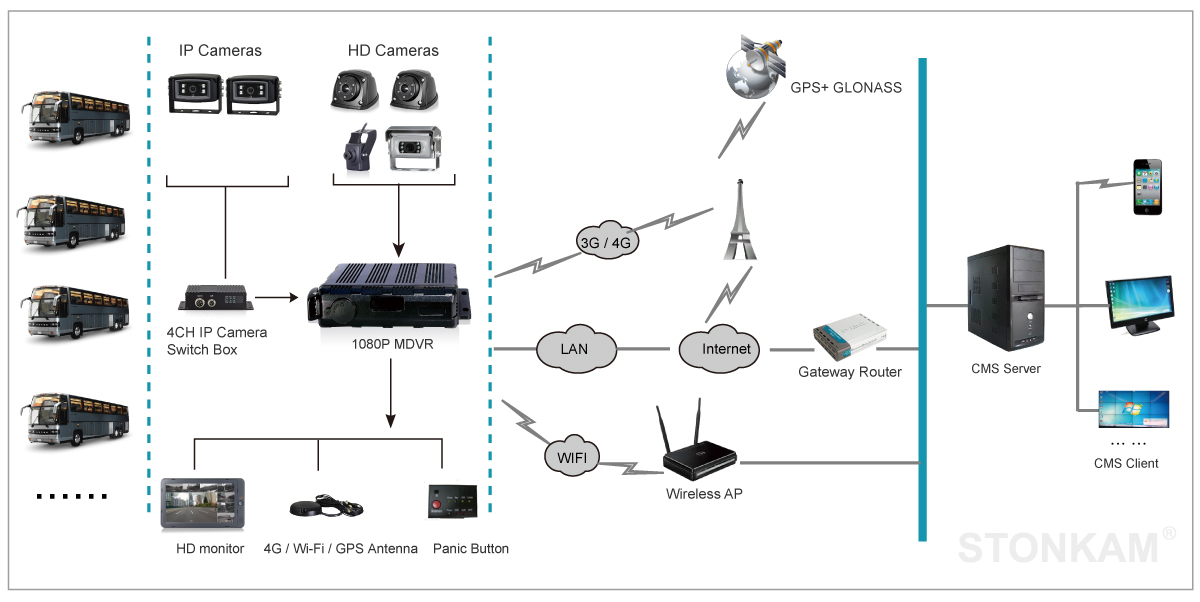

Achieve remote monitoring by MDVR GPS tracking/ 3G/ 4G/ WiFi, convenient vehicle management on PC/ Mobile phone

Users can remotely manage and dispatch all vehicles through their mobile phones or computers via Windows Client, iOS and Android APP. The MDVR supports real-time positioning, historical trajectory, file download and playback, electronic fence and other special features.

STONKAM® 4 Channel MDVR System-Support GPS tracking/ 3G/ 4G/ WiFi


STONKAM® 4 Channel MDVR System-Easy Remote Monitoring on PC/ Mobile Phone



Detailed Features of STONKAM® 1080P Vehicle MDVR System


  1

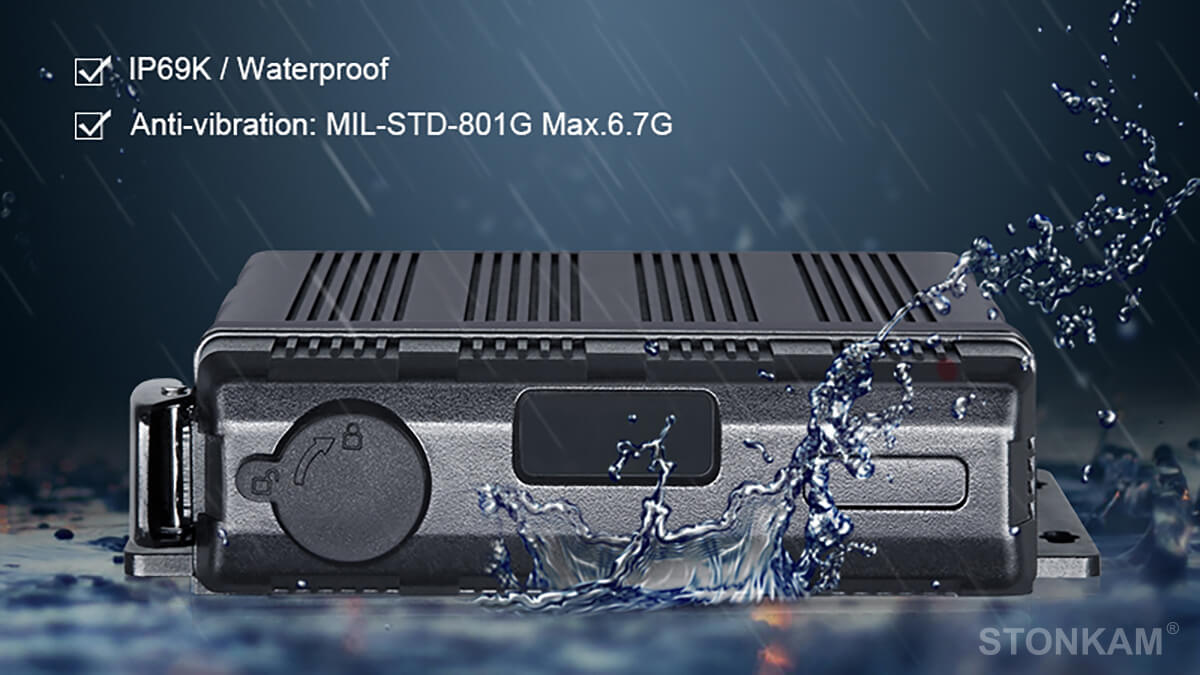

IP69K Waterproof and MIL-STD 810G shockproof MDVR to protect your data well

STONKAM® Shockproof and IP69K Waterproof MDVR System



  2

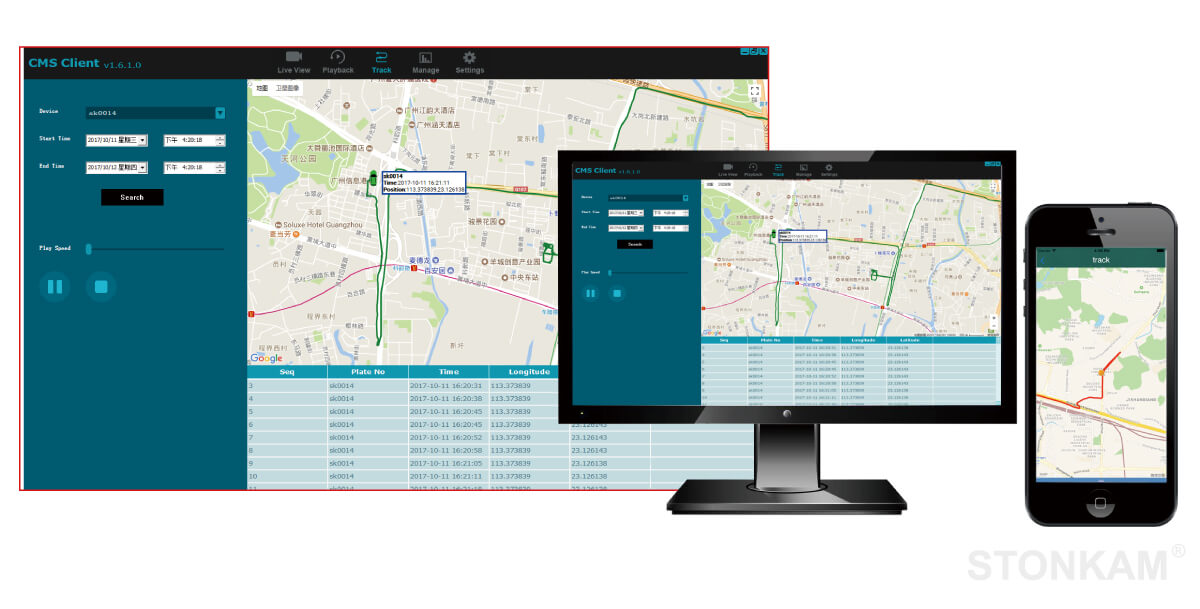

GPS Vehicle Historical Track Playback

Through the PC CMS Client or Mobile APP, the current location and historical driving trajectory of vehicles can be clearly queried on OS map/ Google map/ Baidu map.

STONKAM® 1080P MDVR System-GPS Vehicle Historical Track Playback



  3

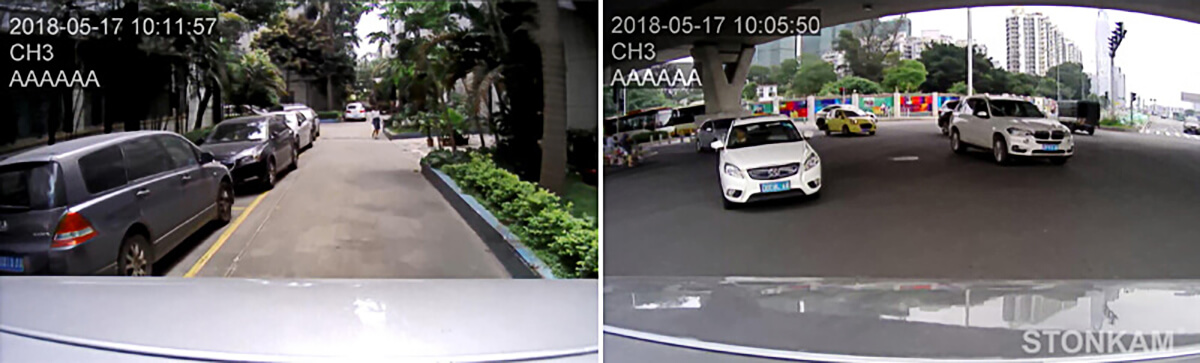

Keep recording all the time while event occurring on road, and support remote High Definition screenshot

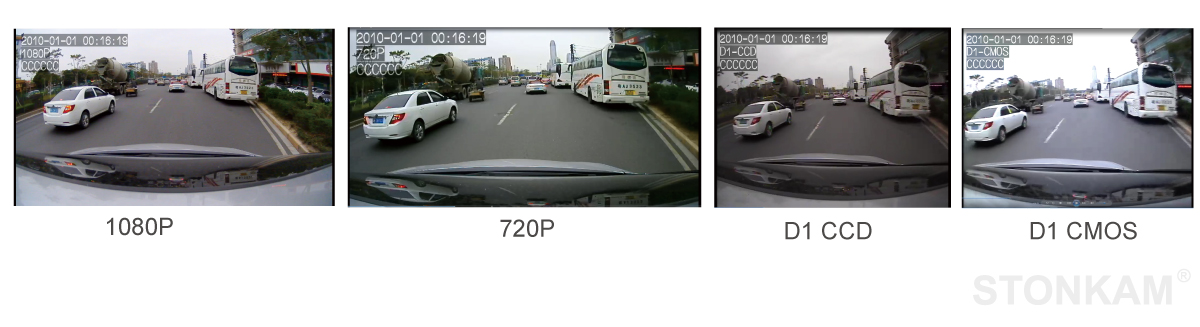

This MDVR system can set video recording quality—1080P/720P/D1, and high definition pictures can be captured through PC CMS Client and mobile APP.

STONKAM® 4CH HD MDVR System-Selectable Video Recording Quality 1080P/720P/D1


High Definition Screenshot

STONKAM® 1080P MDVR System for Vehicles-High Definition Screenshot



  4

Powerful Recording

This vehicle MDVR features diverse recording modes, stable video storage device, integration of vehicle information, and the double protection of recording data.

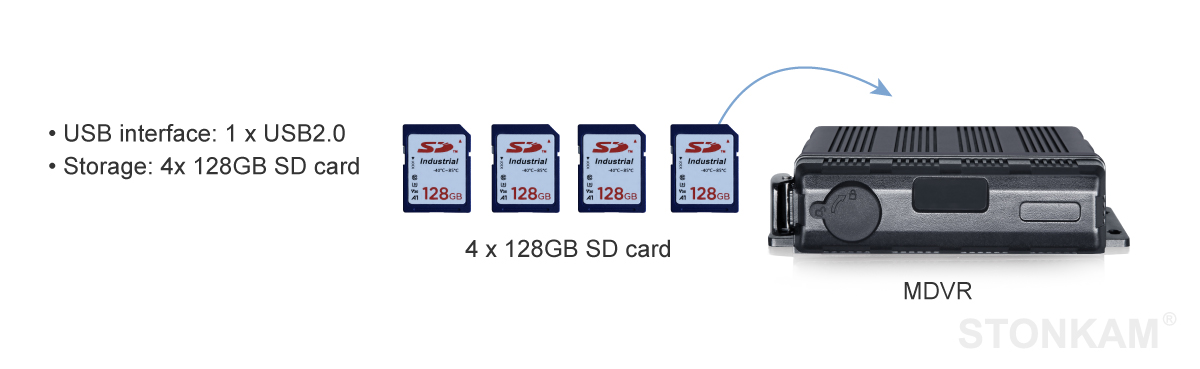

• USB interface: 1 x USB2.0

• Storage: 4 x 128GB SD cards

STONKAM® Vehicle MDVR-Support 4 x SD Cards


Recording Quality

Storage Capacity Bit Rate
Recording Time
1080P(4CH)
4 X 128G 4Mbps 75Hrs
720P(4CH)
4 X 128G
2Mbps
150Hrs
D1(4CH)
4 X 128G
1Mbps
300Hrs



  5

Watch real-time video on PC

User can watch the real time video by choosing the specific vehicle license number on the left side of the CMS Client. Each vehicle has a unique identification number in the CMS which can be set by the user.

STONKAM® Waterproof MDVR System-Watch Real-time Video on the CMS Client



  6

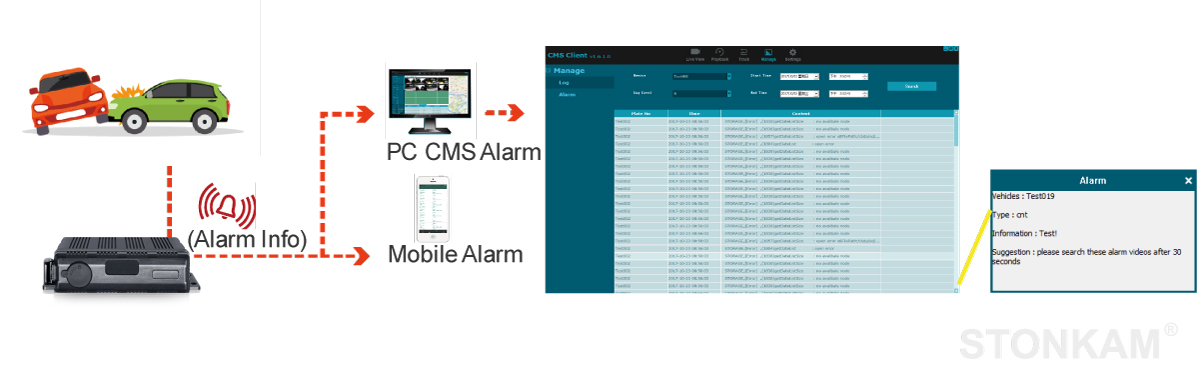

Alarm info pop up on PC / mobile APP

Easy to analyze the abnormal situation of vehicles and to track the relevant information.

STONKAM® 1080P MDVR System-Alarm Info Pop Up on PC / Mobile APP



  7

Remotely download video

Video files can be remotely downloaded by logging in PC CMS Client or mobile APP.

STONKAM® Vehicle MDVR System-Remote Video Downloading



  8

Remote Configuration and Software Update

STONKAM® 1080P MDVR System-Remote Configuration and Software Update



  9

Automatic authentication login & Group management

Each vehicle has a unique license number, which can be searched in the CMS.

STONKAM® 4 Channel MDVR System-Automatic Authentication Login & Group Management on the CMS



  10

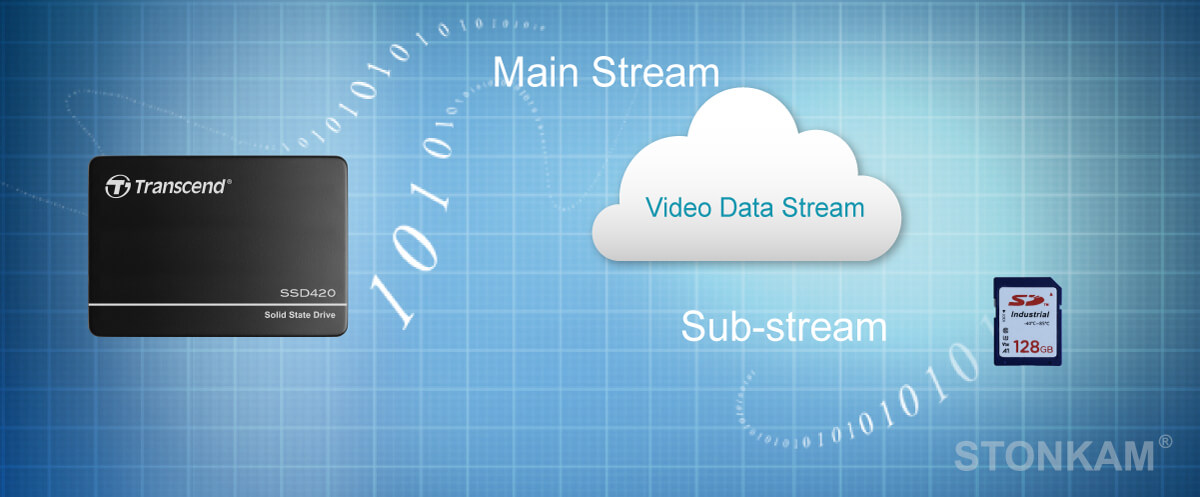

Dual-stream storage design for more secure data protection

The MDVR adopts dual stream technology to prevent any loss of data.

STONKAM® 4CH MDVR System-Adopts Dual Stream Technology



  11

Support 10s pre-recording and mandatory event videos saving

9-axis G-sensor, sensitive to vehicle reaction

STONKAM® 4CH 1080P MDVR System-Support 10s Pre-recording & Mandatory Event Videos Saving

Product Video

Applications

STONKAM® IP69K Waterproof MDVR system can be applied to various kinds of vehicles.

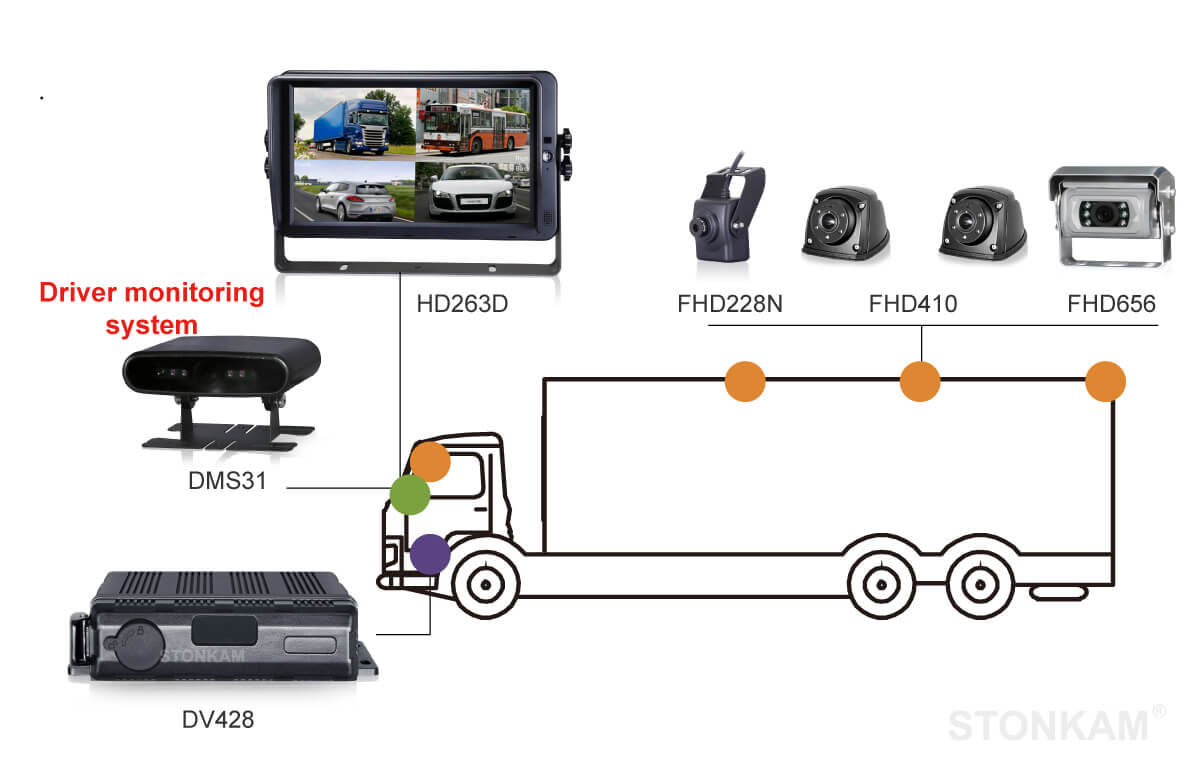

E.g. for trucks

STONKAM® 1080P MDVR System for Trucks

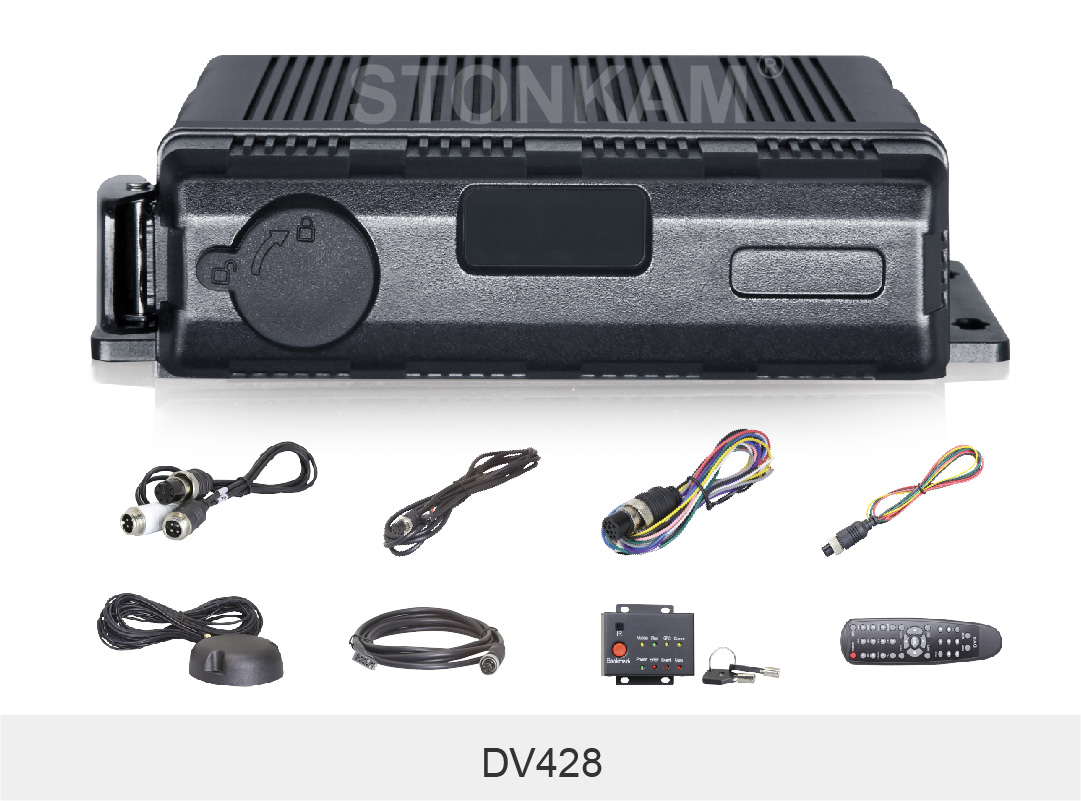

Accessories
4CH 1080P HD MDVR





8P to 4P conversion cable
Power Cable
Alarm Cable
CAN BUS Cable
4G/WIFI/GPS Antenna





Panic Button Cable
DVR Key
Remote Control
Panic Button
