10.1 inches HD Touch-screen Vehicle Monitor
(Model:HD-295D)
10.1 inches HD Touch-screen Vehicle Monitor
Features
  • Support 4 HD channels with Max.1080P30 cameras inputs
  • Capacitive Touch screen control, IR control
  • 9 languages available for user operation.(i.e. English, Chinese, German, French,  Japanese, Spanish , Italian, Russian, Dutch )
  • Reverse cursor with on-off mode switch available
  • Support AUTO DIM
  • Support AUTO SCAN, with the scan time selectable between 1-60s
  • Support 5-channel display of auto trigger, with the trigger delay time selectable between 1-60s
  • Multiple video formats available: PAL / NTSC / HDAHD、HDTVI、HDCVI(720P/1080P)



10.1 inches HD Touch-screen Vehicle Monitor

Specification


Resolution 1024 x 3(RGB) x 600
Maximum Number of Cameras 4
Audio input 4
Audio output (loudspeaker) 1W
Trigger 5
Max. Brightness 500 cd/m²
Contrast 600:1
Minimum Operating Temperature -20ºC, RH 90%
Maximum Operating Temperature +70ºC, RH 90%
Viewing Angle Monitor U: 70/ D: 50, R/L: 70/70
Mirror Function  Yes
Monitor Diameter (mm) 267mm (W) × 159.5mm (H) × 30mm (T).
Split Screen No
Volts 10-32V
Consumption less than10W(without cameras)

Applications
10.1 inches HD Touch-screen Vehicle Monitor

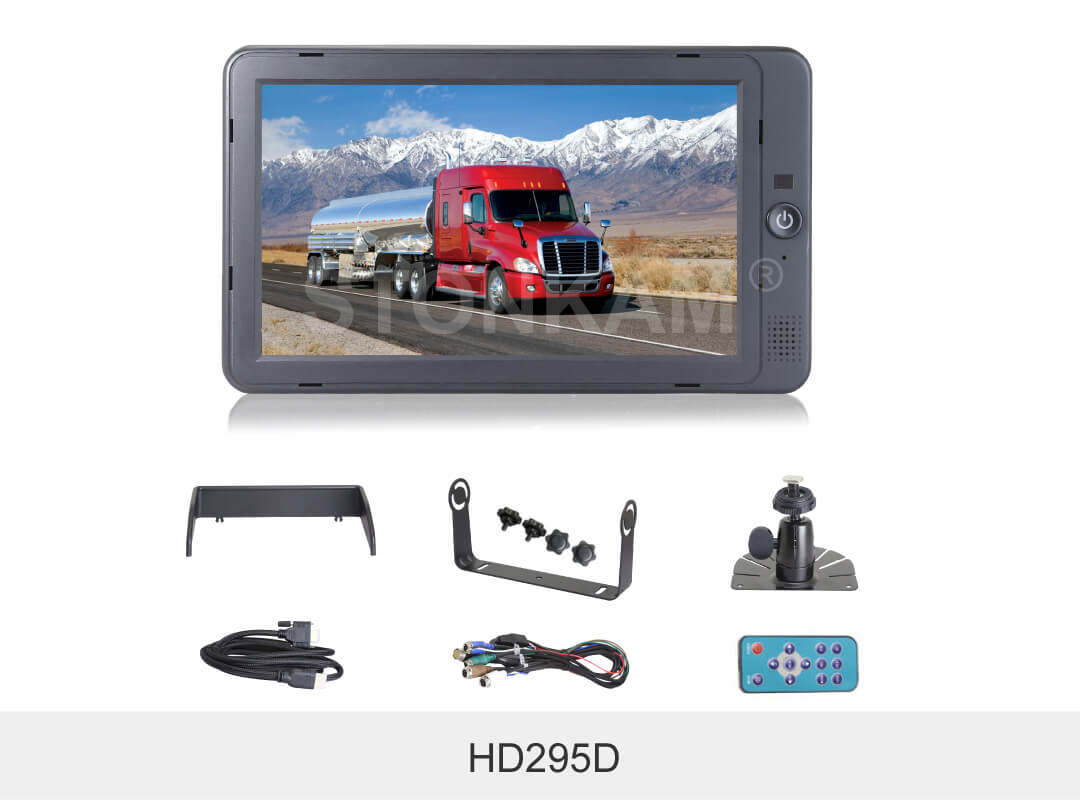

Accessories





Sun Shield

U- Support Bracket (Optional) Angle Adjustment Screws (Optional)

Center Mount Bracket (Optional)

Extention Cable





Power Cable
IR Remote Control
