Waterproof 4CH Vehicle DVR System with Driver Fatigue Monitoring System

Waterproof 4CH Vehicle DVR System with Driver Fatigue Monitoring System

DV426,DMS31,FHD228,FHD085,HD263D

STONKAM® IP69K Waterproof Vehicle DVR enables real-time remote monitoring, and can work with our ADAS and Driver Status Monitoring System for effective vehicle surveillance and fleet management. (Contact for details).

Inquire Now

Leave your message and contact details, we will try to get back to you!

Features

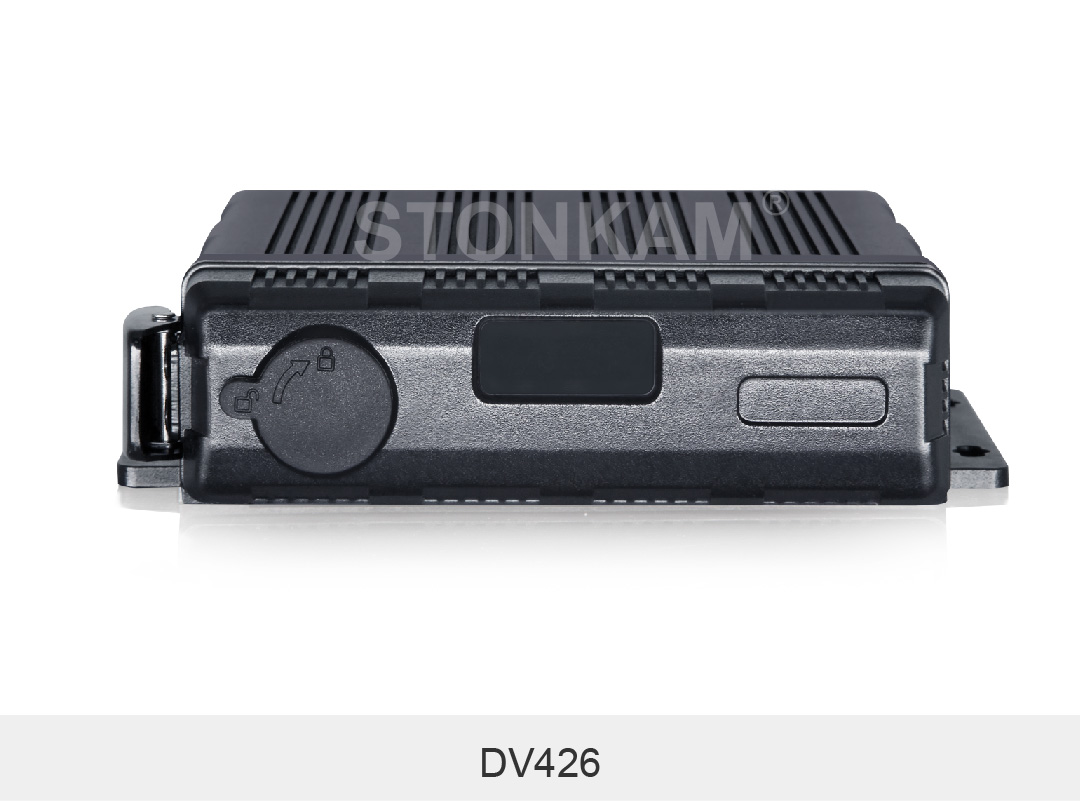

Features of Vehicle DVR (DV-426):

This vehcile DVR recorder supports 4 channel AHD 1080P input and HD 1080P VGA output
4x1080P, 4x720P, 4xD1 and 4 mixed-resolution recording, with 10 seconds pre-recording function
Multiple trigger recording modes: power on trigger, timer trigger, motion trigger, G-sensor trigger, over-speeding trigger, 6-channel customized alarm input trigger, and panic button trigger recording
Support 3G/4G/ WIFI/ GPS tracking/ CMS server/ Amazon Cloud server; can achieve real-time remote monitoring on iOS and Windows client
With WiFi station and AP mode; AP mode can support that mobile directly connects to device for easy preview and configuration at mobile terminal by WebUI
Automatically upload data for remotely intelligent data analysis and management, including data: alarm recording, alarm information, log information, GPS trajectory, real-time videos and images
Support Max.128GB SD card and 2T SSD for data storage
Support dual stream technology, and sub-stream network transmission
Support G-sensor acceleration sensor
Operated by HD touch-screen and infrared remote control
Well protected by super-capacitor
IP69K Waterproof and MIL-STD 810G shockproof

Features of Driver Fatigue Monitoring System(DMS-31):

Detect and alarm driver unsafe behaviors: fatigue detection, distraction detection, phone call detection, smoking detection, no driver detection and non-mask detection
Driver identification, up to 100 certifications
Seamless integration with MDVR, realtime alarm and video uploading for abnormal driving behavior
With built-in high definition alarm recording (1920 x 1080 resolution, 20 seconds synchronous recording when alarm triggered)
With built-in GPS module, recording actual speed and location
With built-in WIFI module, the device can be easily calibrated and configured via Android APP by connecting the device WIFI
With built-in infrared light, driver status can be effectively detected with low light condition. The driver could be wearing sunglasses and detected too
With built-in 2W loudspeaker, good alarm sound effect
Supports up to 128G Micro SD card, can record 120 hours in total, and allows loop recording

Specifications of Vehicle DVR (DV-426):

System	Operating system		Linux
	Operating interface		Graphical menu operation interface(OSD)
	Video permission		Administrator & user setting
Video	Video input		Max 4ch 1080P analog high definition
	CVBS output		1CH 6pin aviation connector output PAL/NSTC
	VGA output		1CH VGA connector output, 1080P
	Video display		1 or 4 CH
	Video standard		PAL: 25FPS, NTSC: 30FPS
	Compression		H.264 main profile
	Total resources		1080P PAL: 100FPS; NTSC: 120FPS
Audio	Audio input		4 channels
	Audio output		2 channels
	Record format		Synchronized video & audio recording
	Audio compression		ADPCM
Digital processing & storage	Video resolution		41080P(19201080)
	Video bit rate		512kbps~6Mbps/channel
	Storage		224~2700MB/(channel*hour)
	Playback resolution		4*1080P (encoding & decoding at the same time)
	Audio bit rate		32kbps

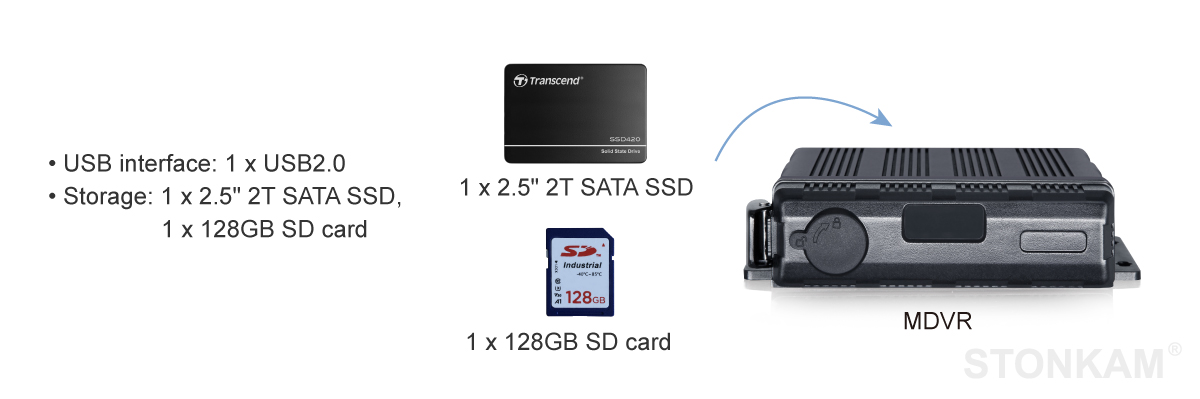

	Storage		SD card * 1, max 128GB, SSD * 1, max 2T
Alarm	Alarm input		6 channels
	Alarm output		2 channels
	Motion detection		High / Low / Off
Interface for communication	IR		1 channel
	RS232		1 channel
	RS485		1 channel
	RJ45		1 channel
	USB2.0		1 channel for file backup and firmware upgrade
	USB2.0 (SSD OUT)		1 channel for connect to computer to read data from SSD
Wireless	3G/4G		HSPDA/EVDO/FDD-LTE/TDD-LTE module optional
	WIFI		optional
	WIFI hotspot/AP		optional
GPS	Optional,internal GPS/GLONASS module, coordinate/speed can be encoded in video stream and upload to server by wireless communication
G-Sensor/Gyroscope	G-Sensor
Software	Windows client		Available
	iOS client		Available
	Web portal		Available
Power	Input	10~32V
	Output	12V@3.5A
	Max Power Consumption	60W
	Standby Power Consumption	100mW
Electrical specifications	Operating temperature	-20～70℃
	Clock	Built-in clock, Calendar
	Super Capacitor	Available
	Video input impedance	75ohm
	Video output voltage	1Vpp CVBS output

Specifications of Driver Fatigue Monitoring System(DMS-31):

Supply voltage	10~36V DC
Power consumption	Max 4W
Built-in camera module parameters	FHD 1920x1080P/25f or 1920x1080P/30f
Video signal	1CH, AHD, 1920x1080/25f or 1920x1080/30f
Video coding	H.264
Video record resolution	FHD 1920x1080/25f or 1920x1080/30f
Recording parameters	The recording file is in AVI format, 128G Micro SD card
Audio coding	ADPCM
WIFI module parameters	802.11b/g/n 150Mbps
Operation temperature	-20 ~+70°C
Storage temperature	-40~85 ℃
Dimensions	110x86.5x64 mm
Weight	200g
GPS	YES
Speaker power	Max. 2W

Are You Always Wondering..

How to get a perfect fleet management solution?

How to quickly know whether the driver drives illegally?

How to quickly provide evidence for traffic accident, theft, racketeering, etc.?

......

STONKAM® HD 1080P Vehicle DVR System can solve your worries!

Vehicle DVR Integrated with ADAS/DFMS/Radar Solution

Once alarm is triggered by ADAS/DFMS/Radar, ADAS/DFMS/Radar will upload the info to MDVR through CAN or Serial port. Then in MDVR, alarm recording will be triggered as event and the video will be uploaded to MDVR server automatically.

Detailed Features of STONKAM® Vehicle DVR Recorder System

IP69K Waterproof and MIL-STD 810G shockproof MDVR to protect your data well

GPS Vehicle Historical Track Playback

Through the PC CMS Client or Mobile APP, the current location and historical driving trajectory of vehicles can be clearly queried on OS map/ Google map/ Baidu map.

Keep recording all the time while event occurring on road, and support remote High Definition screenshot

The Vehicle DVR can set video recording quality—1080P/720P/D1, and high definition pictures can be captured through PC CMS Client and mobile APP.

Set all MDVR features by touch screen monitor

Powerful Recording

This vehicle camera DVR features diverse recording modes, stable video storage device, integration of vehicle information, and the double protection of recording data.

Recording Quality	Storage Capacity	Bit Rate	Recording Time
1080P（4CH）	2T	4Mbps	150Hrs
720P（4CH）	2T	2Mbps	300Hrs
D1（4CH）	2T	1Mbps	600Hrs

Watch real-time video on PC

User can watch the real time video by choosing the specific vehicle license number on the left side of the CMS Client. Each vehicle has a unique identification number in the CMS which can be set by the user.

Alarm info pop up on PC / mobile APP

Easy to analyze the abnormal situation of vehicles and to track the relevant information.

Remotely download video

Video files can be remotely downloaded by logging in PC CMS Client or mobile APP.

Dual-stream storage design for more secure data protection

The 4 channel vehicle dvr adopts dual stream storage to prevent any loss of data.

Support 10s pre-recording and mandatory event videos saving

9-axis G-sensor, more sensitive to vehicle reaction.

Applications

STONKAM® 1080p vehicle camera recording system can be applied to various kinds of vehicles.
