7 inch automobile reversing monitor buses trucks vehicle image display screen

7 inch automobile reversing monitor buses trucks vehicle image display screen

HD122D

STONKAM 7 inch automobile reversing monitor buses trucks reversing image display screen supports 4 CH HD cameras input, multi channels spliting the screen and achieving 360° monitoring without blind angle. Drivers can intuitively monitor the driving situation around the vehicle in the driving process, reducing the possibility of blind collision, scratching and other accidents. Meanwhile, this HD vehicle monitor supports multi display modes, able to meet customers' demands for convenient and clear video monitoring!

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

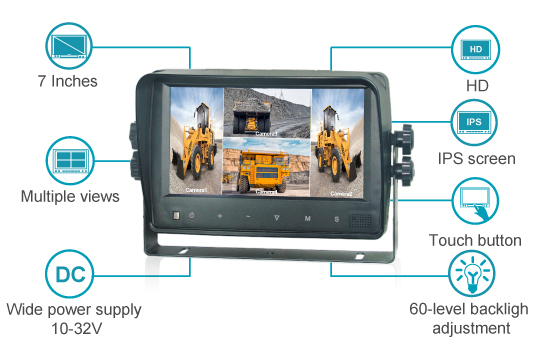

Features

IPS screen: HD IPS screen, high resolution, high brightness
Multi-display modes: Supporting 4 CH HD camera input, display mode supports single view, dual views, triplex views, quad views, trefoil view, Y view, H view, PIP view and other views
Mirror image function: the parameter of each CH image effect could be adjusted individually, supporting horizontal mirror image and vertical flip display
Wide power supply: 10-32V wide power supply input supports 12V or 24V automobile battery, reducing the troubleness of mismatching voltage and suitable for many scenarios, such as indoor/outdoor security systems, vehicle and ship surveillance
Reversing marking line: Able to set reversing marking line, adjusting and calibrating freely
Backlight adjustment: Backlight brightness supports 60-level manual adjustment and 2-level ambient light autombile adjustment
Touch button: Supporting capacitive touch screen; Icon menu operation; Supporting some gestures
Multiple languages: Multi languages available, able to be customized according to users' requirements
Multiple formats: Multiple video formats available to cameras: 1080P30/1080P25/720P30/720P25/PAL/NTSC
Automatic scan: Automatic scan available, scanning channel and scanning time can be choosed
Triggering function: 5 trigger lines input, trigger line definition, trigger delay and priority can be adjusted freely
Other functions: Easy to install and operate, with innovative functions

Resolution	1024x3(RGB)x600
Brightness	600 cd/m²
Contrast	700:1
Viewing Angle	U: 85°/ D: 85°, R/L: 85°
Aspect Ratio	16:9
Operating Temperature	-20~+70℃
Storage Temperature	-30~+80℃
Power Consumption	Max.15W without cameras
Power for Cameras	Max. 4×600mA, 12V
Power Supply	10V-32V
Video Input	4 CH
Audio Input	4 CH

Too many blind spots when driving?

Often upset by the recurrent scratches?

Having encountered all kinds of feigned accidents?

Difficult to determine who is liable for rear-end collisions?

……

To solve all these problems, all you need is a set of vehicle monitoring system!

But wait,

How to choose a clear and bright monitor?
How to monitor multiple cameras via a single display?
Where can I find a good-quality and easy-to-install monitor?

Reversing display screen

STONKAM 7 inch automobile reversing monitor buses trucks reversing image display screen can solve all your problems!

7 inch HD IPS Screen, high resolution, high brightness

It could restore the true color, presenting the brighter and more delicate display with much higher resolution.

Reversing display screen

Real-time viewing of driving conditions, assisting in safe driving!

STONKAM vehicle HD monitor supports 4 CH HD cameras input, multi channels spliting the screen. Drivers can intuitively monitor the blind spots in the driving process, controllling the driving situation in real time. It greatly improves the driver's field of view, able to reduce the possibility of traffic accidents.

Trucks reversing display screen

Multi-display modes

It supports single view, dual views, triplex views, quad views, trefoil view, Y view, H view, PIP view and other views. Multi-display modes could switch automatically, meeting your various monitoring needs.

Trucks reversing display screen

Horizontal mirror image and vertical flip display available

The display supports mirrorring, vertical flipping accounding to the users' demands, convenient for driver's viewing.

Trucks reversing image display screen

Wide power supply input and wide application for various scenarios

10-32V wide power supply input supports 12V or 24V automobile battery, adaptable to different voltages, suitable for many scenarios, such as indoor/outdoor security systems, vehicle and ship surveillance.

vehicle monitor

Reversing image could be triggered automatically by hanging reverse gear, and reversing marking line can be set

Multiple functions assist in reversing, reducing hidden dangers and helping safety!

reversing monitor

Backlight brightness supports 60-level manual adjustment and 2-level ambient light autombile adjustment

Under different light conditions, good display effect could be displayed, saving time and effort with automatic adjustment.

quad-view monitor

Application

STONKAM 7 inch automobile reversing monitor buses trucks reversing image display screen is easy to install and operate, with innovative functions, suitable for various vehicles and ships surveillance.

vehicle monitor

Reversing display screen

vehicle monitor

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

IPS screen: HD IPS screen, high resolution, high brightness

Multi-display modes: Supporting 4 CH HD camera input, display mode supports single view, dual views, triplex views, quad views, trefoil view, Y view, H view, PIP view and other views

Mirror image function: the parameter of each CH image effect could be adjusted individually, supporting horizontal mirror image and vertical flip display

Wide power supply: 10-32V wide power supply input supports 12V or 24V automobile battery, reducing the troubleness of mismatching voltage and suitable for many scenarios, such as indoor/outdoor security systems, vehicle and ship surveillance

Reversing marking line: Able to set reversing marking line, adjusting and calibrating freely

Backlight adjustment: Backlight brightness supports 60-level manual adjustment and 2-level ambient light autombile adjustment

Touch button: Supporting capacitive touch screen; Icon menu operation; Supporting some gestures

Multiple languages: Multi languages available, able to be customized according to users' requirements

Multiple formats: Multiple video formats available to cameras: 1080P30/1080P25/720P30/720P25/PAL/NTSC

Automatic scan: Automatic scan available, scanning channel and scanning time can be choosed

Triggering function: 5 trigger lines input, trigger line definition, trigger delay and priority can be adjusted freely

Other functions: Easy to install and operate, with innovative functions

Resolution

1024x3(RGB)x600

Brightness

600 cd/m²

Contrast

700:1

Viewing Angle

U: 85°/ D: 85°, R/L: 85°

Aspect Ratio

16:9

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

Power Consumption

Max.15W without cameras

Power for Cameras

Max. 4×600mA, 12V

Power Supply

10V-32V

Video Input

4 CH

Audio Input

4 CH

Too many blind spots when driving?

Often upset by the recurrent scratches?

Having encountered all kinds of feigned accidents?

Difficult to determine who is liable for rear-end collisions?

To solve all these problems, all you need is a set of vehicle monitoring system!

But wait,

How to choose a clear and bright monitor? How to monitor multiple cameras via a single display? Where can I find a good-quality and easy-to-install monitor?

STONKAM 7 inch automobile reversing monitor buses trucks reversing image display screen can solve all your problems!

7 inch HD IPS Screen, high resolution, high brightness

It could restore the true color, presenting the brighter and more delicate display with much higher resolution.

Real-time viewing of driving conditions, assisting in safe driving!

Multi-display modes

It supports single view, dual views, triplex views, quad views, trefoil view, Y view, H view, PIP view and other views. Multi-display modes could switch automatically, meeting your various monitoring needs.

Horizontal mirror image and vertical flip display available

The display supports mirrorring, vertical flipping accounding to the users' demands, convenient for driver's viewing.

Wide power supply input and wide application for various scenarios

10-32V wide power supply input supports 12V or 24V automobile battery, adaptable to different voltages, suitable for many scenarios, such as indoor/outdoor security systems, vehicle and ship surveillance.

Reversing image could be triggered automatically by hanging reverse gear, and reversing marking line can be set

Multiple functions assist in reversing, reducing hidden dangers and helping safety!

Backlight brightness supports 60-level manual adjustment and 2-level ambient light autombile adjustment

Under different light conditions, good display effect could be displayed, saving time and effort with automatic adjustment.

Application

STONKAM 7 inch automobile reversing monitor buses trucks reversing image display screen is easy to install and operate, with innovative functions, suitable for various vehicles and ships surveillance.
