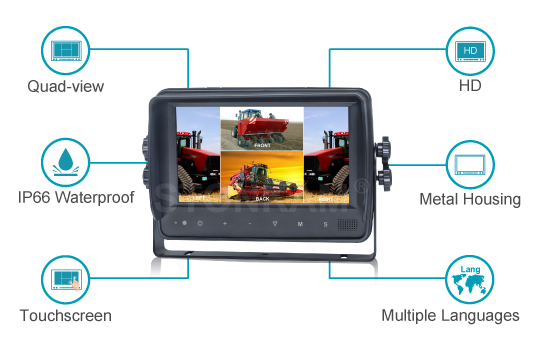

7-inch HD Quad-view Touchscreen Vehicle Monitoring Display

HD140D

STONKAM 7 Inch HD Quad-view Vehicle Monitoring Display supports 4 HD camera inputs to present 360° monitoring in quad view, which enables the driver to know about the road conditions on the back/front/right/left, in order to reduce the risks of rear-end collisions or scratches due to blind spots, and to improve the driving safety! Additionally, this monitor is featured with capacitive touch screen, metal housing, and waterproof rating of IP66. It’s suitable for all kinds of agricultural and engineering machinery!

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

Features

  • Waterproof Rating: IP66

  • Supporting capacitive touch screen; Icon menu operation; Supporting some gestures

  • Multiple video formats available to cameras: 1080P30/1080P25/720P30/720P25/PAL/NTSC, Quad-view display supported

  • Supporting 4 CH HD camera input, display mode supports single view, dual views, triplex views, quad views, trefoil view, Y view, PIP view and other views

  • the parameter of each CH image effect could be adjusted individually, supporting horizontal mirror image and vertical flip display

  • 5 trigger lines input, trigger line definition, trigger delay and priority can be adjusted freely

  • Automatic scan available, scanning channel and scanning time can be choosed

  • Able to set reversing marking line, adjusting and calibrating freely.

  • Backlight brightness supports 60-level manual adjustment and 3-level ambient light autombile adjustment

  • Multi languages available

  • 10-32V wide power supply input supports 12V or 24V automobile battery

  • Easy to install and operate

System Format

PAL / NTSC

Resolution

1024x3(RGB)x600

Brightness

600 cd/m²

Contrast

700:1

Viewing Angle

U: 85°/ D: 85°, R/L: 85°

Aspect Ratio

16:9

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

Power Consumption

Max.25W

Power for Cameras

Max. 4×600mA, 12V

Power Supply

10V-32V

Dot Pitch

0.1506(H)x0.1432(V)

Video Input

4 CH

Audio Input

4 CH

Touch Screen Transmittance

≥ 80%

Operating Pressure

10~110g

Screen Response Time

<10ms



Too many blind spots when driving?

Often upset by the recurrent scratches?

Having encountered all kinds of feigned accidents?

Difficult to determine who is liable for rear-end collisions?

……



To solve all these problems, all you need is a set of vehicle monitoring system!

But wait,

Where to find a nice vehicle monitoring system?

How can we synchronously monitor the image of multiple cameras on just one display?

Where to find a monitor with good quality and is easy to operate?

Vehicle monitoring system







STONKAM 7 Inch HD Quad-view Vehicle Monitoring Display can solve all your problems!







Real-time viewing of driving conditions, assisting in safe driving!

STONKAM 7 Inch HD Quad-view Vehicle Monitoring Display supports 4 CH HD cameras input, multi channels spliting the screen. Drivers can intuitively monitor the blind spots in the driving process, controllling the driving situation in real time. It greatly improves the driver's field of view, able to reduce the possibility of traffic accidents.

HD vehicle monitor





Capacitive touch screen supported

Touchscreen vehicle monitor





Multi-display modes

It supports single view, dual views, triplex views, quad views, trefoil view, Y view, PIP view and other views. Multi-display modes could switch automatically, meeting your various monitoring needs.

7-inch vehicle display





IP66 waterproof rating

STONKAM 7 Inch HD Quad-view Vehicle Monitoring Display with waterproof rating of IP66, can stand horrible weather conditions and is durable.

Waterproof HD Quad-view Vehicle Monitor





Metal housing

The metal housing can solve the problem of heat dissipation, and lengthen the service life of the device.

Vehicle Monitor





Applications

STONKAM 7 Inch HD Quad-view Vehicle Monitoring Display featured with convenient installation and easy operation, can be widely applied, especially to agricultural and engineering machinery.



Waterproof HD Quad-view Vehicle Monitor

HD Waterproof  Monitor
