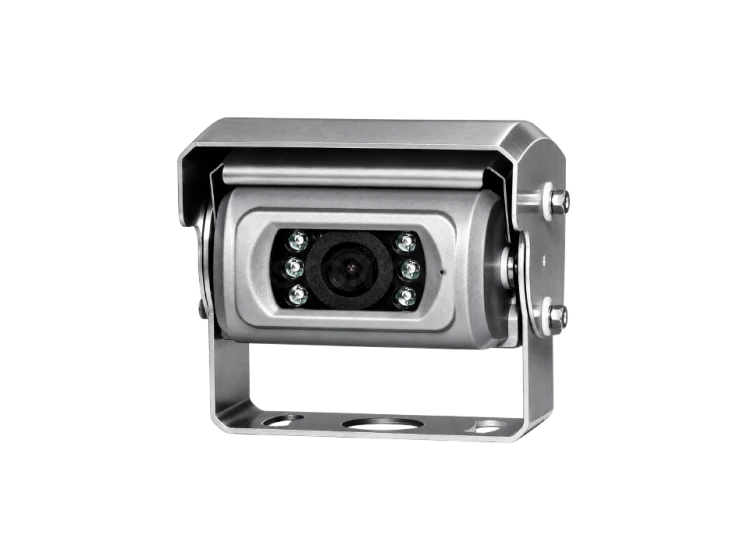

1080P Waterproof Mini Motorized Camera with Auto Shutter

1080P Waterproof Mini Motorized Camera with Auto Shutter

FHD656

This STONKAM® Mini Vehicle Motorized Camera with Auto Shutter especially suits for use in bad environment like sandy or heavily snowy place. View more high definition auto cameras.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

1080P high definition
IP69K waterproof
With auto shutter for better protection of lens, suit to use in bad environment such as sandy or heavily snowy weather
Wide viewing angle: 130° / 110° / 100° / 70° / 50° / 35°
Night vision distance: 8m ~ 10m (26.25ft~32.81ft)
Wide power supply: DC 12V / DC10~32V
Anti-vibration: ISO 16750-3 2012 (5.9G)
Working temperature: -20ºC ~ +70ºC
Mirror / Normal image
4pin interface

Image Device	1/2.9” CMOS
Frame Rate	25/30
Effective Pixels	1920 (H) x 1080 (V)
Pixel Size	2.8 μm x 2.8 μm
Scanning System	Progressive Scanning
Sync. System	Internal
Resolution	1080P
Video Output	1.0Vp-p, 75Ohm
Gamma Consumption	0.45
AGC	Auto
Signal to Noise Ratio	Better than 52dB
White Balance	Auto
Electronic Shutter	1/30（1/25）～1/50,000 Seconds
BLC	Auto
Operating Temp. & Humidity	–20℃ ~ 70℃, RH95%MAX.
Storage Temp. & Humidity	–30℃ ~ 80℃, RH95%MAX.
Power Supply	DC12V / DC10~32V
Waterproof Rating	IP69K
Viewing Angle	130°, 110°,100°, 70°, 50°, 35°
Audio	Yes
Minimum Illumination	0 Lux (with IR)
Night Vision Distance	8~10m
Image Mode	Mirror/Normal image switch

What are the advantages of STONKAM® motorized camera?

With auto shutter, more durable in harsh environment

This camera with auto shutter is especially suitable for use in harsh environment like sandy or snowy places. The shutter is closed to protect the lens when the camera is not triggered.

IP69K waterproof rated; weatherproof, suitable for outdoor use

Super mini

Tiny in size, easy for installation.

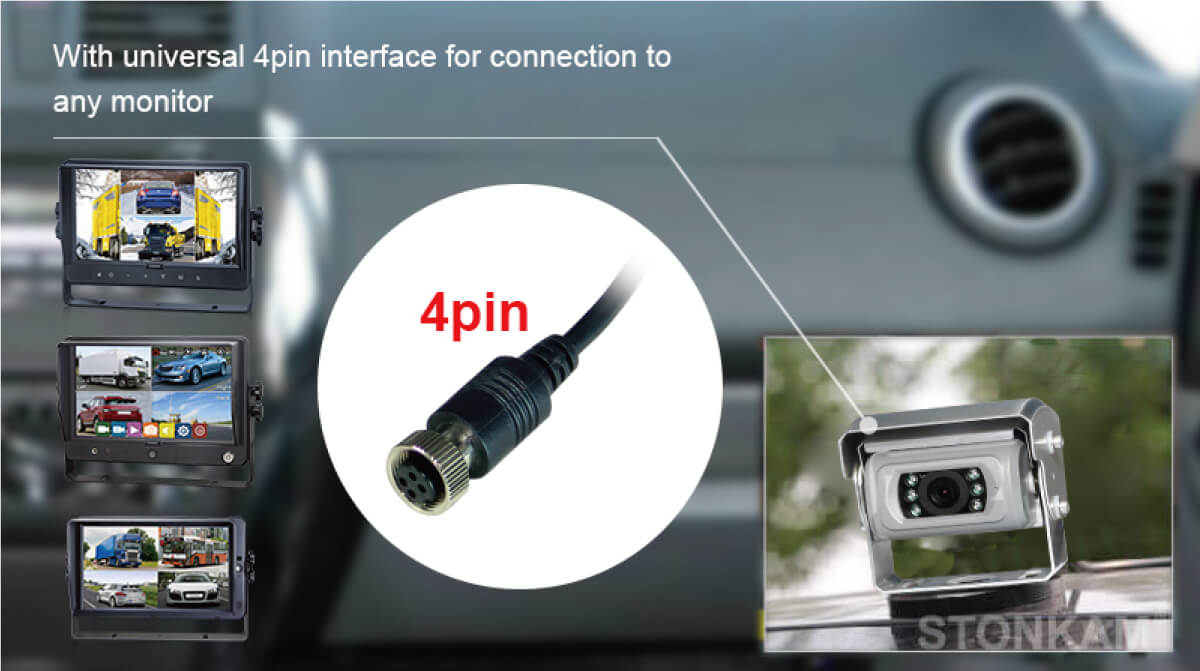

4pin interface

With universal 4pin interface for connection to any monitor which can meet the different needs of customers and provide great convenience.

Applications

STONKAM® vehicle motorized camera can be easily installed and work well with our MDVR.

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

1080P high definition

IP69K waterproof

With auto shutter for better protection of lens, suit to use in bad environment such as sandy or heavily snowy weather

Wide viewing angle: 130° / 110° / 100° / 70° / 50° / 35°

Night vision distance: 8m ~ 10m (26.25ft~32.81ft)

Wide power supply: DC 12V / DC10~32V

Anti-vibration: ISO 16750-3 2012 (5.9G)

Working temperature: -20ºC ~ +70ºC

Mirror / Normal image

4pin interface

Image Device

1/2.9” CMOS

Frame Rate

25/30

Effective Pixels

1920 (H) x 1080 (V)

Pixel Size

2.8 μm x 2.8 μm

Scanning System

Progressive Scanning

Sync. System

Internal

Resolution

1080P

Video Output

1.0Vp-p, 75Ohm

Gamma Consumption

0.45

AGC

Auto

Signal to Noise Ratio

Better than 52dB

White Balance

Auto

Electronic Shutter

1/30（1/25）～1/50,000 Seconds

BLC

Auto

Operating Temp. & Humidity

–20℃ ~ 70℃, RH95%MAX.

Storage Temp. & Humidity

–30℃ ~ 80℃, RH95%MAX.

Power Supply

DC12V / DC10~32V

Waterproof Rating

IP69K

Viewing Angle

130°, 110°,100°, 70°, 50°, 35°

Audio

Yes

Minimum Illumination

0 Lux (with IR)

Night Vision Distance

8~10m

Image Mode

Mirror/Normal image switch

What are the advantages of STONKAM® motorized camera?

With auto shutter, more durable in harsh environment

This camera with auto shutter is especially suitable for use in harsh environment like sandy or snowy places. The shutter is closed to protect the lens when the camera is not triggered.

IP69K waterproof rated; weatherproof, suitable for outdoor use

Super mini

Tiny in size, easy for installation.

4pin interface

With universal 4pin interface for connection to any monitor which can meet the different needs of customers and provide great convenience.

Applications

STONKAM® vehicle motorized camera can be easily installed and work well with our MDVR.

E.g. for trucks
