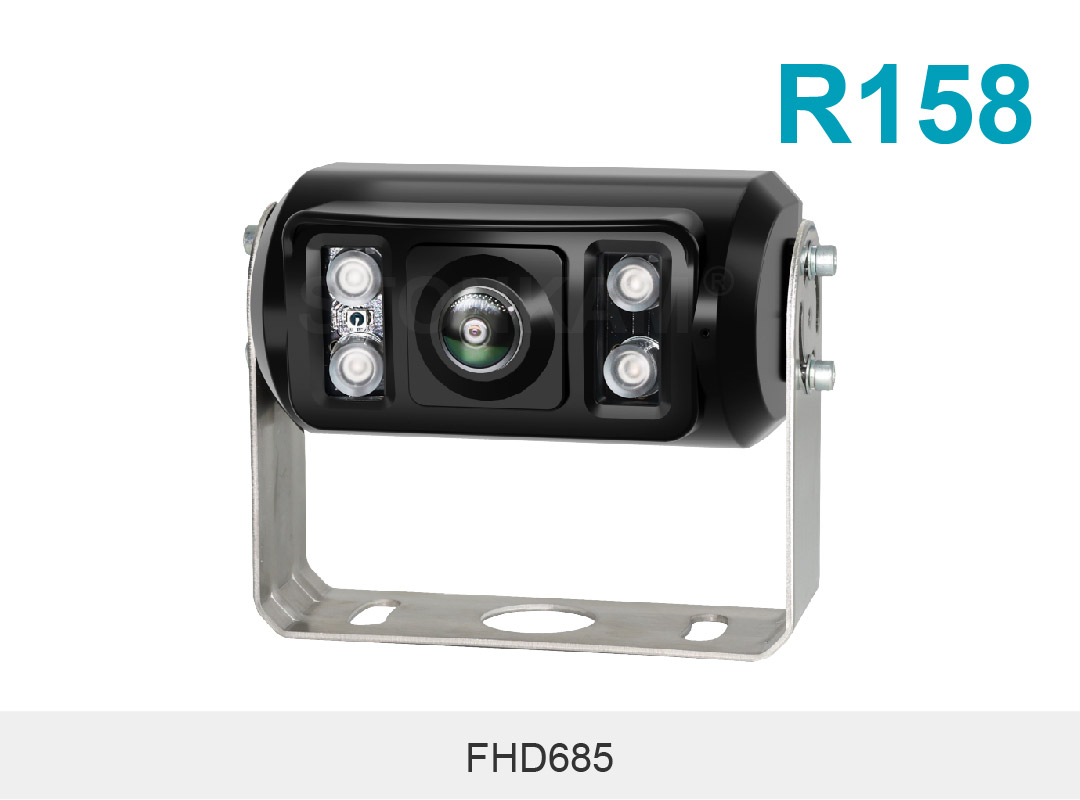

1080P Waterproof 170° Image Correction Automotive Camera (UN ECE R158)

1080P Waterproof 170° Image Correction Automotive Camera (UN ECE R158)

FHD685

STONKAM 1080P Waterproof 170° Image Correction Automotive Camera meets the technical requirements of UN ECE R158 for RVCS (Rear View Camera System). It effectively monitors the area behind the vehicle and provides real-time display to the driver, enhancing visual awareness of vulnerable road users in the rear blind spots. This helps prevent collisions during reversing and improves the driving safety of large vehicles such as trucks, buses, and construction vehicles.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

Compliant with R158 Regulations, Expanding Driver Visibility and Effectively Enhancing Reversing Safety.
1080P high definition
IP69K waterproof
Lens distortion correction 170°
Night vision distance: 8m~10m (26.25ft~32.81ft)
Anti-vibration: ISO 16750-3 2012 (5.9G)
Working temperature: -20ºC ~ +70ºC
Mirror / Normal image

Image Device	1/2.9” CMOS
Frame Rate	25/30
Effective Pixels	1920 (H) x 1080 (V)
Pixel Size	2.8 μm x 2.8 μm
Scanning System	Progressive Scanning
Sync. System	Internal
Resolution	1080P
Video Output	1.0Vp-p, 75Ohm
Gamma Consumption	0.45
Signal to Noise Ratio	38dB
White Balance	Auto
Exposure	Auto
Dynamic Range	105dB
Power Supply	DC12V
Operating Temp. & humidity	–20℃ ~ 70℃, RH95%MAX.
Storage Temp. & humidity	–30℃ ~ 80℃, RH95%MAX.
Waterproof Rating	IP69K
Viewing Angle after Correction	Horizontal 170° Vertical 84°
Audio	Yes
Minimum Illumination	0 Lux
Night Vision Distance	8~10m
Image Mode	Mirror/Normal image switchable

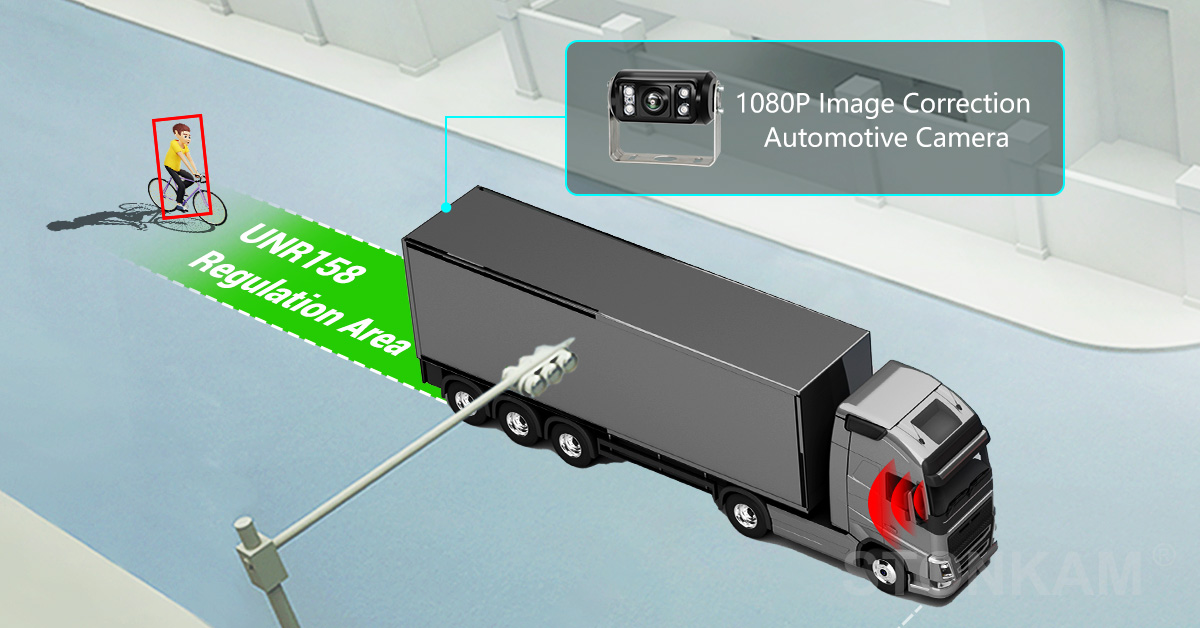

Compliant with R158 Regulations, Enhancing Reversing Safety
The STONKAM 1080P Waterproof 170° Image Correction Automotive Camera covers the vehicle's rear blind spots, ensuring that the driver can fully observe potential hazards behind the vehicle, especially vulnerable road users (such as pedestrians and cyclists). This allows for timely adjustments to avoid collision risks.

R158 Camera

Horizontal Angle Comparision

STONKAM® Automotive camera-High Definition with Image Correction

HD Camera with Image Correction

Viewing Angle: 170° (H)

HD Normal Camera

Viewing Angle: 110° (H)

Vertical Angle Comparision

HD Camera with Image Correction

Viewing Angle: 84° (V)

HD Normal Camera

Viewing Angle: 60° (V)

Correction and Distortion Comparision

HD Camera with Image Correction

Viewing Angle: 170° (H)

HD Original Camera

Viewing Angle: 175° (H)

Applications

STONKAM® 1080P waterproof automotive cameras can be applied to various vehicles.

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

Compliant with R158 Regulations, Expanding Driver Visibility and Effectively Enhancing Reversing Safety.

1080P high definition

IP69K waterproof

Lens distortion correction 170°

Night vision distance: 8m~10m (26.25ft~32.81ft)

Anti-vibration: ISO 16750-3 2012 (5.9G)

Working temperature: -20ºC ~ +70ºC

Mirror / Normal image

Image Device

1/2.9” CMOS

Frame Rate

25/30

Effective Pixels

1920 (H) x 1080 (V)

Pixel Size

2.8 μm x 2.8 μm

Scanning System

Progressive Scanning

Sync. System

Internal

Resolution

1080P

Video Output

1.0Vp-p, 75Ohm

Gamma Consumption

0.45

Signal to Noise Ratio

38dB

White Balance

Auto

Exposure

Auto

Dynamic Range

105dB

Power Supply

DC12V

Operating Temp. & humidity

–20℃ ~ 70℃, RH95%MAX.

Storage Temp. & humidity

–30℃ ~ 80℃, RH95%MAX.

Waterproof Rating

IP69K

Viewing Angle after Correction

Horizontal 170° Vertical 84°

Audio

Yes

Minimum Illumination

0 Lux

Night Vision Distance

8~10m

Image Mode

Mirror/Normal image switchable

Horizontal Angle Comparision

HD Camera with Image Correction

Viewing Angle: 170° (H)

HD Normal Camera

Viewing Angle: 110° (H)

Vertical Angle Comparision

HD Camera with Image Correction

Viewing Angle: 84° (V)

HD Normal Camera

Viewing Angle: 60° (V)

Correction and Distortion Comparision

HD Camera with Image Correction

Viewing Angle: 170° (H)

HD Original Camera

Viewing Angle: 175° (H)

Applications

STONKAM® 1080P waterproof automotive cameras can be applied to various vehicles.

E.g. for trucks

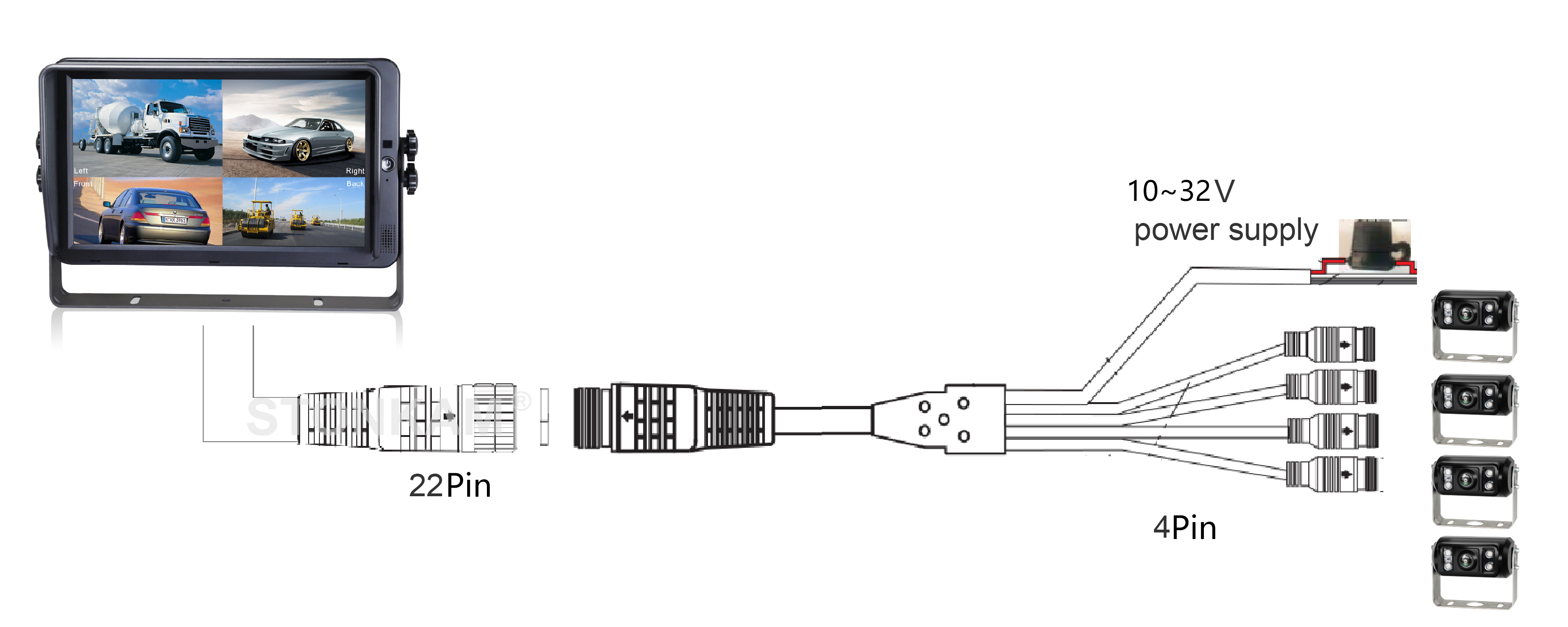

Connection
