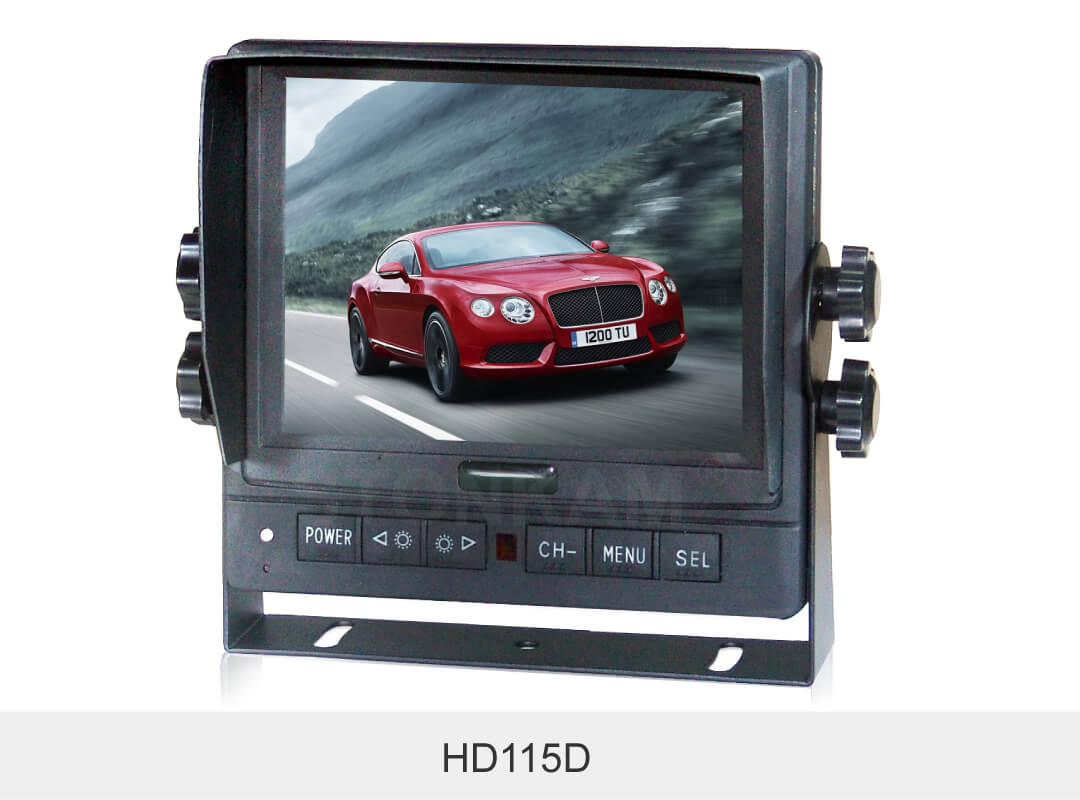

5.6 inch High Definition Car Rear View TFT LCD Color Monitor

5.6 inch High Definition Car Rear View TFT LCD Color Monitor

HD115D

STONKAM® supplies the best Car TFT LCD color monitors featuring touch screen/ button, anti-vibration, remote control, etc. With the great R&D support, we also offer ODM&OEM services; please kindly contact for details.

Inquire Now

Leave your message and contact details, we will try to get back to you!

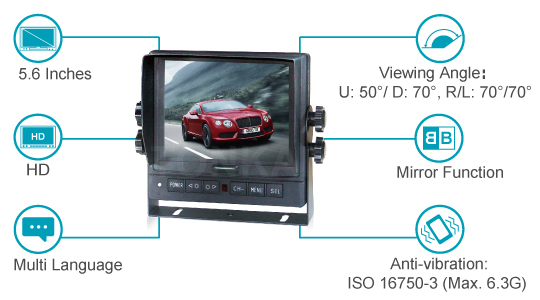

Features

4:3 TFT LCD monitor with digital screen
4 channel cameras input, 4 reverse trigger wire
Multiple video formats available:1080P 30/ 1080P 25/ 720P 30/ 720P 25/ PAL/ NTSC
Picture image adjustable for vertical, mirror and normal viewing
Full-function remote control
Support mechanical buttons with backlight
Speaker available and users can adjust the volume from the control panel
8 languages selectable for user operation: English, French, Portuguese, Spanish, Russian, Dutch, German, Italian
Automatic backlight adjustment
10 - 32V wide voltage input; support 12V or 24V automobile battery

High Definition 5.6 inch Rear View TFT LCD Color Monitor：

Power supply	Automobile storage battery (10-32V)
Power consumption	about 8W
Active area	112.896mm (W) × 84.672mm (H)
Module size	126.5mm (W) × 100mm (H) × 5.7mm (D)
Dot pitch	0.0588(W) × 0.1764(H)mm
Resolution	640 x 3(RGB) x 480
Contrast	500:1
Brightness	200cd/m²
Viewing angle	U: 50°,D: 70°, R/L: 70°/70°
Operating temperature	-20ºC~+70ºC,RH90%
Storage temperature	-30ºC~+80ºC,RH90%

Leave your message and contact details, we will try to get back to you!

Features

4:3 TFT LCD monitor with digital screen

4 channel cameras input, 4 reverse trigger wire

Multiple video formats available:1080P 30/ 1080P 25/ 720P 30/ 720P 25/ PAL/ NTSC

Picture image adjustable for vertical, mirror and normal viewing

Full-function remote control

Support mechanical buttons with backlight

Speaker available and users can adjust the volume from the control panel

8 languages selectable for user operation: English, French, Portuguese, Spanish, Russian, Dutch, German, Italian

Automatic backlight adjustment

10 - 32V wide voltage input; support 12V or 24V automobile battery

High Definition 5.6 inch Rear View TFT LCD Color Monitor：

Power supply

Automobile storage battery (10-32V)

Power consumption

about 8W

Active area

112.896mm (W) × 84.672mm (H)

Module size

126.5mm (W) × 100mm (H) × 5.7mm (D)

Dot pitch

0.0588(W) × 0.1764(H)mm

Resolution

640 x 3(RGB) x 480

Contrast

500:1

Brightness

200cd/m²

Viewing angle

U: 50°,D: 70°, R/L: 70°/70°

Operating temperature

-20ºC~+70ºC,RH90%

Storage temperature

-30ºC~+80ºC,RH90%
