10.1-inch intelligent pedestrian & vehicle detection and warning wireless vehicle monitoring and video-recording display

10.1-inch intelligent pedestrian & vehicle detection and warning wireless vehicle monitoring and video-recording display

HDW297Q

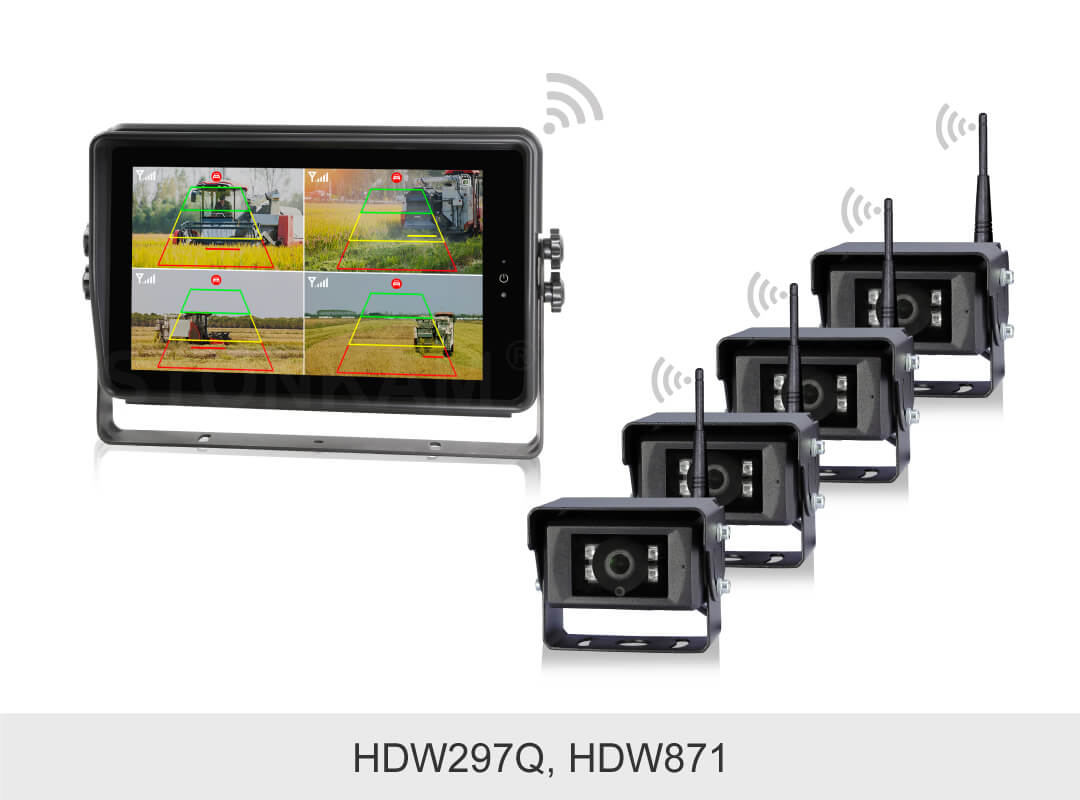

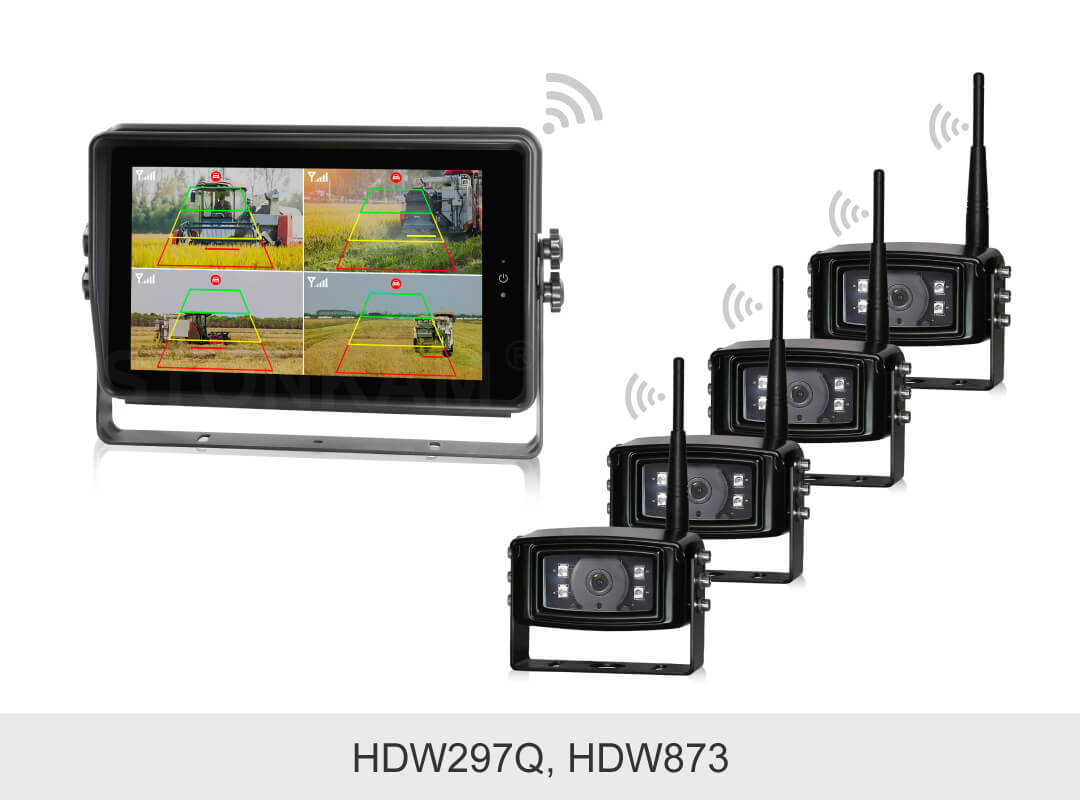

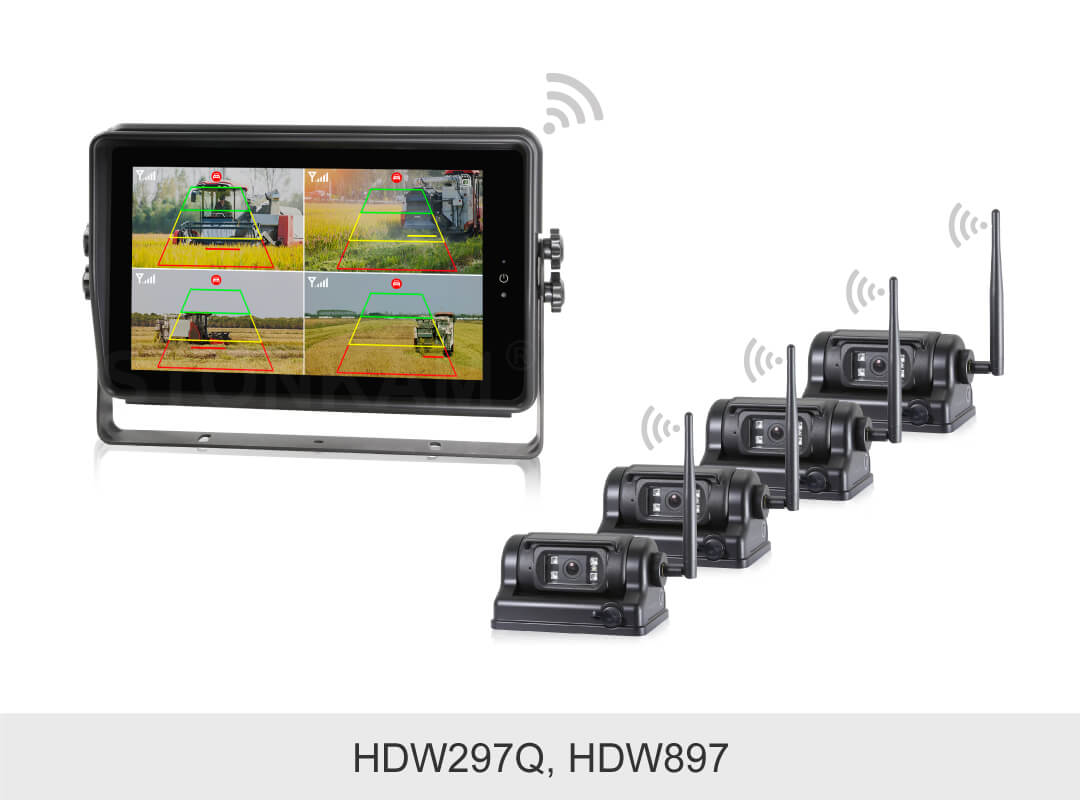

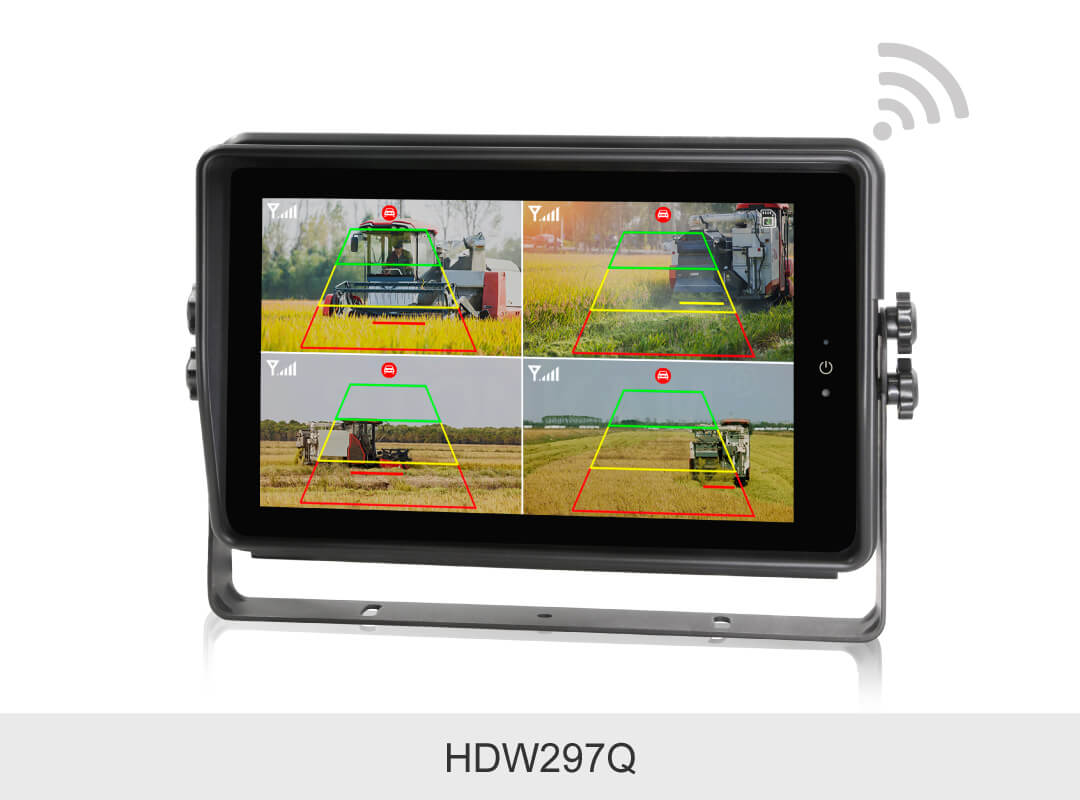

STONKAM 10.1-inch intelligent pedestrian & vehicle detection and warning wireless vehicle video-recording and monitoring display integrates wireless transmission technology, AI pedestrian & vehicle detection algorithm and video recording function. It is easy to install and supports real-time detection of pedestrians and vehicles around the vehicle, promply reminding drivers of potential risks and avoiding collisions and helping to ensure driving safety! The display features a waterproof shell, video recording and touch screen capabilities; It offers a long-range transmission distance of up to 590ft in barrier-free condition, with stable signal and interference resistance, suitable for various vehicles including trucks, forklifts, and mining vehicles.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

【Pedestrian & Vehicle Detection】 It can identify various types of pedestrians and vehicles such as cyclists, electric bike riders, and pedestrians on foot, and provide pedestrian and vehicle detection and warning functions. The detection areas (red, yellow, and green) can be freely adjusted in position or sizee, with four additional channels individually controllable.

【IP66 Waterproof】Works under all weather considtions, even in in rain and snow.

【Recording function】4-channel loop recording function, supporting local playback recording, Micro SD card can store up to 128G.

【Transmission distance up to 590ft】 The open transmission distance is as far as 590ft, and the signal is stable and anti-jamming. Even in high-speed or long-distance operation, the monitor will display the surrounding environment in real time, making your driving or operation more convenient without interference, flicker, blur or delay.

Wireless vehicle monitor:

LCD Dimension	10.1"
Resolution	1024x 3 (RGB) x600
Contrast	700:1
Brightness	600cd/m²
Viewing Angle	U:85 / D:85, R/L:85
Pixel Size	0.1506(W) x 0.1432(H)
Aspect Ratio	16:9
Channel	4 CH
Operating Frequency	2408MHz ~ 2478MHz(ISM band)
Receiving Sensitivity	-78dBm
Transmitting Distance	Max. 180ms
Decompression Form	H.264
Modulation	FHSS
Delay	Min. 130ms
Storage	Micro SD Card, up to 128G
System Format	PAL / NTSC
Power Supply	DC 10-32V
Power Consumption	Max.10W
Loudspeaker	1W/8Ω
Operating Temp. & Humidity	-20~+70ºC,RH90%MAX
Storage Temp. & Humidity	-30~+80ºC,RH90%MAX

Why do you need to install a 10.1-inch intelligent pedestrian & vehicle detection warning wireless vehicle monitoring and video-recording display?

How to know if there are pedestrians or vehicles in the blind spot around the car to avoid collision?

How to quickly provide evidence for accidents?

How to get a clear view and ensure safety when driving and operating in rainy and snowy days?

Traditional vehicle monitoring system has complicated wiring configurations and is difficult to adjust and adapt according to the characteristics of different types of vehicles?

Is installation a waste of time?

Wireless intelligent vehicle display

STONKAM 10.1-inch intelligent pedestrian & vehicle detection warning wireless vehicle monitoring and video-recording display perfectly solves your problems!

Pedestrian & vehicle detection, intelligent driving assistance

Use adopts deep learning technology, contributing to accurate pedestrian & vehicle detection. It can detect people around such as cyclists, motocyclists, and pedestrians to assist large vehicle drivers in safe driving, avoiding potential injuries to the vulnerables.

Multi-function display for vehicle

IP66 waterproof, workable even in rain and snow

防水车载显示器

All-round recording, safe storage

Equipped with 4-channel video recording function, it supports up to 128GB Micro SD card. Playing back of the recording is available on the monitor, making it easy to view and review records at any time. It supports super capacitor power-down save function, which can retain the video recording data even in the case of power-down to ensure that the key information is safe.

Wireless vehicle monitoring equipment

Strong anti-interference ability, transmission distance in open area up to 590ft

The operating frequency is 2408-2478MHz and it adopts frequency hopping technology to ensure the secrecy of communication and anti-interference. With transmission distance in open area up to 180meters(590ft), even under high speed or long-distance operation, the monitor will show the surrounding environment in real time without interference, flickering, blurring or delay, which makes driving and operation more convenient.

Wireless vehicle monitor

Applications

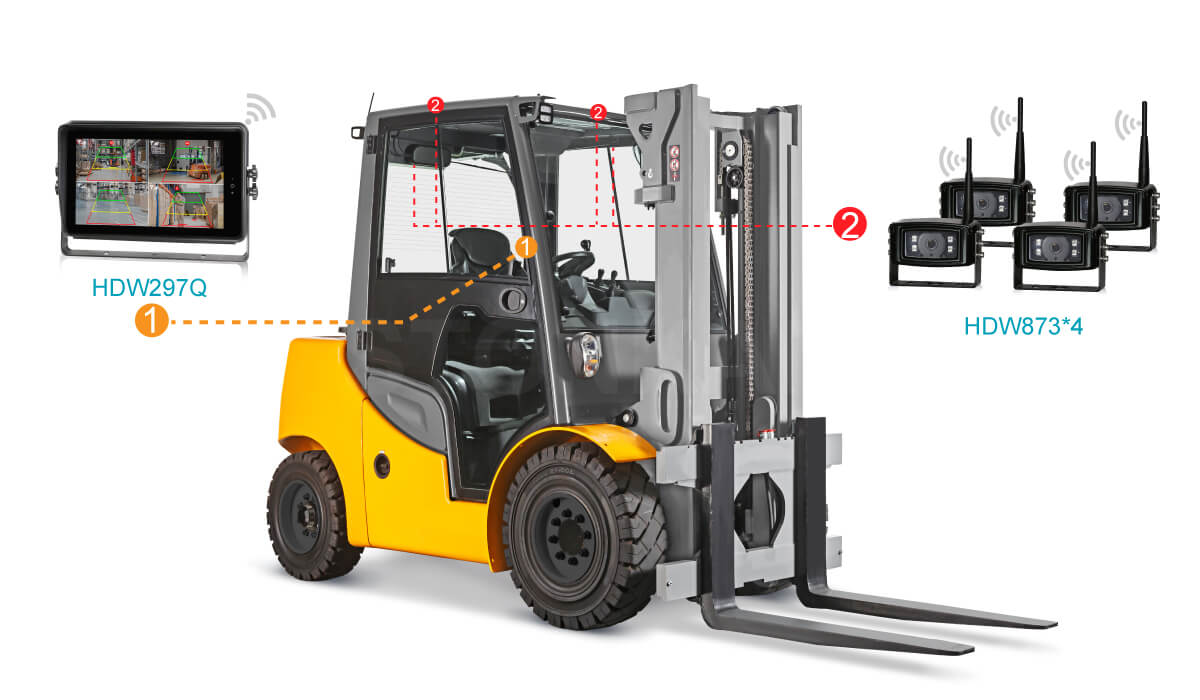

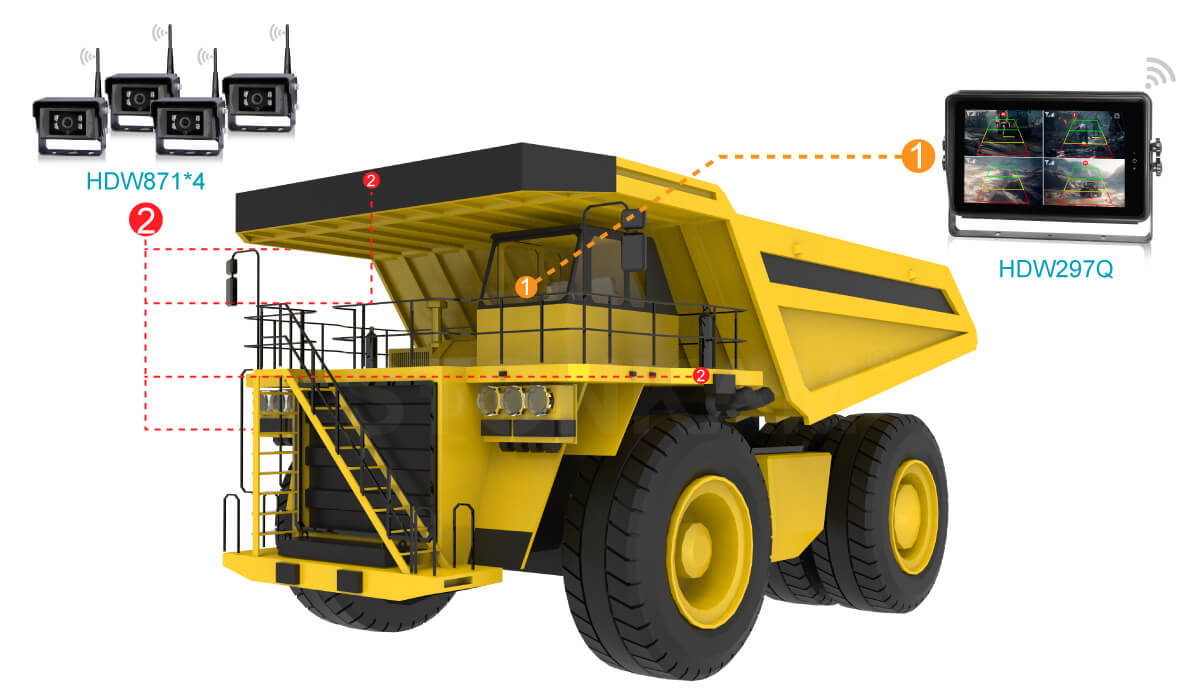

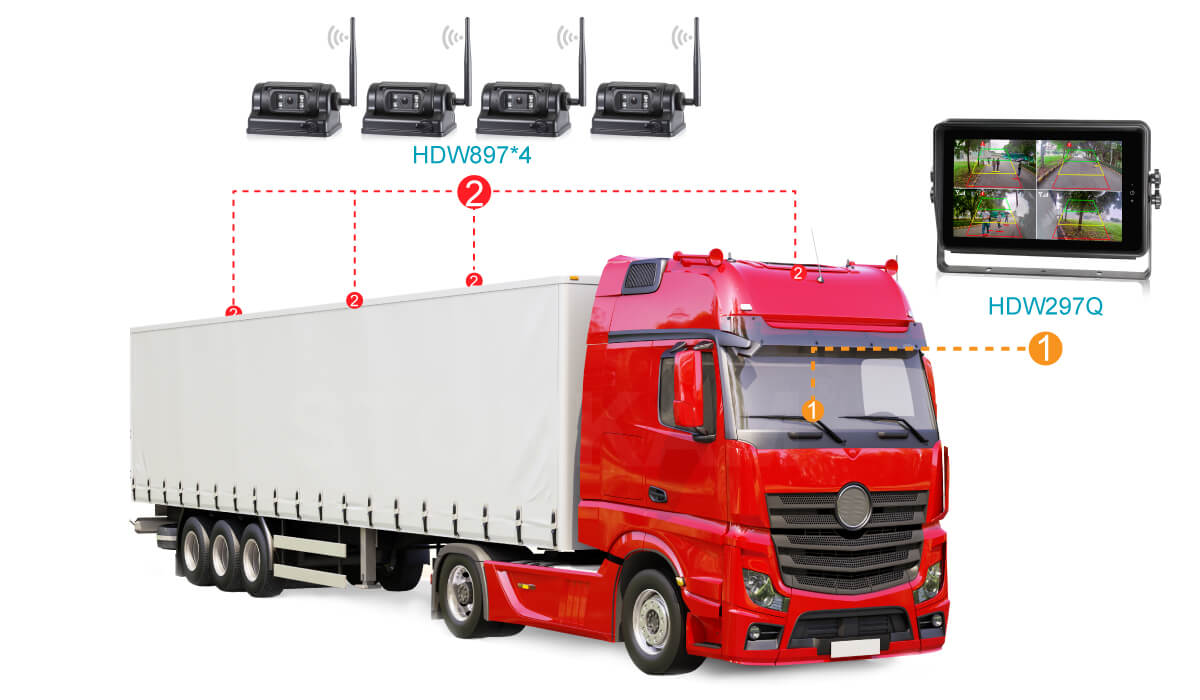

STONKAM 10.1-inch intelligent pedestrian & vehicle detection warning wireless vehicle monitoring and video-recording display does not require complicated wiring and can be easily installed with wireless vehicle cameras and applied to various vehicles such as trucks, forklifts, mining trucks, etc.

Wireless Vehicle Monitor System

Vehicle monitor

Wireless intelligent vehicle display

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

【IP66 Waterproof】Works under all weather considtions, even in in rain and snow.

【Recording function】4-channel loop recording function, supporting local playback recording, Micro SD card can store up to 128G.

Wireless vehicle monitor:

LCD Dimension

10.1"

Resolution

1024x 3 (RGB) x600

Contrast

700:1

Brightness

600cd/m²

Viewing Angle

U:85 / D:85, R/L:85

Pixel Size

0.1506(W) x 0.1432(H)

Aspect Ratio

16:9

Channel

4 CH

Operating Frequency

2408MHz ~ 2478MHz(ISM band)

Receiving Sensitivity

-78dBm

Transmitting Distance

Max. 180ms

Decompression Form

H.264

Modulation

FHSS

Delay

Min. 130ms

Storage

Micro SD Card, up to 128G

System Format

PAL / NTSC

Power Supply

DC 10-32V

Power Consumption

Max.10W

Loudspeaker

1W/8Ω

Operating Temp. & Humidity

-20~+70ºC,RH90%MAX

Storage Temp. & Humidity

-30~+80ºC,RH90%MAX

Why do you need to install a 10.1-inch intelligent pedestrian & vehicle detection warning wireless vehicle monitoring and video-recording display?

How to know if there are pedestrians or vehicles in the blind spot around the car to avoid collision?

How to quickly provide evidence for accidents?

How to get a clear view and ensure safety when driving and operating in rainy and snowy days?

Traditional vehicle monitoring system has complicated wiring configurations and is difficult to adjust and adapt according to the characteristics of different types of vehicles?

Is installation a waste of time?

STONKAM 10.1-inch intelligent pedestrian & vehicle detection warning wireless vehicle monitoring and video-recording display perfectly solves your problems!

Pedestrian & vehicle detection, intelligent driving assistance

Use adopts deep learning technology, contributing to accurate pedestrian & vehicle detection. It can detect people around such as cyclists, motocyclists, and pedestrians to assist large vehicle drivers in safe driving, avoiding potential injuries to the vulnerables.

IP66 waterproof, workable even in rain and snow

IP66 waterproof, workable even in rain and snow

All-round recording, safe storage

Strong anti-interference ability, transmission distance in open area up to 590ft

Applications

STONKAM 10.1-inch intelligent pedestrian & vehicle detection warning wireless vehicle monitoring and video-recording display does not require complicated wiring and can be easily installed with wireless vehicle cameras and applied to various vehicles such as trucks, forklifts, mining trucks, etc.
