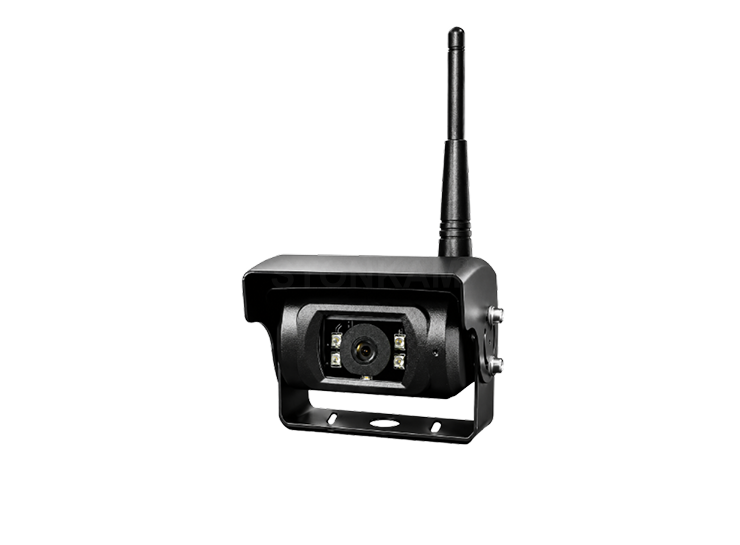

2.4GHz 1080P Digital Wireless Backup Camera with Auto Shutter

2.4GHz 1080P Digital Wireless Backup Camera with Auto Shutter

HDW835M

STONKAM® 1080P Digital Wireless Backup Camera with Auto Shutter suits for use in bad environment like sandy or heavily snowy place. It’s IP69K waterproof and can be battery-powered. Working with a 7 inch wireless monitor will get better effects! Click to see more STONKAM® wireless backup camera products.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

The open transmission distance is as far as 984ft, and the signal is stable and anti-jamming. Even in high-speed or long-distance operation, the monitor will display the surrounding environment in real time, making your driving or operation more convenient without interference, flicker, blur or delay.
With auto shutter for better protection of lens, suit to use in bad environment such as sandy or heavily snowy weather
strong magnetic base and easy installation
Convenient camera power supply by a rechargeable battery
The device also has night vision function, which provides you with a clear vision for 24 hours.
Waterproof: IP69K; Anti-vibration: 5.9g
Lens Angle: 35°/50°/70°/100°/130°/150°/170° (depending on models)
IR cut filter optional, Auto heater optional, Audio optional
Working temperature -20°~70°, able to work normally in harsh environment

Image Device	1/2.9" CMOS
Effective Pixels	1920 (H) x 1080 (V)
Signal to Noise Ratio	38dB
White Balance	Auto
BLC	Auto
Dynamic Range	81dB
Operation Frequency	2408MHz-2478MHz
Transmision Distance (Barrier Free)	300m(Max)
Receiving Sensitivity	-78dBm
Video Code	H.264
Transmission Power	FCC：≤26dBm CE：≤20dBm MIC：≤10dBm
Modulation	FHSS
Delay	130ms
RF Bit Rate	12Mbps
Operating Temp. & Humidity	–20℃ ~ 70℃, RH95%MAX.
Storage Temp. & Humidity	–30℃ ~ 80℃, RH95%MAX.
Minimum Illumination	0Lux/0.1Lux
Power Supply	DC10-32V
Power Consumption	Day：1.8W-2.5W Night：3.6W-4.3W
Night Vision Distance	NO IR LED/8-10m/12-15m/20-25m
Waterproof Rating	IP69K
Audio	Optional
Viewing Angle	35°/50°/70°/100°/130°/150°/170°
Heater	Optional
IR-Cut Function	Optional
Image Mode	Mirror/Normal

What are the benefits of STONKAM® 7 inch HD 2.4GHz Digital Wireless Vehicle Monitor System?

wireless backup camera

What’re the cons of wired camera?

High installation expenses,

Complicated wiring,

Inconvenient camera power supply……

STONKAM® Digital Wireless Camera with Auto Shutter

The best solution to all the disadvantages!

Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

wireless backup camera

Strong anti-interference, Stable connection

Operating frequency: 2408MHz ~ 2478MHz

STONKAM® wireless camera system adopts the FHSS technology to guarantee the privacy and anti-interference of connection.

wireless vehicle camera

Open transmission distance up to 300 meters(barriers free)

Even in high-speed or long-distance operation, the monitor will display the surrounding environment in real time, making your driving or operation more convenient without interference, flicker, blur or delay.

wireless vehicle camera system

Camera with Auto Shutter, more durable in harsh environment

Camera with auto shutter is especially suitable for use in harsh environment like sandy or snowy places. The shutter is closed to protect the lens when the camera is not triggered.

wireless rear view camera

IP69K waterproof rated; weatherproof, suitable for outdoor use

wireless reversing camera

Can work with magnetic base and rechargeable battery

No need to run long cables through the whole car. Suitable for occasions when connecting to power cord is inconvenient.

wireless rear view camera

Correct color deviation during the day and protect driving safety at night

2.4GHz 1080P Digital Wireless Backup Camera with Auto Shutter can support IR-CUT, thoroughly solving the problem of color deviation of green plants under sunlight and ensuring clear recording; And the night vision distance is up to 10 meters, ensuring safe driving!

wireless vehicle camera

Multiple Application Scenarios

With the top grade high quality, STONKAM® 1080P Digital Wireless Shutter Camera can be applied to various vehicles, such as forklift, crane, harvester, etc.


Harvester	Excavator

Farm	Forklift

Crane	Planter

Applications
STONKAM® Digital Wireless Vehicle Camera can be applied to various vehicles by easy installation without running long cables.
