7-inch high-definition digital wireless forklift monitoring system

HDW125Q, HDW814P, HDW897

Forklift camera systems have become a standard aid to forklift driver operations, providing improved safety and range of vision when maneuvering and storing loads, so drivers can work safer and more efficent. STONKAM 1080P HD wireless forklift camera has stable signal and its transmission range of up to 120 meters. It has 62° viewing angle, will increase the visibility range, solve blind spots problems and avoid accidents, and also improve operational efficiency.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

Features

【1080P High Definition】1080P CMOS image sensor can help you get a clear view during forklift operation
【120M Transmission Distance】 Stable signal , up to 120 meters wireless transmission distance
【Laser Positioning】Built-in laser positioning line helps the driver to accurately operate the fork, so as to avoid damage to the goods
【62° Viewing Angle】Wide enough visual range can help solve blind spots problems
【Magnetic housing】No need for wiring, time-saving and effortless.
【Waterproof & Shock-resistant】IP69K waterproof, dustproof,shock resistant, durable and fit for forklift to work outside
【Easy Power Supply】No additional power wiring installation, can be powered by external battery.
【Pinhole Lens】The glass outside the lens is relatively small, which can protect the lens well and prevent collisions with other objects such as sawdust, extending the it's lifespan.
【Mini appearance】The camera is compact and mini in size, and can be easily installed on a slim forklift arm.

Wireless monitor:

LCD Dimension

7"

Resolution

1024x 3 (RGB) x600

Contrast

700:1

Brightness

600cd/m²

Viewing Angle

U:80 / D:85, R/L:85

Aspect Ratio

16:9

Channel

4 channels

Operating Frequency

2400MHz ~ 2483.5MHz(ISM band)

Receiving Sensitivity

-78dBm

Transmission Power

FCC≤26dBm

CE≤20dBm

MIC≤10dBm

Decompression Form

H.264

Modulation

FHSS

Delay

200ms

Transmission Distance

FCC≤300 M

CE≤200 M

MIC≤60 M

System Format

PAL / NTSC

Power Supply

DC 10-32V

Power Consumption

Max.10W

Loudspeaker

1W/8Ω

Operating Temp. & Humidity

-20~+70ºC,RH90%MAX

Storage Temp. & Humidity

-30~+80ºC,RH90%MAX





Wireless camera(HDW814P):

Image Device

1/2.9" CMOS

Effective Pixels

1920 (H) x 1080 (V)

Signal to Noise Ratio

38dB

White Balance

Auto

BLC

Auto

Dynamic Range

81dB

Operation Frequency

2403MHz-2478MHz

Transmission Distance (Barrier Free)

120m(Max)

Receiving Sensitivity

-78dBm

Video Code

H.264

Transmission Power

FCC:≤26dBm   CE:≤20dBm   MIC:≤10dBm

Modulation

FHSS

Delay

130ms

RF Bit Rate

12Mbps

Operating Temp. & Humidity

–20℃ ~ 70℃, RH95%MAX.

Storage Temp. & Humidity

–30℃ ~ 80℃, RH95%MAX.

Minimum Illumination

0Lux/0.1Lux

Power Supply

DC10-32V

Power Consumption

Day:1.8W-2.5W   Night:3.6W-4.3W

Night Vision Distance

3-5M

Waterproof Rating

IP69K

Audio

No

Viewing Angle

62°

Heater

No

IR-Cut Function

No

Image Mode

Mirror/Normal





Wireless camera(HDW897):

Battery Capacity

3.6V/6400mAh

Charging Voltage

5V-12V

Charging Time

5V/8H,12V/3H

Charging Current

5V/1.5A(MAX),12V/1.5A(MAX)

Discharging Time

12H(daytime 5Hnight

Charging Temperature

0~+40℃

Discharging Temperature

-20~+60℃

Storage Temperature

-20~+60℃

Waterproof Rating

IP69K

Dimension

116 x 80 x 66(mm

Weight

670g

Sensor

1/2.9” CMOS SENSOR

Effective Pixels

1920 x 1080 pixels

AGC

Auto

Signal to Noise Ratio

38dB

White Balance

Auto

BLC

Auto

Operation Frequency

2403-2478MHZ

Transmission Distance (barrier free)

300m(20dBm)

Receiving Sensitivity

-78dBm

Video Decode

H.264

Transmission Power

10dBm/20dBm

Modulation

FHSS

Delay

170ms

RF Bit Rate

12Mbps

Minimum Illumination

0Lux

Night Vision Distance

8-10m

Audio

Optional

Viewing Angle

130°

IR-Cut Function

Optional











Troubling problems......



7 inch wireless monitor



We offer one-stop solution for the above problems

Increased efficiency
STONKAM forklift camera provides a better view during operation and solve blind spots problems so you can quickly observe the working area on the monitor, and place the forks on exact position. It makes your work time-saving and high efficient.



►Increased safety
Low visibility around forklifts due to cargo obstructions leaves drivers little reference point, will cause collisions and accidents. STONKAM forklift cameras help drivers catch clear image in front of the vehicle especially in areas where human blind spots exist, avoiding accidents.



►Improved comfort
The display saves driver from strenreous posture adjustment to view cargoes, racks and aisles. This can reduce muscle tension to lessen driver fatigue, improve workability and efficiency.

HD Digital Wireless Camera System





1080P High Definition, make your work easier and more efficient

STONKAM forklift camera with 1080P CMOS image sensor provides a clear view of the route and operation environment. The LED lights also make it clear and easy in different environment to load, unload, transport and store goods at exact position.

Wireless Forklift Camera System





62° forklift view + optional camera addition, eliminate blind spots

The front view forklift view extends the driver's operational visibility, with the option to add additional wireless cameras to provide rear view to eliminate blind spots. This complete forklift camera system helps drivers avoid hitting cargoes, other material handling equipment or even people.

Wireless Forklift Camera System

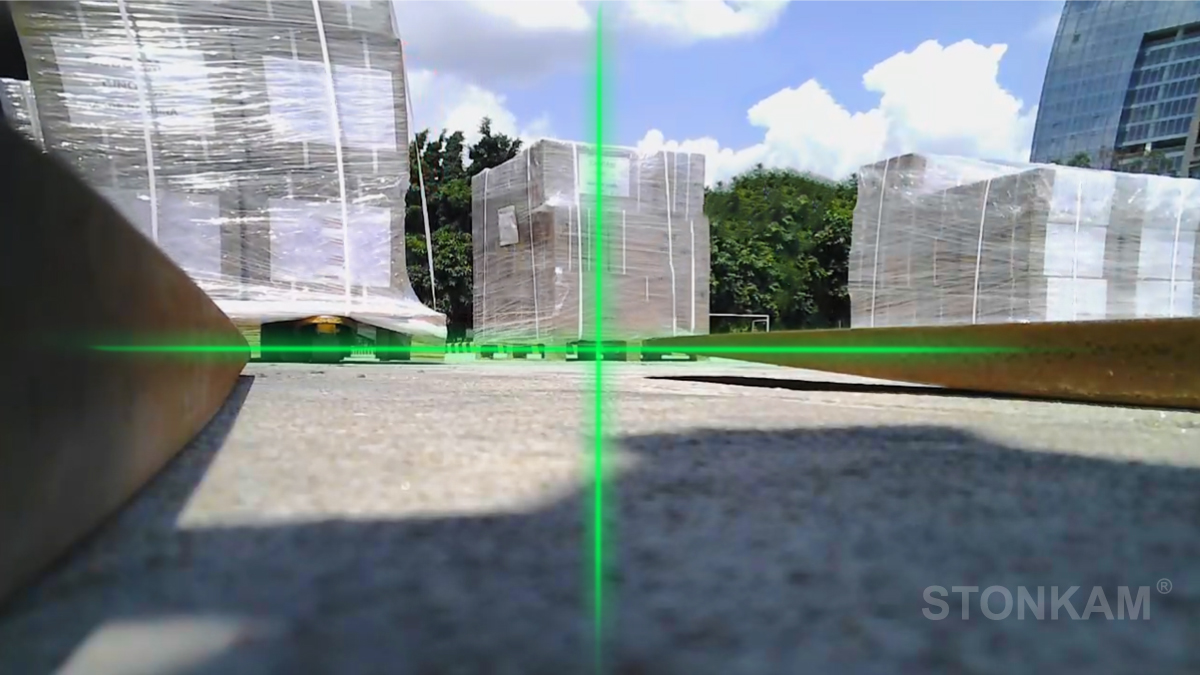

Laser Positioning, accurate handling

The built-in laser positioning line perfectly solves handling inaccuracy and cargo damages when the driver operates the lift. By projecting a green line, the driver can precisely control forks by the green line reference, thus can avoid damage to goods and improve operational efficiency. What's more, the laser positioning line can work as warning light when the forklift is turning around, it can remind other people to stay away from the forklift and avoid collisions.







Convenient and stable 2.4GHz digital wireless transmission, distance up to 120m

2.4GHz digital wireless transmission



Magnetic housing for wire-free installation

Just simply place the magnetic forklift camera on the iron arm, and the camera can firmly attach to the forklift.

magnetic forklift camera





Save complex installation procedures, cutting installation costs

The wireless forklift camera can be powered by an external battery, with no need for additional power wiring.

magnetic forklift camera





Waterproof & Shock-resistant

IP69K waterproof, dustproof,shock resistant, durable and fit for forklift to work outside.

waterproof Wireless forklift camera





Applications

STONKAM 1080P HD wireless forklift camera with magnetic base is very easy to install. It  can increase the visibility range of forklift operation and improve operation efficiency.  If working with wireless magnet rear view camera, it can monitor both front and rear blind areas of forklifts to avoid collisions and accidents.

Digital Wireless forklift Camera System
