10.1 Inch HD Quad-view Wireless Monitoring System

10.1 Inch HD Quad-view Wireless Monitoring System

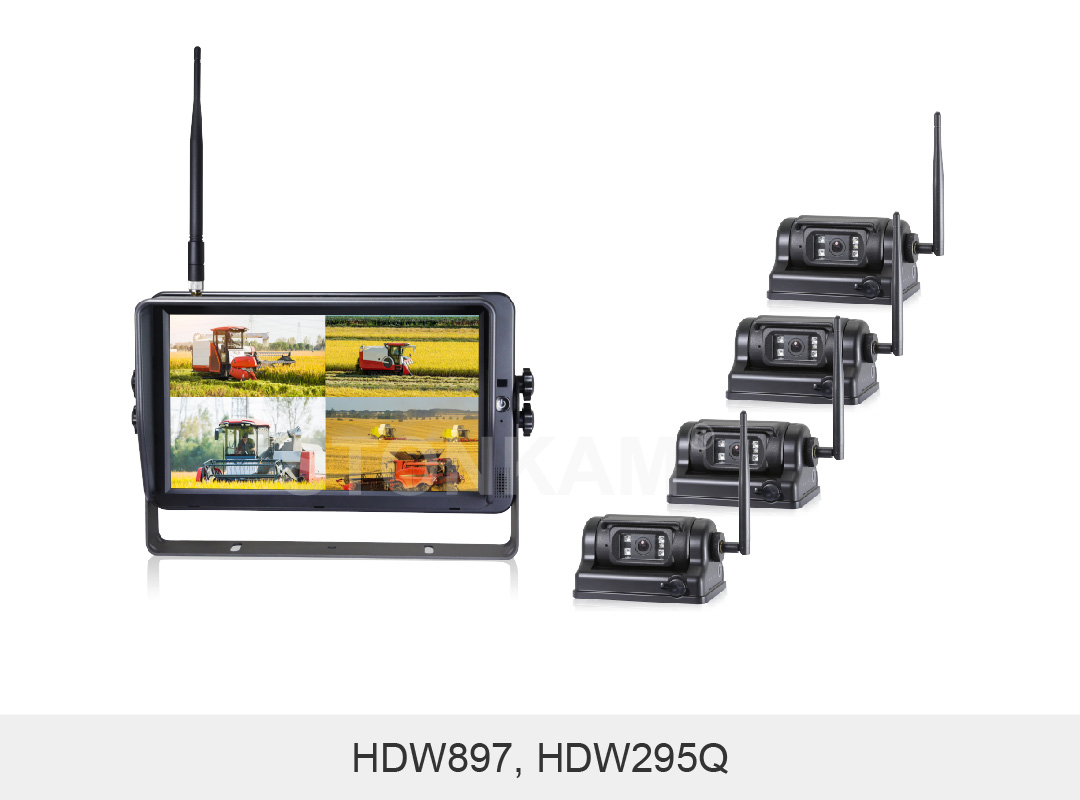

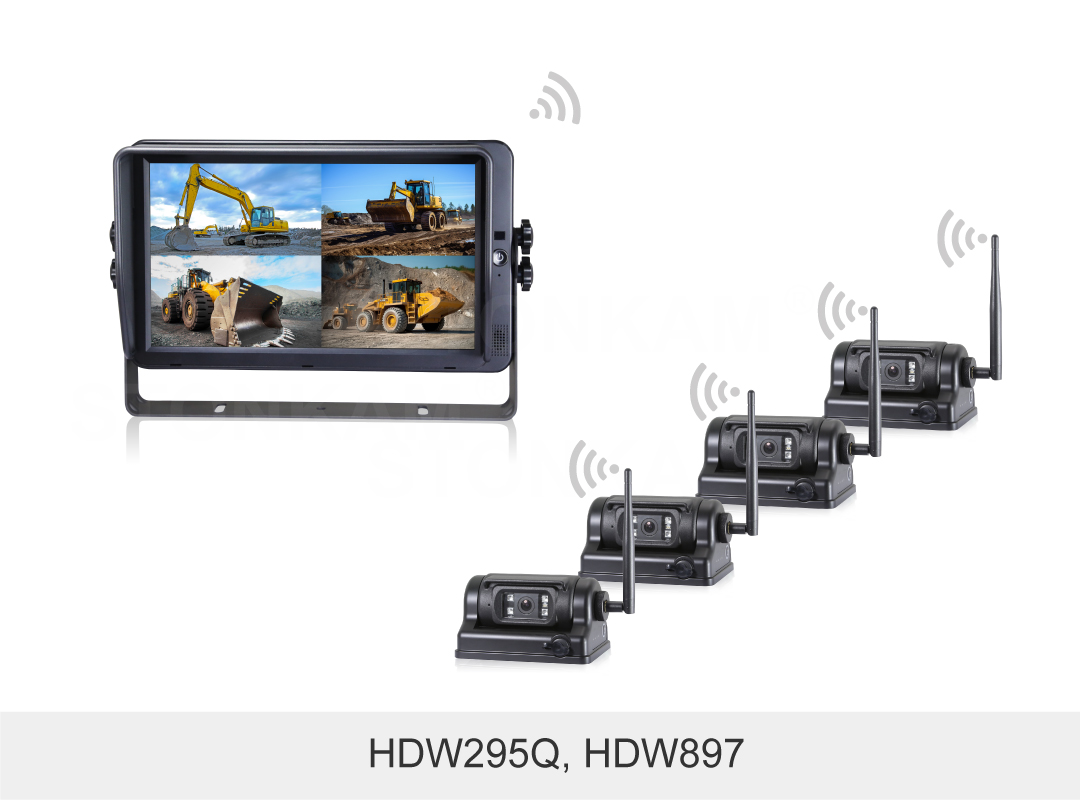

HDW295Q，HDW897

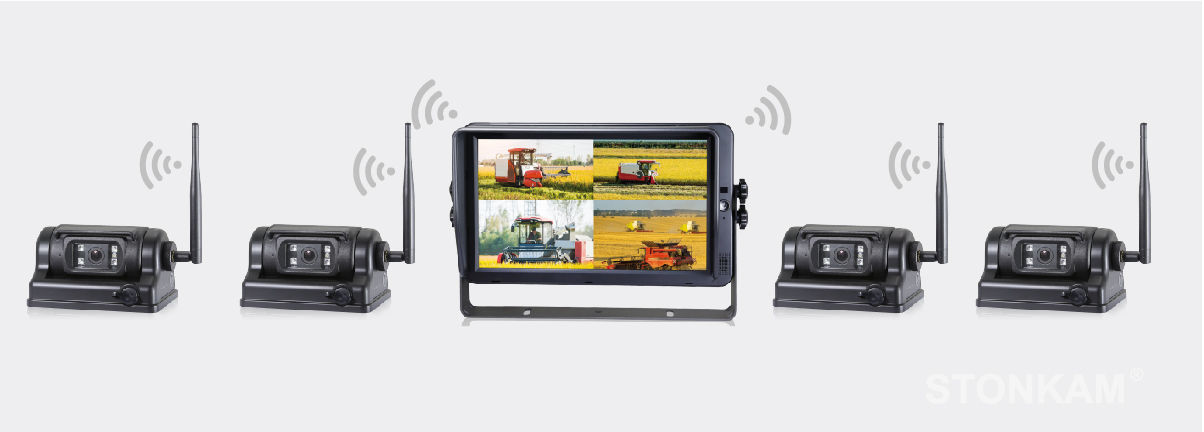

STONKAM® 10.1 Inch HD Quad-view Wireless Monitoring System is easy to install. It supports quad view and auto pairing; good for truck, trailer, RV, etc. It can work with HD digital wireless rear view camera to form excellent Wireless Vehicle Monitor System. Click to see more STONKAM® Digital Wireless Camera System products.

Inquire Now

Leave your message and contact details, we will try to get back to you!

Features

Support 4CH wireless camera and wireless transmitter.
A variety of monitors modes, quad view, double view and single view to meet various monitoring needs and reduce blind spots.
With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback.
Manual and automatic pair are supported, and the setting is quick and simple. After pairing, you only need to connect the power supply in the vehicle to work.
Supporting 1080P/720P camera input.
The operation is more convenient, simple and quick, more durable and smoother, and the service life is prolonged.
Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5 trigger input-wires can be configurable.
Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds.
Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds.
Support power fail safeguard by super-capacitor.
Rear view parking lines can be configured.

Wireless monitor:

LCD Dimension	7"
Resolution	1024x 3 (RGB) x600
Contrast	700:1
Brightness	600cd/m²
Viewing Angle	U:80 / D:85, R/L:85
Pixel Size	0.1506(W) x 0.1432(H)
Aspect Ratio	16:9
Channel	4 CH
Operating Frequency	2400MHz ~ 2483.5MHz(ISM band)
Receiving Sensitivity	-78dBm
Transmission power	FCC≤26dBm CE≤20dBm MIC≤10dBm
Decompression Form	H.264
Modulation	FHSS
Delay	200ms
Transmitting Distance	FCC≤300 M CE≤200 M MIC≤60 M
Storage	Micro SD Card, up to 128G
System Format	PAL / NTSC
Power Supply	DC 10-32V
Power Consumption	Max.10W
Loudspeaker	1W/8Ω
Operating Temp. & Humidity	-20~+70ºC,RH90%MAX
Storage Temp. & Humidity	-30~+80ºC,RH90%MAX

Wireless camera:

Battery Capacity	3.6V/6400mAh
Charging Voltage	5V-12V
Charging Time	5V/8H，12V/3H
Charging Current	5V/1.5A(MAX)，12V/1.5A(MAX)
Discharging Time	12H（daytime） 5H（night）
Charging Temperature	0~+40℃
Discharging Temperature	-20~+60℃
Storage Temperature	-20~+60℃
Waterproof Rating	IP69K
Dimension	116 x 80 x 66（mm）
Weight	670g
Sensor	1/2.9” CMOS SENSOR
Effective Pixels	1920 x 1080 pixels
AGC	Auto
Signal to Noise Ratio	38dB
White Balance	Auto
BLC	Auto
Operation Frequency	2403-2478MHZ
Transmission Distance (barrier free)	300m(20dBm)
Receiving sensitivity	-78dBm
Video Decode	H.264
Transmission power	10dBm/20dBm
Modulation	FHSS
Delay	170ms
RF Bit Rate	12Mbps
Minimum Illumination	0Lux
Night Vision Distance	8-10m
Audio	Optional
Viewing Angle	130°
IR-cut function	Optional

What are the benefits of STONKAM® 10.1 inch Digital Wireless Vehicle Monitor System?

Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

Wireless Monitoring System

Strong anti-interference, Stable connection

Operating frequency: 2400MHz ~ 2483.5MHz

STONKAM® wireless camera system adopts the FHSS technology to guarantee the privacy and anti-interference of connection.

Wireless Monitoring System

Open transmission distance up to 984ft (300m)

Even in high-speed or long-distance operation, the monitor will display the surrounding environment in real time, making your driving or operation more convenient without interference, flicker, blur or delay.

Wireless Monitoring System

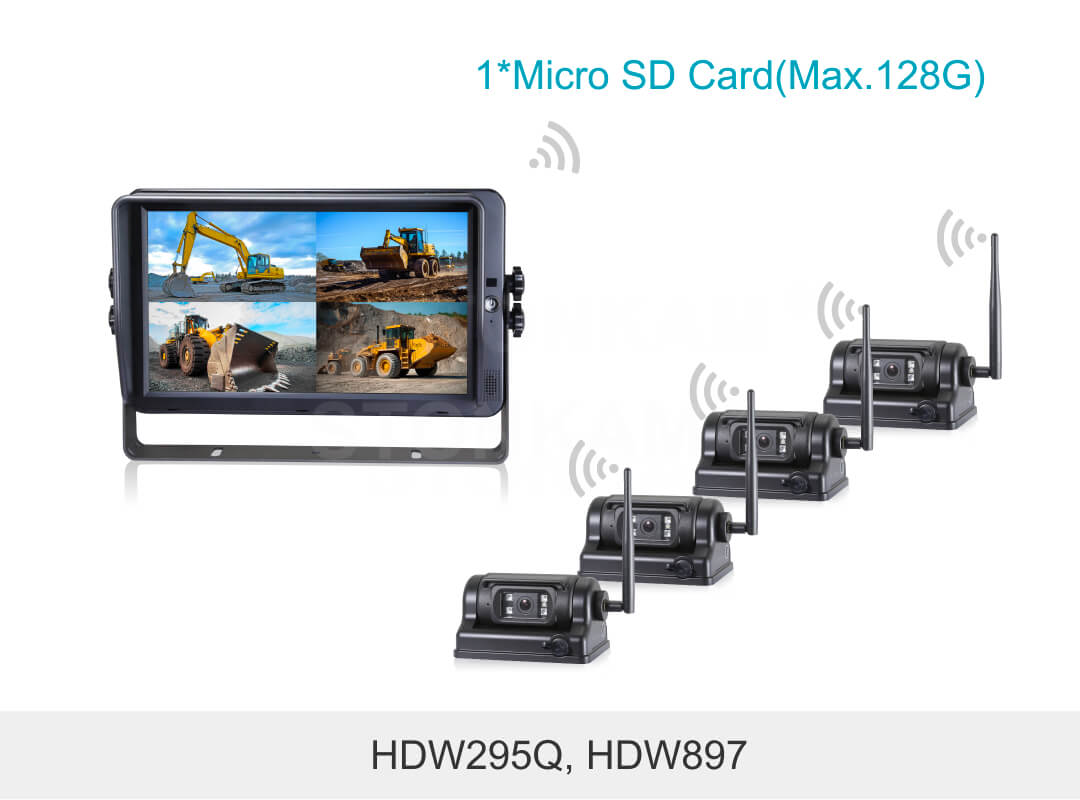

With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback.

Digital Wireless Monitoring System

Support multiple display modes, such as quad-view mode, split-view mode, single view mode.

The channels for the quad-view and split-view can be set flexibly.

Digital Wireless Monitoring System

Touch screen optional and easy operation

Digital Wireless Monitoring System

With magnetic base, no drilling, no wiring, easy installation!

With magnet base, STONKAM HD Wireless Camera can be installed without drilling. The range of available vehicles is wide and the flexibility is high.

Digital Wireless Monitoring System

With rechargeable battery, it has up to 12 hours battery life, and has ultra-low standby power consumption

The rechargeable camera with battery has up to 12 hours battery life in the daytime, and can automatically stand by and wake up the monitor. When the standby power consumption is less than 0.01W, and it can save power without manual shutdown when not in use.

Wireless reverse camera

Correct color deviation during the day and protect driving safety at night

STONKAM 10.1 Inch HD Quad-view Wireless Monitoring System can support IR-CUT, thoroughly solving the problem of color deviation of green plants under sunlight and ensuring clear recording; And the night vision distance is up to 10 meters, ensuring safe driving!

Digital Wireless Monitoring System

IP69K waterproof rated; weatherproof, suitable for outdoor use

Waterproof Vehicle Wireless Rechargeable Camera

Multiple Application Scenarios

With top grade high quality, STONKAM® HD Digital Wireless Vehicle Monitor System can be applied to various vehicles, such as forklift, crane, harvester, etc.


Harvester	Excavator

Farm	Forklift

Crane	Planter

Applications
