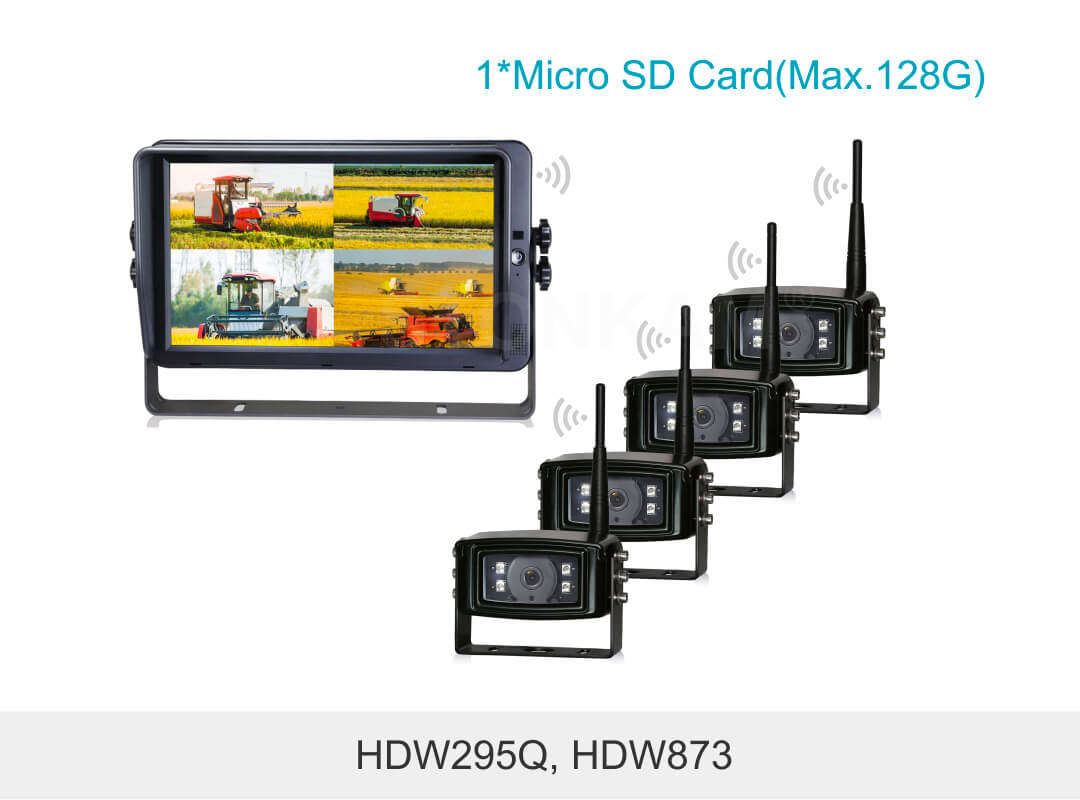

10.1 inch HD Digital Wireless Quad-view Monitor System

10.1 inch HD Digital Wireless Quad-view Monitor System

HDW295Q, HDW873

STONKAM® 10.1 inch HD Digital Wireless Quad-view Monitor System is easy to install. It supports quad view and auto pairing; good for truck, trailer, RV, etc. It can work with HD digital wireless rear view camera to form excellent Wireless Vehicle Monitor System. Click to see more STONKAM® Digital Wireless Camera System products.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

Support 4CH wireless camera and wireless transmitter.
A variety of monitors modes, quad view, double view and single view to meet various monitoring needs and reduce blind spots.
With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback.
Manual and automatic pair are supported, and the setting is quick and simple. After pairing, you only need to connect the power supply in the vehicle to work.
Supporting 1080P/720P camera input.
The operation is more convenient, simple and quick, more durable and smoother, and the service life is prolonged.
Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5 trigger input-wires can be configurable.
Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds.
Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds.
Support power fail safeguard by super-capacitor.
Rear view parking lines can be configured.

Wireless monitor:

LCD Dimension	10.1"
Resolution	1024x 3 (RGB) x600
Contrast	700:1
Brightness	600cd/m²
Viewing Angle	U:85 / D:85, R/L:85
Pixel Size	0.1506(W) x 0.1432(H)
Aspect Ratio	16:9
Channel	4 CH
Operating Frequency	2408MHz ~ 2478MHz(ISM band)
Receiving Sensitivity	-78dBm
Transmitting Distance	Max. 300m
Decompression Form	H.264
Modulation	FHSS
Delay	Min. 130ms
Storage	Micro SD Card, up to 128G
System Format	PAL / NTSC
Power Supply	DC 10-32V
Power Consumption	Max.10W
Loudspeaker	1.5W/8Ω
Operating Temp. & Humidity	-20~+70ºC,RH90%MAX
Storage Temp. & Humidity	-30~+80ºC,RH90%MAX

Wireless camera:

Image Device	1/2.9" CMOS
Effective Pixels	1920 (H) x 1080 (V)
Signal to Noise Ratio	38
White Balance	Auto
BLC	Auto
Dynamic Range	81dB
Operation Frequency	2403MHz-2478MHz
Transmision Distance (Barrier Free)	300m@20dBm
Receiving Sensitivity	-78dBm
Video Code	H.264
Transmission Power	10dBm/20dBm
Modulation	FHSS
Delay	170ms
RF Bit Rate	12Mbps
Operating Temp. & Humidity	–20℃ ~ 70℃, RH95%MAX.
Storage Temp. & Humidity	–30℃ ~ 80℃, RH95%MAX.
Minimum Illumination	0Lux/0.1Lux
Power Supply	DC10-32V
Power Consumption	Day：1.8W-2.5W Night：3.6W-4.3W
Night Vision Distance	NO IR LED/8-10m/12-15m/20-25m
Waterproof Rating	IP69K
Audio	Optional
Viewing Angle	35°/50°/70°/100°/130°/150°/170°
Heater	Optional
IR-Cut Function	Optional
Image Mode	Mirror/Normal

What are the benefits of STONKAM® 10.1 inch Digital Wireless Vehicle Monitor System?

Digital Wireless Camera System

Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

HD Digital Wireless Camera System

Strong anti-interference, Stable connection

Operating frequency: 2400MHz ~ 2483.5MHz

STONKAM® wireless camera system adopts the FHSS technology to guarantee the privacy and anti-interference of connection.

STONKAM® wireless camera system

Open transmission distance up to 984ft (300m)

Even in high-speed or long-distance operation, the monitor will display the surrounding environment in real time, making your driving or operation more convenient without interference, flicker, blur or delay.

STONKAM® wireless camera system

With built-in recorder (supports 128GB Micro SD card), support 4CH real-time recording and video playback.

rear view camera kit

Support multiple display modes, such as quad-view mode, split-view mode, single view mode.

The channels for the quad-view and split-view can be set flexibly.

Digital Wireless Camera System

Touch screen optional and easy operation

Digital Wireless monitor

Can work with magnetic base and rechargeable battery
No need to run long cables through the whole car. Suitable for occasions when connecting to power cord is inconvenient.

Digital Wireless Camera System

Correct color deviation during the day and protect driving safety at night

STONKAM 10.1 inch HD Digital Wireless Quad-view Monitor System can support IR-CUT, thoroughly solving the problem of color deviation of green plants under sunlight and ensuring clear recording; And the night vision distance is up to 10 meters, ensuring safe driving!

Digital Wireless Camera System IR cut

IP69K waterproof rated; weatherproof, suitable for outdoor use

waterproof Digital Wireless Camera System

Multiple Application Scenarios

With top grade high quality, STONKAM® HD Digital Wireless Vehicle Monitor System can be applied to various vehicles, such as forklift, crane, harvester, etc.


Harvester	Excavator

Farm	Forklift

Crane	Planter

Applications

STONKAM® Digital Wireless Vehicle Monitor System can be applied to various vehicles by easy installation without running long cables.

For Truck:

HD Digital Wireless Vehicle Monitor System for truck

For Harvester:

1080PHD Digital Wireless Vehicle Monitor System

For Planter:

HD Digital Wireless Vehicle Monitor System for planter
