7 Inch Waterproof Rear View System

HD125D, FHD844, FHD410, FHD685

STONKAM® supplies the best high definition car rear view monitors featuring touch screen/ button, anti-vibration, remote control, etc. With the great R&D support, we also offer ODM & OEM services; please kindly contact for details.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

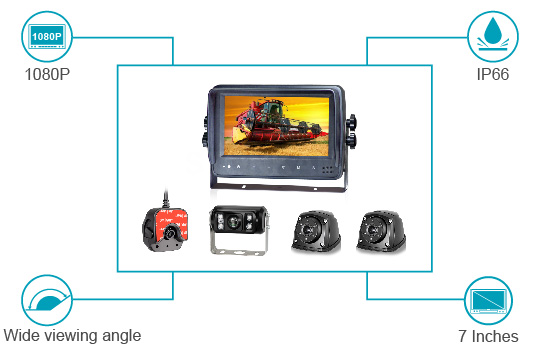

Features

IP66 waterproof
TFT LCD display with wide viewing angle and high resolution
Support 4 channel cameras input, 4 reverse trigger wire
Support vertical, mirror and normal viewing
Multiple video formats available to camera:1080P 30/ 1080P 25/ 720P 30/ 720P 25/ PAL/ NTSC
Full-function remote control supported
Support touch buttons with backlight
Speaker available and users can adjust the volume from the control panel
Multi languages available, able to be customized according to users' requirements: English, French, Portuguese, Spanish, Russian, Dutch, German, Italian
Automatic backlight adjustment
10 - 32V wide power supply input supports 12V or 24V automobile battery

Color Depth	24 bit
Display Colors	16.7M dithering
Power Supply	Automobile storage battery (10-32V)
Power Consumption	Max 6W
Dimension	197.2mm (W) × 132mm (H) × 30.5mm (T)
Dot Pitch	0.1506(H) × 0.1432 (V)
Resolution	1024 x 3(RGB) x 600
Waterproof	IP66
Contrast	700:1
Brightness	600cd/m²
Viewing Angle	U: 85°,D: 85°, R/L: 85°/85°
Operating Temp. & Humidity	-20ºC~+70ºC,RH90%MAX
Storage Temp. & Humidity	-30ºC~+80ºC,RH90%MAX

Application

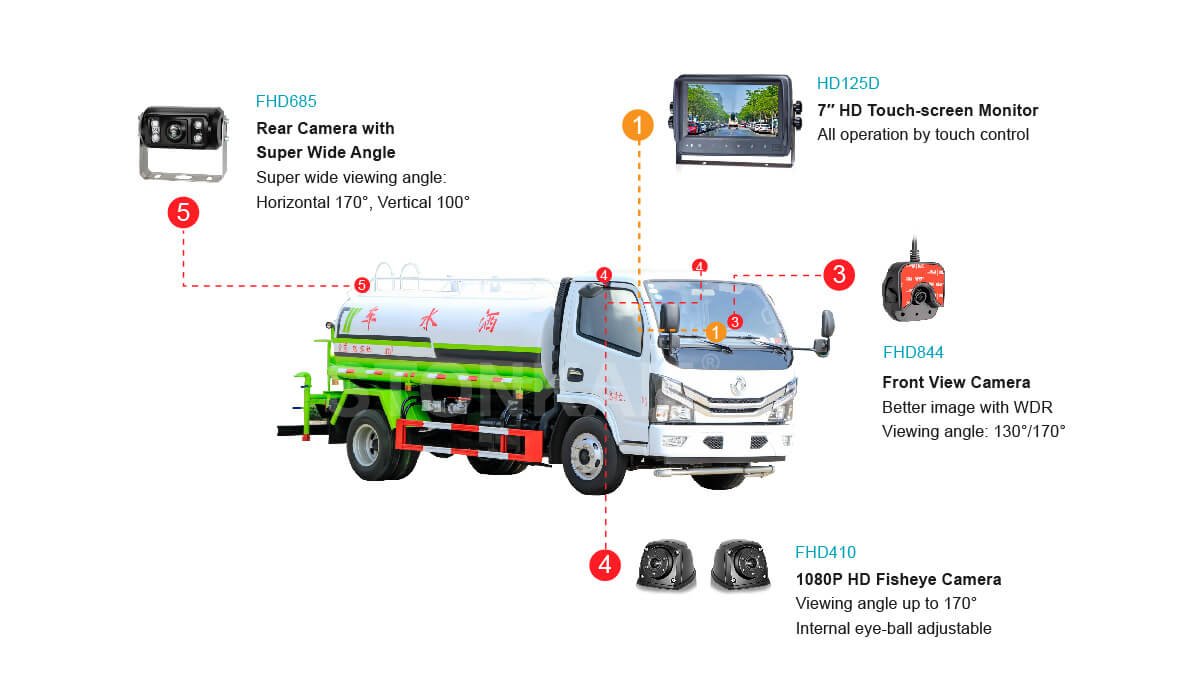

vehicle vision system

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

IP66 waterproof

TFT LCD display with wide viewing angle and high resolution

Support 4 channel cameras input, 4 reverse trigger wire

Support vertical, mirror and normal viewing

Multiple video formats available to camera:1080P 30/ 1080P 25/ 720P 30/ 720P 25/ PAL/ NTSC

Full-function remote control supported

Support touch buttons with backlight

Speaker available and users can adjust the volume from the control panel

Multi languages available, able to be customized according to users' requirements: English, French, Portuguese, Spanish, Russian, Dutch, German, Italian

Automatic backlight adjustment

10 - 32V wide power supply input supports 12V or 24V automobile battery

Color Depth

24 bit

Display Colors

16.7M dithering

Power Supply

Automobile storage battery (10-32V)

Power Consumption

Max 6W

Dimension

197.2mm (W) × 132mm (H) × 30.5mm (T)

Dot Pitch

0.1506(H) × 0.1432 (V)

Resolution

1024 x 3(RGB) x 600

Waterproof

IP66

Contrast

700:1

Brightness

600cd/m²

Viewing Angle

U: 85°,D: 85°, R/L: 85°/85°

Operating Temp. & Humidity

-20ºC~+70ºC,RH90%MAX

Storage Temp. & Humidity

-30ºC~+80ºC,RH90%MAX

Application
