7-inch HD Vehicle Surveillance Monitor System

7-inch HD Vehicle Surveillance Monitor System

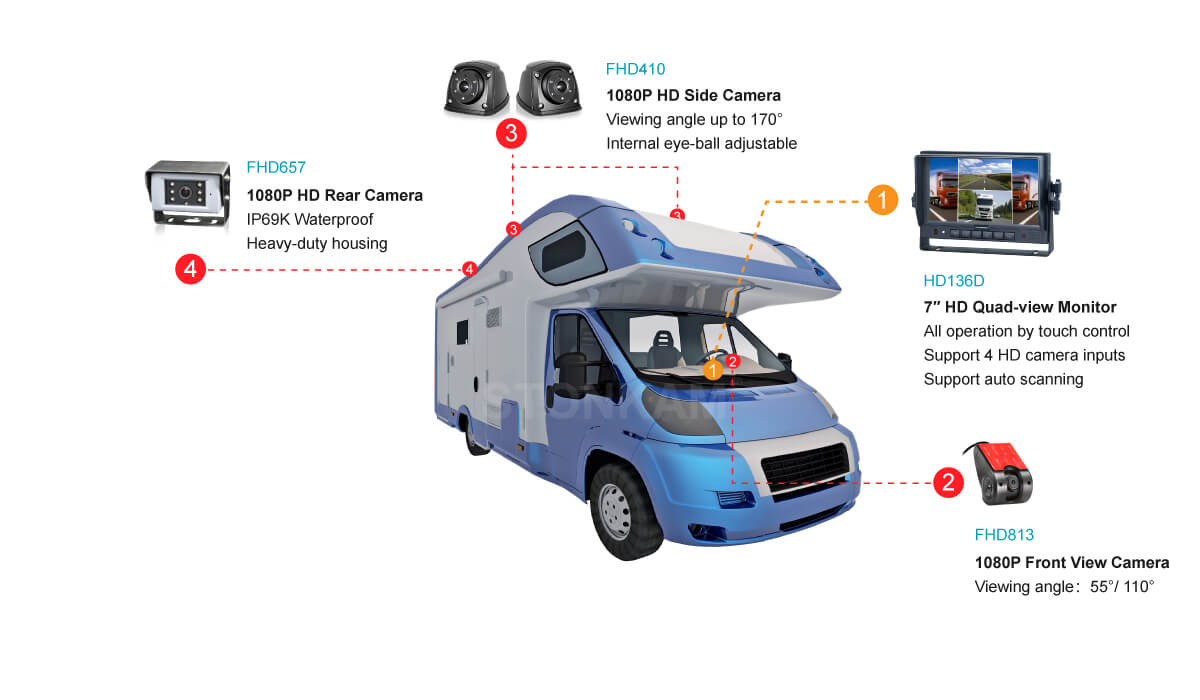

HD136D, FHD813, FHD410, FHD657

STONKAM 7 inch HD Vehicle Surveillance Monitor System supports 4CH HD cameras input which allows the driver to see directly the environment around the vehicle while driving. This can reduce the possibilities of scratch and other accidents. This monitor also can satisfy the customers demand for a clear and convenient video surveillance.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

7 inch HD quad-view monitor
All manu actions support touch screen control
Supports 4 HD camera inputs, Quad-view display supported
Video formats available to cameras: 1080P30、1080P25、720P30、720P25
Display mode supports single view, dual views, triplex views, quad views, trefoil view, Y view and other views
the parameter of each CH image effect could be adjusted individually, supporting horizontal mirror image
5 trigger lines input, trigger line definition, trigger delay and priority can be adjusted freely; the yellow wire can define the camera display to trigger
Automatic scan available, scanning channel and scanning time can be choosed
Able to set reversing marking line, adjusting and calibrating freely
Backlight brightness supports 3-level manual adjustment and 2-level ambient light autombile adjustment
Multi-languages available
10-32V wide power supply input supports 12V or 24V automobile battery
Easy to install and operate

System Format	1080P30/1080P25/720P30/720P25
Resolution	1024x3(RGB)x600
Brightness	600 cd/m²
Contrast	700:1
Viewing Angle	U: 85°/ D: 85°, R/L: 85°
Aspect Ratio	16:9
Operating Temperature	-20~+70℃
Storage Temperature	-30~+80℃
Power Consumption	Max.25W
Power for Cameras	Max. 4×500mA, 12V
Power Input	10V-32V
Dot Pitch	0.1506(H)x0.1432(V)
Video Input	4 CH
Audio Input	4 CH

Too many blind spots when driving?

Often upset by the recurrent scratches?

Having encountered all kinds of feigned accidents?

Difficult to determine who is liable for rear-end collisions?

……

To solve all these problems, all you need is a set of vehicle monitoring system!

But wait,

Where to find a nice vehicle monitoring system?

How can we synchronously monitor the image of multiple cameras on just one display?

Where to find a monitor with good quality and is easy to operate?

STONKAM Brand updated STONKAM 7 HD surveillance monitor brings a perfect monitoring experience while driving!

Real-time viewing of driving conditions, assisting in safe driving!

STONKAM 7 Inch HD surveillance monitor supports 4CH HD cameras input. Drivers can intuitively monitor the blind spots in the driving process, controllling the driving situation in real time. It greatly improves the driver's field of view, able to reduce the possibility of traffic accidents.

HD surveillance monitor

Multiple-display modes

It supports single view, dual views, triplex views, quad views, trefoil view, Y view and other views. Multi-display modes could switch automatically, meeting your various monitoring needs.

7-inch vehicle HD surveillance monitor

Applications

STONKAM 7 Inch HD surveillance monitor is easy to install and use. It can be used for many kinds of vehicles, such as agricultural machine and construction machine.

Vehicle surveillance monitor
