HD System-10.1 inches Vehicle Monitor with touch screen

HD System-10.1 inches Vehicle Monitor with touch screen

HD295D, HD639, HD086

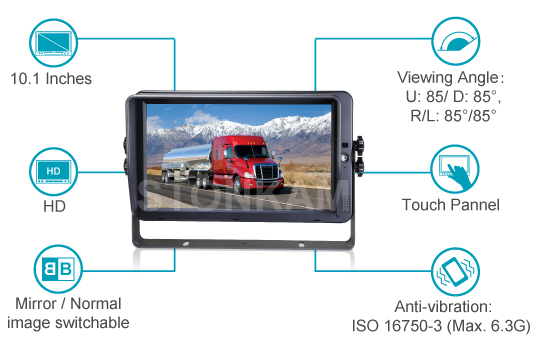

10.1 inches HD Touch-screen Vision System.Support 4 HD channels with Max.1080P30 cameras inputs. Capacitive Touch screen control, IR contorl. 9 languages available for user operation.(i.e. English, Chinese, German, French, Japanese, Spanish , Italian, Russian, Dutch ).

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

Support 4 HD channels with Max.1080P30 cameras inputs
Support Touch screen control, IR control
9 languages available for user operation.(i.e. English, Chinese, German, French, Japanese, Spanish , Italian, Russian, Dutch )
Reverse cursor with on-off mode switch available
Support automatic brightness adjustment
Automatic scan available, with the scanning time can be choosed between 1-60s
Support 5-channel display of auto trigger, with the trigger delay can be adjusted freely between 1-60s
Multiple video formats available: PAL / NTSC / HDAHD、HDTVI、HDCVI(720P/1080P)

Resolution	1024 x 3(RGB) x 600
Video Input	4 CH
Audio Input	4 CH
Loudspeaker	1W
Trigger	3 / 4 trigger lines（13/22pin）
Brightness	600 cd/m²
Contrast	600：1
Operating Temp. & Humidity	-20ºC ~ 70℃, RH 90%MAX
Viewing Angle	U: 85/ D: 85, R/L: 85/85
Mirror Function	Yes
Dimension	267mm (W) × 159.5mm (H) × 30mm (T).
Split Screen	No
Power Supply	10V-32V
Power Consumption	less than10W(without cameras)

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

Support 4 HD channels with Max.1080P30 cameras inputs

Support Touch screen control, IR control

9 languages available for user operation.(i.e. English, Chinese, German, French, Japanese, Spanish , Italian, Russian, Dutch )

Reverse cursor with on-off mode switch available

Support automatic brightness adjustment

Automatic scan available, with the scanning time can be choosed between 1-60s

Support 5-channel display of auto trigger, with the trigger delay can be adjusted freely between 1-60s

Multiple video formats available: PAL / NTSC / HDAHD、HDTVI、HDCVI(720P/1080P)

Resolution

1024 x 3(RGB) x 600

Video Input

4 CH

Audio Input

4 CH

Loudspeaker

1W

Trigger

3 / 4 trigger lines（13/22pin）

Brightness

600 cd/m²

Contrast

600：1

Operating Temp. & Humidity

-20ºC ~ 70℃, RH 90%MAX

Viewing Angle

U: 85/ D: 85, R/L: 85/85

Mirror Function

Yes

Dimension

267mm (W) × 159.5mm (H) × 30mm (T).

Split Screen

No

Power Supply

10V-32V

Power Consumption

less than10W(without cameras)
