7 inch High Definition TFT LCD Color Monitor

7 inch High Definition TFT LCD Color Monitor

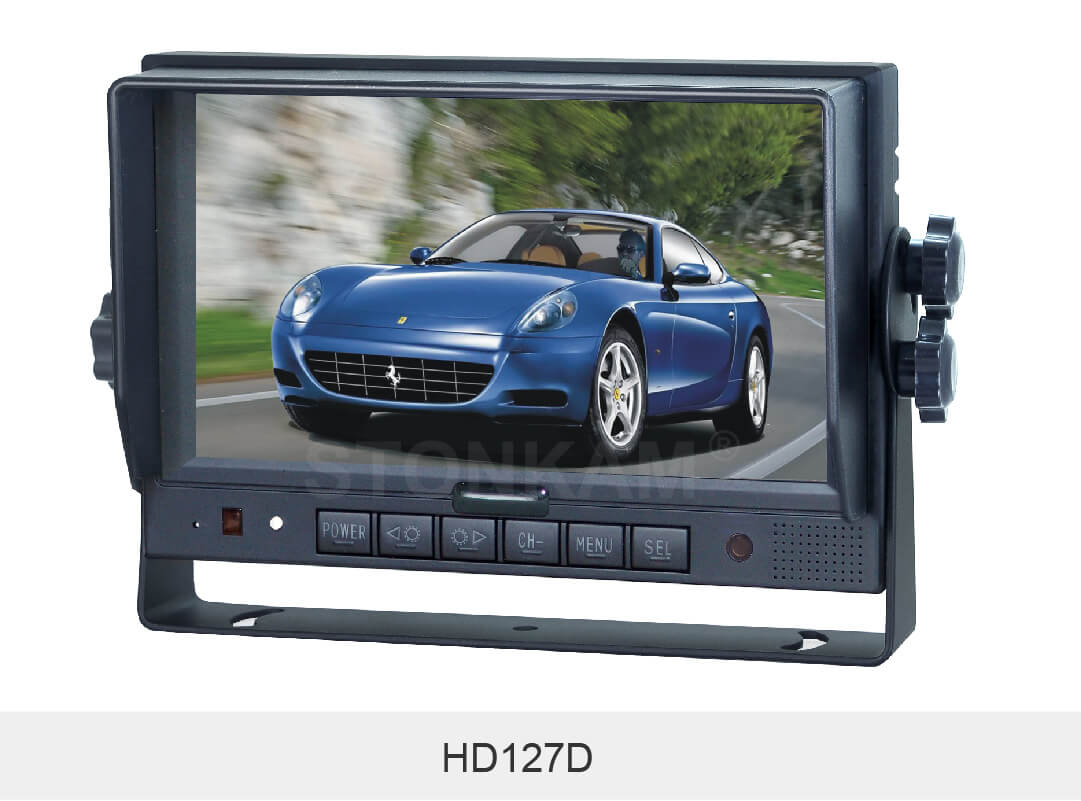

HD127D

STONKAM® supplies the best TFT LCD color monitors featuring touch screen/ button, anti-vibration, remote control, etc. With the great R&D support, we also offer ODM & OEM services; please kindly contact for details.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

TFT LCD display with wide viewing angle and high resolution
4 channel cameras input, 4 reverse trigger wire
Support vertical, mirror and normal viewing
Multiple video formats available to cameras:1080P 30/ 1080P 25/ 720P 30/ 720P 25/ PAL/ NTSC
Full-function remote control supported
Support mechanical buttons with backlight
Speaker available and users can adjust the volume from the control panel
Multi languages available, able to be customized according to users' requirements: English, French, Portuguese, Spanish, Russian, Dutch, German, Italian
Automatic backlight adjustment
10 - 32V wide power supply input supports 12V or 24V automobile battery

Color depth	24 bit
Display colors	16.7M dithering
Power supply	Automobile storage battery (10-32V)
Power consumption	about 10W
Dimension	182mm (W) × 122mm (H) × 28.7mm (T) (without flush mount) 199mm (W) × 139mm (H) × 31mm (T) (with flush mount)
Dot pitch	0.1506(H) × 0.1432 (V)
Resolution	1024 x 3(RGB) x 600
Contrast	700:1
Brightness	600cd/m²
Viewing angle	U: 85°,D: 85°, R: 85°，L:85°
Operating temp. & humidity	-20ºC~+70ºC,RH90%MAX
Storage temp. & humidity	-30ºC~+80ºC,RH90%MAX

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

TFT LCD display with wide viewing angle and high resolution

4 channel cameras input, 4 reverse trigger wire

Support vertical, mirror and normal viewing

Multiple video formats available to cameras:1080P 30/ 1080P 25/ 720P 30/ 720P 25/ PAL/ NTSC

Full-function remote control supported

Support mechanical buttons with backlight

Speaker available and users can adjust the volume from the control panel

Multi languages available, able to be customized according to users' requirements: English, French, Portuguese, Spanish, Russian, Dutch, German, Italian

Automatic backlight adjustment

10 - 32V wide power supply input supports 12V or 24V automobile battery

Color depth

24 bit

Display colors

16.7M dithering

Power supply

Automobile storage battery (10-32V)

Power consumption

about 10W

Dimension

182mm (W) × 122mm (H) × 28.7mm (T) (without flush mount)

199mm (W) × 139mm (H) × 31mm (T) (with flush mount)

Dot pitch

0.1506(H) × 0.1432 (V)

Resolution

1024 x 3(RGB) x 600

Contrast

700:1

Brightness

600cd/m²

Viewing angle

U: 85°,D: 85°, R: 85°，L:85°

Operating temp. & humidity

-20ºC~+70ºC,RH90%MAX

Storage temp. & humidity

-30ºC~+80ºC,RH90%MAX
