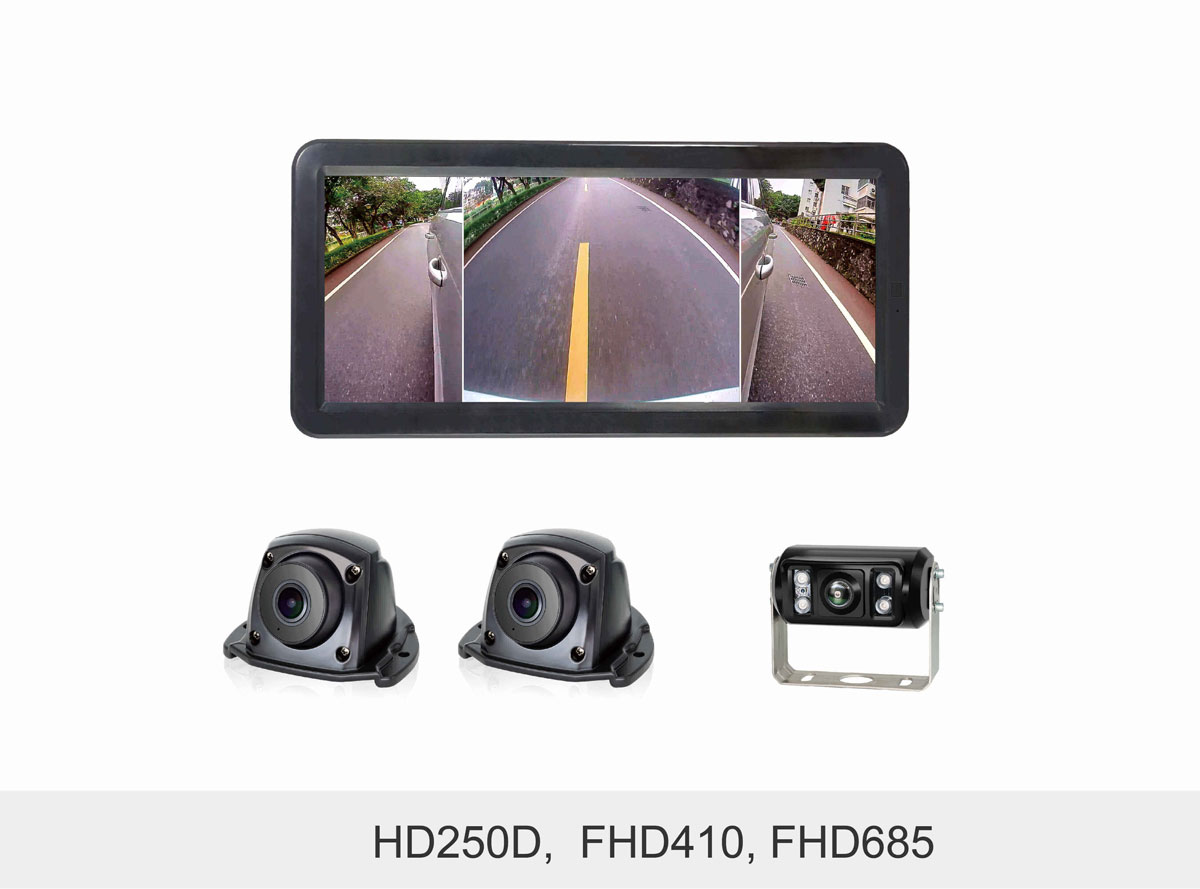

HD 12.3-inch Three-Split Vehicle Monitor

HD250D, FHD685,FHD410

STONKAM HD 12.3-inch Three-Split Vehicle Monitor has been newly upgraded, now it integrates the functions of vehicle DVR and Monitor! It supports a larger viewing angle, higher night vision sensitivity, and is easier to adapt to complex weather conditions, which means broader and clearer side vision and more professional in safeguarding driving safety than traditional rear-view mirrors.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

Features

1080P Blind Spot Monitoring】Supports 3-Channel 1080P cameras input, displaying three horizontal images simultaneously

Two-in-one that combines in-vehicle DVR and monitor】a major upgrade of invehicle monitor! It can record and replay driving videos. With built-in G-sensor, support G-sensor alarm recording triggered by collision detection. All of these functions can help you free from unreasonable damage and responsibility.

3s output speed】 quick turn-on, start displaying images and recording videos within 3 seconds after powered.

IPS screen】  high contrast, high brightness. It could restore the true color, presenting the brighter and more delicate display with much higher resolution.

Replacement for Traditional Rearview Mirror】Having solved the problems of being poor  visibility at night, susceptible to rainy, snowy and foggy weather  and having strong reflection, etc.  on  traditional rear-view mirrors.

Data security】ACC time-lapse recording;  super capacitor power-down protection, to prevent the loss of video data.

LCD Dimension

12.3"

Resolution

1920x 3 (RGB) x 720

Brightness

1000cd/m2

Contrast

1000:1

Viewing Angle

U: 85, D: 85, L: 85, R: 85.

Aspect Ratio

24:9

Video Input

3-channel camera input, support mutiple resolutions(1080P25/1080P30)

Storage

 SD Card, Max 512GB

Operating temp. & humidity

-20~+70℃, RH90%MAX

Storage temp. & humidity

-30~-+80℃, RH90%MAX

Power Consumption

Max.32W(with cameras)

Power Supply

10-32V

Anti-vibration

ISO 16750-3 2012 (2.13G)









Why to install 12.3 inch High Definition Electronic Mirror  Monitor?





Your traditional rearview mirrors are having blurs in snowy and rainly days? or at night? Or when the rear car flashes strong light to the mirror?
Your traditional rearview mirrors are having high wind resistance and too easy to injure pedestrians because of the overhang installation?
Your traditional rearview mirrors are unable to show the huge blind spot of big trucks?



How do we pick electric mirrors?
If the mirror you pick is not bright enough, definition is not high enough, and the screen is too small, then you still won't be able to view the images clearly.
If your mirror cannot record video, it will be difficult to clarify responsibility in a car accident and tracethe cause,
if your mirror has has poor night vision, you will still be seeing blurs on it.

backup camera and monitor







Let the powerful STONKAM ® high-definition electronic rearview mirror solve your problems!







1080P real-time monitoring of the blind spot

The 3CH 1080P vehicle monitoring cameras paired with the HD electronic rearview mirror display HD250 can achieve three-split screen simultaneous horizontal display, meeting different user needs, avoiding vehicle blind spots, and ensuring driving safety.

mirror monitor





Two-in-one that combines in-vehicle DVR and monitor, make your driving safer

A major upgrade of in-vehicle monitor! It can record and replay driving videos, support mutiple rocording modes (regular recording, event recording, loop recording, time-planning recording, etc. ) With built-in G-sensor, support G-sensor alarm recording triggered by collision detection. Sufficient storage, support 512GB Micro SD card. All of these functions can help you free from unreasonable damage and responsibility.

Electronic Mirror Monitor





Fast startup speed, displaying images and recording within 3 seconds

Startup time is greatly shorten, and you get your images and video recording within 3 seconds.

Electronic Mirror Monitor for bus





12.3" IPS Screen

High contrast, high brightness. It could restore the true color, presenting the brighter and more delicate display with much higher resolution.

backup camera monitor





Data security is guaranteed

ACC time-lapse recording;  super capacitor power-down protection, to prevent the loss of video data.

Electronic Mirror Monitor





Application

STONKAM® HD 12.3-inch Three-Split Vehicle Monitor can be easily applied to various vehicles for good vehicle surveilance.

rear view mirror camera

mirror monitor
