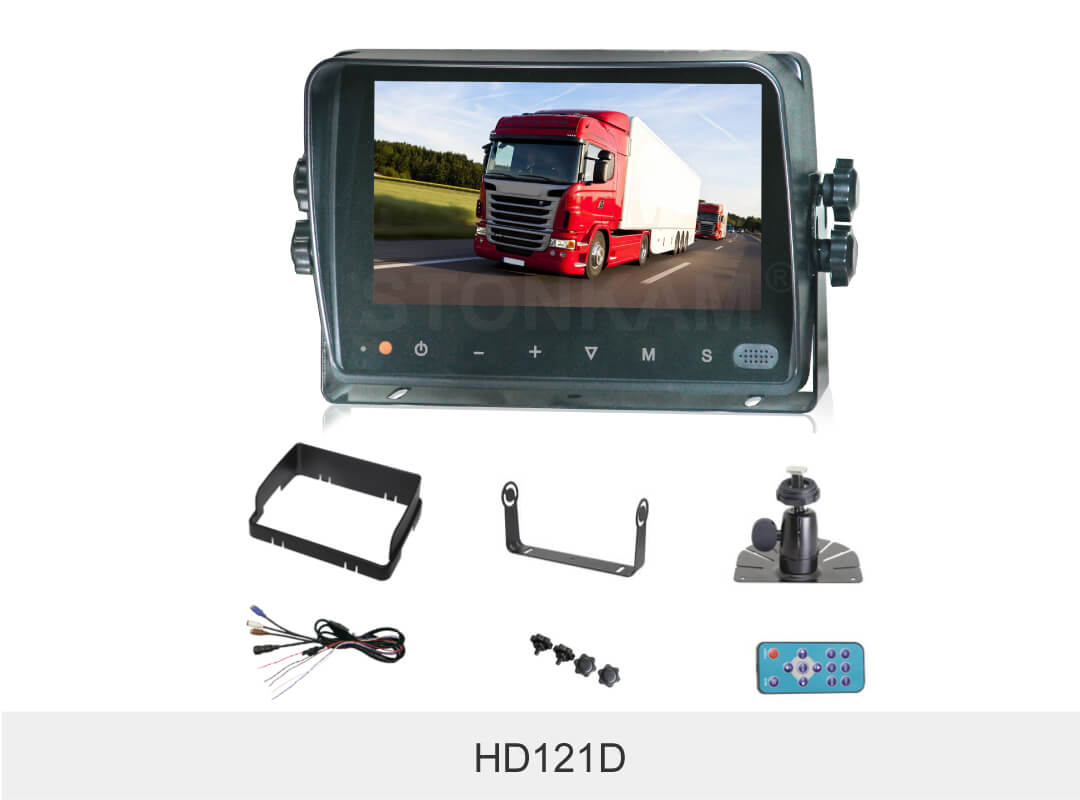

7 inch High Definition LCD Backup Monitor for Vehicle

7 inch High Definition LCD Backup Monitor for Vehicle

HD121D

STONKAM® supplies the best LCD backup monitors featuring touch screen/ button, anti-vibration, remote control, etc. With the great R&D support, we also offer ODM & OEM services; please kindly contact for details.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

TFT LCD display with wide viewing angle and high resolution
Support 4 channel cameras input, 4 reverse trigger wire
Support horizontal, vertical, mirror and normal viewing
Multiple video formats available to camera:1080P 30/ 1080P 25/ 720P 30/ 720P 25/ PAL/ NTSC
Support infrared remote control
Support touch buttons
Reverse warning yardstick can be adjusted up and down
Built-in speaker
Multi languages available, able to be customized according to users' requirements: English, French, Portuguese, Spanish, Russian, Dutch, German, Italian
Automatic backlight adjustment
10 - 32V wide power supply input supports 12V or 24V automobile battery.

High Definition 7 inch TFT LCD Backup Monitor：

Power supply	Automobile storage battery (10-32V)
Power consumption	about 8W
Dimension	194.6mm (W) × 128mm (H) × 39.3mm (T)
Color depth	24 bit
Display colors	16.7M dithering
Dot pitch	0.1506(H) × 0.1432 (V)
Resolution	1024 x 3(RGB) x 600
Contrast	700:1
Brightness	600cd/m²
Viewing angle	U: 85°,D: 85°, R/L: 85°/85°
Operating temp. & humidity	-20ºC~+70ºC,RH90% MAX
Storage temp. & humidity	-30ºC~+80ºC,RH90% MAX

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

TFT LCD display with wide viewing angle and high resolution

Support 4 channel cameras input, 4 reverse trigger wire

Support horizontal, vertical, mirror and normal viewing

Multiple video formats available to camera:1080P 30/ 1080P 25/ 720P 30/ 720P 25/ PAL/ NTSC

Support infrared remote control

Support touch buttons

Reverse warning yardstick can be adjusted up and down

Built-in speaker

Multi languages available, able to be customized according to users' requirements: English, French, Portuguese, Spanish, Russian, Dutch, German, Italian

Automatic backlight adjustment

10 - 32V wide power supply input supports 12V or 24V automobile battery.

High Definition 7 inch TFT LCD Backup Monitor：

Power supply

Automobile storage battery (10-32V)

Power consumption

about 8W

Dimension

194.6mm (W) × 128mm (H) × 39.3mm (T)

Color depth

24 bit

Display colors

16.7M dithering

Dot pitch

0.1506(H) × 0.1432 (V)

Resolution

1024 x 3(RGB) x 600

Contrast

700:1

Brightness

600cd/m²

Viewing angle

U: 85°,D: 85°, R/L: 85°/85°

Operating temp. & humidity

-20ºC~+70ºC,RH90% MAX

Storage temp. & humidity

-30ºC~+80ºC,RH90% MAX
