STONKAM CO., LTD
Products  > 720P/1080P System >  12.3 inch High Definition Rearview Electronic Mirror Monitor System
12.3 inch High Definition Rearview Electronic Mirror Monitor System
(Model:HD-250D, HD-410)
12.3 inch High Definition Rearview Electronic Mirror Monitor System
Features

Feel tired of the poor vision of traditional rearview mirrors in bad weathers? You need STONKAM®12.3 inch Electronic Mirror Monitor System! It is installed inside the vehicle and can provide high definition clear images even in harsh weather conditions like rain, snow, fog, or in the dark.


  • Support 2CH x 720P camera input
  • Support 720P/30fps video recording
  • Support up to 128G SD Card
  • Support automatic backlight adjustment
  • Support automatic camera identification once the monitor is powered on. (The automatic identification will not work if the camera is connected after the monitor is powered on)
  • Resolution: 1920*3 (RGB)*720, IPS
  • Brightness: 1000 cd/m2
  • Contrast: 1000:1
  • IP69K camera night vision distance: 5m (16.40ft)
  • Power Input: 10-32V
  • Shockproof Rating: ISO 16750-3 (6.3G Max)


STONKAM® 720P In-car Electronic Mirror Monitor System


Specification

12.3 inch Split View Rearview Electronic Mirror Monitor

Operating Voltage

10-32V (2.5A Max)

Resolution

1920*3 (RGB)*720, IPS

Viewing Angle

U: 85°/D: 85°, R/L: 85°/85°

Number of Cameras & Video Formats

2 pcs, 720P, PAL/NTSC  (Mixed formats with 720P and PAL/NTSC unavailable)

Operating Temperature

-20°C~+60°C, RH90%

Storage Temperature

-30°C~+80°C, RH90%

Shockproof Rating

ISO 16750-3

Brightness

1000 cd/m2

Contrast

1000: 1

Input Channels

2


720P IP69K Waterproof Cameras(HD-410)

Image Sensor

1/3” CMOS

FPS

25fps / 30fps

Effective Pixels

1280 (H)  x 960(V)/ 720 (V)

Pixel Size

3.75 μm × 3.75μm

Scanning System

Progressive Scanning

Synchronizing System

Inter-sync

Resolution

720P, 960p

Video Output

1.0Vp-p, 75Ohm

Gamma

0.45

Product Video
Applications

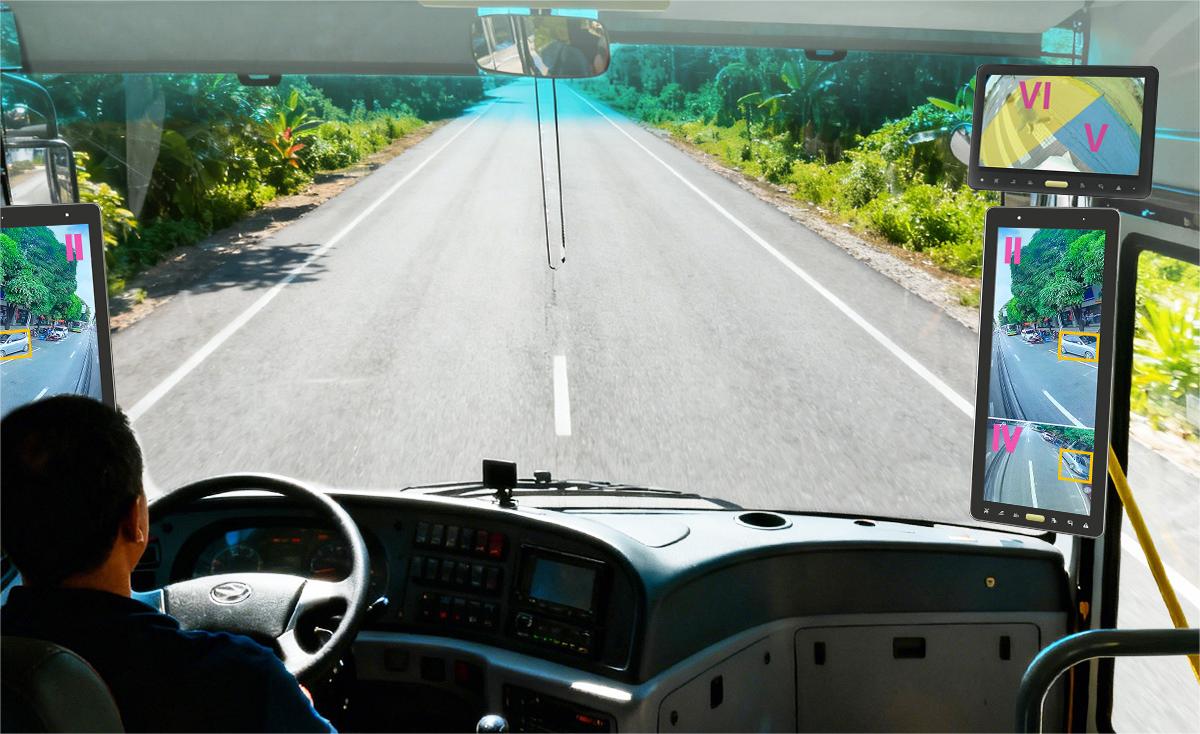

STONKAM® Rearview Electronic Mirror Monitor System can be easily applied to various vehicles for good vehicle surveilance.


12.3 inch High Definition Rearview Electronic Mirror Monitor System



12.3 inch Car Rearview Electronic Mirror Monitor System



IP69K Waterproof vehicle Dual Lens side camera is suitable for outdoor use.
