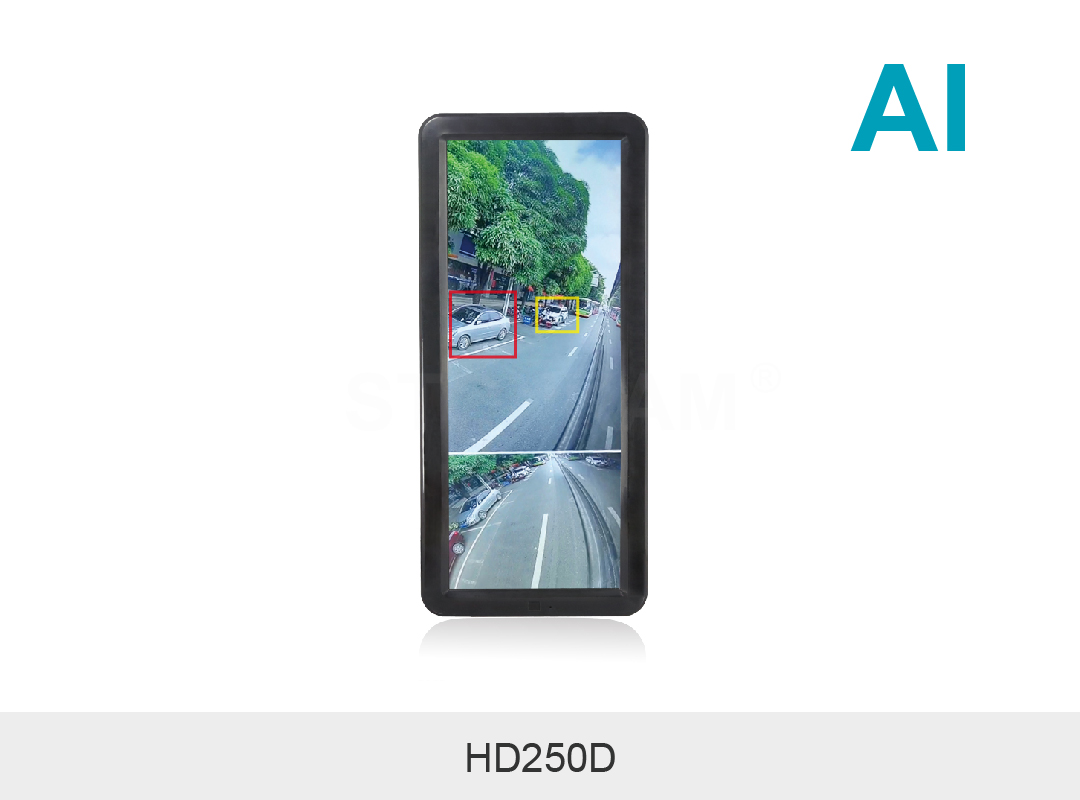

12.3-inch Intelligent Electronic Rearview Mirror System (UN ECE R46)
HD250D, FHD846, FHD847
STONKAM 12.3-inch Intelligent Electronic Rearview Mirror System complies with UN ECE R46 regulation, integrating an in-vehicle DVR and display into one unit. It supports a wider viewing angle, enhanced night vision sensitivity, and better adaptation to complex weather conditions. Compared to traditional rearview mirrors, it offers a broader, clearer, and safer field of vision.
Inquire Now
LCD Dimension |
12.3" |
Resolution |
1920x 3 (RGB) x 720 |
Brightness |
1000cd/m2 |
Contrast |
1000:1 |
Viewing Angle |
U: 85, D: 85, L: 85, R: 85. |
Aspect Ratio |
24:9 |
Video Input |
4-channel camera input, support mutiple resolutions(1080P25/1080P30) |
Storage |
SD Card, MAX 512GB |
Operating temp. & humidity |
-20~+70℃, RH90%MAX |
Storage temp. & humidity |
-30~-+80℃, RH90%MAX |
Power Consumption |
Max.32W(with cameras) |
Power Supply |
10-32V |
Anti-vibration |
ISO 16750-3 2012 (2.13G) |
Why to install 12.3 inch High Definition Electronic Mirror Monitor?
|
Let the powerful STONKAM ® high-definition electronic rearview mirror solve your problems!
|
