1080P HD DMS Camera for Driver Status Monitoring

1080P HD DMS Camera for Driver Status Monitoring

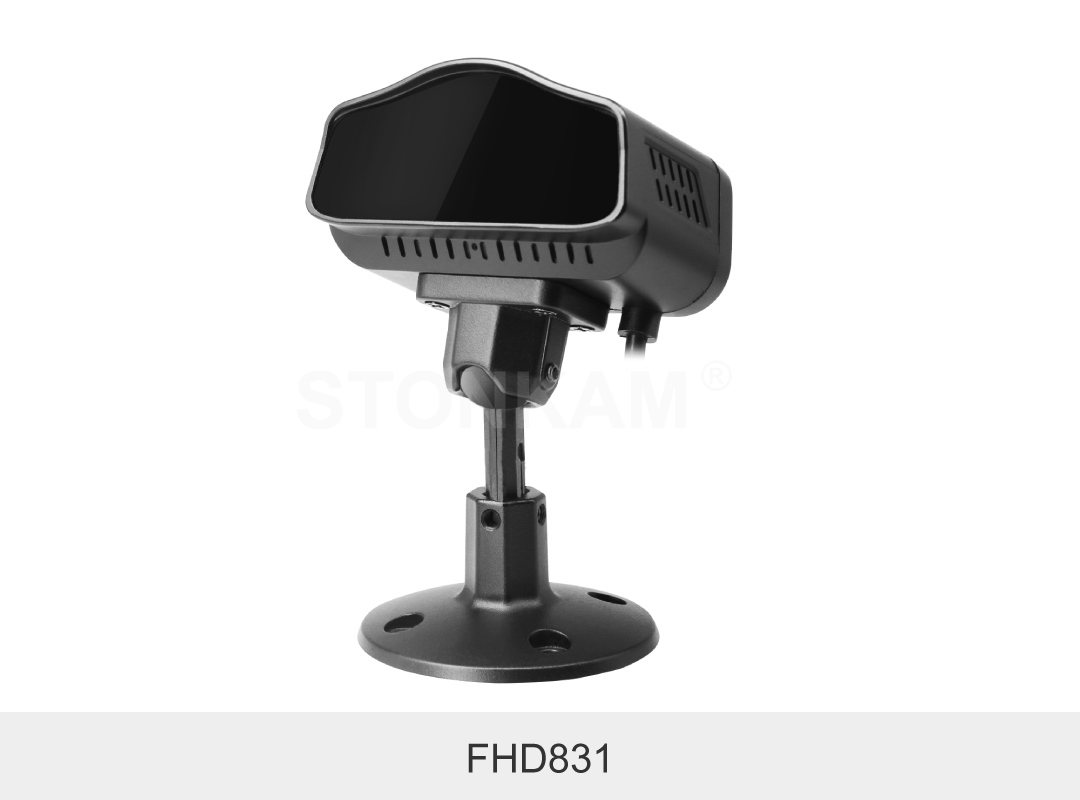

FHD831

DMS Camera for Driver Status Monitoring can integrate with STONKAM Intelligent MDVR System to detect fatigue, distraction and other driving misbehaviors and alert drivers to driving safety. The camera's installation is convenient and doesn't need to drill holes. Moreover, the camera has wide dynamic range, suitable for different lightning enviroment. Its image remains in high quality even when the camera is against the light or facing glaring sunlight.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

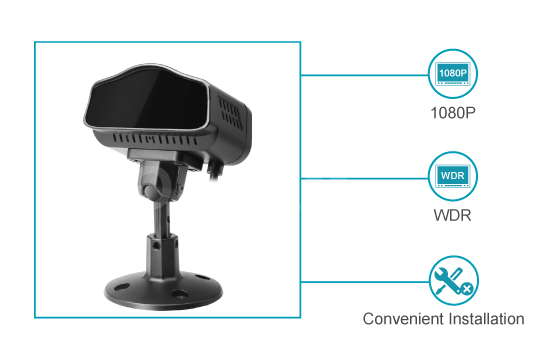

Features

►Driver Status Detection - The camera can connect with MDVR to help monitor driver behaviors and remind them of safe driving when fatigue, distraction or other misbehavior is detected.

►Convenient Installation - The camera can be installed without drilling holes, saving cost and labor.

►WDR - The camera has wide dynamic range, suitable for different lightning enviroment.

Image Device	1/2.7＂CMOS
Frame Rate	25
Effective Pixels	1920（H）x1080（V）
Pixel Size	3.0um*3.0um
Scanning System	Progressive Scanning
Sync. System	Internal
Resolution	1080p
Video Output	1.0Vp-p，75Ohm
Gamma Consumption	0.45
Signal to Noise Ratio	38dB
White Balance	Auto
Exposure	Auto
Dynamic Range	85dB
Power Supply	DC12V
Operating Temp. & humidity	–20℃ ~60℃, RH95%MAX.
Storage Temp. & humidity	–25℃ ~80℃, RH95%MAX.
Viewing Angle	56° horizontal, 31° vertical
Lens	4G
Image Mode	Black and White
Power Consumption	2.004WW（+/-10%）

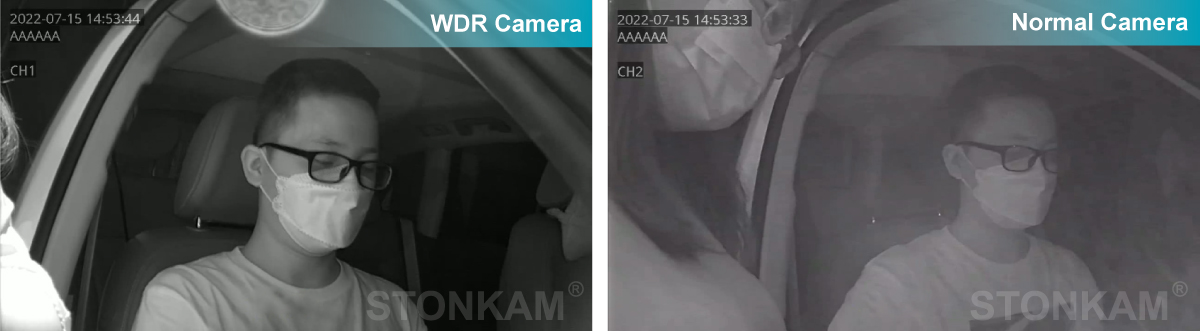

WDR Ensuring Image Quality Even in Glaring Light

The camera has wide dynamic range, suitable for different lightning enviroment. Its image remains in high quality and its detection is still precise even when the camera is against the light or facing glaring sunlight.

Driver Status Monitoring

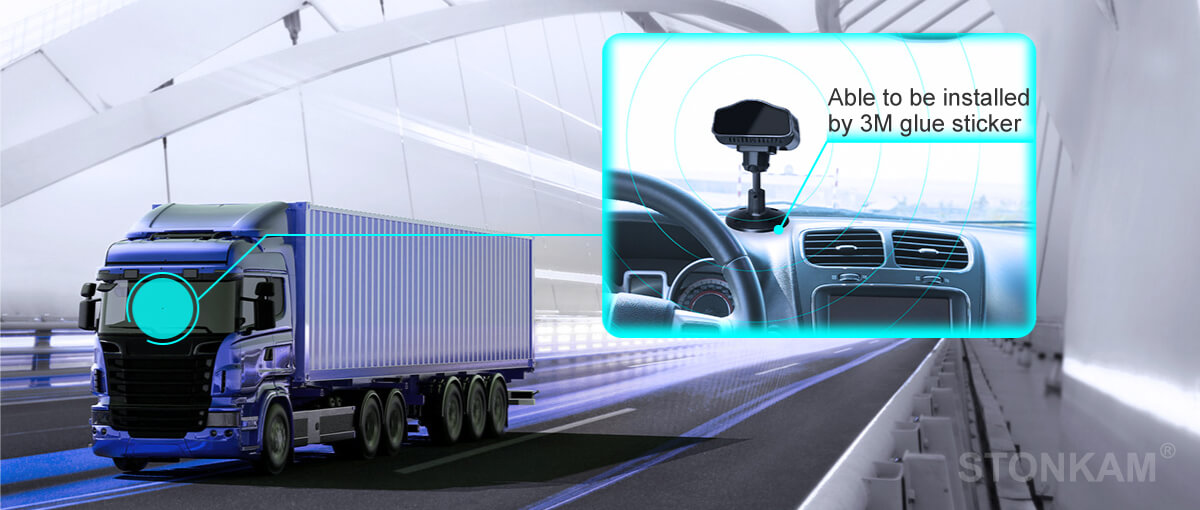

Convenient Installation without Drilling Holes, Saving Cost and Labor

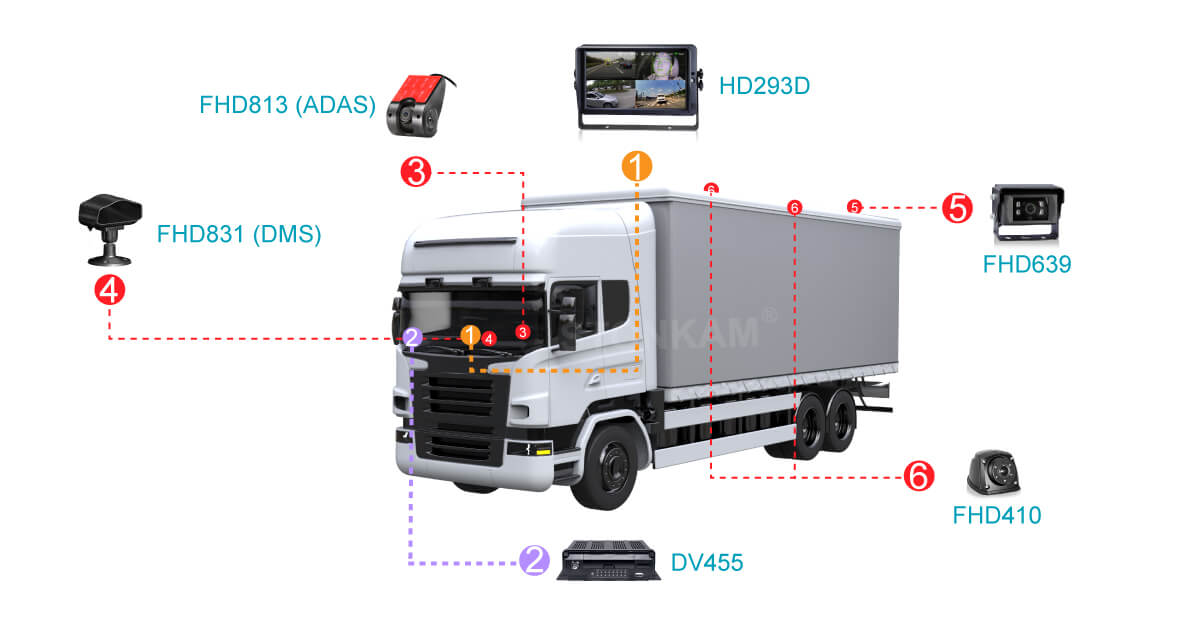

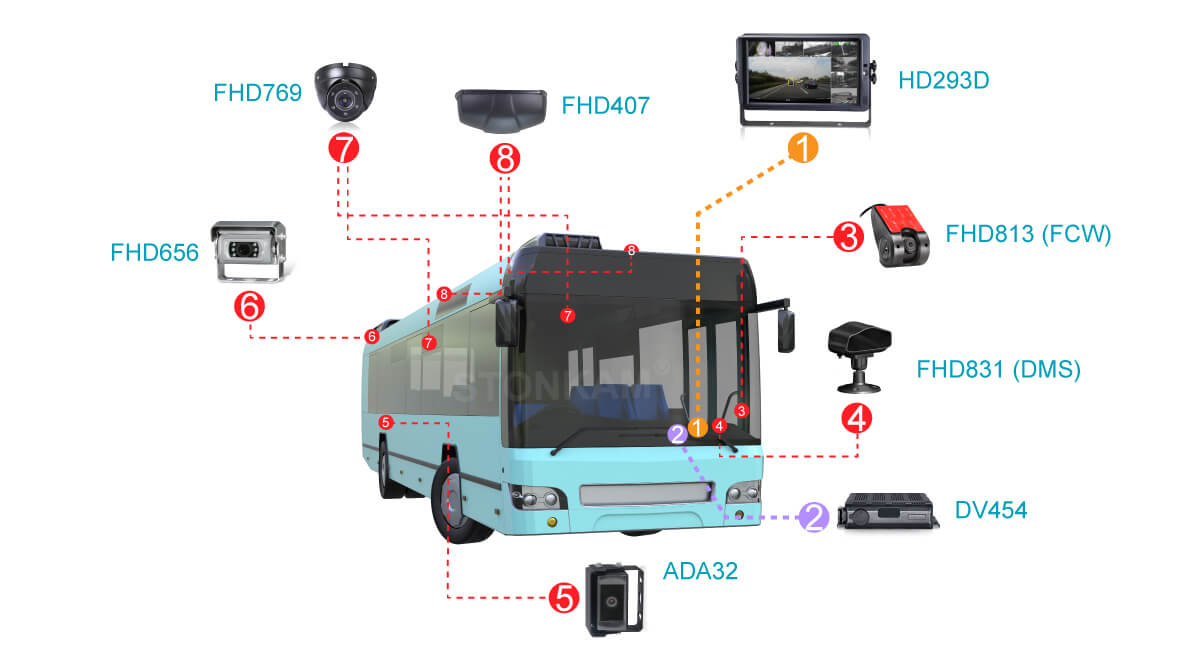

Driver Status Monitoring System

Application

DMS Camera for Driver Status Monitoring can integrate with STONKAM MDVR System as professional and reliable fleet mangement solution for trucks, taxis, commercial vehicles, etc.
Driver Bahavior Analysing Camera

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

►Driver Status Detection - The camera can connect with MDVR to help monitor driver behaviors and remind them of safe driving when fatigue, distraction or other misbehavior is detected.

►Convenient Installation - The camera can be installed without drilling holes, saving cost and labor.

►WDR - The camera has wide dynamic range, suitable for different lightning enviroment.

Image Device

1/2.7＂CMOS

Frame Rate

25

Effective Pixels

1920（H）x1080（V）

Pixel Size

3.0um*3.0um

Scanning System

Progressive Scanning

Sync. System

Internal

Resolution

1080p

Video Output

1.0Vp-p，75Ohm

Gamma Consumption

0.45

Signal to Noise Ratio

38dB

White Balance

Auto

Exposure

Auto

Dynamic Range

85dB

Power Supply

DC12V

Operating Temp. & humidity

–20℃ ~60℃, RH95%MAX.

Storage Temp. & humidity

–25℃ ~80℃, RH95%MAX.

Viewing Angle

56° horizontal, 31° vertical

Lens

4G

Image Mode

Black and White

Power Consumption

2.004WW（+/-10%）

WDR Ensuring Image Quality Even in Glaring Light

The camera has wide dynamic range, suitable for different lightning enviroment. Its image remains in high quality and its detection is still precise even when the camera is against the light or facing glaring sunlight.
