AI-Based Intelligent Front-View Blind Spot Detection Camera System for Pedestrian & Vehicle

ADA844

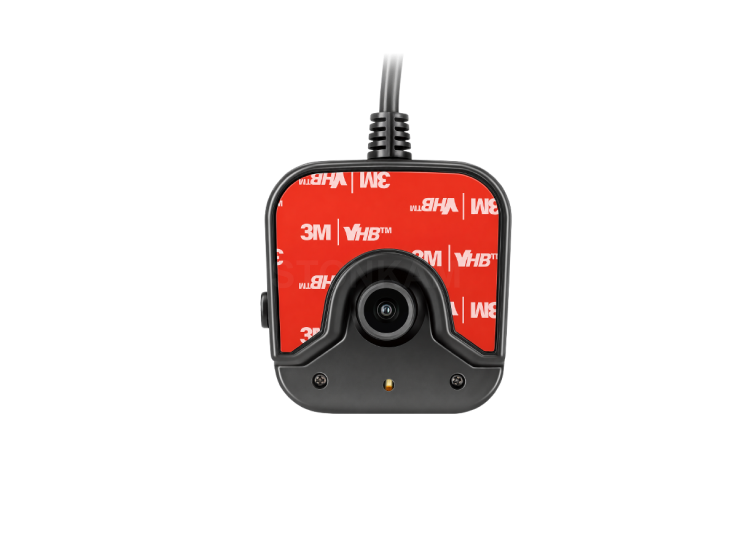

Vehicle blind spots are of great concern, and the driving visual blind zones in front of large vehicles may cause pedestrian/vehicle collisions and other safety accidents, resulting in high operational costs. The AI-based intelligent front-view blind spots pedestrian & vehicle detection camera adopts AI deep learning technology, which can be mounted on the windshield using 3M adhesive, and real-time intelligently recognizes pedestrians, bicycles, and vehicles in front of the vehicle; It also carries out real-time audio-visual alarms for the driver; It offers blind spot video monitoring solutions for various commercial vehicles such as trucks, buses, logistics vehicles and so on.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

Features

【Pedestrians & Vehicle Detection and Warning】It can identify pedestrians and vehicles such as cyclists, electric bikers, and pedestrians on foot. Pedestrian and vehicle detection and warning function.
【High-quality Security Alarms】High definition video output, with alarming frame, giving timely warnings to drivers.
【Audio Alarm】Supporting audio alarm output, sending real-time alarming to drivers.
【Strong Compatibility】Support AHD/100M ethernet output and RTSP, ISO17215 and other network protocols, compatible with central control screens, fit for various vehicle driving and operating scenarios.
【Large Viewing Angle】With a wide viewing angle of 125°, It supports wider coverage of blind spot monitoring.
【Other Functions】The USB2.0 interface can connect to an external wireless WIFI module and USB flash disk; easy calibration done by phones through a web link; should there be the need to upgrade the system, all we need is a USB, very easy to operate.

Resolution

1280X720P

Frame Rate

25 or 30

Video Ouput

AHD(1.0Vp-p, 75Ohm)

Viewing Angle

125°

Audio Ouput

Yes

Communication Interface

USB 2.0(For Software upgrading)

Cable Length

0.5M

Power Supply

DC 10V-32V

Power Dissipation(12V IN)

135mA

Waterproof Rating

IP30

Operating Temperature

-20~+70℃

Storage temperature

-30~+80℃

Vibration Resistance

5.9G





Why do we need AI-Based Intelligent Front-View Blind Spot Detection Camera System for Pedestrian & Vehicle?



Large vehicles are facing dangers caused by blind spots

The large size and body design of large commercial vehicles make it difficult for drivers to detect the blind spots in front of them, increasing the risk of collisions with pedestrians or other vehicles, and making them highly susceptible to traffic accidents.

Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for







STONKAM AI-Based Intelligent Pedestrian & Vehicle Monitoring System Complete Safeguard Your Driving





Pedestrian & vehicle detection, intelligent driving assistance

STONKAM Intelligent Front-View Blind Spot Detection Camera System for Pedestrian & Vehicle adopts deep learning technology, contributing to accurate pedestrian & vehicle detection. It can detect people around such as cyclists, motocyclists, and pedestrians to assist large vehicle drivers in safe driving, avoiding potential injuries to the vulnerables.

Automobile blind spot detection system





Large Viewing Angle and wider driving field of view

With a wide-angle coverage of 125° and a detection range of up to 20 meters, it actively warms drivers with warning messages(HD video output with overlaid alarm logo frame). Recude the likelihood of traffic accidents and promptly warns drivers of potential risks to avoid collisions with pedestrians and vehicles.

Intelligent Front View Camera





Supporting audio alarm output and real-time warning

Detecting pedestrians and vehicles and sending  audio alarming to drivers at real time. On some vehicles, external alarm can be connected to the pedestrian & vehicle detection camera to realize the warning outside the vehicle, reminding pedestrians to avoid risk.

Vehicle Blind Spot Detection





Compatible with central control screen, fit for multiple vehicle types

Support AHD/100M ethernet output and network protocols such as RTSP, ISO17215; support the connection of the center control screens of the construction machinery, which facilitate more convenient operation and management; applicable to a variety of vehicle driving andoperation scenarios, such as mining trucks, buses, trucks, etc., to solve the problem of frequent pedestrian/vehicle collision.

Truck Blind Spot Monitoring





Application

The AI-based intelligent front-view blind spots pedestrian & vehicle detection camera adopts AI deep learning technology, which can be mounted on the windshield using 3M adhesive, and real-time intelligently recognizes pedestrians, bicycles, and vehicles in front of the vehicle; It also carries out real-time audio-visual alarms for the driver; It offers blind spot video monitoring solutions for various commercial vehicles such as trucks, buses, logistics vehicles and so on.

Blind Spot Detection Camera



 Blind Spot Detection
