Intelligent Pedestrian & Vehicle Detection System (UN ECE R159)

Intelligent Pedestrian & Vehicle Detection System (UN ECE R159)

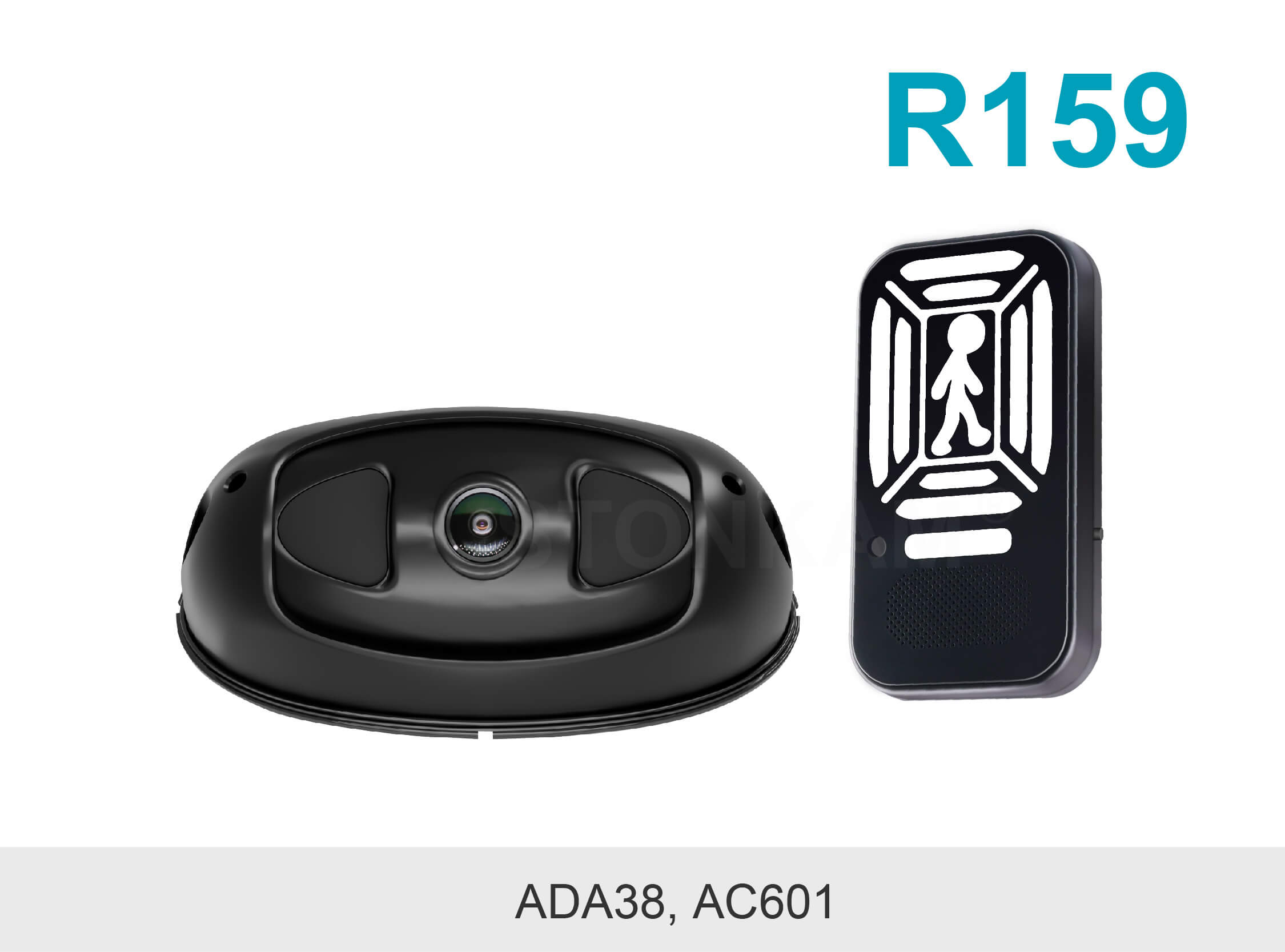

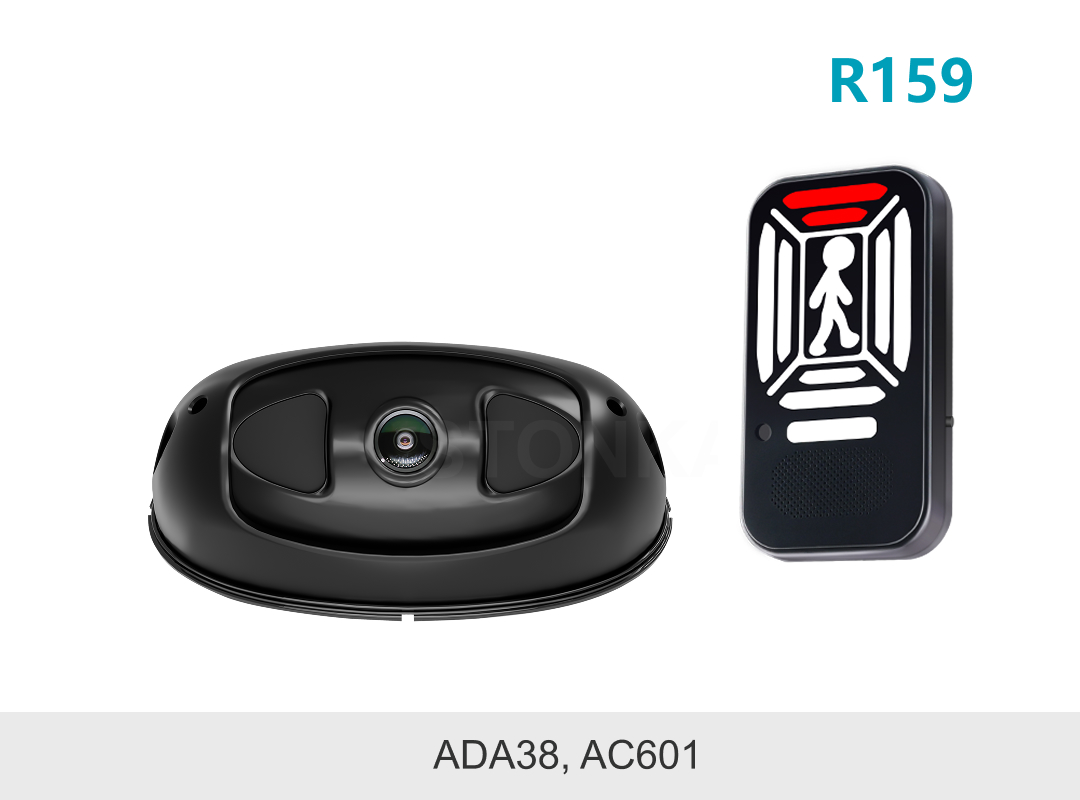

ADA38, AC601

STONKAM Intelligent Pedestrian & Vehicle Detection System complies with the UN ECE R159 regulation on MOIS (Moving Off Information System). Utilizing advanced deep learning technology, it accurately detects pedestrians and cyclists in the vehicle’s forward blind spot and provides real-time alerts to the driver. This system enhances road safety by helping operators of large vehicles—such as trucks, buses, and construction vehicles—respond promptly to potential hazards.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

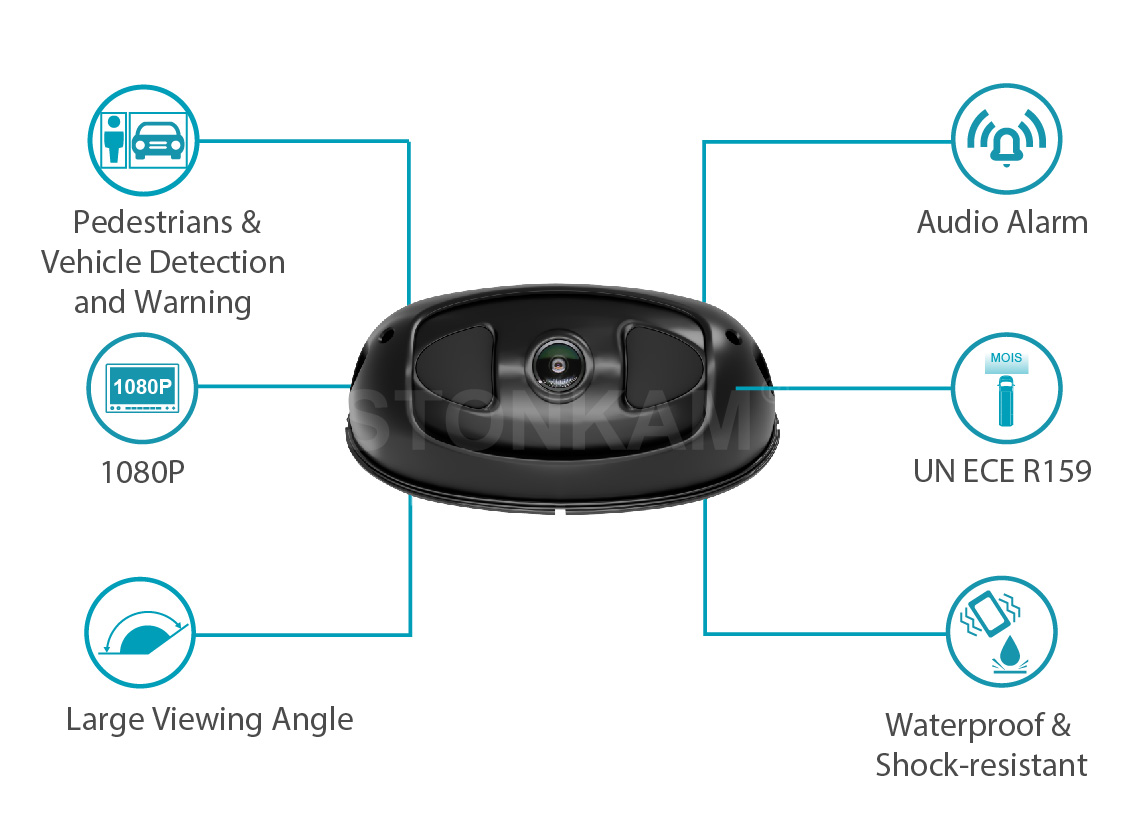

Features

Complied with UN ECE R159 MOIS testing requirements, effectively enhancing commercial vehicle driving safety and protecting vulnerable road users.
Support AHD/CVBS/fast ethernet output and RTSP, ISO17215 and other network protocols. Strong compatibility and wide application range.
It can identify pedestrians and vehicles such as cyclists, electric bikers, and pedestrians on foot. Pedestrian and vehicle detection and warning function.
IP69K waterproof, dustproof,shock resistant and durable in use, offering high quality images, anti-vibration rating: ISO 16750-3(5.9G).
Detection range: Side view:0.5~30m； Horizontal narrow Angle: 0.5~30m； Horizontal wide Angle: 0.5-~20m； Downward view: 8m/10m.
High definition 1080P video output, with alarming frame, giving timely warnings to drivers.
Supporting audio alarm output, sending real-time alarming to drivers.
Lens parameters: Side view: 6mm/ 70°； Horizontal narrow Angle: 6mm/70°； Horizontal wide Angle: 2.3mm/150°； Downward view: 1.45mm/200°; 1.99mm/170°.
USB2.0 interface, connected to Wi-Fi modules and USB.
Easy calibration done by phones through a web link.
Automatic upgrade via USB.

Effective Pixels	1920（H）x1080（V）
Pixel Size	2.8μmx2.8μm
Frame Rate	25/30
Scanning System	Progressive Scanning
Sync. System	Internal
Resolution	1080p
Video output	1.0Vp-p，75Ohm
Gamma Consumption	0.45
Signal to Noise Ratio	38dB
White Balance	Auto
Exposure	Auto
Power Supply	DC10~32V
Operating temp. & humidity	–20℃~70℃,RH95%MAX.
Storage temp. & humidity	–30℃~80℃,RH95%MAX.
Waterproof Rating	IP69K
Anti-vibration	ISO 16750-3 2012 (5.9G)
Viewing Angle	Front / side view: 70° (Horizontal) Rear view: 150° (Horizontal) Bird view: 200° (Horizontal)
Audio	YES
Minimum Illumination	0.01Lux
Detection Distance	Vertical side view:0.5~30m Horizontal narrow Angle: 0.5~30m Horizontal wide Angle: 0.5-~20m Downward view: 8m/10m
Image mode	Mirror/Normal image switchable
Output mode	AHD/CVBS/Fast ethernet
Network protocol	RTSP/ISO17215

Why do we need to install STONKAM Intelligent Pedestrian & Vehicle Detection System?

Large vehicles are facing dangers caused by blind spots

Commercial vehicles like trucks, buses, etc. have large black zone, for which traffic accidents might happen if vehicles come across motorcycles at high speed or sudden pedestrians when changing lane or making a turn.

Intelligent Vehicle Camera,Front View Intelligent Camera,Intelligent Detection Vehicle Camera

UN ECE R159-Compliant Solution

STONKAM Intelligent Pedestrian & Vehicle Detection System complies with UN ECE R159 MOIS regulation, reducing accidents caused by driving blind spots, effectively improving commercial vehicle driving safety, and protecting vulnerable road users.

Intelligent Vehicle Camera,Front View Intelligent Camera,Intelligent Detection Vehicle Camera

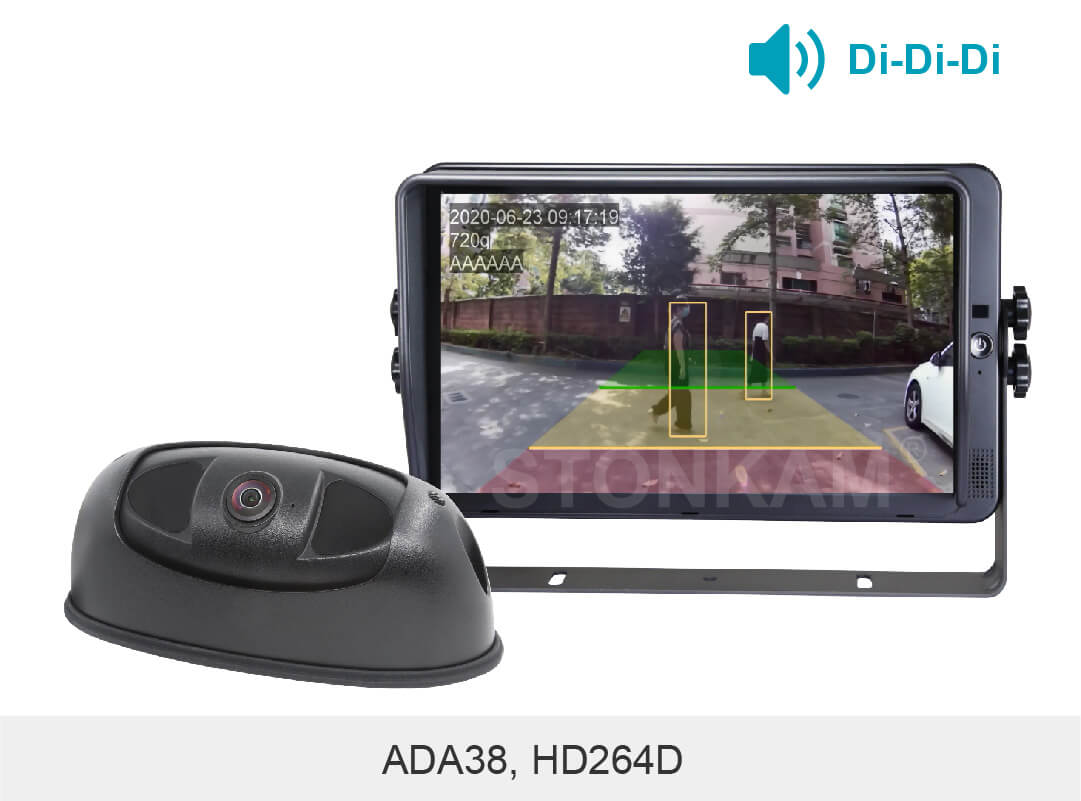

Pedestrian & vehicle detection, intelligent driving assistance

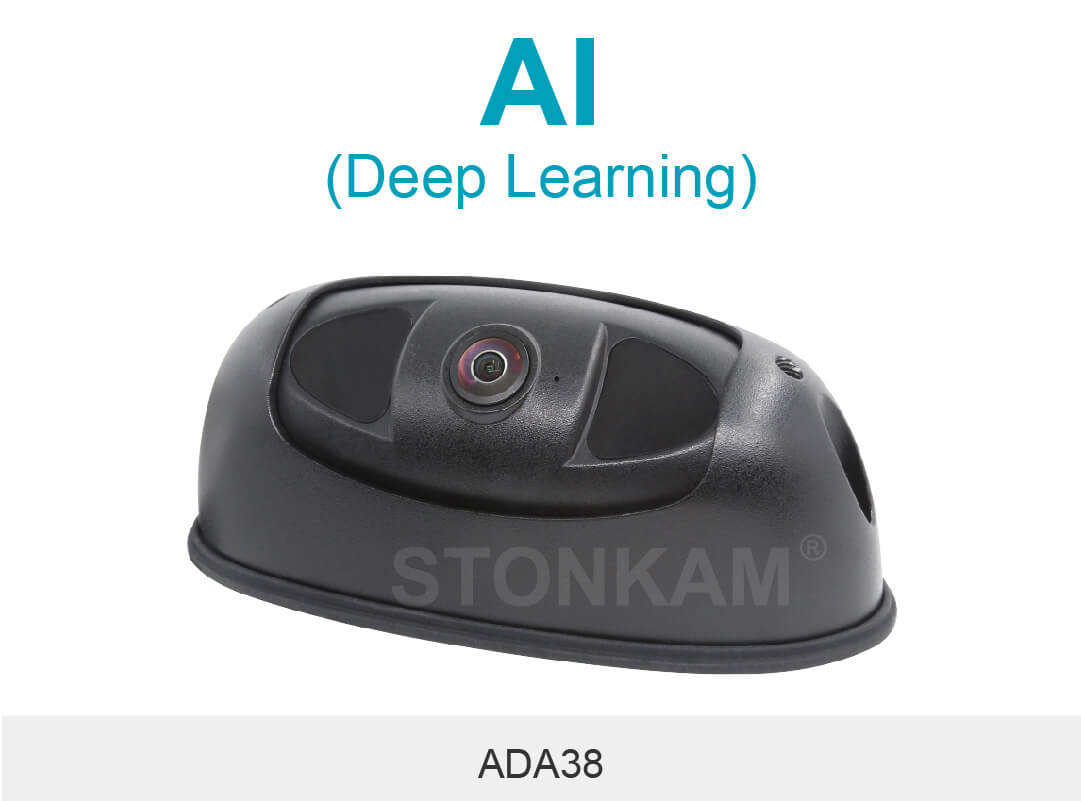

STONKAM Intelligent HD Pedestrian Detection System adopts deep learning technology, contributing to accurate pedestrian & vehicle detection. It can detect people around such as cyclists, motocyclists, and pedestrians to assist large vehicle drivers in safe driving, avoiding potential injuries to the vulnerables.

Intelligent Vehicle Camera,Front View Intelligent Camera,Intelligent Detection Vehicle Camera

Large Viewing Angle and wider driving field of view

STONKAM Intelligent HD Pedestrian Detection System can be installed horizontally and vertically to detect pedestrians in all directions. It provides automatic alarming information to drivers (1080P video output, pedestrian alarming frame), reducing the risks of traffic accidents. Color night vision,functioning well under any light condition.

Detection range (Downward view): 8m /10m

Intelligent Vehicle Camera,Front View Intelligent Camera,Intelligent Detection Vehicle Camera

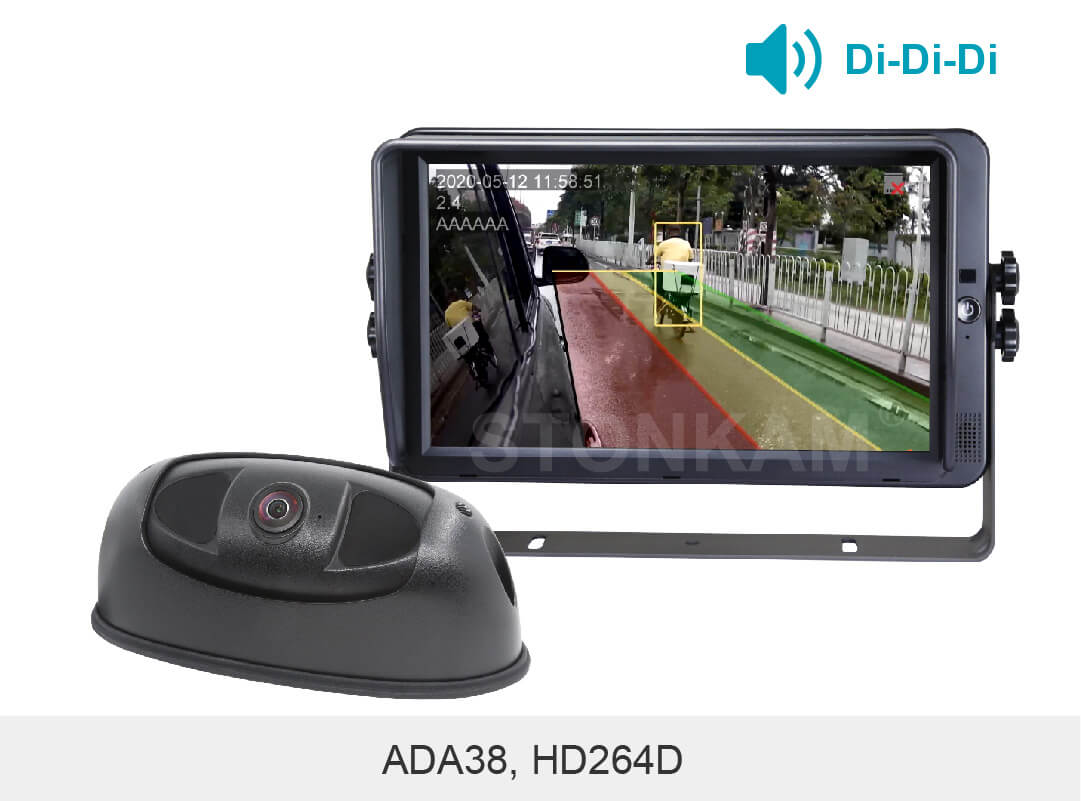

The distance for pedestrian & vehicle detection reaches up to 30 meters (Side View)

Intelligent Vehicle Camera,Front View Intelligent Camera,Intelligent Detection Vehicle Camera

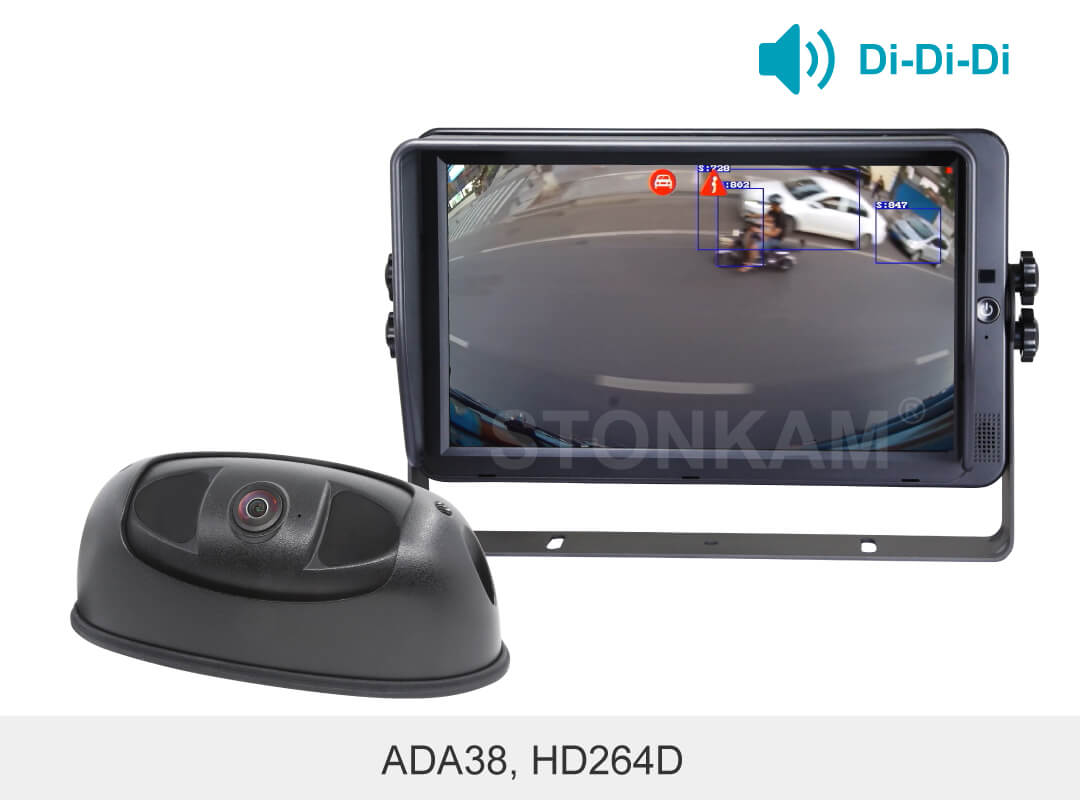

The distance for pedestrian & vehicle detection reaches up to 20 meters (Rear View)

Intelligent Vehicle Camera,Front View Intelligent Camera,Intelligent Detection Vehicle Camera

Compatible with central control screen, fit for multiple vehicle types

Support AHD/CVBS/100M ethernet output and RTSP, ISO17215 and other network protocols, enabling more convenient operation and management especially in engineering machinery. This device finds its application in various driving and operating scenarios, such as mine cars, forklifts, buses, trucks, etc., preventing pedestrian collisions.

Blind Spot Forewarning, Construction Vehicle Blind Spot Forewarning, Blind Spot Warning System for

IP69K, dustproof, shockproof, weatherproof and durable in use

Intelligent Vehicle Camera,Front View Intelligent Camera,Intelligent Detection Vehicle Camera

Adjustable Lens for flexible installation

The lens angle can be flexibly adjusted according to the site and installation height for better views.The lens angle can be flexibly adjusted according to the site and installation height for better views.

Intelligent Vehicle Camera,Front View Intelligent Camera,Intelligent Detection Vehicle Camera

Intelligent HD Pedestrian Detection System combined with MDVR

Intelligent HD Pedestrian Detection System can be connected with MDVR. It can record the video of pedestrian & vehicle detection and upload the alarm events to the remote server at the same time.

Intelligent Vehicle Camera,Front View Intelligent Camera,Intelligent Detection Vehicle Camera

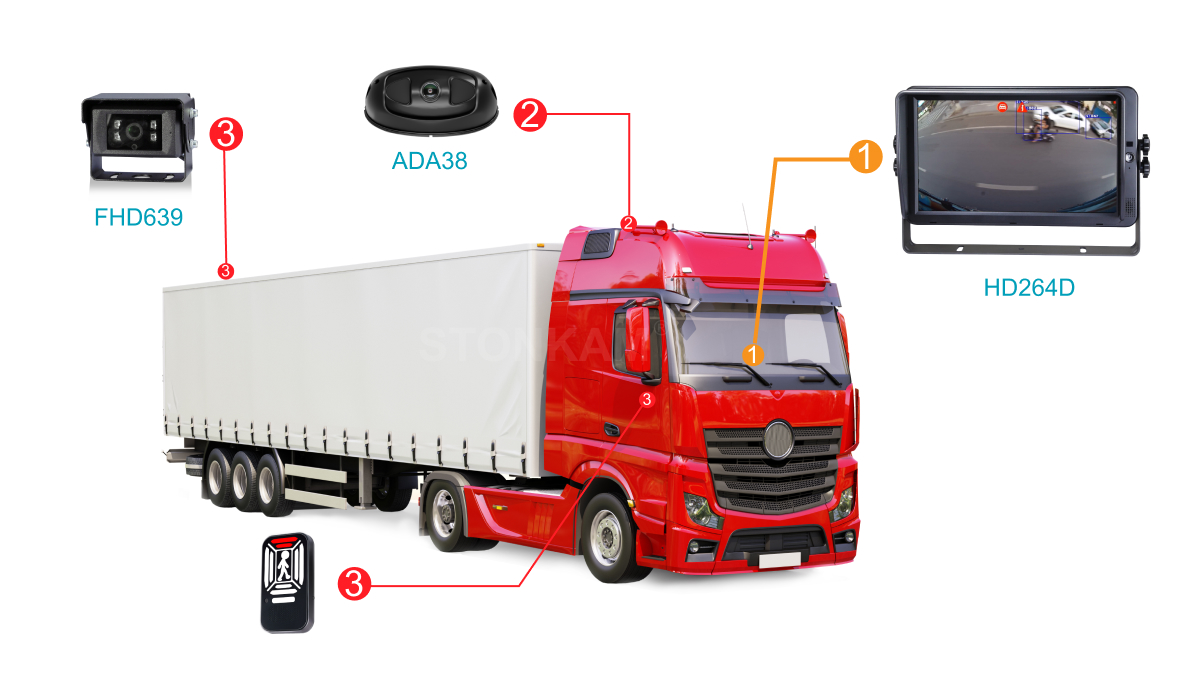

Application

STONKAM pedestrian detection system is applicable to various vehicles, such as buses, coaches, trucks, and other large-size vehicles.

Mobile phones can connect with the camera via the external Wi-Fi module, and calibrate & set up the camera.

Intelligent Vehicle Camera,Front View Intelligent Camera,Intelligent Detection Vehicle Camera
