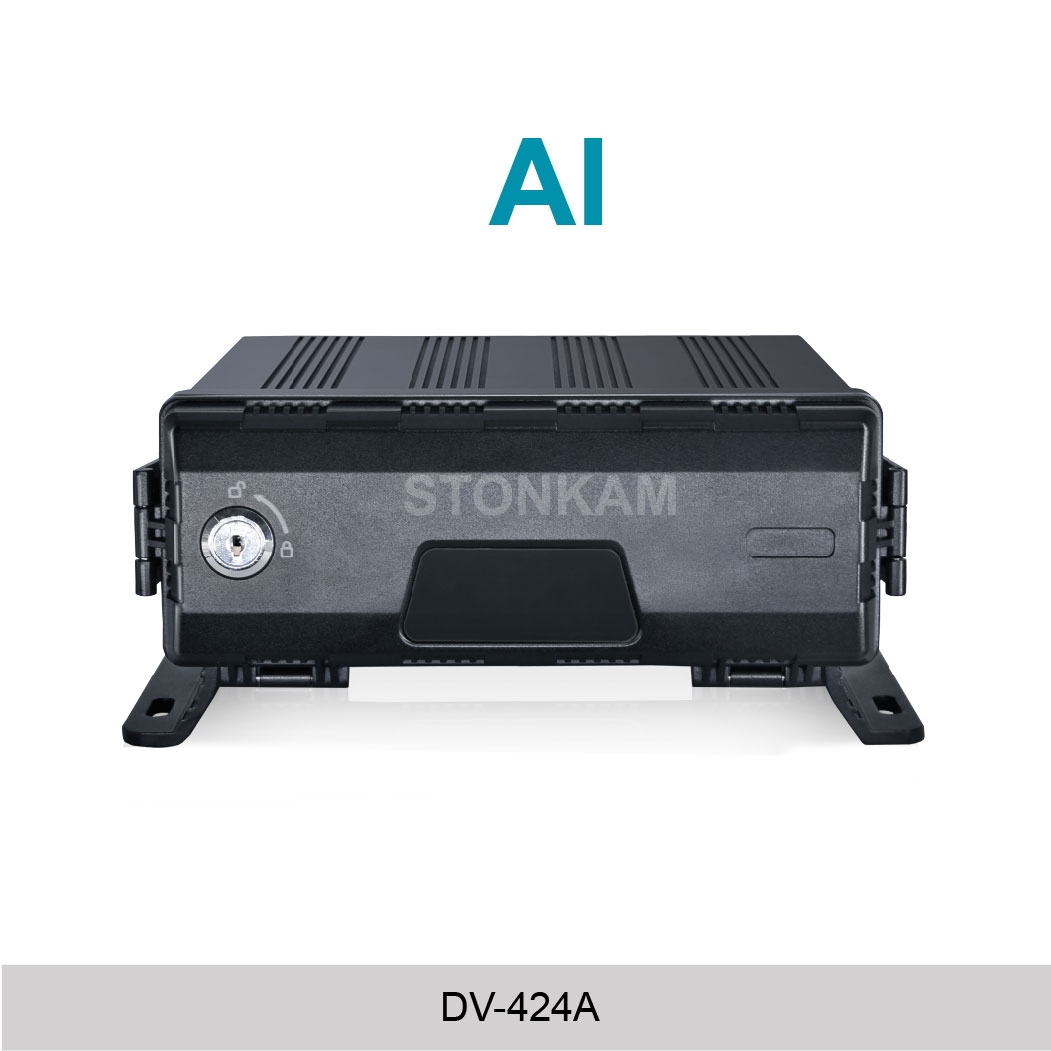

Intelligent 8CH HD MDVR Integrated with AVS System for Driving Safety

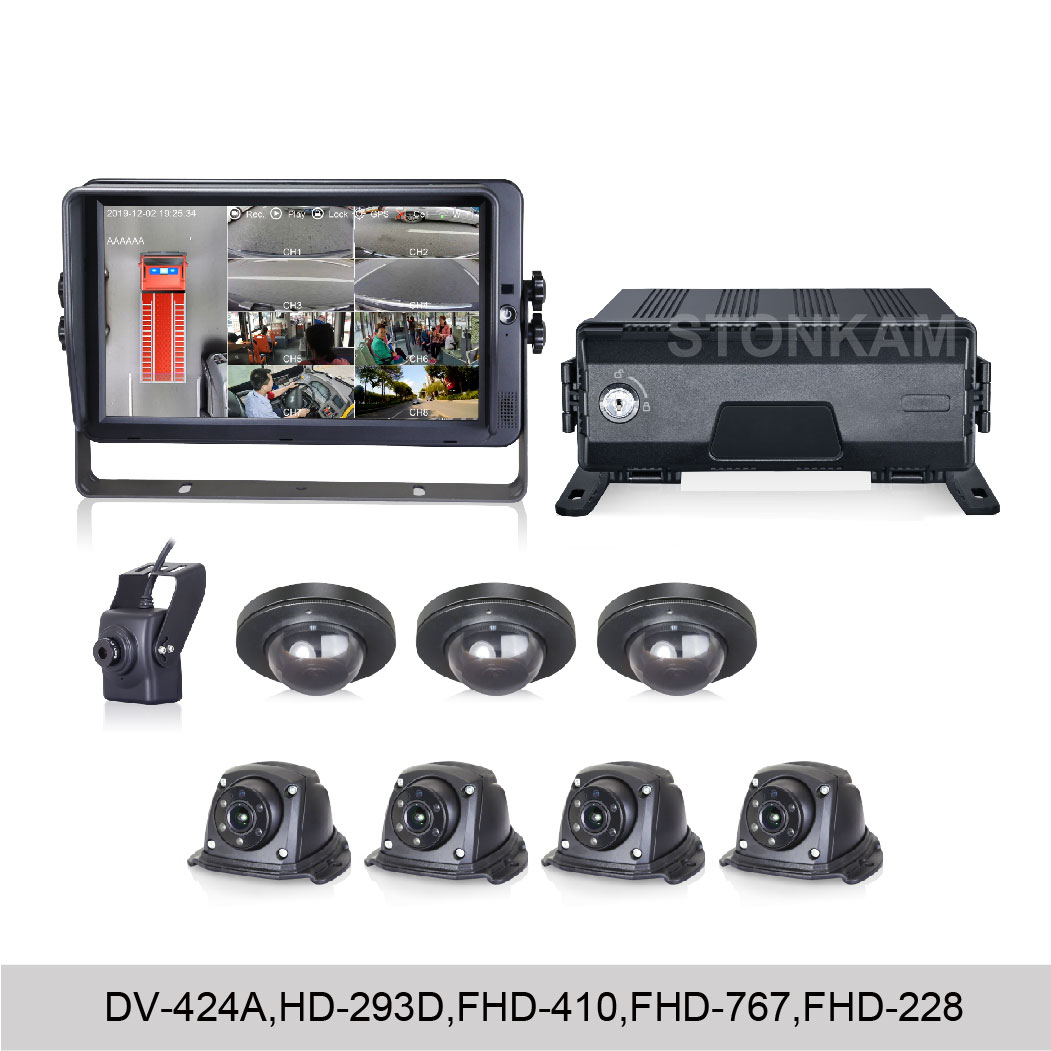

(Model:DV-424A,HD-293D,FHD-410,FHD-767,FHD-228)
Intelligent 8CH HD MDVR Integrated with AVS System for Driving Safety
Features

STONKAM Intelligent 8CH HD MDVR Integrated with AVS System for Driving Safety adopts H.264 compression technology and supports real-time remote monitoring, which can achieve better and more comprehensive fleet management! The intelligent MDVR system integrated with 360° around view algorithm can not only realize true 360° bird-view monitoring without blind spots, so as to help ensure safe driving, but also greatly reduce costs and installation time! In addition, the system also has a powerful video recording function, which can quickly provide evidence for traffic accidents, thefts, and feigned accidents! Click to view Intelligent HD MDVR Integrated with DMS & FCW System.

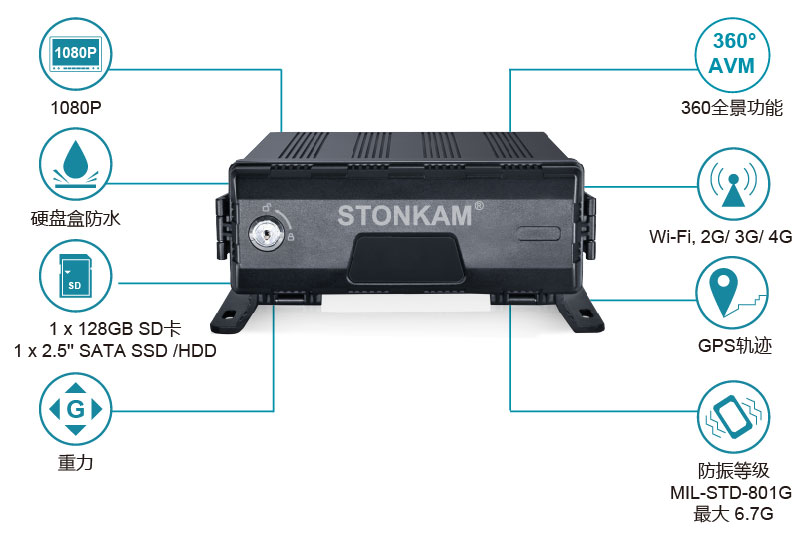

  • DVR integrated with 360° around view algorithm can realize true 360° bird-view monitoring, to ensure driving safety
  • Multiple AVS preview modes of video display for choosing
  • Full-screen display of multiple AVS preview modes when alarms are launched by trigger cable
  • Easy import and export of calibration files and pictures
  • Simplified calibration steps
  • 4 PCS 180° FHD 720P fish-eye cameras, with horizontal angle >180°, and vertical angle 90°
  • GPS tracking optional
  • Remote downloading of recorded videos from server or DVR
  • This mobile digital vdieo recorder supports 8 channel AHD 1080P input and HD 1080P output
  • 8x1080P, 8x720P, 8xD1 and 8 mixed-resolution recording, with 15 seconds pre-recording function
  • Multiple trigger recording modes: power on trigger , timer trigger, motion trigger, G-force trigger, over-speeding trigger, 8-channel customized alarm input trigger, and panic button trigger recording
  • Support 2G/3G/4G/ WIFI/ GPS tracking; can achieve real-time remote monitoring on iOS, Android and Windows client
  • With WiFi station and AP mode; AP mode can support that mobile directly connects to device for easy preview and configuration at mobile terminal by WebUI
  • Automatically upload data for remotely intelligent data analysis and management, including data: alarm recording, alarm information, log information, GPS trajectory, real-time videos and images
  • Storage devices: SSD, SD card
  • Support dual stream, sub-stream backup and network transmission
  • Support 9-axis G-force
  • Operated by touch-screen and infrared remote control
  • Durable vehicle H.264 DVR with waterproof hard disk box
  • MIL-STD 810G shockproof and well protected by super-capacitor



Intelligent MDVR System

Specification

System

Operating system

Linux

Operating interface

Graphical menu operation interface(OSD)

Video permission

Administrator & user setting

Video

Video input

Max 8ch 1080P analog high definition

CVBS output

1CH 6pin aviation connector output PAL/NSTC & 1CH 4pin aviation connector output PAL/NSTC

HD output

1CH VGA output, 1080P

Video display

1、2、3、4、8、9CH

Video standard

PAL: 25FPS, NTSC: 30FPS

Compression

H.264 main profile

Audio

Audio input

8 channels

Audio output

2 channels

Record format

Synchronized video & audio recording

Audio compression

ADPCM

Digital processing & storage

Video resolution

8*1080P(1920*1080)

Video bit rate

64kbps~4Mbps/channel

Storage

56~2700MB/(channel*hour)

Audio bit rate

32kbps

Storage

2.5 inch SATA / SSD * 1, max 2TB; SD card * 1, max 128GB

Alarm

Alarm input

8 channels

Alarm output

2 channels, 1 buzzer

Motion detection

Adjustable high / low sensitivity

Interface for communication

IR

1 channel

RS232

2 channels

RS485

2 channels

CAN

1 channel

RJ45

1 channel

USB2.0

1 channel

USB3.0

1 channel

Wireless

2G/3G/4G

Optional

WIFI

Standard

WIFI hotspot/AP

Available

GPS

Optional

G-Sensor/Gyroscope

Available

Software

Windows client

Available

iOS client

Available

Web portal

Available

Power

Input

10~32V

Output

12V@4A

Max Power

Consumption

60W

Standby Power

Consumption

100mW

Electrical specifications

Operating temperature & humidity

-20~70 ℃<80%

Electronic Clock

Built-in clock, Calendar

Super Capacitor

Available




Why we need Intelligent 8CH HD MDVR Integrated with AVS System?



Have you ever worried about the following questions?
Where to find the perfect fleet management solution?
How to clear the blind spots in the monitoring of vehicles?
How can we quickly provide evidence when encountering accidents or thefts?

……

AI HD MDVR System



All your worries can be settled by STONKAM Intelligent 8CH HD MDVR Integrated with AVS System!

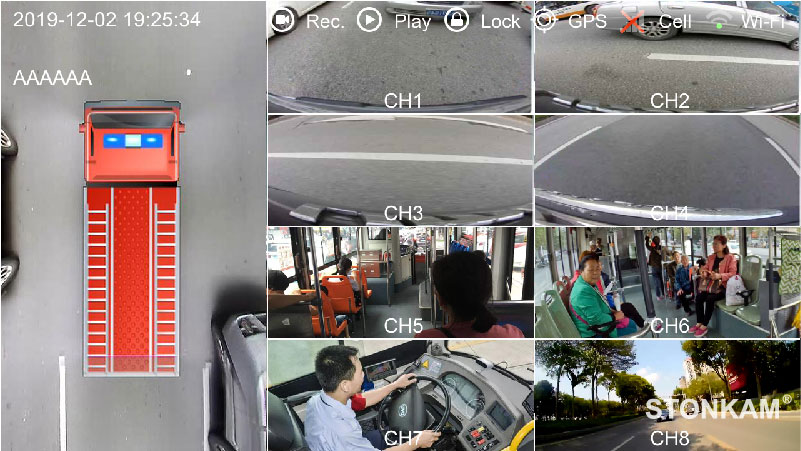

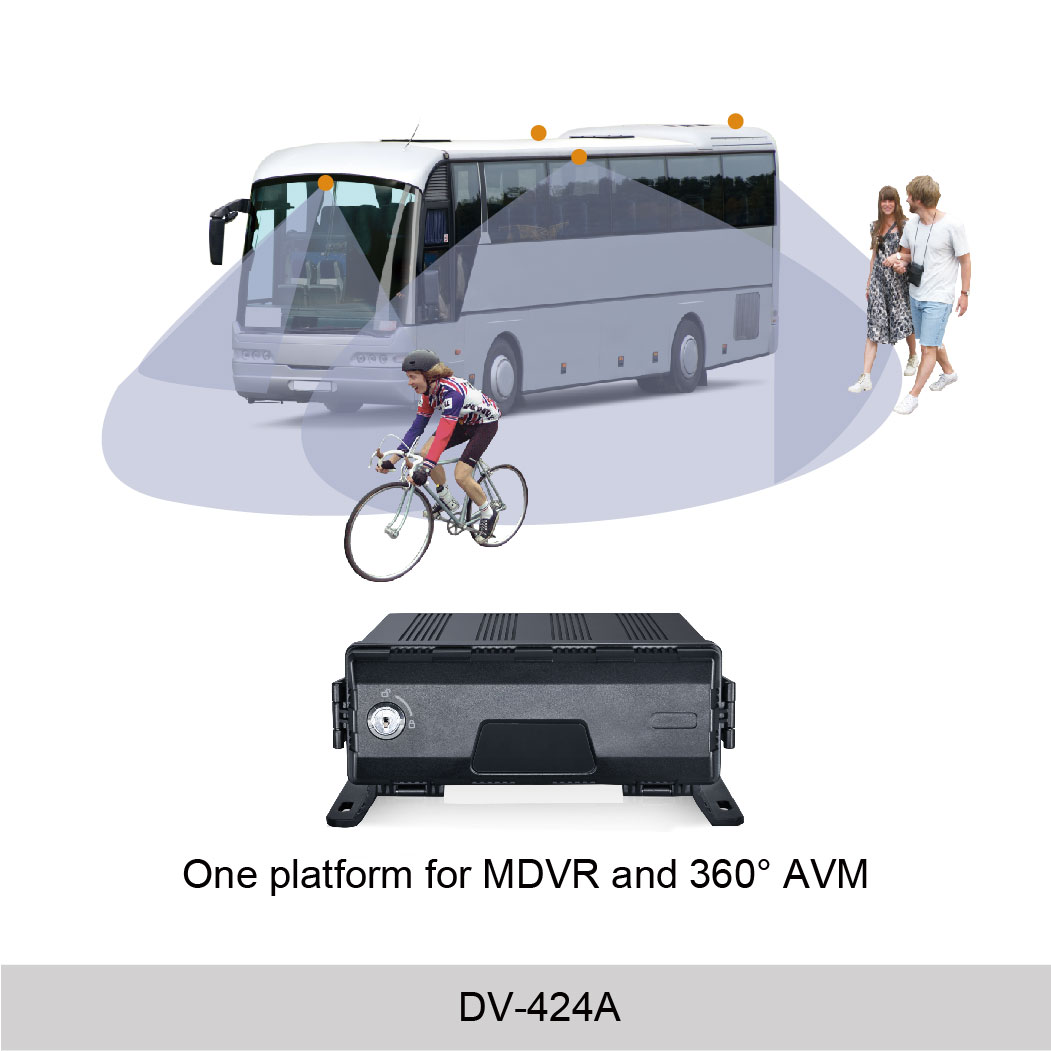

HD around-view MDVR system

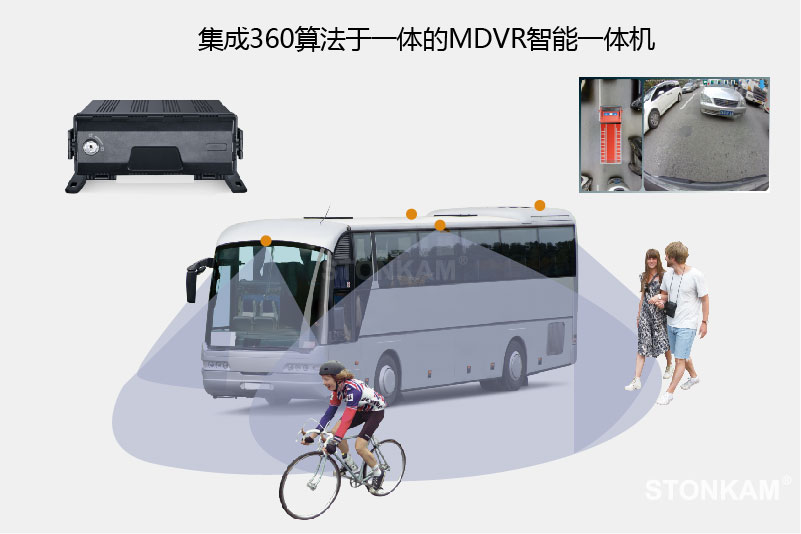

STONKAM Intelligent HD MDVR integrated with 360 AVS algorithm can simulate the real driving scene, presenting a real 360-degree bird view without any blind spots, so as to guarantee the driving safety

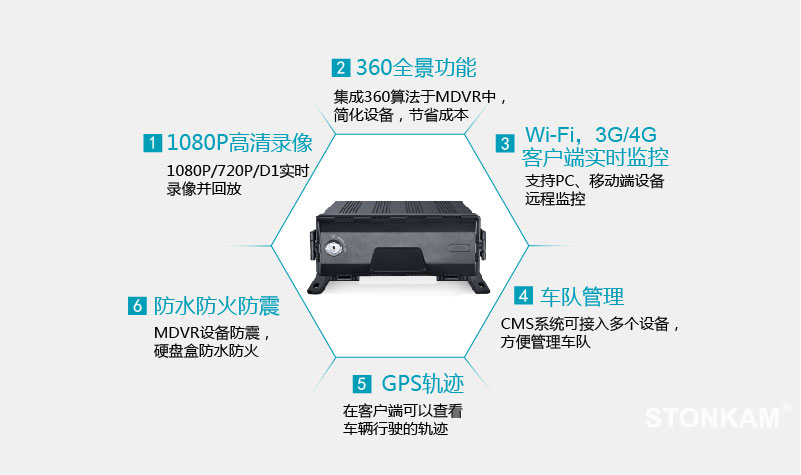

Intelligent MDVR integrated system




HD MDVR with 360 AVS system integrates multiple functions into one system, to greatly reduce the cost and installation time!

HD around-view MDVR system




STONKAM Intelligent 8CH HD MDVR Integrated with AVS System, professional and reliable fleet management solution

AI HD MDVR integrated system

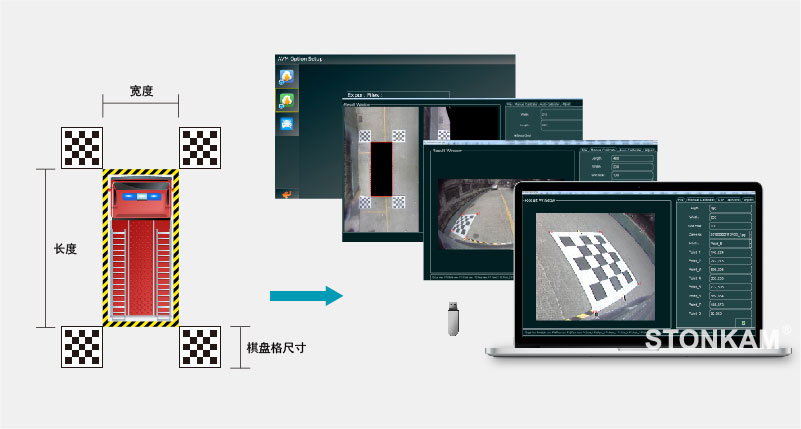

Simplified and quick calibration

8CH AI HD MDVR integrated system

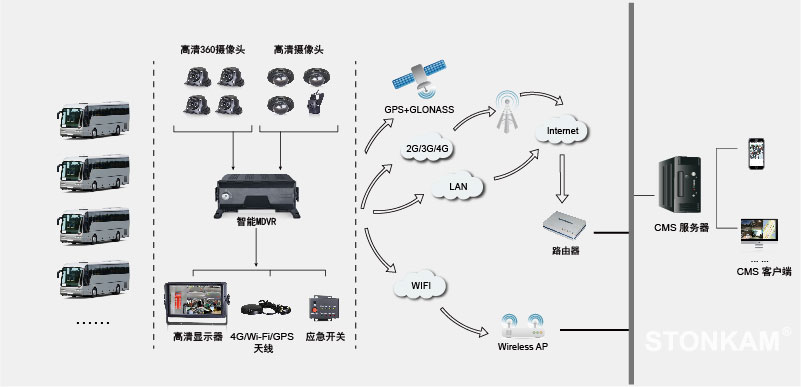

Achieve remote monitoring by DVR GPS tracking/ 2G/3G/ 4G/ WiFi, convenient vehicle management on PC/ Mobile phone

Users can remotely manage and dispatch all vehicles through their mobile phones or computers via Windows Client, iOS and Android APP. The mobile DVR supports real-time positioning, historical trajectory, file download and playback, electronic fence and other special features.

8CH HD MDVR integrated system




Detailed Features of STONKAM® Intelligent 8CH HD MDVR Integrated with AVS System

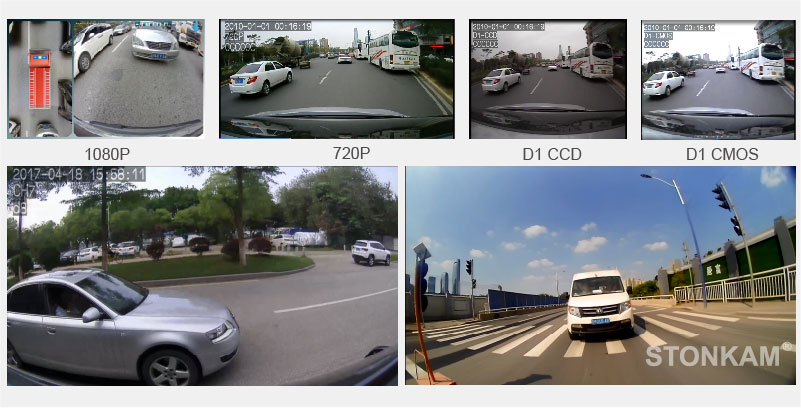

Keep recording all the time while event occurring on road, and support remote High Definition screenshot

The digital video recorder can set video recording quality—1080P/720P/D1, and high definition pictures can be captured through PC CMS Client and mobile APP.

Intelligent MDVR System

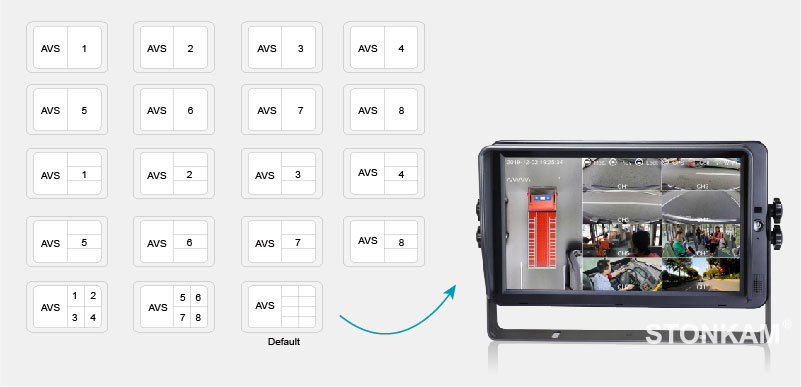

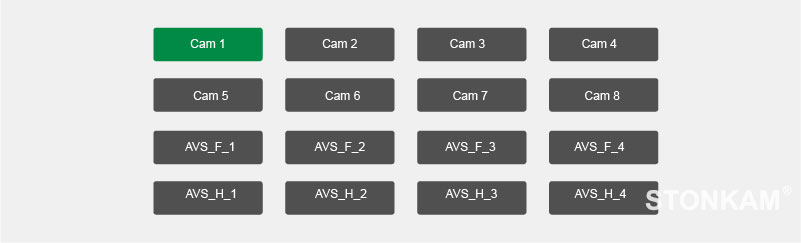

Multiple AVS preview modes in real-time monitoring display

8CH Intelligent MDVR System




Support cable-triggered alarm function; full-screen display of multiple AVS preview modes can be triggered by the cable

AI MDVR system

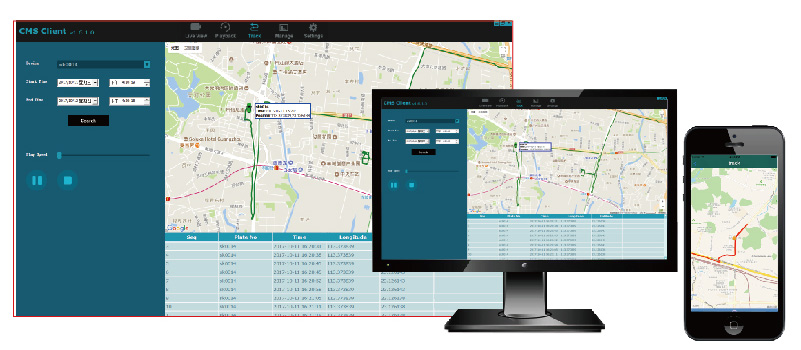

GPS Vehicle Historical Track Playback

Through the PC CMS Client or Mobile APP, the current location and historical driving trajectory of vehicles can be clearly queried on OS map/ Google map/ Baidu map.

AI MDVR system




Powerful Recording

The H.264 digital video recorder features diverse recording modes, various video storage devices, integration of vehicle information, and the double protection of recording data.

8CH HD MDVR system

Recording Quality

Storage Capacity Bit Rate
Recording Time
1080P(8CH)
2T 4Mbps 150Hrs
720P(8CH)
2T
2Mbps
300Hrs
D1(8CH)
2T 1Mbps
600Hrs

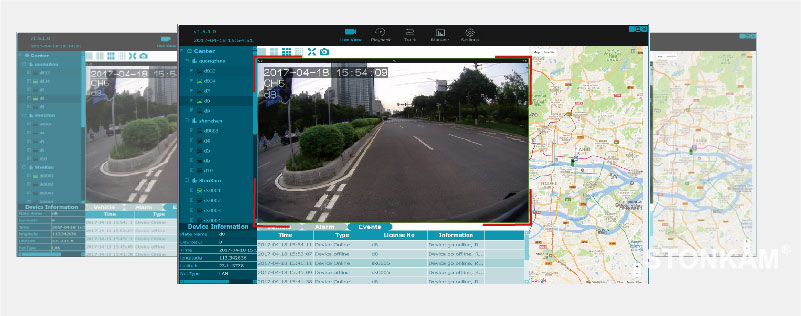

Watch real-time video on PC

User can watch the real time video by choosing the specific vehicle license number on the left side of the CMS Client. Each vehicle has a unique identification number in the CMS which can be set by the user.

Intelligent 8CH HD around-view MDVR integrated system for driving safety

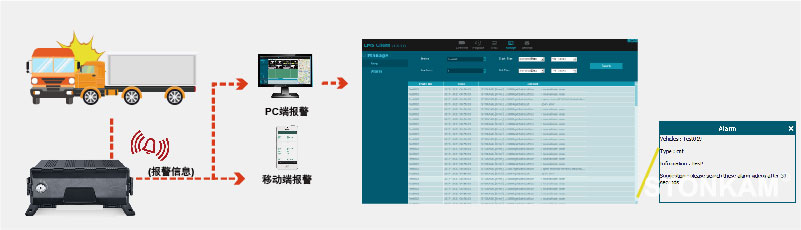

Alarm info pop up on PC / mobile APP

Easy to analyze the abnormal situation of vehicles and to track the relevant information.

Intelligent 8CH HD around-view MDVR integrated system

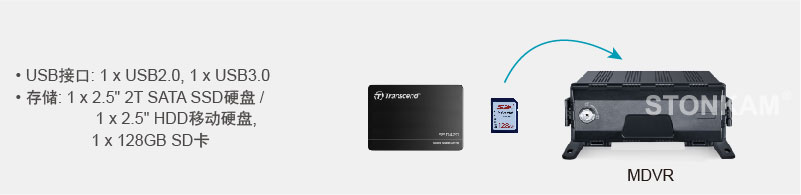

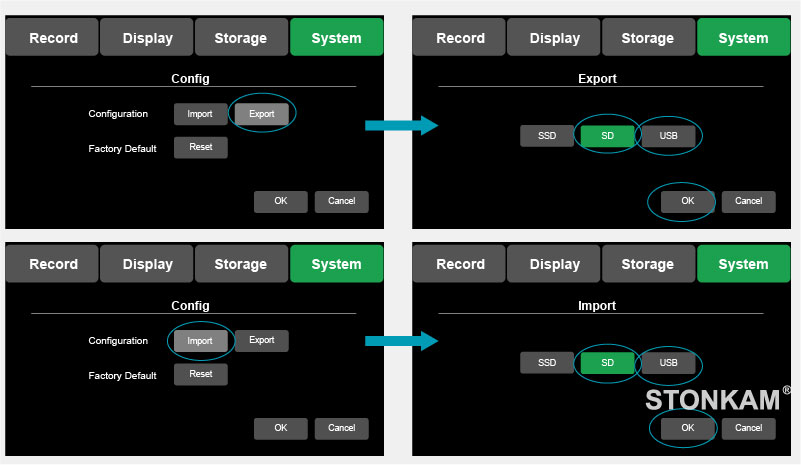

Convenient and quick importing and exporting of files
Simple operation to fast import and export files

Intelligent 8CH HD MDVR system for driving safety




Remotely download video

Video files can be remotely downloaded by logging in PC CMS Client or mobile APP.

HD around-view MDVR system




Support 15s pre-recording and mandatory event videos saving

9-axis G-force, more sensitive to vehicle reaction.

AI HD MDVR integrated system

Product Video

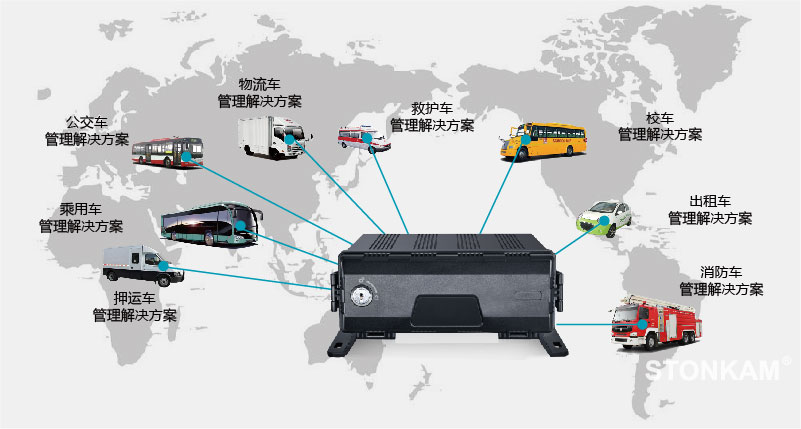

Applications

STONKAM Intelligent 8CH HD MDVR Integrated with AVS System can be widely applied, providing professional and reliable fleet management solutions to buses, coaches, tourist buses and school buses.


 Intelligent 8CH HD MDVR Integrated with AVS System

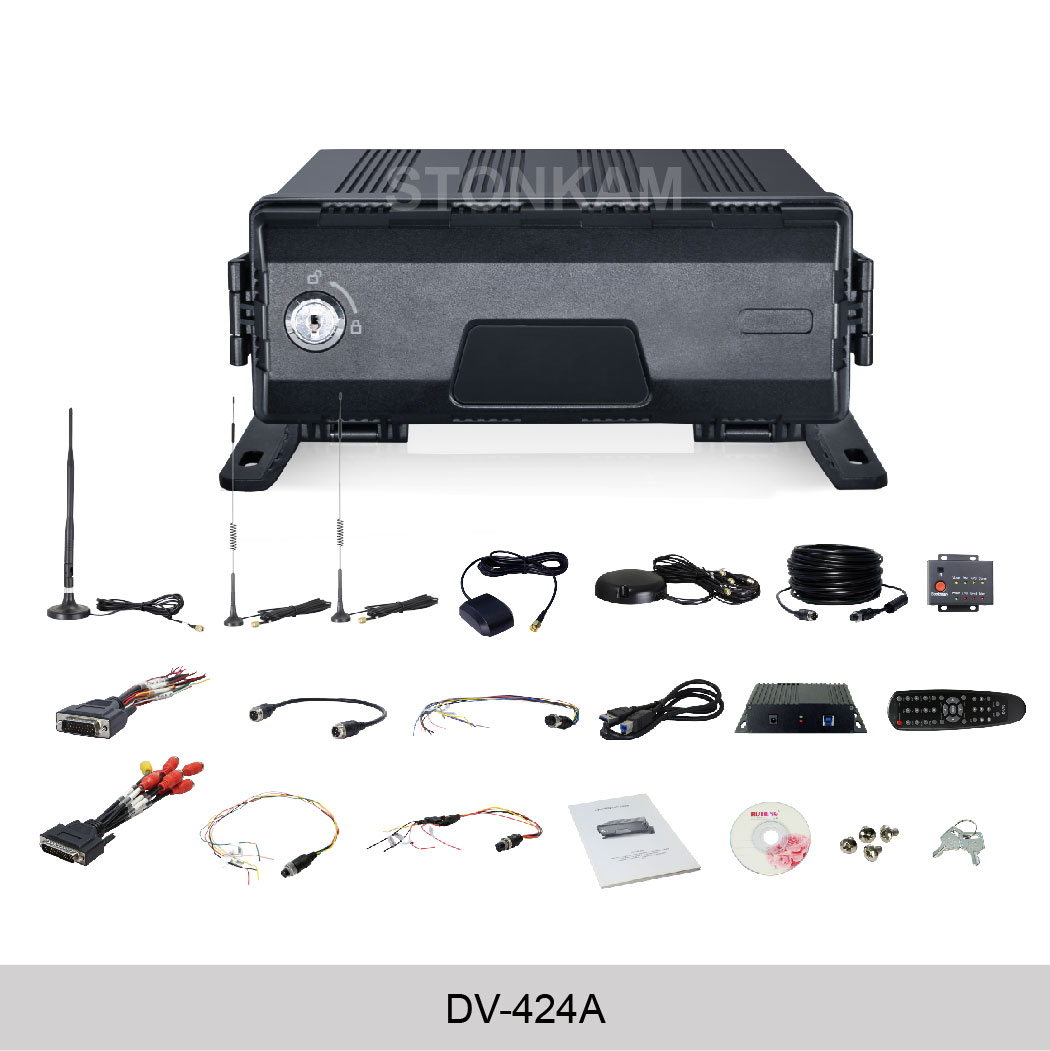

Accessories

1080P Mobile DVR System:

Wi-Fi Antenna

(Optional)

3G Antenna

(Optional)

4G Antenna

(Optional)

GPS Antenna

(Optional)

All-in-one Antenna

(Optional)

DB44 Wire DB26 Wire USB Extension Cable

Conversion Box

(SATA to USB)

Panic Button

(Optional)






5P Input Wire
10P Input Wire

9P Aviation Power

Input Wire

4P to 4P

conversion cable

(Optional)

Remote Controller





Operating Manual
Disk
DVR Key
Screw

4P Extension Cable

(Optional)

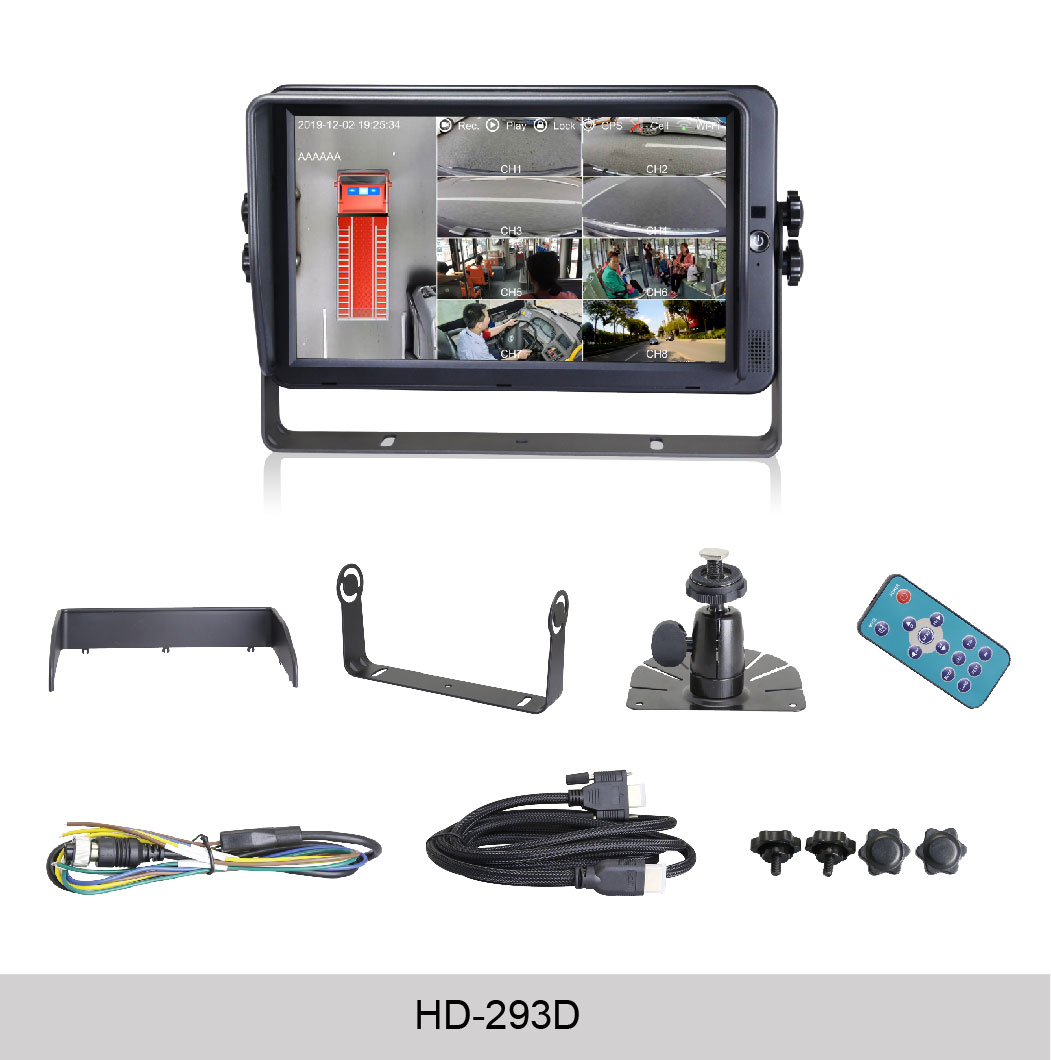

High Definition Quad-view Monitor:






Sun Shield

U- Support Bracket

Center Mount Bracket

Angle Adjustment Screws
Power Cable





IR Remote Control Extension Cable
