1080P 77GHz Millimeter Wave Radar Detection System
(Model:PS-A27, HD-261D, FHD-639)
1080P 77GHz Millimeter Wave Radar Detection System
Features

STONKAM® 1080P 77GHz Radar Detection System is built on millimeter wave technology allowing for good performance in all weathers. It’s highly helpful for obstacle detection when reverse or park and widely used in large vehicles such as trucks, construction machinery, and agricultural machine. More radar alarm systems are available here.


  • This radar alarm system includes a 1080P camera (FHD-639) and a monitor (HD-261D)
  • Support high definition 1080P input and output
  • 77GHz Millimeter-wave Radar technology
  • Support detection range and width Limit
  • AHD Image alarm overlapping
  • Detection distance and alarm mode can be set on the computer by connecting the control box to computer with a USB to UART conversion cable
  • Support Wi-Fi connection, users can configure the detection distance and alarm mode by computer or mobile phone (optional)
  • All-weather operations; work 24 hours


1080P 77GHz Millimeter Wave Radar Detection System

Specification

Frequency 76.00...77.00GHz
Transmitter Type FMCW
Power Supply 10 to 32V DC
Detection Range Detection length limit 0.2~40m, width limit, up to 5 detection zones(distance of each zone can be configured )

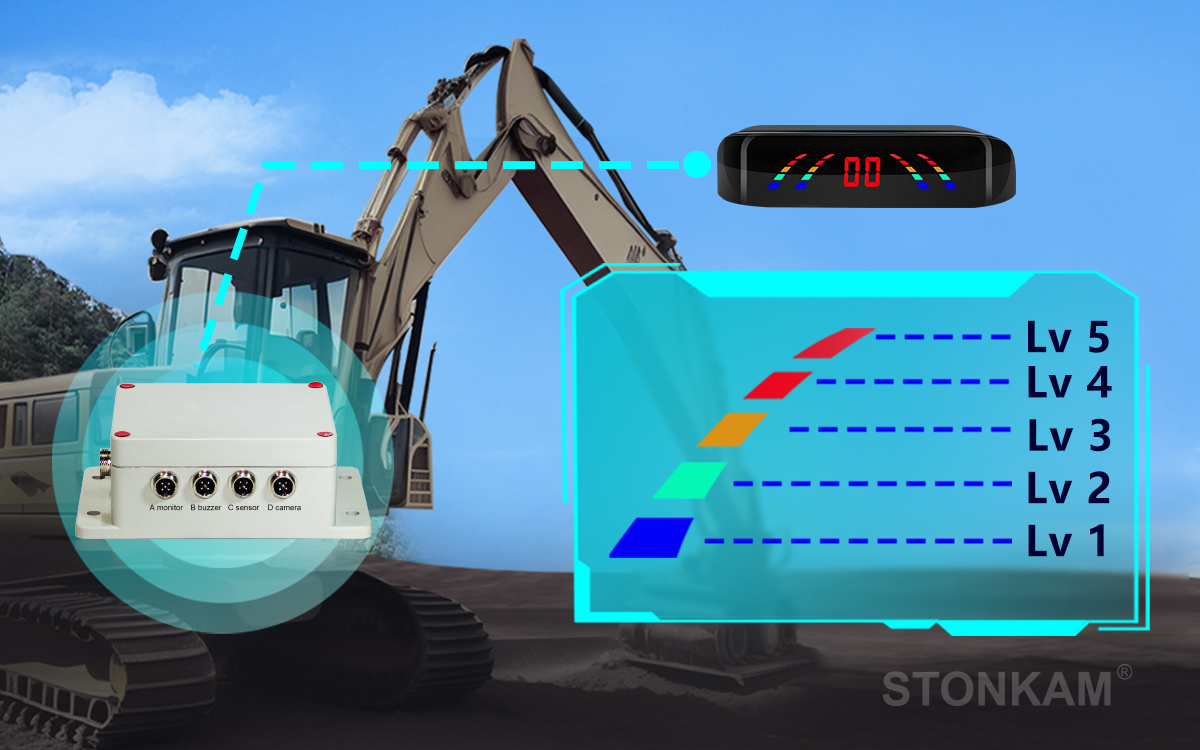

Detection Zone Visualization Green (furthest), Yellow(middle), Red (closest)
Detection Tolerance +/- 15 cm
Antenna Beam Angle 120° (Horizontal), 14° (Vertical)
Trigger Input ×1 Trigger from vehicle, high active
Range above +10Vdc, up to supply voltage
Alarm Output ×1 Switched to Ground when activated
Loading up to 1.0A
Video format 720P 25fps/30fps, 1080P 25fps/30fps
Wi-Fi module 2.4GHz(Option)
Operating Temperature -20 ~ +70°C
Storage Temperature -30 ~ +80°C
IP Protection IP69K (sensor),IP66(Control Box)
Vibration Rating 5.9G
Dimensions Sensor: 106.6(W) ×72.9(H) ×34.5(D) mm
Control Box: 152.6(W) ×89.2(H) ×53.8(D) mm
Weight 158.8Grams (sensor),  240Grams (control box)
Mounting Two (4.5mm) diameter mounting holes (sensor)
Four (6mm) diameter mounting holes (control box)



Why do you need to install 77GHz millimeter wave radar detector system?
Is it useful?
The answer is certainly yes! With electronics radar detectors for obstacle detection/ reversing/ parking, the following problems can all be solved.


  • How to avoid collision and crash when parking / starting in a small garage?
  • How to deal with the blind spot of the rear view mirror where vehicles cannot be seen before change the lane?
  • What to do in heavy rains, fog and dark night lights when visibility is limited?
  • How to initiatively be alerted to the danger when reversing or parking? ......

1080P 77GHz Millimeter Wave Radar Detection System



Unignorable Vehicle Blind Spots

Among all road accidents, those caused by blind spots have taken up a large proportion, which is a great threat to our lives.

1080P 77GHz Millimeter Wave Radar Detection System

It turns out that although A, B or C area is normally not a blind area, lower part of the high vehicle could actually formulate a blind area.

1080P 77GHz Millimeter Wave Radar Detection System

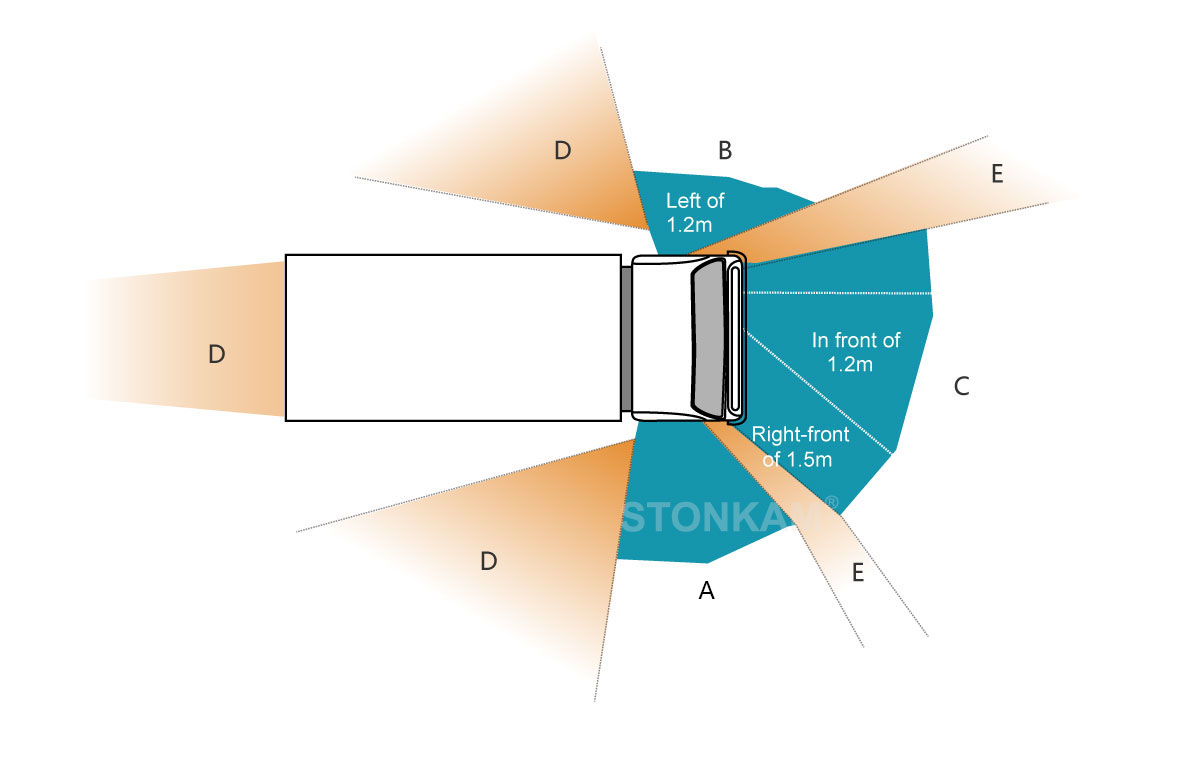

Area A, B, C: Half blind area

Severity of danger depends on the vehicle size.

Area D: Full blind area

Beyond the sight of the driver and 3 rear view mirrors.

Area E: Full blind area

Pillar A near the windshield hinders the vision, which creates the blind spots.



Do not forget! Trucks have blind spots.

Due to their size and length, trucks have larger blind spots than the average cars. This means truck drivers may not be able to see you. So for everyone’s safety, be cautious when driving next to, or behind a truck.

To Be Truck Aware, Come to STONKAM® Radar Detection System for A Security Solution.




STONKAM® 1080P 77GHz Millimeter Wave Reversing radar detector system
It is a reliable park assist sensor using microwave techonology, applied for heavy vehicles. This parking sensor system can provide visual and audible alert to operators to avoid potential danger and allow them to take proper actions in advance.



STONKAM® 1080P 77GHz reversing radar detector system adopts microwave technology; it won’t be affected by weather conditions and can work 24 hours.

1080P 77GHz Millimeter Wave Radar Detection System



Setup on Mobile APP radar tool by WIFI

1080P 77GHz Millimeter Wave Radar Detection System


Long detection range, high sensitivity, max detection range of 40m.

1080P 77GHz Millimeter Wave Radar Detection System

Applications

STONKAM® 1080P 77GHz millimeter wave electronics radar detector system is greatly helpful for reversing and parking, and it’s widely used in large vehicles like trucks, construction machinery, and agricultural machine.


1080P 77GHz Millimeter Wave Radar Detection System - Application

Connection

Use together with cameras and monitors:

1080P 77GHz Millimeter Wave Radar Detection System - Connection

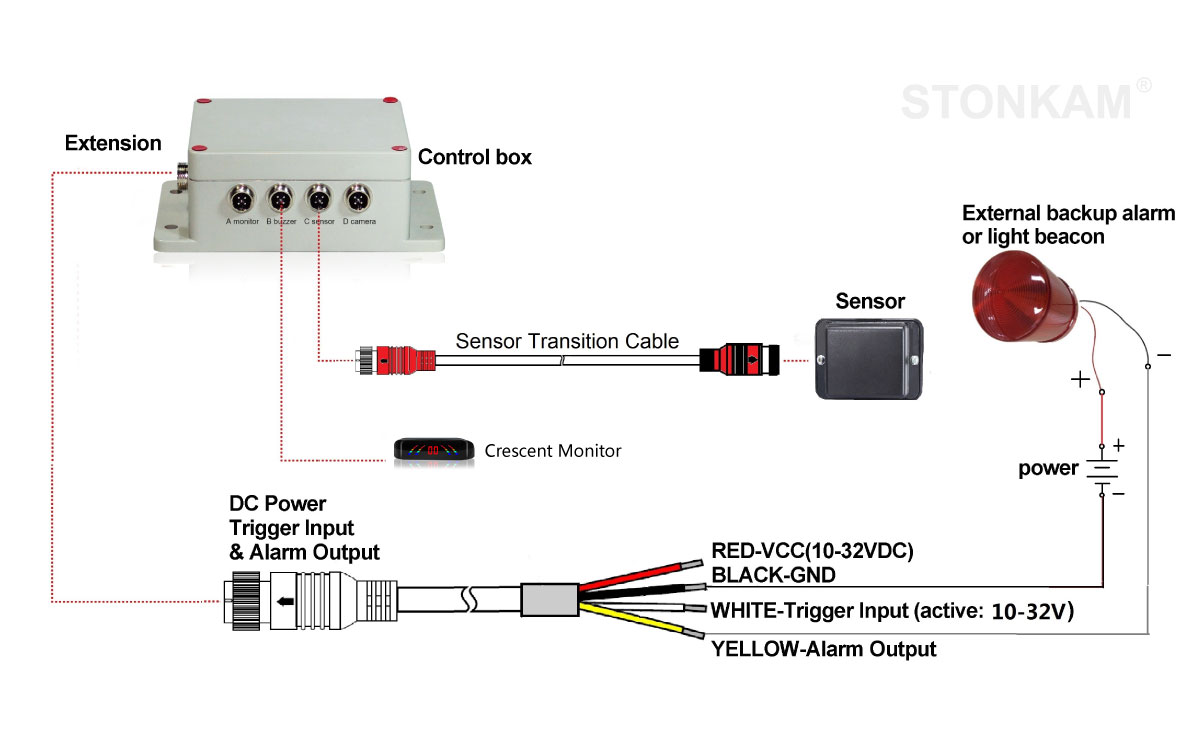

Use as stand-alone item:

1080P 77GHz Millimeter Wave Radar Detection System -Connection


Accessories

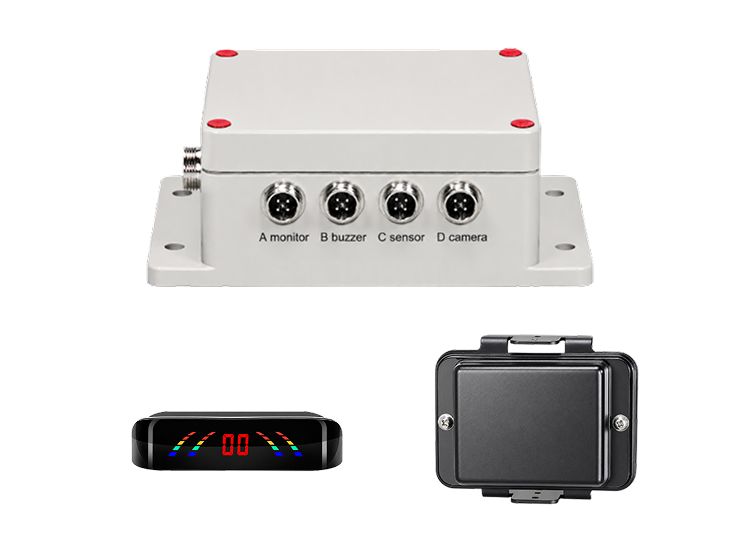

Millimeter-wave Radar Detection System :

1080P 77GHz Millimeter Wave Radar Detection System
1080P 77GHz Millimeter Wave Radar Detection System 1080P 77GHz Millimeter Wave Radar Detection System 1080P 77GHz Millimeter Wave Radar Detection System 1080P 77GHz Millimeter Wave Radar Detection System
Camera cable (4pin)

Extension cable (5pin)

Sensor transition Cable

Dual Sensors Transition Cable (Optional)

USB to UART Cable

1080P 77GHz Millimeter Wave Radar Detection System 1080P 77GHz Millimeter Wave Radar Detection System 1080P 77GHz Millimeter Wave Radar Detection System 1080P 77GHz Millimeter Wave Radar Detection System
Monitor Transition Cable (4pin)

Buzzer

Plug Sealer

 Sensor Mounting Brachet

 (Optional)
