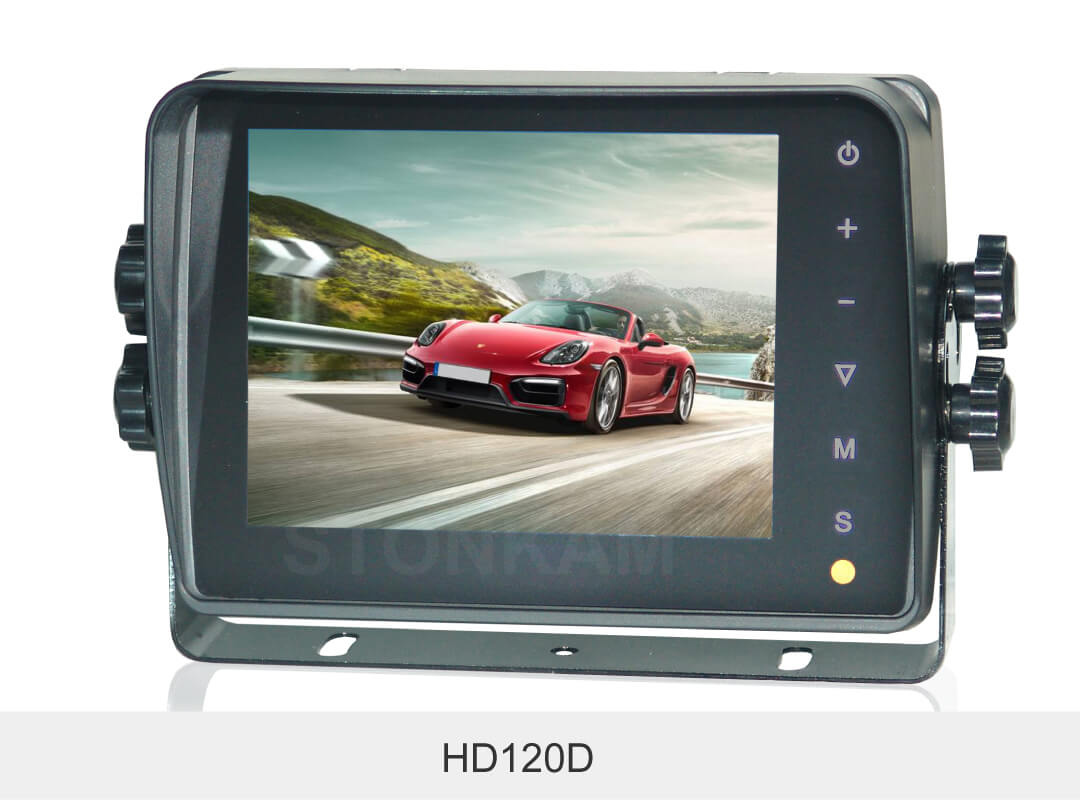

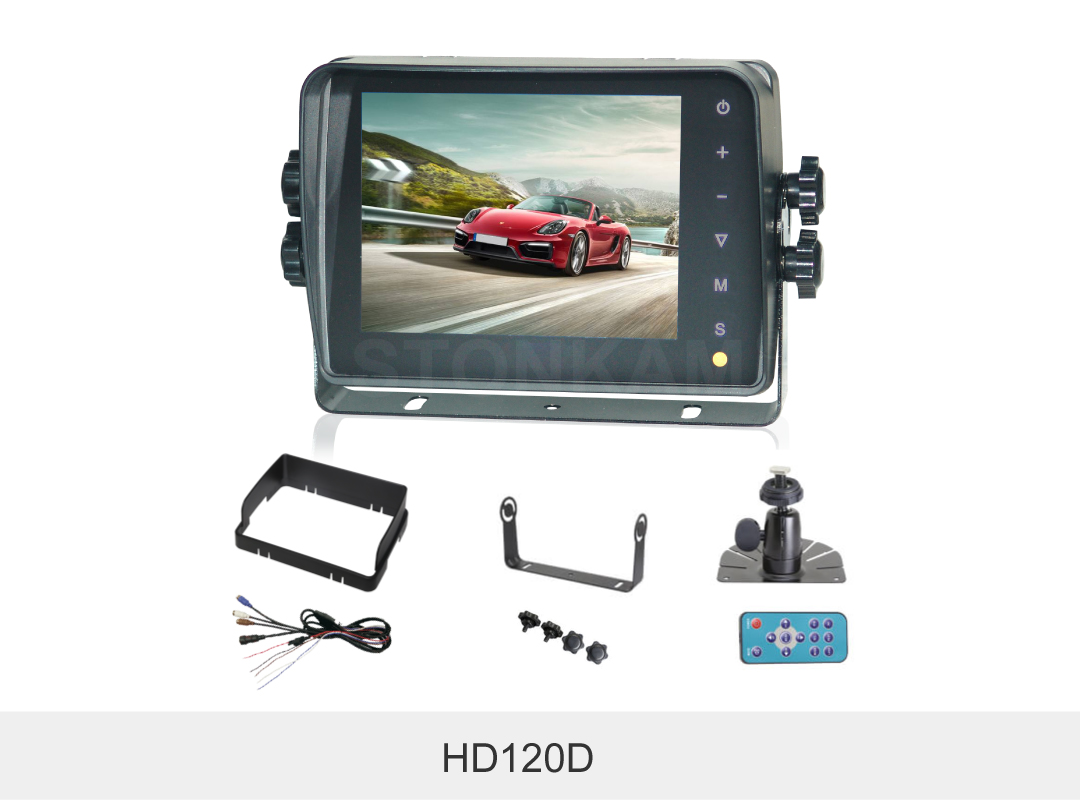

5.6 Inch HD Digital LCD Color Monitor

HD120D

STONKAM® 5.6 Inch HD Digital LCD Color Monitor supports high definition camera inputs, and features touch screen, remote control, auto scan, etc. With the great R&D support, we also offer ODM&OEM services. Click to see more STONKAM® High Definition Monitor products.

Inquire Now

Leave your message and contact details, we will try to get back to you!

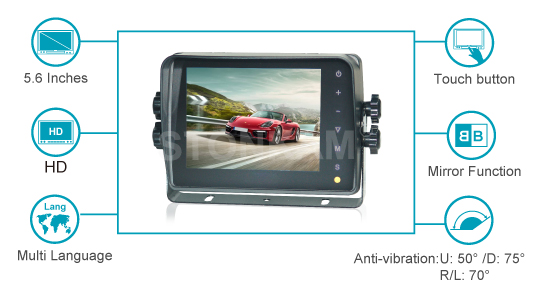

Features

TFT LCD monitor with wide angle view and high resolution display
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing
Select from 8 languages for user operation
Automatic back lighting for automatic brightness control
Full-function remote control
Multiple video formats, available:1080P30/1080P25/720P30/720P25/PAL/NTSC
4 cameras input, 4 reversing trigger wire
Operates from 10 - 32V
The scale can be adjusted for up and down
On-board speaker
With touch buttons

Power supply	DC 10V-32V
Power consumption	about 8 W
Outer dimension	166.5mm (W) × 115mm (H) × 32.3mm (T)
Dot pitch	0.0588(H) × 0.1764 (V)
Resolution	640 x 3(RGB) x 480
Color depth	24 bit
Display colors	16.7M dithering
Contrast	500:1
Brightness	200cd/m2
Viewing angle	U: 50° / D: 75°, R/L: 70° / 70°
Operating temperature	-20~+70ºC, RH90%
Storage temperature	-30~+80ºC, RH90%

How to avoid blind spots and keep safe?

How to park a car easily?

......

STONKAM® 5.6 Inch HD Digital LCD Color Monitor can help you solve your worries!

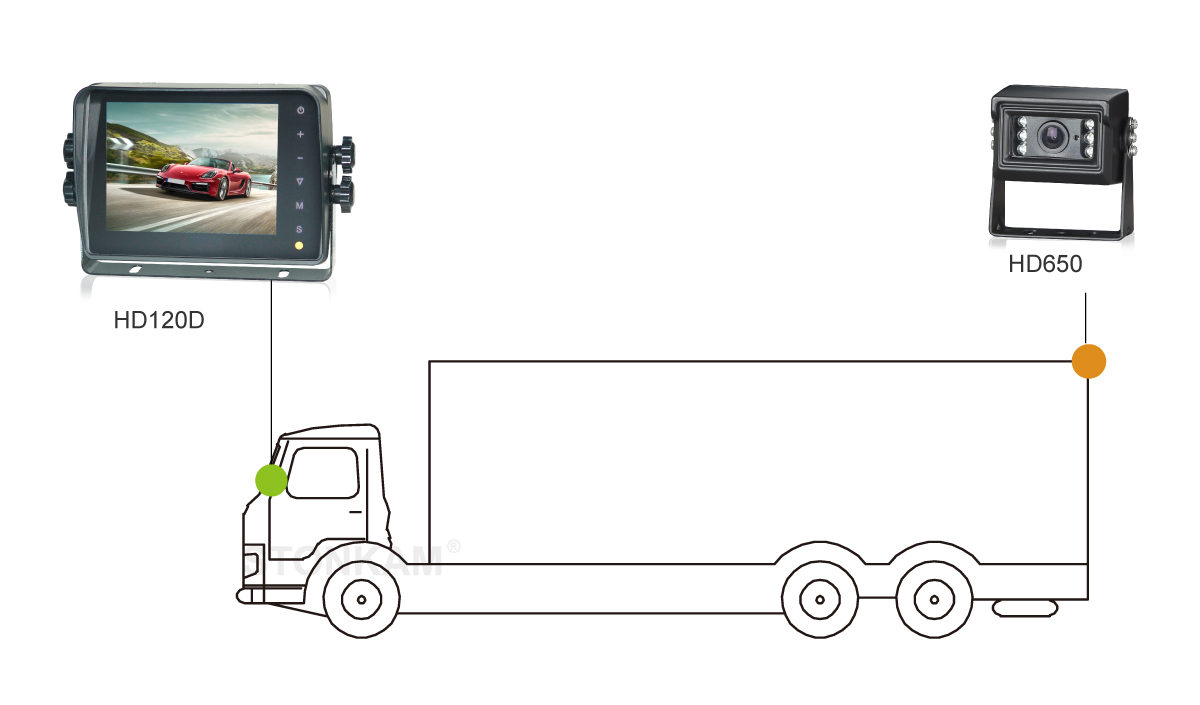

Work with backup camera to avoid blind spots and secure safety

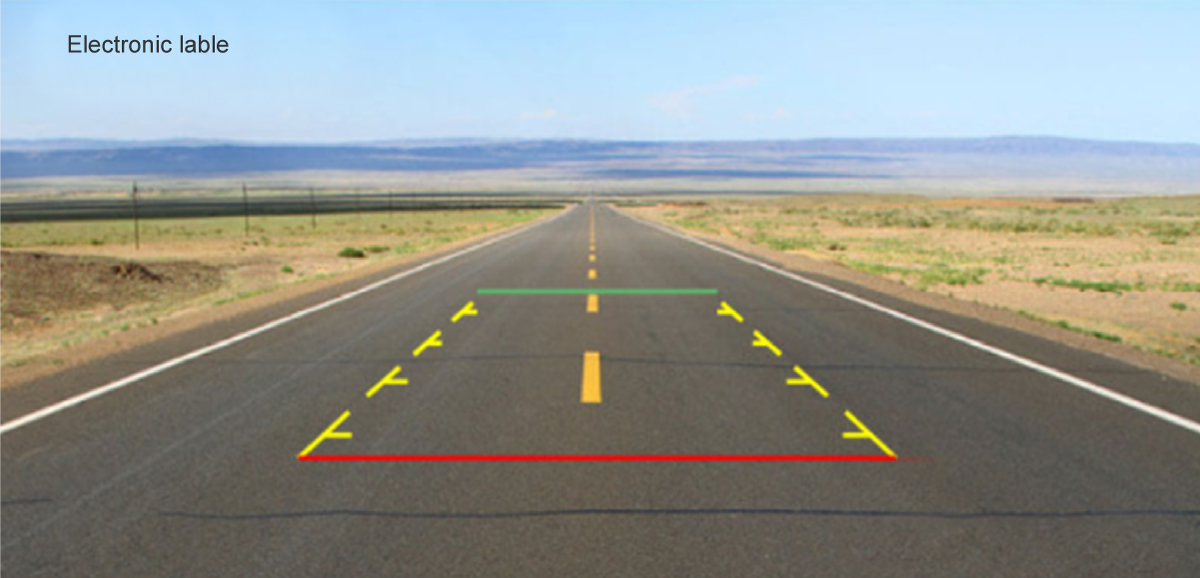

Electronic label helps you to park your car easily
