10.1 inch Trucks/Buses/Large Vehicles 360° Mobile Panoramic Image Monitor All-in-one System

HD299D

360 surround view system all-in-one device integrates AVM algorithm and could achieve surround driving image without control box, no blind spot around 360°. It take only one minute for automatic calibration and supports automatic plane correction, saving time and effort. Able to work with radar, it strengthens safe security for the driving of trucks, public transports and emergency vehicles.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

Features

Integrated AVM Algorithm - No additional control box; Monitor integrates 360AVM algorithm for panoramic images; No blind spots around 360°
HD Video - 1080P high definition fish eye camera input with good real-time display, offering HD and stable images
HB IPS Screen - HB and HD IPS screen, large viewing angles
One-minute Calibration - Automatic calibration can be finished in 1 minute, and it supports automatic plane correction, saving time and effort
3D/2D Switching - Multiple viewing models, 3D/2D view switching freely
Super Rear View Mirror - 3D effect supports super rearview mirror, fully covering lane, making safer when merging in the high speed
Built-in FCW Function - Additional camera and extra installation are not required, built-in FCW(Front Collision Warning) saving time and effort
360 System + MDVR - The 360° monitor can be connected to the existing MDVR, helping the MDVR achieve AI 360 + MDVR functionality

Resource Integration - Radar access is supported, and the vehicle is fully protected
Other Functions - Optional capacitive touch screen; trigger wire and GPS access are both supported

LCD Dimension

10.1 inch

Resolution

1024 x 3 (RGB) x 600

Contrast

600:1

Brightness

600 cd/m2

Aspect Ratio

16:9

Display Model

3D/2D views switching freely

Video Input

Max.4CH×1080P (25FPS/30FPS) and 4CH * 720P (25FPS/30FPS)

Power Supply

10-32V

Power Consumption

Max. 25W

Loudspeaker

1W/8Ω

Operating Temp. & humidity

-20~+70°C, RH 90%MAX

Storage Temp. & humidity

-30~+80°C, RH 90%MAX








Why do you need 360° mobile panoramic image monitor all-in-one system?



Potential dangers hidden among blind areas.

Possibility of scratching in narrow roads while no one shares the cost.

Situation of racketeer for car accident keeps increasing.

Indeterminate responsibility for rear-end collision.

Intelligent vehicle monitoring need control box and display, with high cost time and money.

......

Aftermarket Surround View Camera System-The Necessity







STONKAM® 360° mobile panoramic image monitor all-in-one system!





Control box is not required since monitor integrates AVM algorithm

Say goodbye to monitor+ panoramic control box and choose 360 panoramic driving all-in-one device. The monitor is directly equipped with AVM algorithm to realize 360° bird view and seamless monitoring to ensure safe driving.

360° mobile panoramic image monitor





HD Video with good real-time monitoring effect and low display delay

4CH 1080P fisheye camera input creats HD real driving scene, meanwhile, achieving good real-time display and low delay!

360 Surround View Driving Assistance System





HB and HD IPS screen with large viewing angle

Mobile 360° panoramic image system employs HD IPS screen with large viewing angle and high brightness!

Panoramic Image





One-minute calibration

The 360 system comes with automatic calibration, which can be done in 1 minute through the touch screen or remote control. Only four calibration mats are needed, and they can be placed randomly to achieve accurate calibration.

360° Panoramic Reversing Image





Support FCW Function

Support Forward Collision Warning without extra camera, saving time and money. With forward collision warning technology, the system can intelligently and accurately analyse the distance and relative speed between the vehicle and the preceding vehicle, estimate the potential risk of rear-end collision, and send warnings to the driver to avoid accidents.

Trucks 360° Panoramic Image

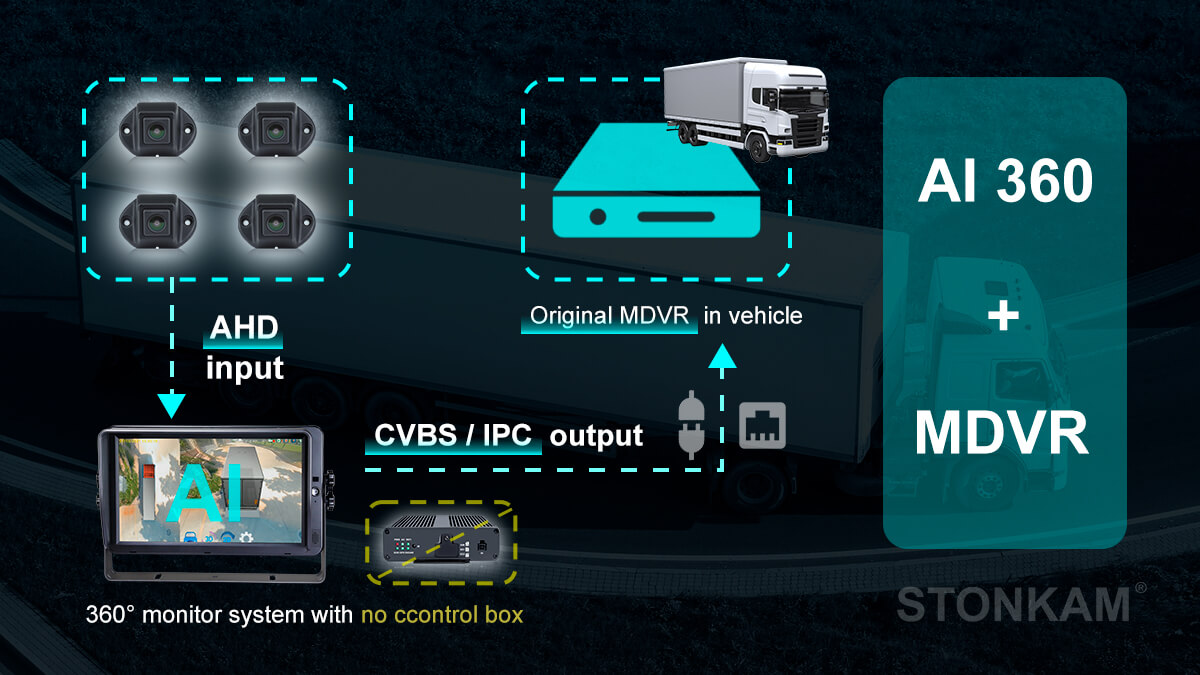

360 Panorama System + MDVR

STONKAM® 360 Surround View Safety Assistance Driving Monitor can be connected to the existing MDVR. Through the AI functionality expansion of the surround view monitor, it helps the MDVR achieve AI 360 + MDVR functionality, greatly enhancing the display effect and safety performance of the equipment, providing customers with a comprehensive and safe in-vehicle monitoring solution.

Trucks 360° Panoramic Image





Multiple viewing models, 3D and 2D switchable

360° panoramic image system,  in which user can switch 3D/2D view freely, meets the needs of all kinds of viewing angles

Large Vehicles 360° Panoramic Image





3D effect supports super rearview mirror, fully covering lane, making safer when merging in the high speed

Most 3D around view driving assistance products would present the driving scene with a vehicle of solid image where the traffic view behind is blocked out and not clearly showed. 360 panoramic image all-in-one device can use transparent vehicle model to provide a full view of the road condition, totally clearing off the blind spot behind the vehicle. Meanwhile, the bird view can show a larger field of view on both left and right of the vehicle, providing one more driveway scene than the similar products in the market, which greatly enhances the driving safety.

Large Vehicles 360° Panoramic Image



360° Panoramic Image System





Support radar access, and protect vehicle whole body

Able to work with radar and support the overlay of real-time video and audio, it could actively warn the driver to avoid obstacles and other potential hazards.

Large Vehicles 360° Panoramic Image





Optional capacitive touch screen

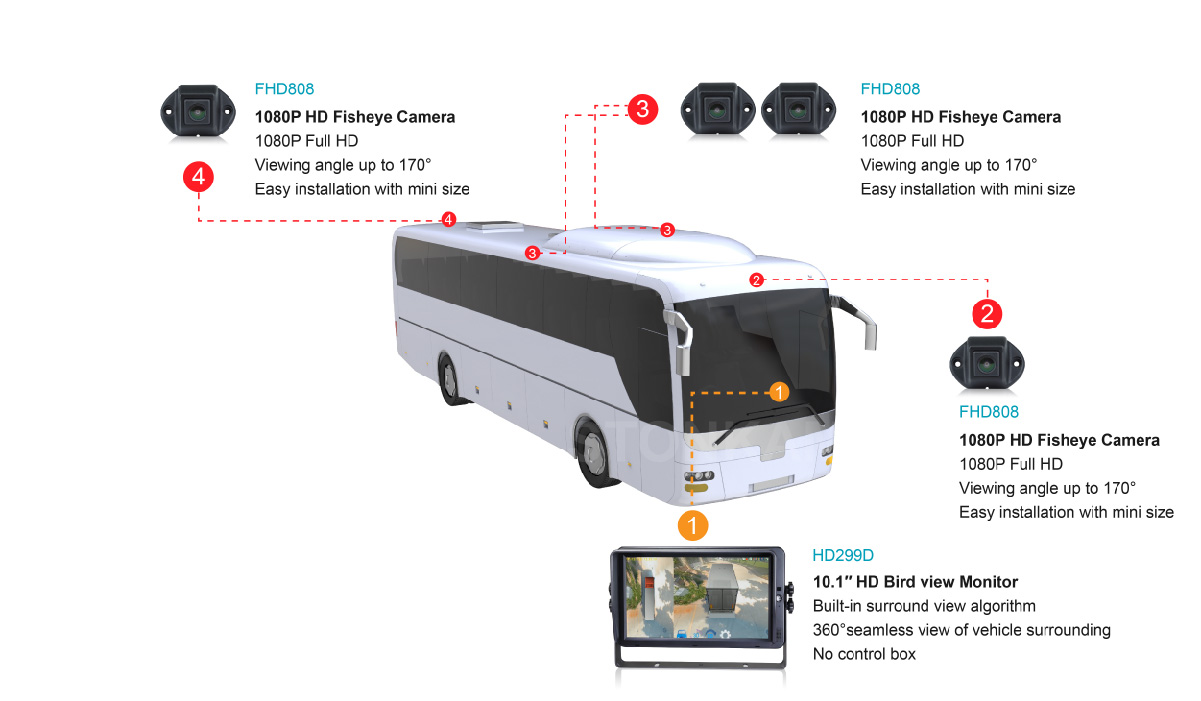

Bus 360° Panoramic System





Applications

360° mobile panoramic image monitor all-in-one system is widely applied in trucks, public tansports, emergency vehicles and other large vehicles, fully covering the blind spot around the vehicle body, ensuring the safety of drivers, away from dangerous accidents.

Bus 360° Panoramic System
