6CH 1080P HD Waterproof 360 Surround View Panoramic Image System

6CH 1080P HD Waterproof 360 Surround View Panoramic Image System

BVA18

6CH 1080P HD waterproof 360 surround view panoramic image system: 6CH 195° ultra-wide angle HD cameras input, multiple viewing models with free switching of 3D/2D perspective, are specially designed for articulated buses, cranes, long trailers, container trucks, fire fighting trucks and other super long vehicle. With IP69K waterproof, even if in harsh environments, it could offer 360° panoramic bird view for various vehicles, achieving 360° monitoring without blind spots. With strong recording function, it can offer 512GB+2T SSD large capacity video storage.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

【6CH 360° Around View】6CH 360° surround view image system, suitable for all kinds of vehicles
【HD Video】1080P high definition fish eye camera input with good real-time display, offering HD and stable images
【One-minute Calibration】Automatic calibration can be finished in 1 minute, and it supports automatic plane correction, saving time and effort
【Surround view & Vehicle Monitoring】Support 360 surround view with 4 channels and other applications with 2 channels
【Built-in FCW Function】Additional camera and extra installation are not required, built-in FCW(Front Collision Warning) saving time and effort
【Resource Integration】Able to work with STONKAM pedestrian detection camera. Additionally, radar access is supported, and the vehicle is fully protected
【Remote Vehicle Management】It can be connected to the platform via 4G to achieve remote vehicle management
【Strong Recording function】512GB+2T SSD stores large capacity videos
【Waterproof and Dustproof】IP69K waterproof, dustproof and shockproof, able to operate even if in harsh environments
【Other Functions】Optional capacitive touch screen; trigger wire and GPS access are both supported

360 Degree Surround View Control box:

Video input	Max.6CH×1080P AHD (25/30)FPS
Video input	Compatible with 6CH * 720P （25FPS/30FPS）
Video output	CVBS PAL/NTSC
	AHD/VGA output
	RTP/RTSP （1080P/720P/D1 optional）
Output delay	The analog output delay is within 200ms
Output delay	The average delay of RTSP push stream is less than 200ms
Startup with picture	Support fast picture of single channel screen within 3 seconds
Display view types	Single channel view of each camera
	Six split view
	2D panoramic view (original 2D view)
	3D panoramic view at any perspective
Storage	Max. 1×512G SD card+1×2T SSD card
Recording	(Default) Max.6CH×1080P H.264 15FPS encoding
	6CH 1080P standard input or single-channel splicing composite screen image
	Format AVI/MSV
Playback	Advised to use PC software for playback
Playback	The board supports 6CH simultaneous playback
Code stream	1MB/2MB/4MB
Code stream	Other bitrate could be customized
Control box dimension	181.6*146.6 mm
Waterproof rating	IP69K
Control	Remote control、touch screen (optional)
Network	Ethernet WIFI 4G(OPTION)
Expanded port	1. Trigger line*6
	2. TTL
	3. CAN *2
	4. USB port
Additional G-sensor	Standard: GPS、Acceleration chip
Additional G-sensor	Optional: Ultrasonic radar, microwave radar, pedestrian detection camera
Power supply	10-32V
Operating voltage range of external trigger signal	10-32V
Operating current	<2A/12V
Operating temperature	-20℃ ~ 70℃ (Able to be customized up to -40°C~85°C)
Storage temperature	–40℃ ~105℃
Operating humidity	10%-95%

360 Degree Surround View Camera:

Resolution	1080P 720P
Output signal	AHD
Image Device	CMOS
Frame Rate	25/30
Automatic White Balance	Available
Automatic Exposure	Available
Night vision	Starlight level
	Visiable when<0.1lux
	infrared light is not required
White balance	Automatic
Exposure	Automatic
Dimension	6241.7234.11 mm Camera's angle cannot be adjusted
Dimension	74.2859.1642.43mm Camera's angle cannot be adjusted
Viewing angle	FHD808 (Recommended for 3D view) Horizontal max. 195° Vertical max. 135°
Viewing angle	FHD410 Horizontal max. 170° Vertical max. 90°
Power supply	DC 9~16V/DC 10~32V
Operating temp. & humidity	–20℃ ~70℃, RH95%MAX.(FHD808)
	–40℃ ~85℃, RH95%MAX.(FHD410)
	either-or
Storage temp. & humidity	–30℃ ~80℃, RH95%MAX.(FHD808) –40℃ ~125℃, RH95%MAX.(FHD410)
Waterproof rating	IP69K
Lens length	1.45mm

Why do you need 6CH Waterproof 360 surround view system?

Potential dangers hidden among blind areas.

Possibility of scratching in narrow roads while no one shares the cost.

Situation of racketeer for car accident keeps increasing.

Indeterminate responsibility for rear-end collision.

The operation environment is harsh and complex, and the vehicle monitoring is difficult?

The vehicle body is too long, and ordinary 4CH panoramic system is difficult to meet the demand?

High-value shipments are hard to track and monitor?

......

6CH 1080P HD waterproof 360 surround view panoramic image system completely safeguard your driving!

6CH 1080P image, 360° seamless splicing

Specially designed for articulated buses, cranes, long trailers, container trucks, fire fighting trucks and other super long vehicles, 6CH ultra-wide angle HD cameras are spliced seamlessly to achieve real 360° panoramic bird view and zero blind spot monitoring, assisting in safe driving. Meanwhile, it also supports 360 surround view with 4 channels and other applications with 2 channels. In addition, expanding more camera inputs is feasible through Network Switch, meeting the monitoring demands of all kinds of vehicles.

Buses 360 surround view system

Remote vehicle management

It could be connected to platform to achieve remote vehicle management via 4G network.

360 surround view image system

One-minute calibration

The 360 system comes with automatic calibration, which can be done in 1 minute through the touch screen or remote control. Only 6 calibration mats are needed, and they can be placed randomly to achieve accurate calibration.
Calibration of 6 channel surround view system

360 Surround View

Calibration of 4 channel surround view system

Able to work with pedestrian detection camera

Working with HD camera, it can detect pedestrians and vehicles around the vehicle body in real time, and pedestrians could also be detected in the stitching area, avoiding accidents caused by blind spot.

Support FCW Function

Support Forward Collision Warning without extra camera, saving time and money. With forward collision warning technology, the system can intelligently and accurately analyse the distance and relative speed between the vehicle and the preceding vehicle, estimate the potential risk of rear-end collision, and send warnings to the driver to avoid accidents.

Multiple viewing models, 3D and 2D switchable

360° panoramic image system, in which user can switch 3D/2D view freely, meets the needs of all kinds of viewing angles

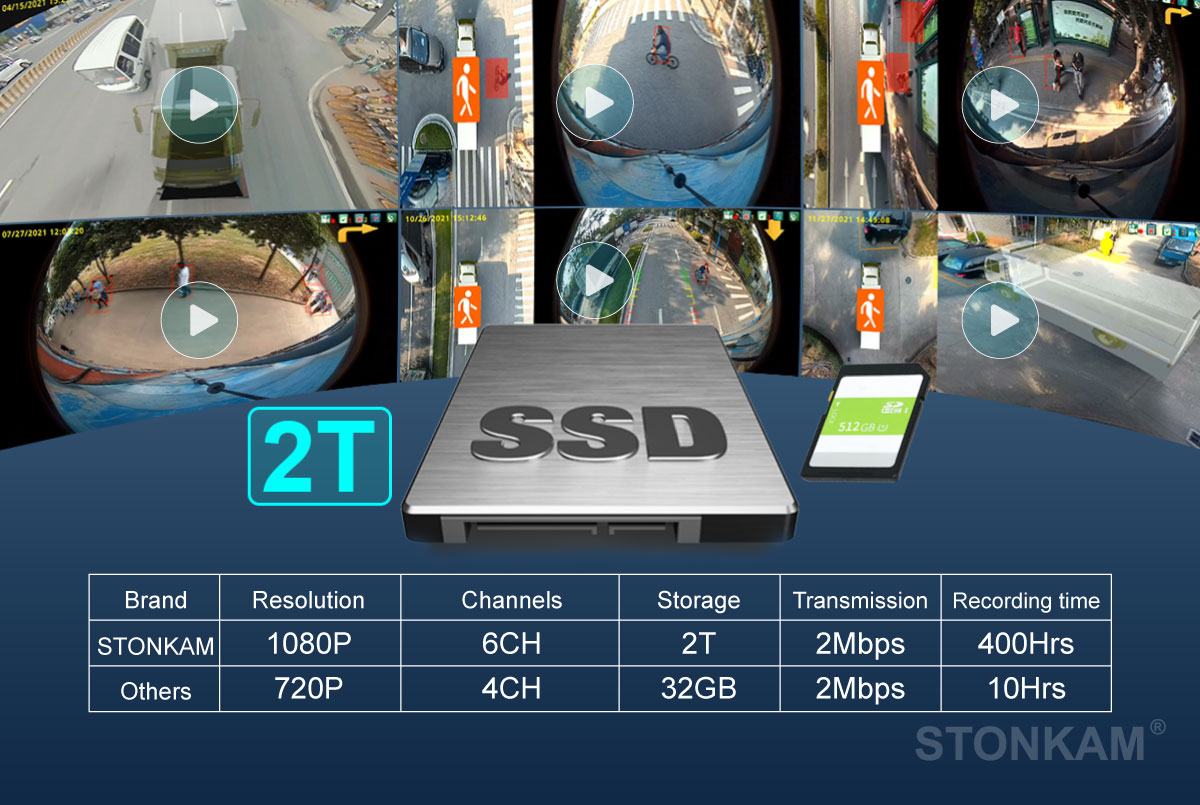

Strong recording function, supporting 512GBSD card+2T SSD

Waterproof and dustproof, suitable for all kinds of harsh working environments

It is IP69K waterproof, dustproof and shockproof, able to operate even if in harsh environments

Support radar access, and protect vehicle whole body

Able to work with radar and supporting the overlay of real-time video and audio, it could actively warn the driver to avoid obstacles and other potential hazards

Applications

6CH 1080P HD waterproof 360 surround view panoramic image system is widely applied in articulated buses, cranes, long trailers, container trucks, fire fighting trucks and other super long vehicle, fully covering the blind spot around the vehicle body, ensuring the safety of drivers, away from dangerous accidents.
