360° vision system:

Radar system:

Watch Out for Truck’s Blind Spots!

Due to their size and length, trucks have larger blind spots than the average car, which means truck drivers may not be able to see you. So for everyone’s safety, be cautious when driving next to, or behind a truck.

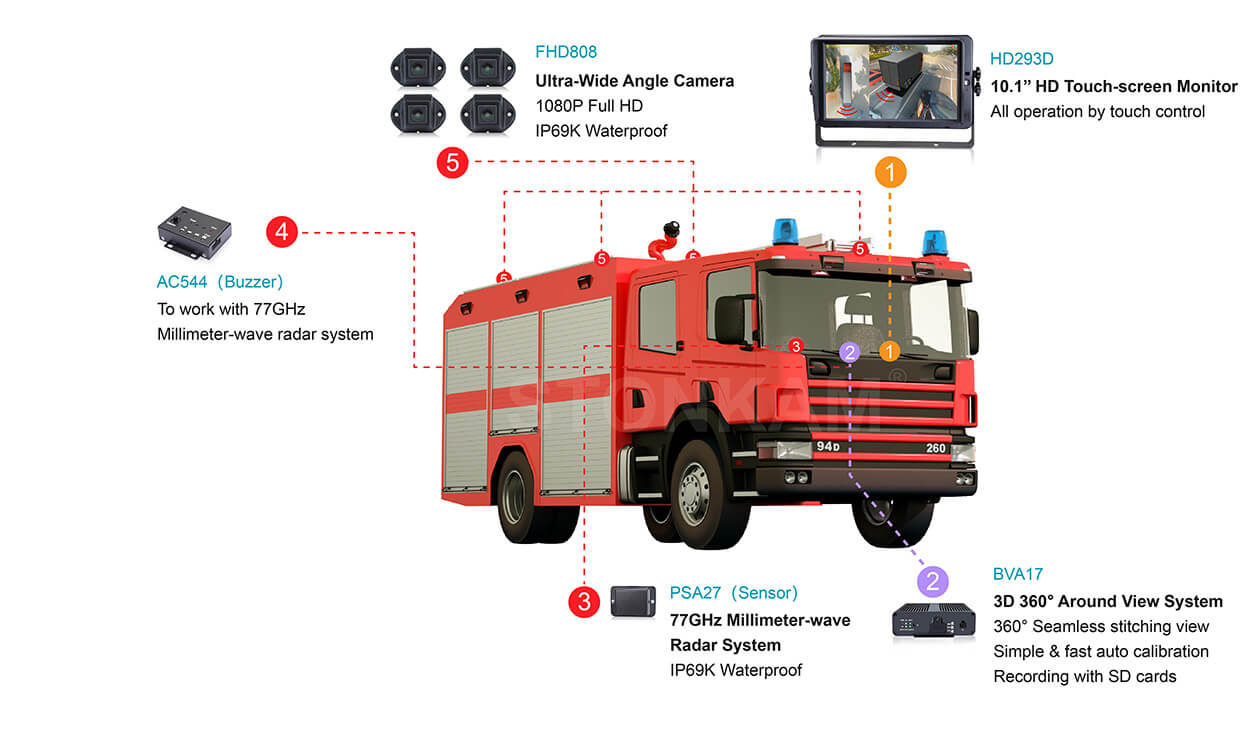

360° Seamless Stitching

Support 4CH inputs, 360° Around View Driving Assistance System can realize true 360° panoramic bird-view, monitoring with no blind spot to ensure driving safety.

Built-in AI algorithm, integrating LDW+FCW+ BSD full area detection

Built-in AI algorithm, integrated with LDW+FCW+both sides BSD 360 degree detection, is able to detect lane departure, forward collision and overtaking/merging around the vehicle, and then to give an alarm.

Panoramic Image Synthesis Technology

Panoramic image synthesis technology: The 4CH 1080P full HD images are seamlessly stitched after distortion correction, and then rendered into 3D scene to simulate the real driving scene.

Multiple viewing models, 3D and 2D switchable

360° panoramic image system,  in which user can switch 3D/2D view freely, meets the needs of all kinds of viewing angles

Quick and Smooth Start-up, RTSP Feed Support

From boot to image display, the single-view image pop up quickly and smoothly with low latency. It supports third-party equipment to obtain the 360° around view image through the RTSP protocol, in order to achieve the integration of the panoramic images, with latency less than 250ms.

3D effect supports super rearview mirror, fully covering lane, making safer when merging in the high speed

Most 3D around view driving assistance products would present the driving scene with a vehicle of solid image where the traffic view behind is blocked out and not clearly showed. 3D 360° Around View Driving Assistance System can use transparent vehicle model to provide a full view of the road condition, totally clearing off the blind spot behind the vehicle. Meanwhile, the bird view can show a larger field of view on both left and right of the vehicle, providing one more driveway scene than the similar products in the market, which greatly enhances the driving safety.

One-minute calibration

The 360 system comes with automatic calibration, which can be done in 1 minute through the touch screen or remote control. Only four calibration mats are needed, and they can be placed randomly to achieve accurate calibration.

Support external AI pedestrian detection camera, the highest arithmetic power 8T

External AI pedestrian detection cameras can be connected, with the highest arithmetic power of 8T, which can achieve a full range of vehicle detection, with a detection range up to 10 meters

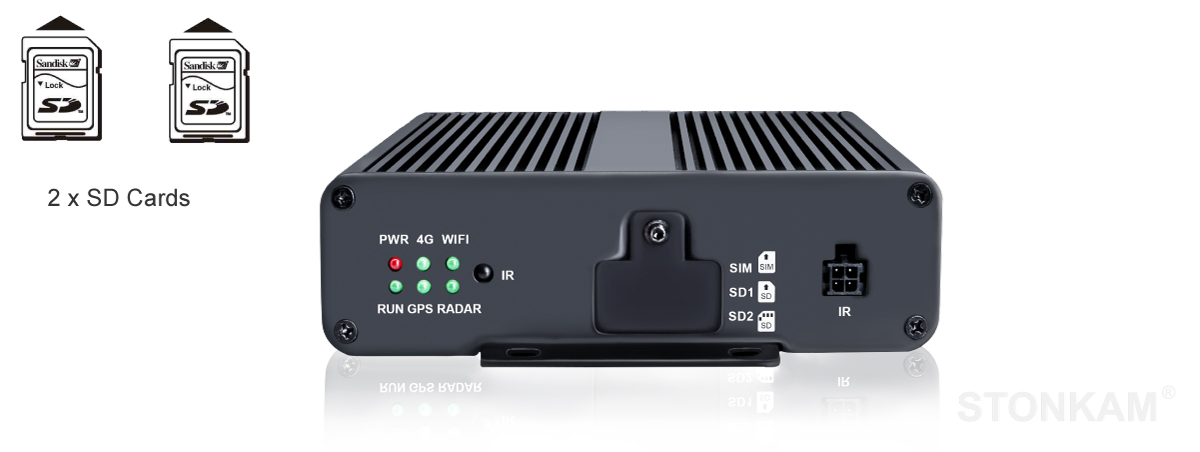

Video Recording 2 × 512GB SD cards

Low Light Night Vision

360°Around View Driving Assistance System’s camera can provide low light night vision with which the driver can have a clear around view of the road even when the light is insufficient. No need for Infrared light and the night vision can cover the whole 360° around view.

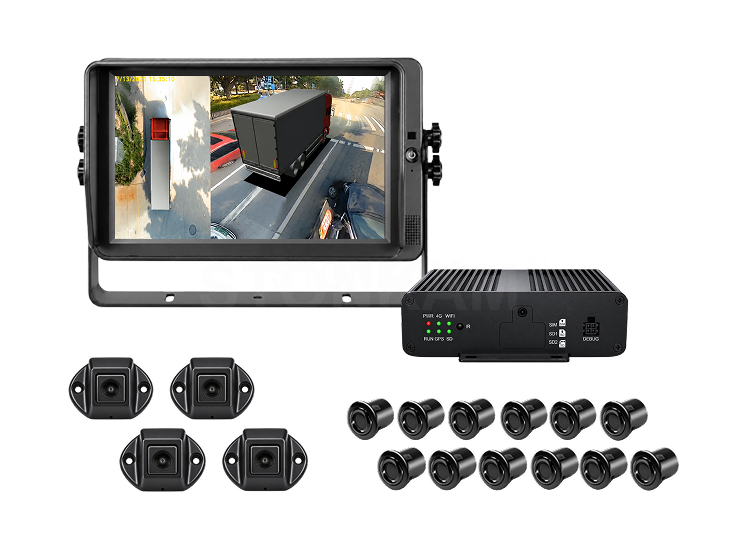

Support radar access and Parking Sensor System

Able to work with radars and parking sensors, supporting the overlay of real-time video and audio, it could actively warn the driver to avoid obstacles and other potential hazards.

STONKAM® automotive radar detection system adopts microwave technology; it won’t be affected by weather conditions and can work 24 hours.

Long detection range, high sensitivity, max detection range of 40m.

Applications
