360° 3D Around-View System with Radar System for Blind Spots

360° 3D Around-View System with Radar System for Blind Spots

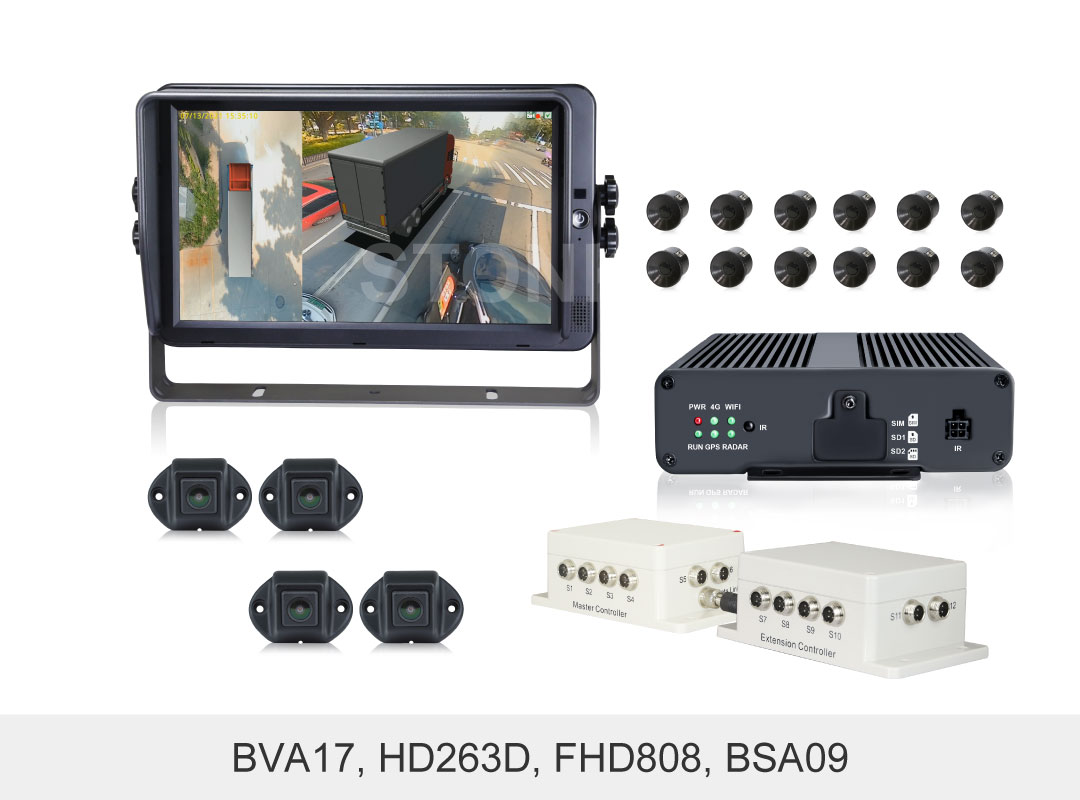

BVA17, HD263D, FHD808, BSA09

360° 3D Around-View System with Radar System for Blind Spots provides a true 360° panoramic bird-view, monitoring with no blind spot to ensure driving safety. It is the best choice to assist vehicle driving for bus, truck, ambulance, and limousine, etc.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

1080P high definition fish eye camera input with good real-time display, offering HD and stable images with screen layback down to 150ms
Automatic calibration can be finished in 1 minute, and it supports automatic plane correction, saving time and effort
Multiple viewing models, 3D/2D view switching freely
Video Recording: 2 x 512GB SD cards, supporting ultra-capacitor to secure the video file
Built-in AI algorithm, integrated with LDW+FCW+both sides BSD 360 degree detection, is able to detect lane departure, forward collision and overtaking/merging around the vehicle, and then to give an alarm.
3D effect supports super rearview mirror, fully covering lane, making safer when merging in the high speed
Quickly and smoothly pop up the single-view image with low latency
Support RTSP video output
Compatible with radars and parking sensors, supporting real-time video and audio overlay to actively warn the drivers to avoid obstacles and other potential dangers
Support IP camera, connect more cameras, provide more views
External AI pedestrian detection cameras can be connected, with the highest arithmetic power of 8T, which can achieve a full range of vehicle detection, with a detection range up to 10 meters
Operating temperature -20ºC ~ +70ºC
Low-lux night vision: still visible under 0.1lux with no need of Infrared light
GPS tracking optional
Suppos 6 / 12 channels radar detection (Contact for details)
Front / rear sensor detecting range: 0.60~5.00m (1.97ft --- 16.4ft), side sensor detecting range: 0.60~3.00m (1.97ft --- 9.8ft)
Real-time display of the obstacle distance

360° 3D Around-View System

Video input	Max.4CH×1080P@25fps/1080P@30fps
Display mode	2D/3D
Resolution	1080P
Frame Rate	25/30
Storage	Max. 2×512GB SD card
Compressed encoding	Max. 4CH×1080P H.264 encoding
Code stream	4MB/2MB
Power supply	10-32V
Operating voltage range of external trigger signal	10-32V
Operating current	<2A/12V
Operating temperature	-20℃ ~ 70℃
Storage temperature	–40℃ ~85℃
Operating humidity	10%-90%

Radar System for Blind Spots

Item	BS-A09
System	IC	Altera Cyclone IV、ADI
Video	System format	PAL/NTSC
	CVBS output	1CH 4pin aviation connector output PAL/NSTC
	Video standard	PAL: 25FPS, NTSC: 30FPS
Radar	Detection Distance	0.60m---5.00m(1.97ft --- 16.4ft)
	Best Detection Distance	0.60m---3.00m(1.97ft --- 9.8ft)
	Display Unit	M or FT (Optional)
	Number of Sensors	6 pcs or 12 pcs
	Color of Sensors	Black(default)
	Ultrasonic Frequency	40kHz±1.5 kHz
	Size	⌀35mm，L=33mm
Alarm	Alarm output	Beep
Trigger	Trigger input	High active(DC 10-32V)
Trigger	Trigger output	Connect to GND when active, float when inactive
Interface	Video input	1 CH
	Video output	1 CH
	Trigger input	1 CH
	Trigger output	1 CH
	Buzzer output	1 CH
	Radar input	6 pcs or 12 pcs
Electrical spec	Power Supply	DC 10-18V
	Operating temp. & humidity	-20～70℃, RH 90%MAX
	Video input impedance	75ohm
	Video output voltage	1Vpp CVBS output

Why do you need STONKAM® 360°Around View Driving Assistance System?

Potential dangers hidden among blind areas.

Possibility of scratching in narrow roads while no one shares the cost.

Situation of racketeer for car accident keeps increasing.

Indeterminate responsibility for rear-end collision.

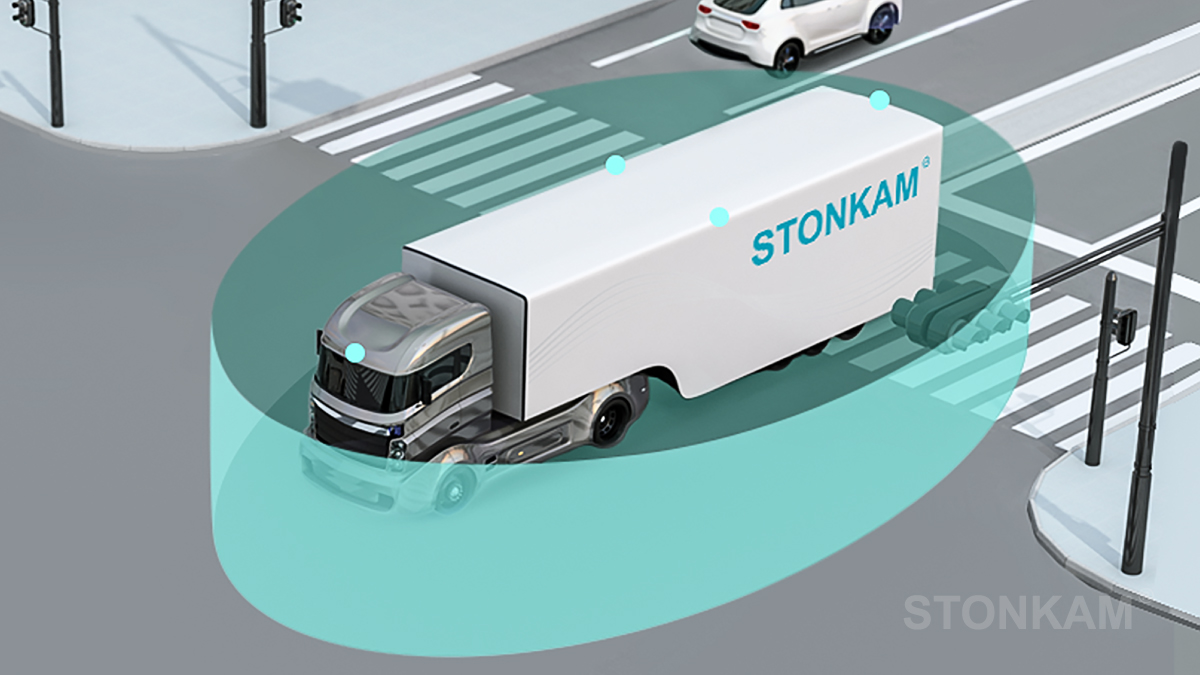

Unignorable Vehicle Blind Spots

Among all road accidents, those caused by blind spots have taken up a large proportion, which is a great threat to our lives.

It turns out that although A, B or C area is normally not a blind area, lower part of the high vehicle could actually formulate a blind area.

Area A, B, C: Half blind area

Severity of danger depends on the vehicle size.

Area D: Full blind area

Beyond the sight of the driver and 3 rear view mirrors.

Area E: Full blind area

Pillar A near the windshield hinders the vision, which creates the blind spots.

Watch Out for Truck’s Blind Spots!

Due to their size and length, trucks have larger blind spots than the average car, which means truck drivers may not be able to see you. So for everyone’s safety, be cautious when driving next to, or behind a truck.

STONKAM® 360° Surround View System Complete Safeguard Your Driving!

360° Seamless Stitching

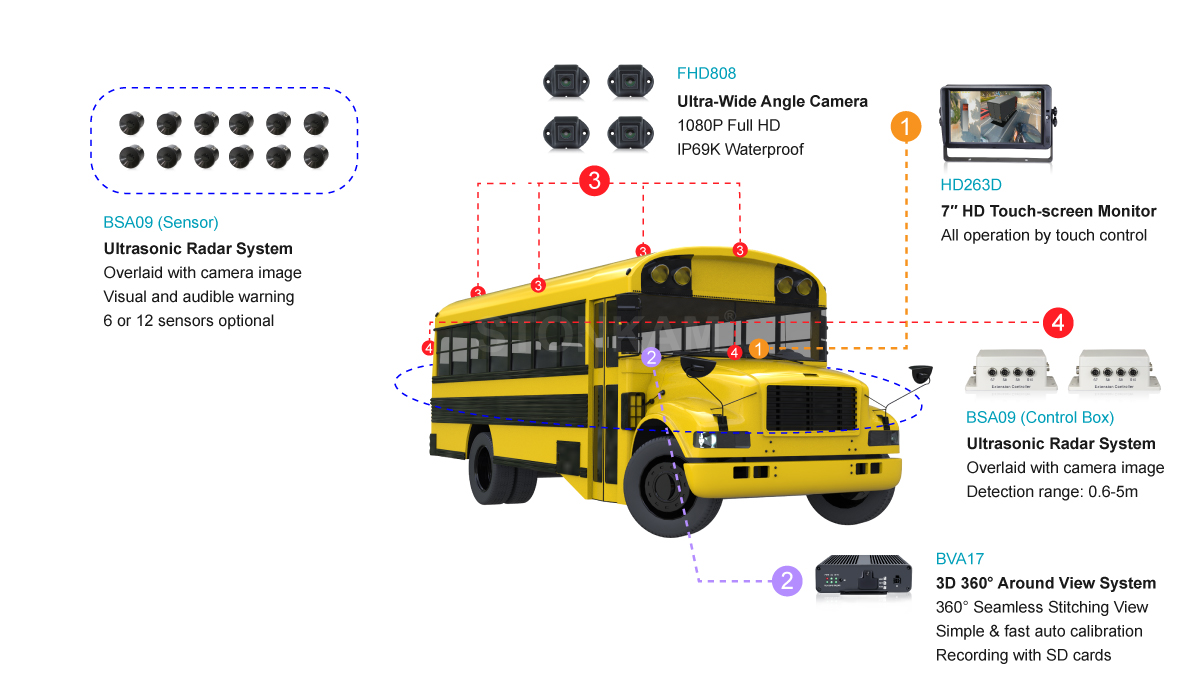

Support 4CH/6CH/8CH inputs, 360° Around View Driving Assistance System can realize true 360° panoramic bird-view, monitoring with no blind spot to ensure driving safety.

Built-in AI algorithm, integrating LDW+FCW+ BSD full area detection

Built-in AI algorithm, integrated with LDW+FCW+both sides BSD 360 degree detection, is able to detect lane departure, forward collision and overtaking/merging around the vehicle, and then to give an alarm.

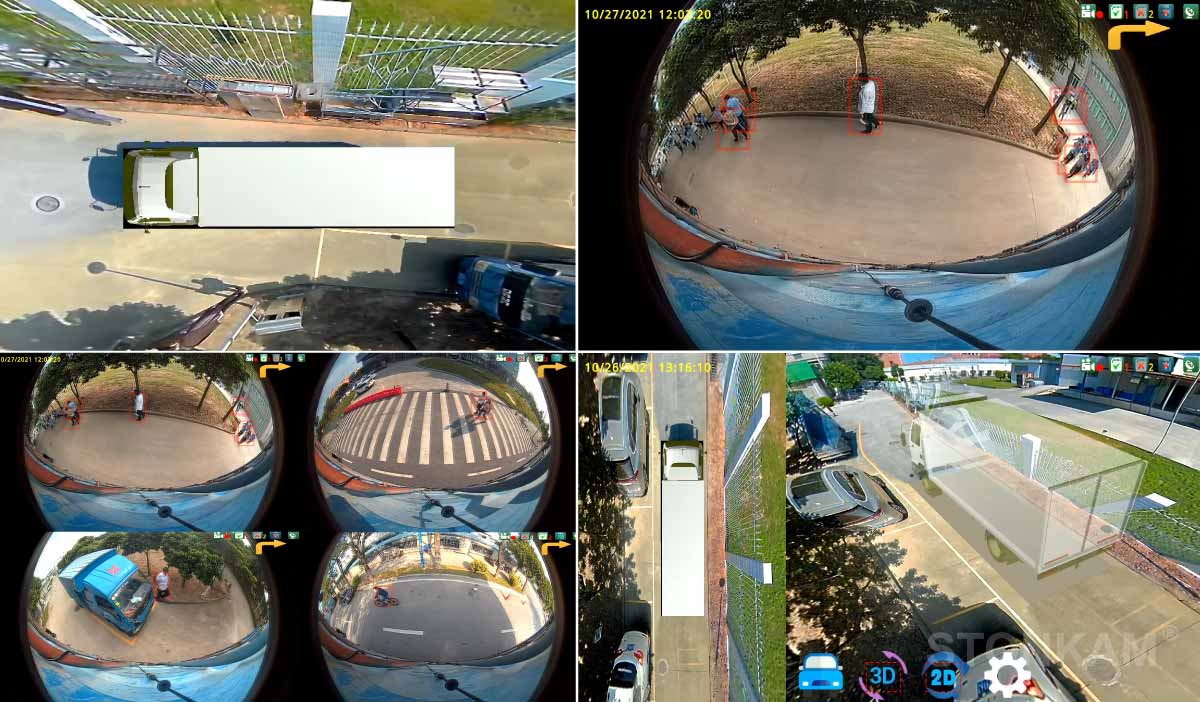

Panoramic Image Synthesis Technology

Panoramic image synthesis technology: The 4CH 1080P full HD images are seamlessly stitched after distortion correction, and then rendered into 3D scene to simulate the real driving scene.

Multiple viewing models, 3D and 2D switchable

360° panoramic image system, in which user can switch 3D/2D view freely, meets the needs of all kinds of viewing angles.

Quick and Smooth Start-up, RTSP Feed Support

From boot to image display, the single-view image pop up quickly and smoothly with low latency. It supports third-party equipment to obtain the 360° around view image through the RTSP protocol, in order to achieve the integration of the panoramic images, with latency less than 250ms.

3D effect supports super rearview mirror, fully covering lane, making safer when merging in the high speed

Most 3D around view driving assistance products would present the driving scene with a vehicle of solid image where the traffic view behind is blocked out and not clearly showed. 3D 360° Around View Driving Assistance System can use transparent vehicle model to provide a full view of the road condition, totally clearing off the blind spot behind the vehicle. Meanwhile, the bird view can show a larger field of view on both left and right of the vehicle, providing one more driveway scene than the similar products in the market, which greatly enhances the driving safety.

One-minute calibration

The 360 system comes with automatic calibration, which can be done in 1 minute through the touch screen or remote control. Only four calibration mats are needed, and they can be placed randomly to achieve accurate calibration.

Support external AI pedestrian detection camera, the highest arithmetic power 8T

External AI pedestrian detection cameras can be connected, with the highest arithmetic power of 8T, which can achieve a full range of vehicle detection, with a detection range up to 10 meters

Video Recording 2 × 512GB SD cards

Resolution	channels	Storage	Transmission rate	Recording time
1280 x 720	4	2 x 512 GB	2Mbps	266Hrs

Low Light Night Vision

360°Around View Driving Assistance System’s camera can provide low light night vision with which the driver can have a clear around view of the road even when the light is insufficient. No need for Infrared light and the night vision can cover the whole 360° around view.

Support radar access and Parking Sensor System

Able to work with radars and parking sensors, supporting the overlay of real-time video and audio, it could actively warn the driver to avoid obstacles and other potential hazards.

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

1080P high definition fish eye camera input with good real-time display, offering HD and stable images with screen layback down to 150ms

Automatic calibration can be finished in 1 minute, and it supports automatic plane correction, saving time and effort

Multiple viewing models, 3D/2D view switching freely

Video Recording: 2 x 512GB SD cards, supporting ultra-capacitor to secure the video file

Built-in AI algorithm, integrated with LDW+FCW+both sides BSD 360 degree detection, is able to detect lane departure, forward collision and overtaking/merging around the vehicle, and then to give an alarm.

3D effect supports super rearview mirror, fully covering lane, making safer when merging in the high speed

Quickly and smoothly pop up the single-view image with low latency

Support RTSP video output

Compatible with radars and parking sensors, supporting real-time video and audio overlay to actively warn the drivers to avoid obstacles and other potential dangers

Support IP camera, connect more cameras, provide more views

External AI pedestrian detection cameras can be connected, with the highest arithmetic power of 8T, which can achieve a full range of vehicle detection, with a detection range up to 10 meters

Operating temperature -20ºC ~ +70ºC

Low-lux night vision: still visible under 0.1lux with no need of Infrared light

GPS tracking optional

Suppos 6 / 12 channels radar detection (Contact for details)

Front / rear sensor detecting range: 0.60~5.00m (1.97ft --- 16.4ft), side sensor detecting range: 0.60~3.00m (1.97ft --- 9.8ft)

Real-time display of the obstacle distance
