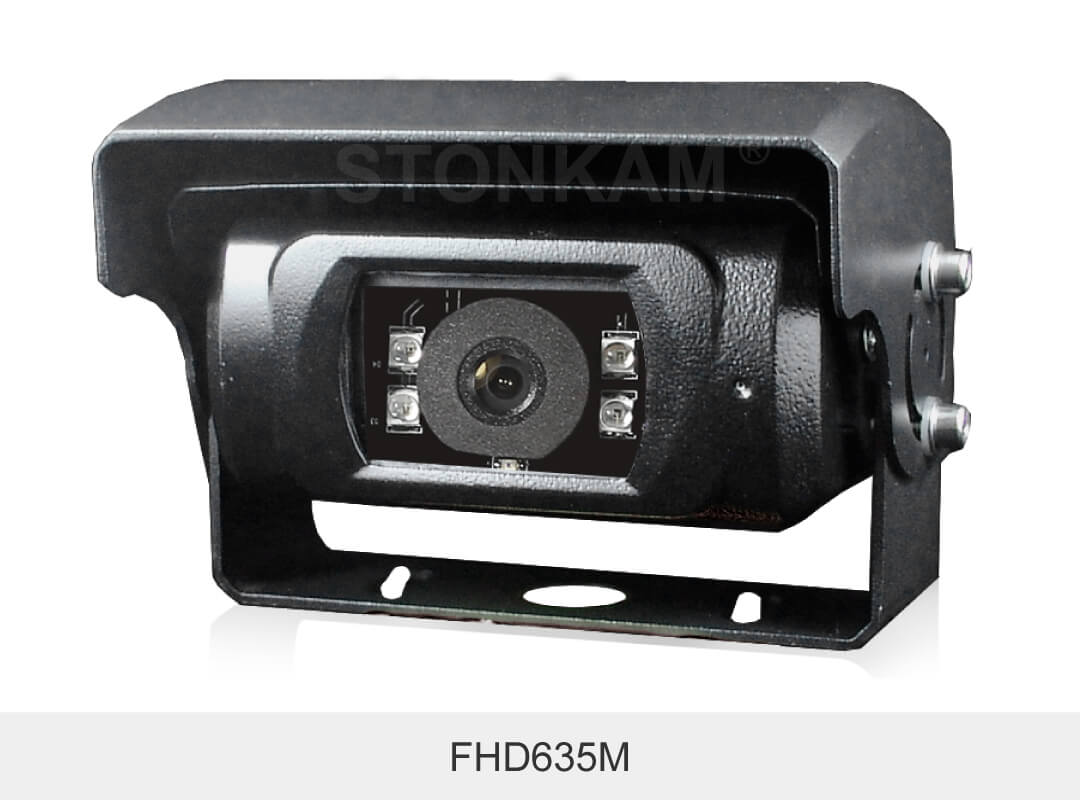

1080P Waterproof Truck Reverse Camera with Auto Shutter

1080P Waterproof Truck Reverse Camera with Auto Shutter

FHD635M

STONKAM® supplies the best 1080P truck backup cameras featuring high resolution, auto shutter ,IP69K waterproof, night vision, etc. With the great R&D support, we also offer ODM&OEM services; please kindly contact for details.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

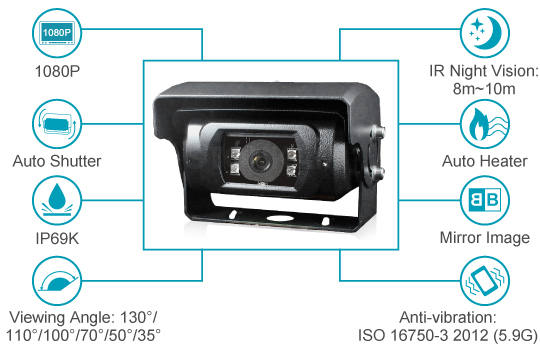

Features

1080P high definition
IP69K waterproof
With auto shutter for better protection of lens, suit to use in bad environment such as sandy or heavily snowy weather
Wide viewing angle: 130° / 110° / 100° / 70° / 50° / 35°
Night vision distance: 8m ~ 10m (26.25ft~32.81ft)
Mirror / Normal image
Wide power supply: DC 12V / DC10~32V
Anti-vibration: ISO 16750-3 2012 (5.9G)
Working temperature: -20ºC ~ +70ºC
Auto heater optional
Smart-IR optional
4pin interface

1080P Truck Reverse Camera with Auto Shutter (FHD-635M)：

Image Device	1/2.9" CMOS
Frame Rate	25 fps / 30 fps
Effective Pixels	1920(H) x 1080(V)
Pixel Size	2.8 μm × 2.8μm
Scanning System	Progressive Scanning
Sync. System	Internal
Resolution	1080P
Video Output	1.0Vp-p, 75Ohm
Gamma Consumption	0.45
AGC	Auto
Signal to Noise Ratio	Better than 52dB
White Balance	Auto
Electronic Shutter	1/25 (1/30)～1/50,000 Seconds
BLC	Auto
Operating Temp. & Humidity	-20℃～70℃, RH 95% MAX.
Storage Temp. & Humidity	-30℃～80℃, RH 95% MAX.
