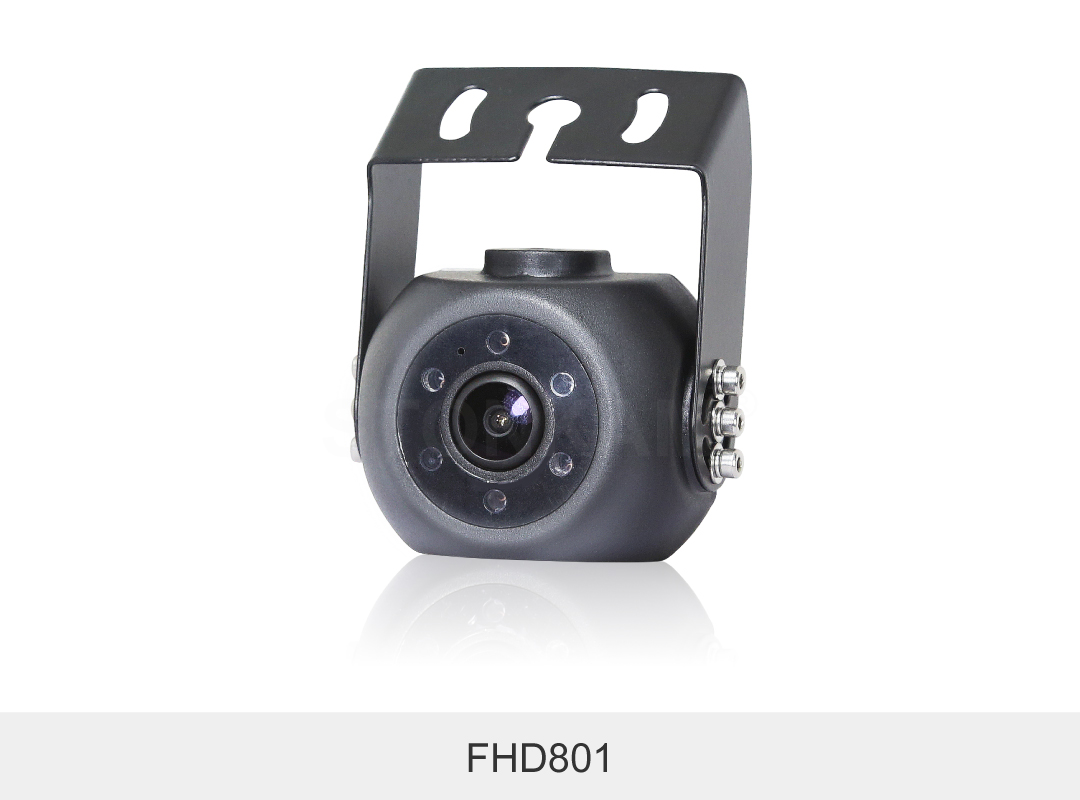

1080P WDR IP69K Waterproof Auto Front Camera

FHD801

STONKAM® supplies the best waterproof auto front cameras featuring 1080P high definition, IP69K waterproof, WDR, night vision, etc. With the great R&D support, we also offer ODM & OEM services; please kindly contact for details.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

Features

  • This WDR auto front camera features:

  • 1080P high definition

  • WDR:120dB(MAX)

  • Wide viewing angle: 170° / 130°

  • IP69K waterproof

  • Wide power supply: DC 12V

  • Working temperature: -20ºC ~ +70ºC

  • Anti-vibration: ISO16750-3 2012 (5.9G)

1080P IP69K Waterproof WDR Vehicle Camera (FHD-801):

Image Device

1/2.8" CMOS

Frame Rate

25/30

Effective Pixels

1920 (H)  x 1080 (V)

Pixel Size

2.9 μm x 2.9 μm

Scanning System

Progressive Scanning

Sync. System

Internal

Resolution

1080P

Video Output

1.0Vp-p, 75Ohm

Gamma Consumption

0.45

AGC

Auto

White Balance

Auto

Electronic Shutter

1/30(1/25)~1/50,000 Seconds

BLC

Auto

Operating Temp. & Humidity

–20℃ ~ 70℃, RH95%MAX.

Storage Temp. & Humidity

–30℃ ~ 80℃, RH95%MAX.

Power Supply

DC12V / DC10~32V

Waterproof Rating

IP69K (When Viewing Angle Is 170°:Non waterproof)

Viewing Angle

170°/130°

Audio

Yes

Minimum Illumination

0.1 Lux

Dynamic Range

120dB

Image Mode

Normal





WDR wide dynamic range technique, better vision result

WDR wide dynamic technology could read the video information of the camera imaging sensor, find the brightest and darkest part of the video, and then through secondary analysis and processing, balance the exposure of each area in the image, which can effectively reduce the excessive brightness and enhance the darker picture. Therefore, whether it is under strong light or dim environment, or in the light-dark transition when entering and exiting the tunnel, STONKAM 1080P WDR IP69K Waterproof Auto Front Camera will provide you with clear and stable image effects, and better vision result than ordinary videos effect.





Applications

STONKAM® waterproof auto front cameras can be easily applied to various vehicles.

STONKAM® Waterproof WDR Vehicle Camera-Application
