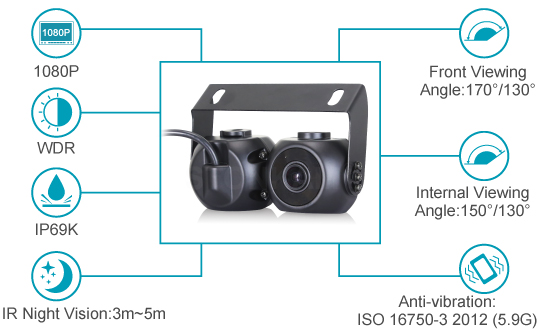

1080P WDR Waterproof Forward Facing Dual Car Camera

1080P WDR Waterproof Forward Facing Dual Car Camera

FHD803

STONKAM® supplies the best forward facing car cameras featuring 1080P/720P high definition, IP69K waterproof, WDR, night vision, etc. With the great R&D support, we also offer ODM & OEM services; please kindly contact for details.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

1080P WDR Forward Facing Car Camera:

1080P high definition
WDR:120dB(MAX)
Wide viewing angle: 170°/ 130°
IP69K waterproof
Wide power supply: DC 12V / 10 ~ 32V
Working temperature: -20ºC ~ +70ºC
Anti-vibration: ISO16750-3 2012 (5.9G)

1080P Internal View Car Camera:

1080P high definition
IP69K waterproof
Wide viewing angle: 150°/ 130°
Night vision distance: 3m ~ 5m (9.84ft ~ 16.40ft)
Anti-vibration: ISO 16750-3 2012 (5.9G)
Mirror / normal image
Wide power supply: DC 12V / 10 ~ 32V
Working temperature: -20ºC ~ +70ºC

Waterproof 1080P Forward Facing Car Camera (FHD-803)：

Image Device	1/2.8" CMOS
Frame Rate	25/30
Effective Pixels	1920 (H) x 1080 (V)
Pixel Size	2.9 μm x 2.9 μm
Scanning System	Progressive Scanning
Sync. System	Internal
Resolution	1080P
Video Output	1.0Vp-p, 75Ohm
Gamma Consumption	0.45
AGC	Auto
White Balance	Auto
Electronic Shutter	1/30（1/25）～1/50,000 Seconds
BLC	Auto
Operating Temp. & Humidity	–20℃ ~ 70℃, RH95%MAX.
Storage Temp. & Humidity	–30℃ ~ 80℃, RH95%MAX.
Power Supply	DC12V / DC10~32V
Waterproof Rating	IP69K (When Viewing Angle Is 170°：Non waterproof)
Viewing Angle	170°/130°
Audio	Yes
Minimum Illumination	0.1 Lux
Dynamic Range	120dB
Image Mode	Normal

1080P Internal View Car Camera (FHD-803):

Image Device	1/2.9" CMOS
Frame Rate	25/30
Effective Pixels	1920 (H) x 1080 (V)
Pixel Size	2.8μm x 2.8μm
Scanning System	Progressive Scanning
Sync. System	Internal
Resolution	1080P
Video Output	1.0Vp-p, 75Ohm
Gamma Consumption	0.45
AGC	Auto
Signal to Noise Ratio	Better than 52dB
White Balance	Auto
Electronic Shutter	1/30（1/25）～1/50,000 Seconds
BLC	Auto
Operating Temp. & Humidity	–20℃~ 70℃, RH95%MAX.
Storage Temp. & Humidity	–30℃~ 80℃, RH95%MAX.
Power Supply	DC12V / DC10 ~ 32V
Waterproof Rating	IP69K
Viewing Angle	150°/ 130°
Audio	Yes
Minimum Illumination	0 Lux (with IR)
Night Vision Distance	3~5m
Image Mode	Mirror/Normal

WDR wide dynamic range technique, better vision result

WDR wide dynamic technology could read the video information of the camera imaging sensor, find the brightest and darkest part of the video, and then through secondary analysis and processing, balance the exposure of each area in the image, which can effectively reduce the excessive brightness and enhance the darker picture. Therefore, whether it is under strong light or dim environment, or in the light-dark transition when entering and exiting the tunnel, STONKAM 1080P WDR Waterproof Forward Facing Dual Car Camera will provide you with clear and stable image effects, and better vision result than ordinary videos effect.

Applications

STONKAM® forward facing car cameras can be easily applied to various vehicles.
