1080P 79GHz Millimeter Wave Radar Detection System
(Model:PSA22,HD295D,FHD410)
1080P 79GHz Millimeter Wave Radar Detection System
Features

1080P 79GHz Millimeter Wave Radar Detection System from STONKAM adopts 79GHz millimeter-wave radar technology to make it all-weather. It has been widely applied to heavy-duty commercial vehicles like trucks and buses. More radar alarm systems are available here.


  • The millimeter wave radar detection system concludes a 1080P camera (FHD410) and a monitor (HD295D)
  • Support high definition 1080P input and output
  • 79GHz Millimeter-wave Radar technology
  • Radar system will enter detection mode (low speed mode or normal mode) after powered on.
  • AHD Image alarm overlapping
  • Dual LED lights warning, buzzer warning
  • Can detect static and dynamic objects, including pedestrians, bicycles, motorcycles, any transport vehicles, etc.
  • All-weather operations; work 24 hours
millimeter wave rader system
Specification

Frequency 77-81GHz
Transmitter Type
FMCW
Power Supply 12 to 32V DC
Detection Range Horizontal: 0.2~3.5m  Vertical: -7~7m
Antenna  2T4R
Detection Tolerance
0.1m
Detection Angle(Horizontal)
150°
Trigger Input ×1 Right Trigger
Alarm Output ×2 LED Alarm output x1
buzzer alarm output
Video format CVBS(PAL/NTSC)、720P(25fps/30fps), 1080P(25fps/30fps)
Operating Temperature -20 ~ +70°C
Storage Temperature -30 ~ +80°C
IP Protection IP67 (sensor),IP66(Control Box)
Vibration Rating 5.9G
Dimensions Sensor: 69.5(W) ×65(H) ×20(D) mm
Control Box: 152.6(W) ×89.2(H) ×53.8(D) mm
Weight 141.1Grams (sensor),  240Grams (control box)
Mounting Four (4.5mm) diameter mounting holes (sensor)
Four (6mm) diameter mounting holes (control box)



Why do you need to install  1080P 79GHz Millimeter Wave Radar Detection System?
Is it useful?
The answer is certainly yes!

With 1080P 79GHz Millimeter Wave Radar Detection System, the following problems can all be solved.


  • How to avoid collision and crash when turning or changing the lane?
  • How to deal with the blind spot of the rear view mirror where vehicles cannot be seen before change the lane?
  • What to do in heavy rains, fog and dark night lights when visibility is limited?
  • How to initiatively be alerted to the danger when driving? ......

millimeter wave radar



Unignorable Vehicle Blind Spots

Among all road accidents, those caused by blind spots have taken up a large proportion, which is a great threat to our lives.

millimeter wave radar

It turns out that although A, B or C area is normally not a blind area, lower part of the high vehicle could actually formulate a blind area.

millimeter wave radar system

Area A, B, C: Half blind area

Severity of danger depends on the vehicle size.

Area D: Full blind area

Beyond the sight of the driver and 3 rear view mirrors.

Area E: Full blind area

Pillar A near the windshield hinders the vision, which creates the blind spots.



Do not forget! Trucks have blind spots.

Due to their size and length, trucks have larger blind spots than the average cars. This means truck drivers may not be able to see you. So for everyone’s safety, be cautious when driving next to, or behind a truck.

To Be Truck Aware, Come to STONKAM® Radar Detection System for A Security Solution.




STONKAM® 1080P 79GHz Millimeter Wave Radar Detection System safeguard your driving




Radar detection system adopts microwave technology; it won’t be affected by weather conditions and can work 24 hours.

millimeter wave radar detection system



Double guarantee with dual LED lights + buzzer warning

This radar detection system can provide visual and audible alert to operators to avoid potential danger and allow them to take proper actions in advance.

radar detection system



Wide horizontal detection Angle range: 150°

blind spot sensor



Two switchable modes help you drive without worries

Low speed mode: vehicle speed<16km/h
Detection range: horizontal 0-2m and vertical ±6m; detect any object inside detection zone

 radar detection system


Normal mode: vehicle speed ≥ 16km/h
Detection range: horizontal 0-3.5m and vertical ±7m; only detect moving object with speed over 10km/h, not detecting static objects

radar sysytem



Can detect static and dynamic objects, including pedestrians, bicycles, motorcycles, any transport vehicles, etc

millimeter wave radar system

Applications

STONKAM’s 1080P 79GHz Millimeter Wave Radar Detection System is suitable for blind spot detection, and it’s widely applied to all types of vehicles like buses and trucks.

vehicle millimeter wave rader

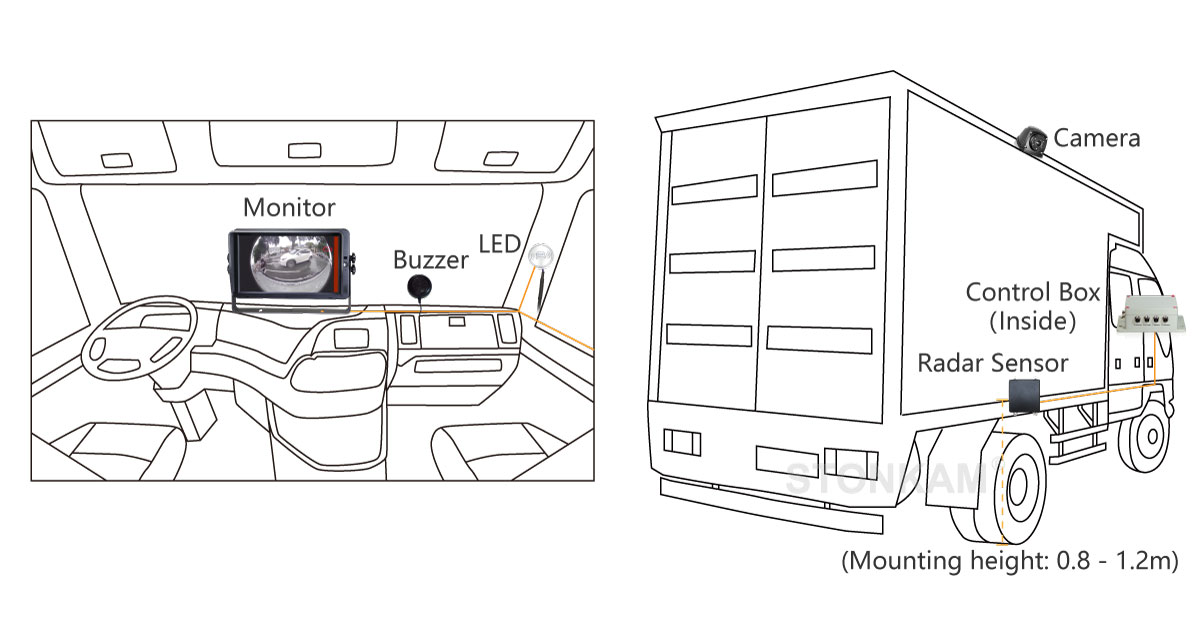

Connection
vehicle rader system
Accessories
 blind spot sensor
vehicle millimeter wave rader
 blind spot sensor
blind spot monitoring system vehicle rader system
Camera extension cable(3m)

Sensor extension cable(3M)

Monitor transition cable(3m)

Extension cable(1.5m)

USB to UART Cable

 blind spot sensor
blind spot monitoring system vehicle rader system
vehicle millimeter wave rader

Control box

Buzzer

Sensor

LED light
