Waterproof 4 Channel 1080P Vehicle DVR System with 3G/4G/WiFi
(Model:DV-426,HD-263,FHD-228,FHD-407,FHD-767,FHD-657)
Waterproof 4 Channel 1080P Vehicle DVR System with 3G/4G/WiFi
Features

STONKAM® IP69K Vehicle DVR Camera System enables real-time remote monitoring, and can work with our ADAS ,  Driver Status Monitoring System and Radar system for effective vehicle surveillance and fleet management. (Contact for details). Click to see the updated Vehicle Camera DVR System that supports one more IP camera.


  • This vehcile DVR recorder system supports 4 channel AHD 1080P input and HD 1080P VGA output
  • 4x1080P, 4x720P, 4xD1 and 4 mixed-resolution recording, with 10 seconds pre-recording function
  • Multiple trigger recording modes: power on trigger, timer trigger, motion trigger, G-sensor trigger, over-speeding trigger, 6-channel customized alarm input trigger, and panic button trigger recording
  • Support 3G/4G/ WIFI/ GPS tracking; can achieve real-time remote monitoring on iOS and Windows client
  • With WiFi station and AP mode; AP mode can support that mobile directly connects to device for easy preview and configuration at mobile terminal by WebUI
  • Automatically upload data for remotely intelligent data analysis and management, including data: alarm recording, alarm information, log information, GPS trajectory, real-time videos and images
  • Support Max.128GB SD card and 1T SSD for data storage
  • Support dual stream technology, and sub-stream network transmission
  • Support G-sensor acceleration sensor
  • Operated by high definition touch-screen and infrared remote control
  • Well protected by super-capacitor
  • IP69K Waterproof and MIL-STD 810G shockproof


  • STONKAM® IP69K 4 Channel Vehicle DVR System-Features

Specification

System

Operating system

Linux

Operating interface

Graphical menu operation interface(OSD)

Video permission

Administrator & user setting

Video

Video input

Max 4ch 1080P analog high definition

CVBS output

1CH 6pin aviation connector output PAL/NSTC

VGA output

1CH VGA connector output, 1080P

Video display

1 or 4 CH

Video standard

PAL: 25FPS, NTSC: 30FPS

Compression

H.264 main profile

Total resources

1080P  PAL: 100FPS; NTSC: 120FPS

Audio

Audio input

4 channels

Audio output

2 channels

Record format

Synchronized video & audio recording

Audio compression

ADPCM

Digital processing & storage

Video resolution

4*1080P(1920*1080)

Video bit rate

512kbps~6Mbps/channel

Storage

224~2700MB/(channel*hour)

Playback resolution

4*1080P (encoding & decoding at the same time)

Audio bit rate

32kbps

Storage

SD card * 1, max 128GB, SSD * 1, max 1T

Alarm

Alarm input

6 channels

Alarm output

2 channels

Motion detection

High / Low / Off

Interface for communication

IR

1 channel

RS232

1 channel

RS485

1 channel

RJ45

1 channel

USB2.0

1 channel for file backup and firmware upgrade

USB2.0 (SSD OUT)

1 channel for connect to computer to read data from SSD

Wireless

3G/4G

HSPDA/EVDO/FDD-LTE/TDD-LTE module optional

WIFI

optional

WIFI hotspot/AP

optional

GPS

Optional,internal GPS/GLONASS module, coordinate/speed  can be encoded in video stream and upload to server by wireless communication

G-Sensor/Gyroscope

G-Sensor

Software

Windows client

Available

iOS client

Available

Web portal

Available

Power

Input

10~32V

Output

12V@3.5A

Max Power Consumption

60W

Standby Power Consumption

100mW

Electrical spec

Operating temp

-2070 degree

Clock

Built-in clock, Calendar

Super Capacitor

Available

Video input impedance

75ohm

Video output voltage

1Vpp CVBS output




Are You Always Wondering...



How to get a perfect fleet management solution?

How to quickly know whether the driver drives illegally?

How to quickly provide evidence for traffic accident, theft, racketeering, etc.?

......



STONKAM® Vehicle Camera Recording System-The Necessity



STONKAM® 1080P Vehicle DVR System can solve your worries!
Waterproof 4CH 1080P Vehicle Camera Recording System



Professional 4 channel vehicle DVR system for effective fleet management

It’s designed for various vehicles management, and widely used in buses, coaches, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.

STONKAM® 1080P Vehicle DVR System for Fleet Management



Achieve remote monitoring by vehicle DVR GPS tracking/ 3G/ 4G/ WiFi, convenient vehicle management on PC/ Mobile phone

Users can remotely manage and dispatch all vehicles through their mobile phones or computers via Windows Client, iOS APP. The vehicle DVR system supports real-time positioning, historical trajectory, file download and playback, electronic fence and other special features.

STONKAM® 4 Channel Vehicle DVR System-Support GPS tracking/ 3G/ 4G/ WiFi




Detailed Features of STONKAM® Vehicle DVR Recorder System


IP69K Waterproof and MIL-STD 810G shockproof MDVR to protect your data well

STONKAM® Shockproof and IP69K Waterproof Vehicle DVR Recorder System




GPS Vehicle Historical Track Playback

Through the PC CMS Client or Mobile APP, the current location and historical driving trajectory of vehicles can be clearly queried on OS map/ Google map/ Baidu map.

STONKAM® 1080P Vehicle Camera Recording System-GPS Vehicle Historical Track Playback



Keep recording all the time while event occurring on road, and support remote High Definition screenshot

This vehicle DVR camera system can set video recording quality—1080P/720P/D1, and high definition pictures can be captured through PC CMS Client and mobile APP.

STONKAM® Vehicle DVR Camera System-Selectable Video Recording Quality 1080P/720P/D1

STONKAM® HD 1080P Vehicle DVR System-High Definition Screenshot


Set all MDVR features by touch screen monitor

Waterproof 4CH 1080P MDVR System-touch screen monitor

Powerful Recording

This vehicle DVR system features diverse recording modes, stable video storage device, integration of vehicle information, and the double protection of recording data.

1080P DVR System-recording


Recording Quality

Storage Capacity Bit Rate
Recording Time
1080P(4CH)
1T 4Mbps 150Hrs
720P(4CH)
1T
2Mbps
300Hrs
D1(4CH)
1T 1Mbps
600Hrs




Watch real-time video on PC

User can watch the real time video by choosing the specific vehicle license number on the left side of the CMS Client. Each vehicle has a unique identification number in the CMS which can be set by the user.

STONKAM® 4 Channel Vehicle DVR System-Watch Real-time Video on the CMS Client




Alarm info pop up on PC / mobile APP

Easy to analyze the abnormal situation of vehicles and to track the relevant information.

STONKAM® 1080P Vehicle DVR Recorder Sysstem-Alarm Info Pop Up on PC / Mobile APP




Remotely download video

Video files can be remotely downloaded by logging in PC CMS Client or mobile APP.

STONKAM® 4 Channel Vehicle DVR Camera System-Remote Video Downloading




Dual-stream storage design for more secure data protection

The 4 channel vehicle DVR adopts dual stream storage to prevent any loss of data.

Waterproof 4CH 1080P Vehicle DVR System-Use Dual-stream Technology



Support 10s pre-recording and mandatory event videos saving

9-axis G-sensor, more sensitive to vehicle reaction

STONKAM® 4CH Vehicle Camera Recording System-Use 9-axis G-sensor



MDVR Integrated with ADAS/DFMS/Radar Solution

Once alarm is triggered by ADAS/DFMS/Radar, ADAS/DFMS/Radar will upload the info to MDVR through CAN or Serial port. Then in MDVR, alarm recording will be triggered as event and the video will be uploaded to MDVR server automatically.

Waterproof 4CH 1080P MDVR System-solution


Product Video

Applications

STONKAM® 1080P vehicle camera recording system can be applied to various kinds of vehicles.

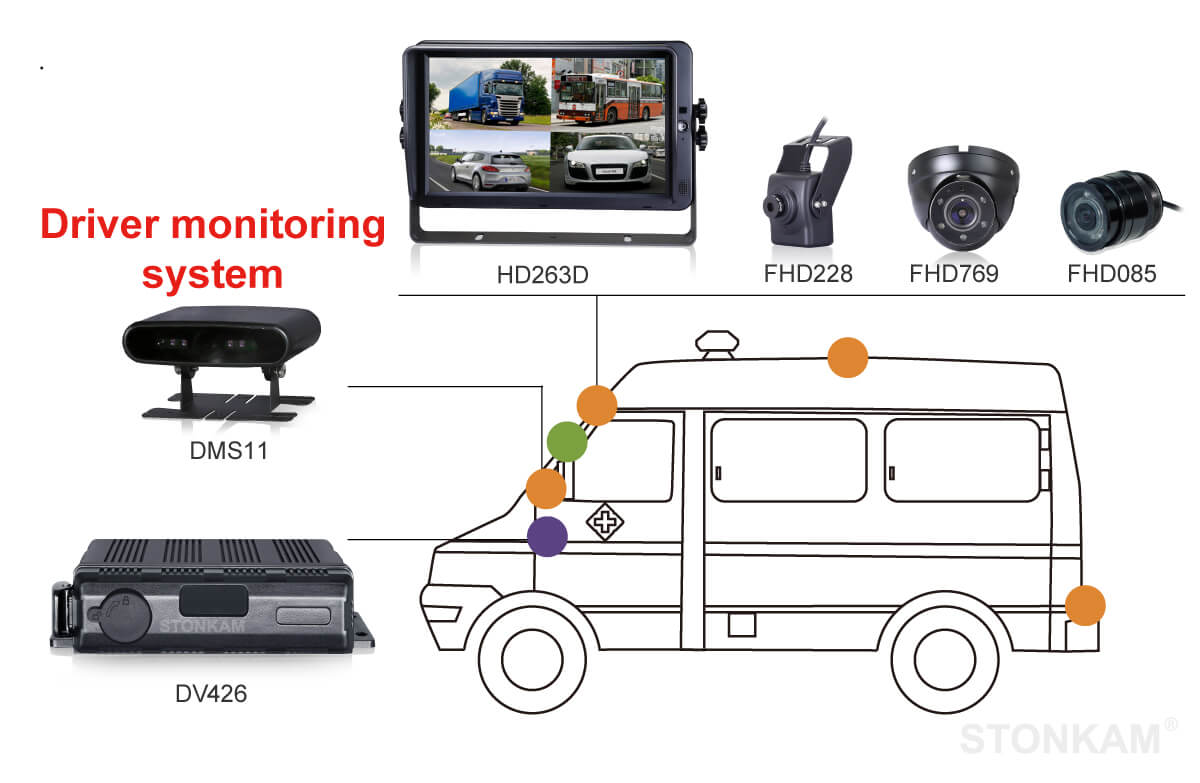

E.g. for Van

Waterproof 4CH 1080P MDVR System for Van

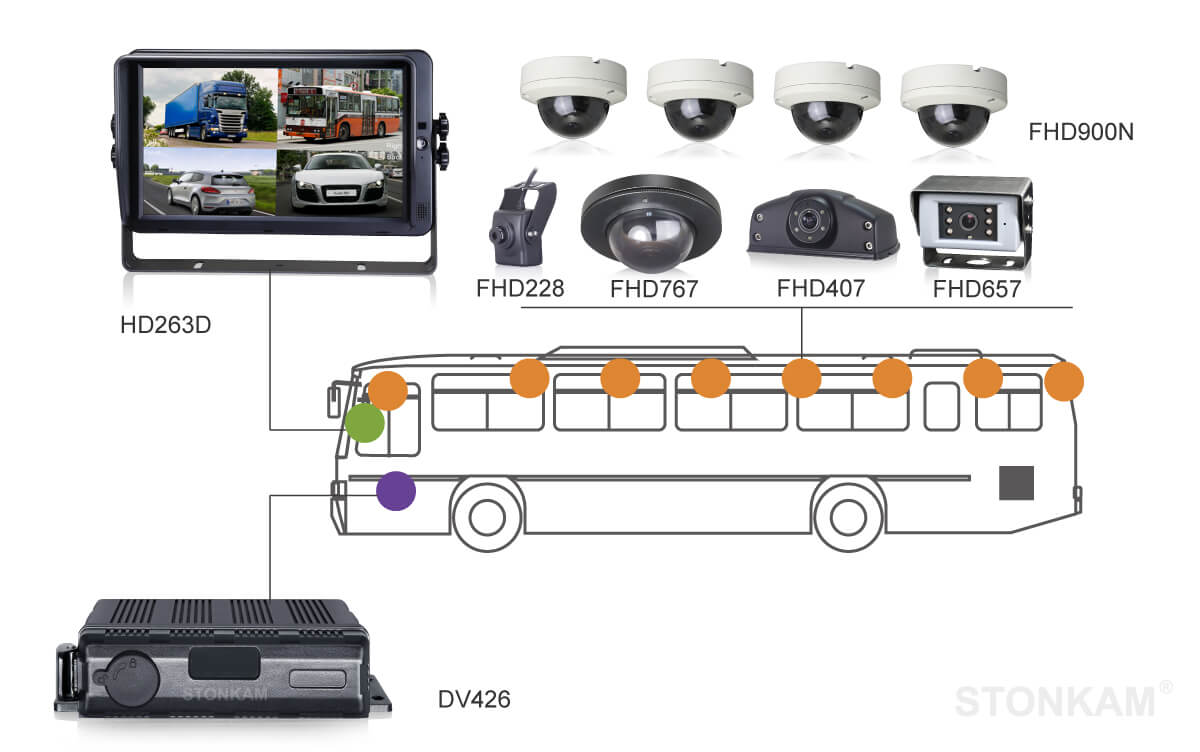

E.g. for Bus

STONKAM® Waterproof 1080P Vehicle Camera Recording System for bus

Accessories


Waterproof 4CH 1080P Mobile DVR:






8P to 4P conversion cable
Power Cable
Alarm Cable
CAN BUS Cable
4G/WIFI/GPS Antenna





Panic Button Cable
DVR Key
Remote Control
Panic Button



High Definition Quad-view Monitor:






Sun Shield

U- Support Bracket Angle Adjustment Screws

Center Mount Bracket

Extention Cable





Power Cable
IR Remote Control
