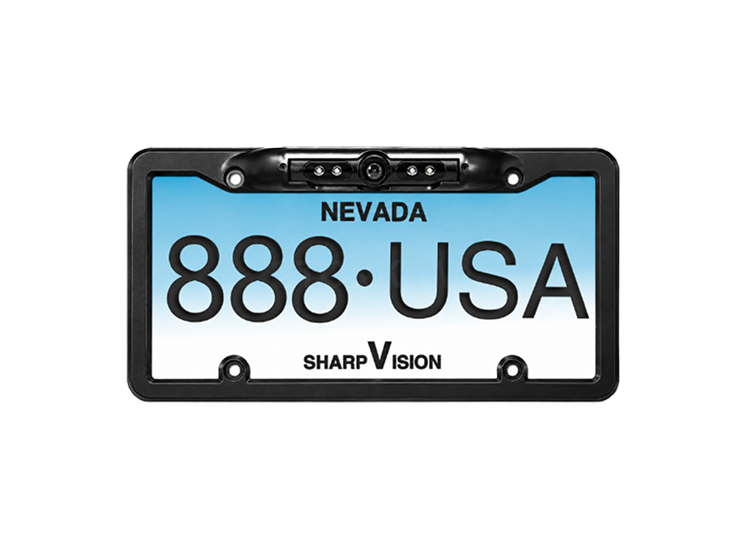

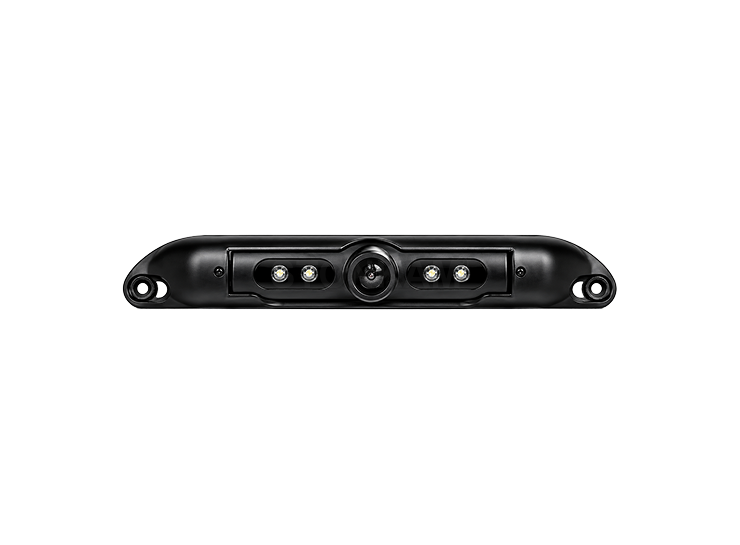

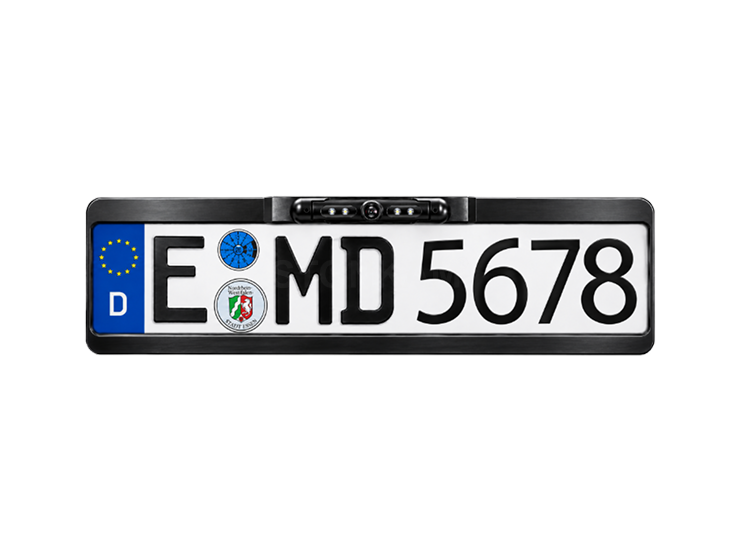

1080P IP69K Waterproof License Plate Rear View Camera

1080P IP69K Waterproof License Plate Rear View Camera

FHD642M

STONKAM® supplies the best license plate rear view cameras featuring 1080P, IP69K waterproof, night vision, etc. With the great R&D support, we also offer ODM & OEM services; please kindly contact for details.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

1080P high definition
IP69K waterproof
Metal housing
Wide viewing angle: 150°
Night vision distance: 5m (16.40ft)
Super low illumination
With infrared lights
With audio
Anti-vibration: ISO 16750-3 2012 (5.9G)
Distance label selectable to be open or closed
Black and silver housing available

Image Device	1/2.9" COLOR CMOS
Frame Rate	25fps / 30fps
Effective Pixels	1920 × 1080 pixels
Pixel Size	2.8um × 2.8um
Scanning System	Progressive Scanning
Sync. System	Internal
Resolution	1080P
Minimum Illumination	0.1 Lux (day), 0 Lux (with IR)
Audio	Yes
Video Output	1.0 Vp-p, 75 Ohm
Gamma Consumption	0.45
AGC	Auto
Signal to Noise Ratio	Better than 52 dB
White Balance	Auto
Electronic Shutter	1/30(1/25)～1/50,000 Seconds
BLC	Auto
Current Consumption	Max. 130mA
Power Supply	DC12V / DC10～32V
Operating Temp. & Humidity	-20 - +70℃ RH95%MAX
Storage Temp. & Humidity	-30 - +80℃ RH95%MAX
Lens	f=1.98mm,F=2.0
Viewing Angle	150°

Applications

STONKAM® license plate rear view cameras can be easily applied to various vehicles.

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

1080P high definition

IP69K waterproof

Metal housing

Wide viewing angle: 150°

Night vision distance: 5m (16.40ft)

Super low illumination

With infrared lights

With audio

Anti-vibration: ISO 16750-3 2012 (5.9G)

Distance label selectable to be open or closed

Black and silver housing available

Image Device

1/2.9" COLOR CMOS

Frame Rate

25fps / 30fps

Effective Pixels

1920 × 1080 pixels

Pixel Size

2.8um × 2.8um

Scanning System

Progressive Scanning

Sync. System

Internal

Resolution

1080P

Minimum Illumination

0.1 Lux (day), 0 Lux (with IR)

Audio

Yes

Video Output

1.0 Vp-p, 75 Ohm

Gamma Consumption

0.45

AGC

Auto

Signal to Noise Ratio

Better than 52 dB

White Balance

Auto

Electronic Shutter

1/30(1/25)～1/50,000 Seconds

BLC

Auto

Current Consumption

Max. 130mA

Power Supply

DC12V / DC10～32V

Operating Temp. & Humidity

-20 - +70℃ RH95%MAX

Storage Temp. & Humidity

-30 - +80℃ RH95%MAX

Lens

f=1.98mm,F=2.0

Viewing Angle

150°

Applications

STONKAM® license plate rear view cameras can be easily applied to various vehicles.

E.g. for trucks
