HD Intelligent Pedestrian Detection System

ADA32N, ADA32, HD264D

STONKAM® 1080P HD Intelligent Pedestrian & Vehicle Detection Camera adopts deep learning technology to detect pedestrians and vehicles in front of the vehicle , on the side and behind the vehicle in real time, so as to warn drivers of potential risks of collision, and improve the driving safety! The intelligent pedestrian & vehicle detection camera can be installed on the side, front and back of the vehicle, to intelligently detect pedestrians and vehicles within 30M in real time. In addition, this system can be used in various vehicles, such as buses, coaches, trucks, and construction machinery, etc.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

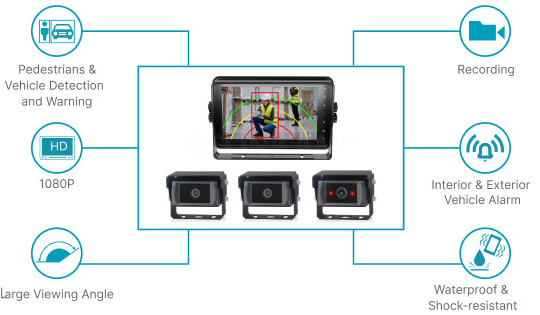

Features

【Pedestrians & Vehicle Detection and Warning】It can identify pedestrians and vehicles such as cyclists, electric bikers, and pedestrians on foot. Pedestrian and vehicle detection and warning function.
【5MP High-Definition Safety Warning】The pixel resolution of the camera can reach up to 5 megapixels,empowering it with higher accuracy in capturing details. Coupled with the display's pedestrian and vehicle tracking overlay and alert boxes, it significantly enhances driving safety and assistance capabilities.

【Audio Alarm】Supporting audio alarm output, sending real-time alarming to drivers.
【Strong Compatibility】Support AHD/CVBS/100M ethernet output and RTSP, ISO17215 and other network protocols, compatible with central control screens, fit for various vehicle driving and operating scenarios.
【Large Viewing Angle】Side view camera lens: 6mm, 70° horizontally; rear view camera lens: 2.3mm, 150° horizontally. The wide viewing angle can cover and monitor much wider blind spots.
【Waterproof & Shock-resistant】IP69K waterproof, dustproof,shock resistant and durable in use, offering high quality images
【Other Functions】The USB2.0 interface can connect to an external wireless WIFI module and USB flash disk; easy calibration done by phones through a web link; should there be the need to upgrade the system, all we need is a USB, very easy to operate.

Anti-vibration

ISO 16750-3 2012 (5.9G)

Detection Distance

Front / side view: 0.5~30m (Horizontal)

Rear view: 0.5~20m (Horizontal)

DC10V~32V

Consumption (12V IN)

150mA(IR light off)

700mA(IR light on)

Frame Rate

25/30

Output signal

AHD(1.0Vp-p, 75Ohm)

Resolution

2688 (H) x 1944 (V) (ADA32N)

1920(H) x 1080(V)(ADA32)

Viewing Angle

Front/side view: 52° (Horizontal)

Rear view: 130° (Horizontal)

Audio Output

Warning sound signal output

Communication Interface

USB 2.0 (for software upgrade)

Cable Length

3M

Operating Temperature

-20 ~ +70℃

Storage Temperature

-30 ~ +80℃

Waterproof Rating

IP69K

Dimension

95 x 60 x70mm

Weight

500g

Housing Color

Black

Output mode

CVBS/Fast ethernet (ADA32N) AHD/CVBS/Fast ethernet (ADA32)

Network protocol

RTSP/ISO17215



Side View:



Rear view:



Why do we need Stonkam AI blind spot (pedestrian & vehicle) detection and alarming system for the various heavy-duty construction vehicles and forklifts?



Large vehicles are facing dangers caused by blind spots

Commercial vehicles like trucks, buses, etc. have large black zone, for which traffic accidents might happen if vehicles come across motorcycles at high speed or sudden pedestrians when changing lane or making a turn.

Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for





Because forklifts and construction machines have huge blind spots,  the operation is always at high risk.
For one reason, the car bodies of forklifts and construction vehicles are quite peculiar, plus, they are operated in a complicated environment, and then there is the blind spot factor. The on-sight workers could  easily be hit by the machines and casue serious injuries and casualties.

Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for



Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for







STONKAM 1080P HD AI Pedestrian & Vehicle Detection Camera Based on Deep Learning Complete Safeguard Your Driving





Pedestrian & vehicle detection, intelligent driving assistance

STONKAM 1080P Intelligent Pedestrian & Vehicle Detecting and Warning Camera for Vehicle Use adopts deep learning technology, contributing to accurate pedestrian & vehicle detection. It can detect people around such as cyclists, motocyclists, and pedestrians to assist large vehicle drivers in safe driving, avoiding potential injuries to the vulnerables.

Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for



Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for



Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for





5MP High-Definition Precision Detection

STONKAM High-Definition Intelligent Pedestrian Detection System & Blind Spot Monitoring System support 5 megapixels high definition, capturing finer image details with higher detection accuracy and reliability. The image processing capability and machine learning performance are superior, greatly improving driving assistance capabilities for vehicle safety.

Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for

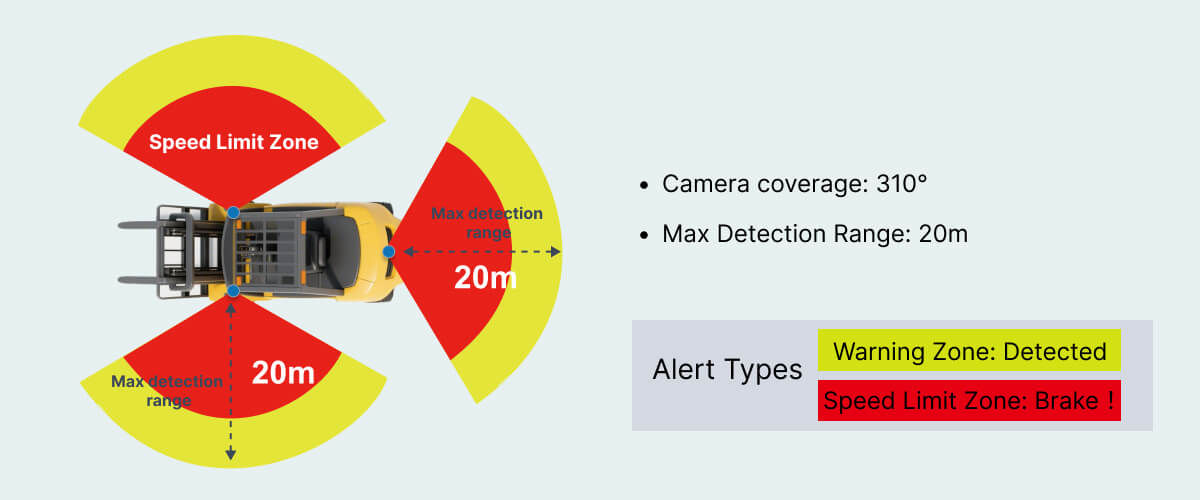

Large Viewing Angle and wider driving field of view

150 ° rear viewing angle for blind spot monitoring, side &front camera detection distance up to 30 meters. STONKAM 1080P Intelligent Pedestrian & Vehicle Detecting and Warning Camera for Vehicle Use can be installed horizontally and vertically to detect pedestrians in all directions. It provides automatic alarming information to drivers (1080P video output, pedestrian alarming frame), reducing the risks of traffic accidents. Color night vision,functioning well under any light condition.

Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for



Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for





Supporting audio alarm output and real-time warning

Detecting pedestrians and vehicles and sending  audio alarming to drivers at real time. On some vehicles, external alarm can be connected to the pedestrian & vehicle detection camera to realize the warning outside the vehicle, reminding pedestrians to avoid risk.

Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for

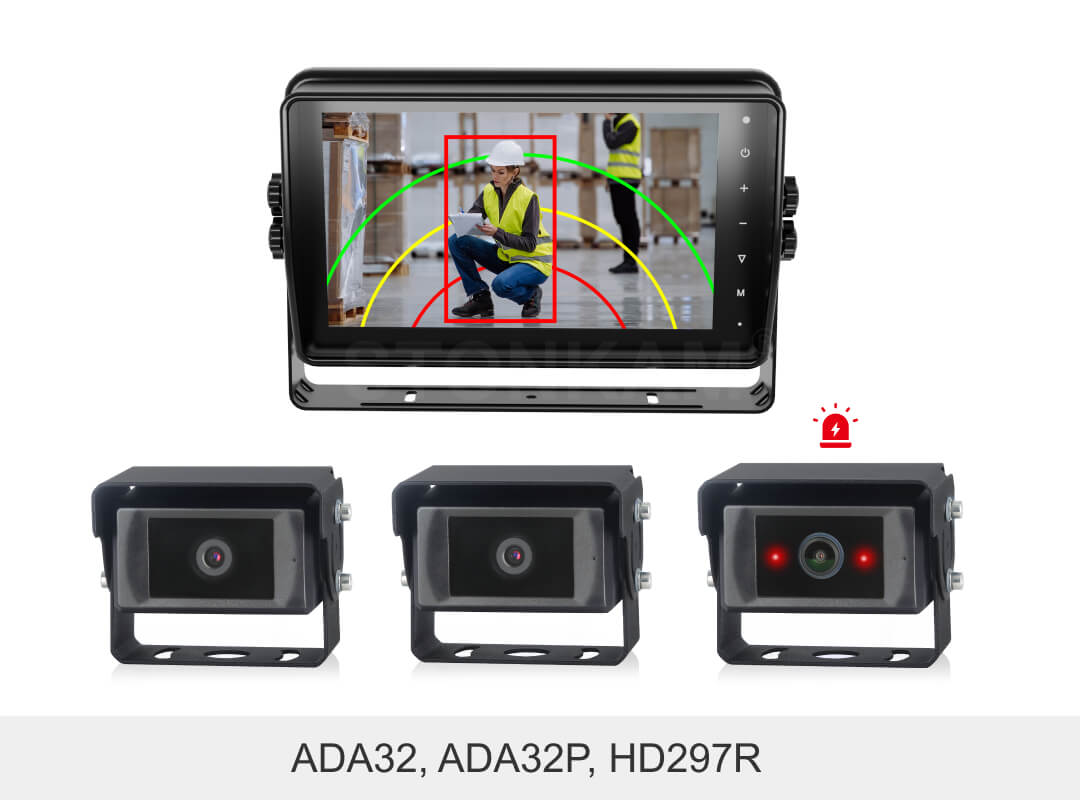

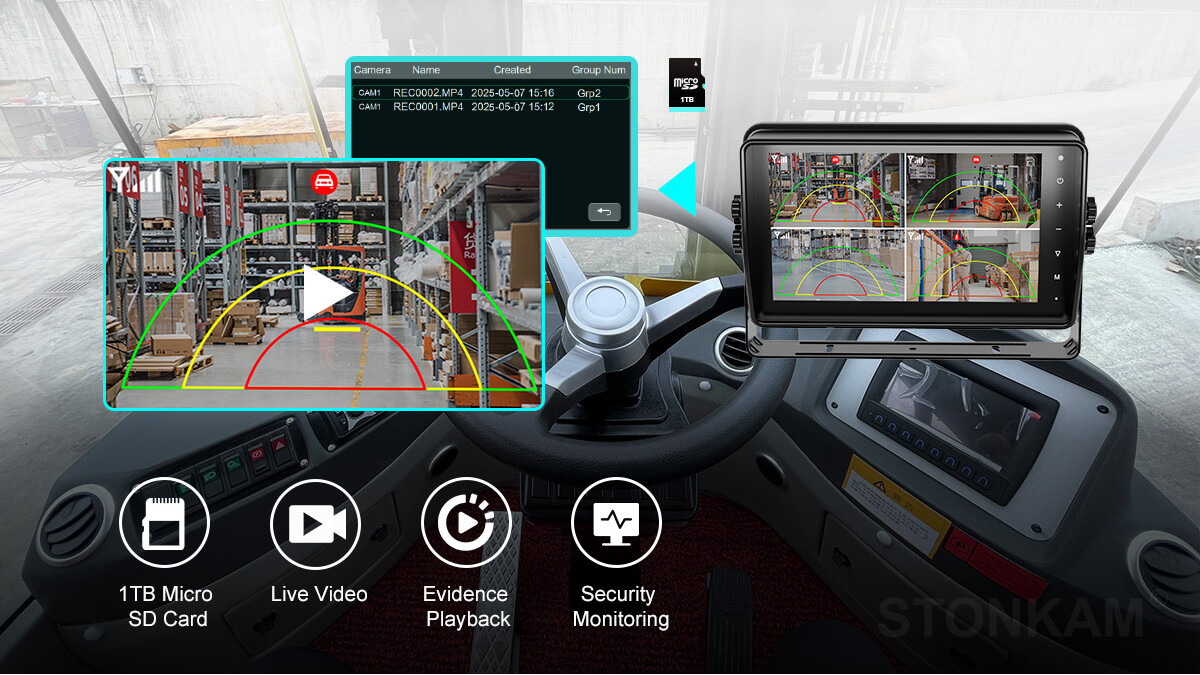

Compatible with central control screen, fit for multiple vehicle types

Support AHD/CVBS/100M ethernet output and RTSP, ISO17215 and other network protocols, enabling  more convenient operation and management especially in engineering machinery. This device finds its application in various driving and operating scenarios, such as mine cars, forklifts, buses, trucks, etc., preventing pedestrian collisions.

Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for





IP69K, dustproof, shockproof, weatherproof and durable in use

Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for

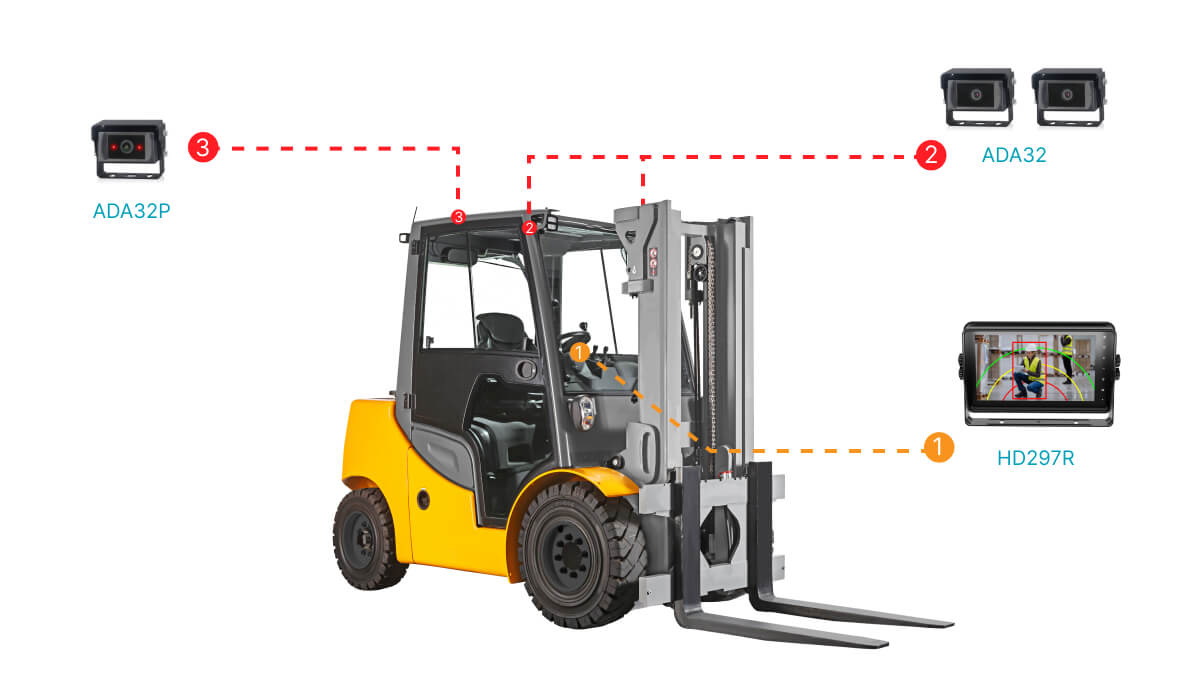

Easy installation

1080P AI blind spot detection & warning system adopts AI deep learning technology and can detect pedestrians, bicycles, equipment and vehicles within the detection area, for example,  side front, car side and the rear side and give audio alerts to drivers at the same time. This blind spot detection solution  is appliable for various vehicle types, such as trucks, buses, construction mechines, forklifts, etc.

Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for





Application

STONKAM1080P AI blind spot detection & warning system adopts AI deep learning technology and can detect pedestrians, bicycles, equipment and vehicles within the detection area, for example,  side front, car side and the rear side and give audio alerts to drivers at the same time. This blind spot detection solution  is appliable for various vehicle types, such as trucks, buses, construction mechines, forklifts, etc.

Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for

Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for





Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for
