1080P Intelligent Real-time Pedestrian & Vehicle Detecting and Warning Camera

ADA37,HD264D

Adapting deep learning technology, STONKAM 1080P Intelligent Pedestrian & Vehicle Detecting and Warning Camera can detect pedestrians and vehicles within 8m/10m in front of vehicles. Working with STONKAM HD monitor, it can also provide real-time visual and audio alarm to remind drivers of potential risks and hitting pedestrians. Moreover, the camera has wide horizontal viewing angle of 150°/170°, so when it is installed on the side ahead, it can help drivers have a better view, avoiding accidents caused by blind spots. Thus, this camera is an essential driving assistant device for large-size vehicles like trucks, buses, construction machines, etc.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

Features

  • Support AHD/CVBS/fast ethernet output and RTSP, ISO17215 and other network protocols. Strong compatibility and wide application range

  • It can identify pedestrians and vehicles such as cyclists, electric bikers, and pedestrians on foot. Pedestrian and vehicle detection and warning function.

  • Detection range: 8m/10m

  • Camera should be installed downward with suggested mounting height of 2.5m-3.5m for the best detection result.

  • 170°/200° horizontal viewing angle

  • High definition 1080P video output, with alarming frame, giving timely warnings to drivers.

  • Supporting audio alarm output, sending real-time alarming to drivers.

  • USB2.0 port connects with external WIFI module to do configuration by web UI on mobile phone or connects with USB flash drive to do automatic upgrading

  • Waterproof and dustproof rating: IP69K, anti-vibration rating: ISO 16750-3 2012 (5.9G)

Power Supply

DC10V~32V

Power Consumption

Max 2W

Video Output

1CH, AHD, 1920x1080/25f or 1920x1080/30f

Audio Output

Warning sound signal output

Connector

8Pin mouse male connector, 4Pin aviation female connector (power, video, audio) on transition cable, USB2.0 female connector, I/O wire for alarm output

Lens Length

f=1.45mm/f=1.99mm

Operating Temperature

-20 ~ +70℃

Storage Temperature

-40 ~ +85℃

Dimention

103.5 x 53 x66.5(mm)

Weight

500g

Housing Color

Black

Output mode

AHD/CVBS/Fast ethernet

Network protocol

RTSP/ISO17215







 Why do we need to install 1080P Intelligent Real-time Pedestrian & Vehicle Detecting and Warning Camera?




Are you still bothered by these issues?
How can large vehicle drivers avoid blind spots when making a turn or change lane?
How can drivers aware of sudden pedestrians or vehicles?
How can drivers receive automatic warnings of risks during driving?

STONKAM 1080P Intelligent Pedestrian and Vehicle Detection Camera is developed to solve blind spots problem for large vehicle drivers. Commercial vehicles like trucks, buses, etc. have large black zone, for which traffic accidents might happen if vehicles come across motorcycles at high speed or sudden pedestrians when changing lane or making a turn. However, STONKAM’s new product——Intelligent Pedestrian Detection Camera can solve this problem to a large extent. The camera installed on vehicles can detect all kinds of pedestrians and vehicles rapidly, enlarging drivers’ field of view and it can send alarming to drivers automatically at real time. In addition, the camera has high detection accuracy, so drivers can have more reaction time, which reduces the risks of traffic accidents.

Vehicle AI Camera,Pedestrian Detection and Alarm System,Pedestrian Recognition System for Vehicles





AI algorithm
STONKAM HD Intelligent Pedestrian & Vehicle Detection System adopts deep learning technology, contributing to the realization of intelligent and accurate pedestrian & vehicle detection to assist drivers in driving safety.

Vehicle AI Camera,Pedestrian Detection and Alarm System,Pedestrian Recognition System for Vehicles

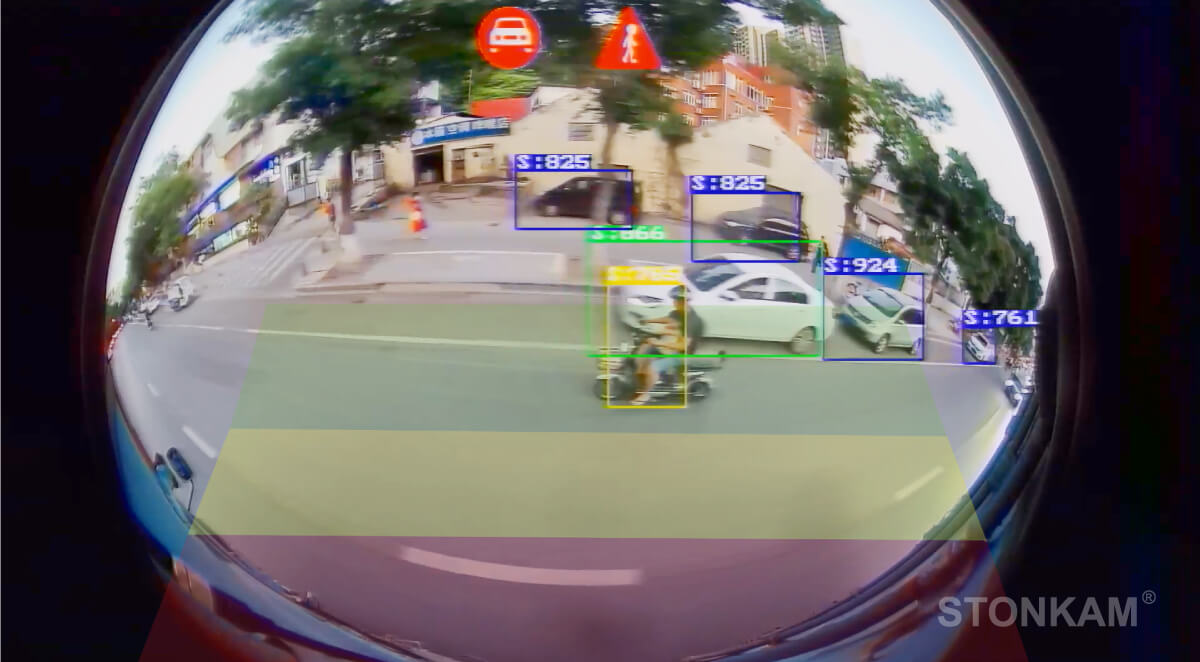

Looking downward, detecting and warning, all-round monitoring
STONKAM 1080P Intelligent Real-time Pedestrian & Vehicle Detecting and Warning Camera is installed downward, and the suggested installation height is 2.5m-3.5m for the best detection result. The camera has 170°/200° horizontal viewing angle, can detect bicyclists, motorcyclists, pedestrians, vehicles within 8m/10m in vehicles’ black zones and can provide automatic alarming information to drivers (1080P video output, pedestrian alarming frame), reducing the risks of traffic accidents.Color night vision,functioning well under any light condition.

Vehicle AI Camera,Pedestrian Detection and Alarm System,Pedestrian Recognition System for Vehicles



Vehicle AI Camera,Pedestrian Detection and Alarm System,Pedestrian Recognition System for Vehicles



Vehicle AI Camera,Pedestrian Detection and Alarm System,Pedestrian Recognition System for Vehicles



Vehicle AI Camera,Pedestrian Detection and Alarm System,Pedestrian Recognition System for Vehicles



Vehicle AI Camera,Pedestrian Detection and Alarm System,Pedestrian Recognition System for Vehicles





Compatible with central control screen, fit for multiple vehicle types

Support AHD/CVBS/100M ethernet output and RTSP, ISO17215 and other network protocols, enabling  more convenient operation and management especially in engineering machinery. This device finds its application in various driving and operating scenarios, such as mine cars, forklifts, buses, trucks, etc., preventing pedestrian collisions.

Blind Spot Forewarning, Construction Vehicle  Blind Spot Forewarning, Blind Spot Warning System for





IP69K, dustproof, shockproof, weatherproof and durable in use

Vehicle AI Camera,Pedestrian Detection and Alarm System,Pedestrian Recognition System for Vehicles





Applications

STONKAM® 1080P Intelligent Real-time Pedestrian & Vehicle Detecting and Warning Camera is applicable to various vehicles, such as buses, coaches, trucks, and other large-size vehicles.

Vehicle AI Camera,Pedestrian Detection and Alarm System,Pedestrian Recognition System for Vehicles

Vehicle AI Camera,Pedestrian Detection and Alarm System,Pedestrian Recognition System for VehiclesVehicle AI Camera,Pedestrian Detection and Alarm System,Pedestrian Recognition System for VehiclesVehicle AI Camera,Pedestrian Detection and Alarm System,Pedestrian Recognition System for Vehicles
