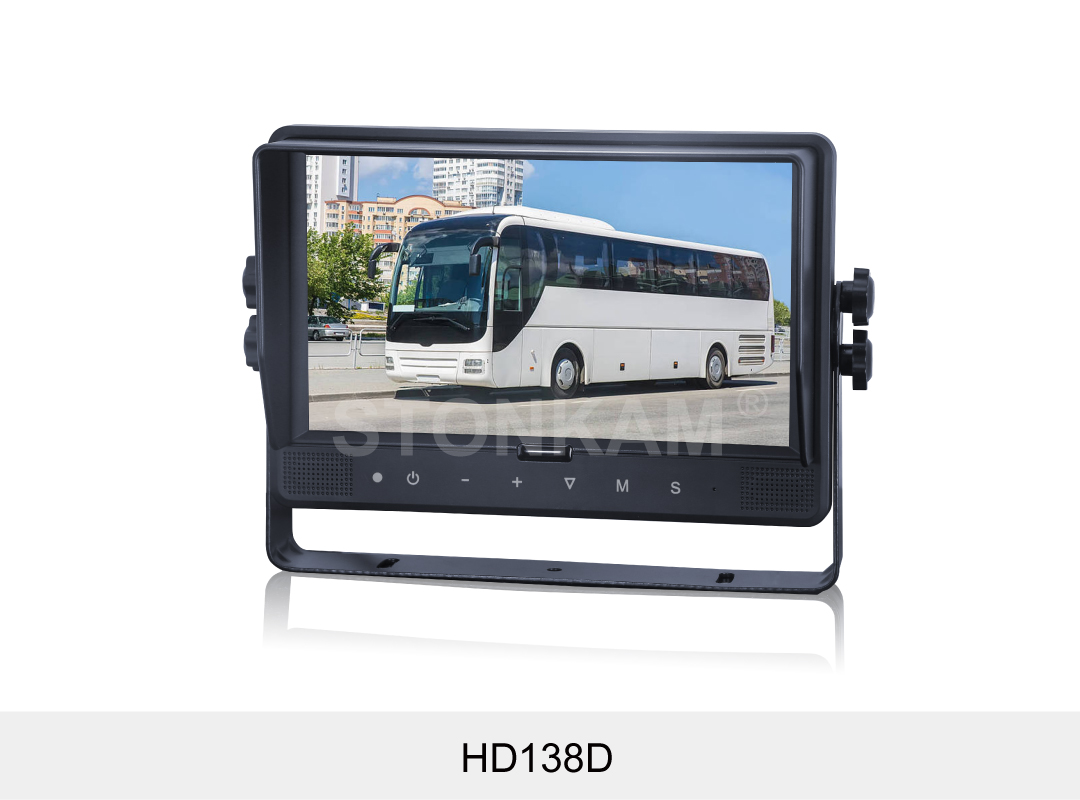

9 inch High Definition Digital LCD Color Monitor
(Model:HD-138D)
9 inch High Definition Digital LCD Color Monitor
Features

STONKAM® 9 inch High Definition Digital LCD Color Monitor supports 4-channel high-definition camera inputs, allowing the driver to monitor the driving conditions around the vehicle while driving, reducing the possibility of accidental traffic accidents such as scratches. This monitor adopts a large-view and high-resolution TFT digital LCD with a clear picture, multiple languages and automatic brightness adjustment, bringing a clear and visualized vehicle monitoring experience to customers worldwide!


  • 9 inch High Definition Digital LCD Color Monitor
  • Large viewing angle and HD TFT digital LCD display
  • Image can be adjusted for Horizontal, Vertical, Mirror and Normal viewing.
  • 8 languages supported: English, German, French, Spanish, Portuguese, Italian, Dutch, Russian
  • Multiple video formats available: 1080P30/1080P25/720P30/720P25/PAL/NTSC.
  • Support automatic brightness adjustment
  • Remote control supported
  • Touch buttons with dim light supported
  • On-board speakers supported: volume adjustable from the control panel
  • Support up to 4 camera inputs with 4 triggers
  • Support 10-32V wide power input
Vehicle Monitor
Specification

Audio output
1W
Loudspeaker
One
Power supply
DC 10V-32V
Power consumption
approx. 8 W
Outer dimension
234mm (W) × 158mm (H) × 39.75mm (T)
Active area
196.608 (W) × 114.5(H) mm
Dot pitch
0.192(W) × 0.19025(H) mm
Resolution
1024 × 3(RGB) × 600
Contrast
800:1
Brightness
650cd/m2
Viewing angle
U: 85° / D: 85°, R/L: 85° / 85°
Operating temperature
-20~+70ºC, RH90%
Storage temperature
-30~+80ºC, RH90%


STONKAM® 9 inch High Definition Digital LCD Color Monitor brings you the perfect driving monitoring experience!



Real-time checking for the driving conditions around the vehicle is helpful for safe driving!
STONKAM® 9 inch High Definition Digital LCD Color Monitor supports 4 channels of high-definition camera inputs, which assists the driver to check the blind spots and locations that need to be monitored during the driving through the monitor, and to know the surroundings of the vehicle in real time, reducing the possibility of traffic accidents!

HD vehicle monitor



The monitor adopts a large viewing angle and high resolution TFT digital LCD, with viewing angle of U: 85° / D: 85°, R/L: 85° / 85° and with a large viewing angle and clear monitoring pictures!

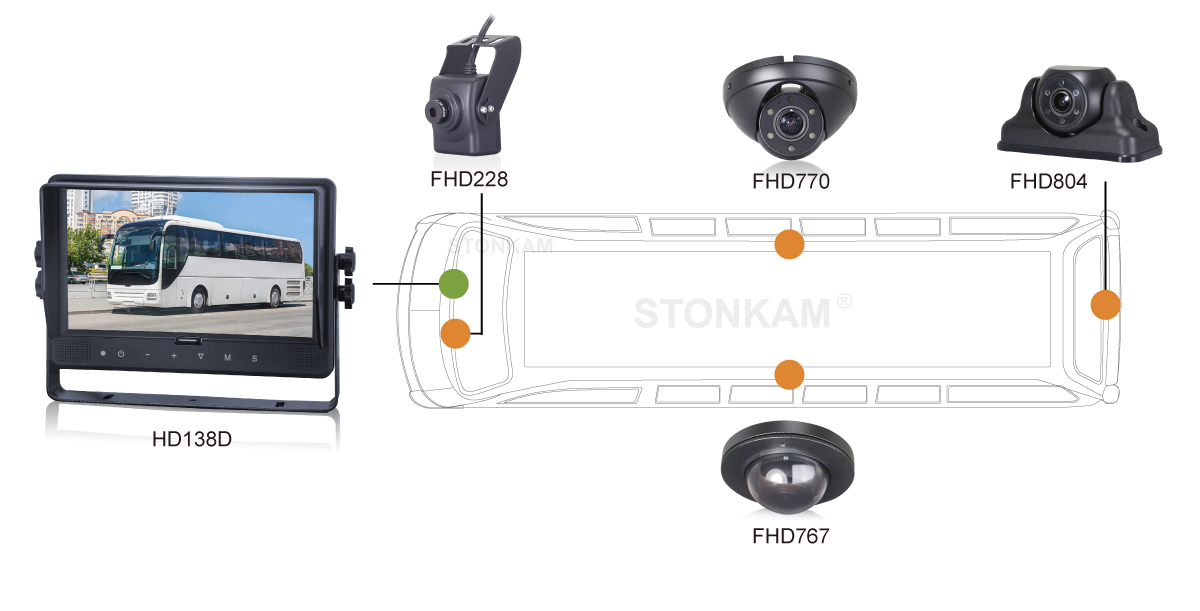

Vehicle monitor solution

1 Digital Color LCD screen
7 Setting selection down
2 Power indicator
8 Cam1/Cam2/Cam3/Cam4 Selector
3 Remote control sensor
9 Loudspeaker
4 Power switch
10 Light level sensor
5 Brightness decrease
11 Menu
6 Brightness increase


Applications

STONKAM® 9 inch High Definition Digital LCD Color Monitor is easy to install and operate and is available for a wide range of applications.


9 inch vehicle monitor

Vehicle Monitor

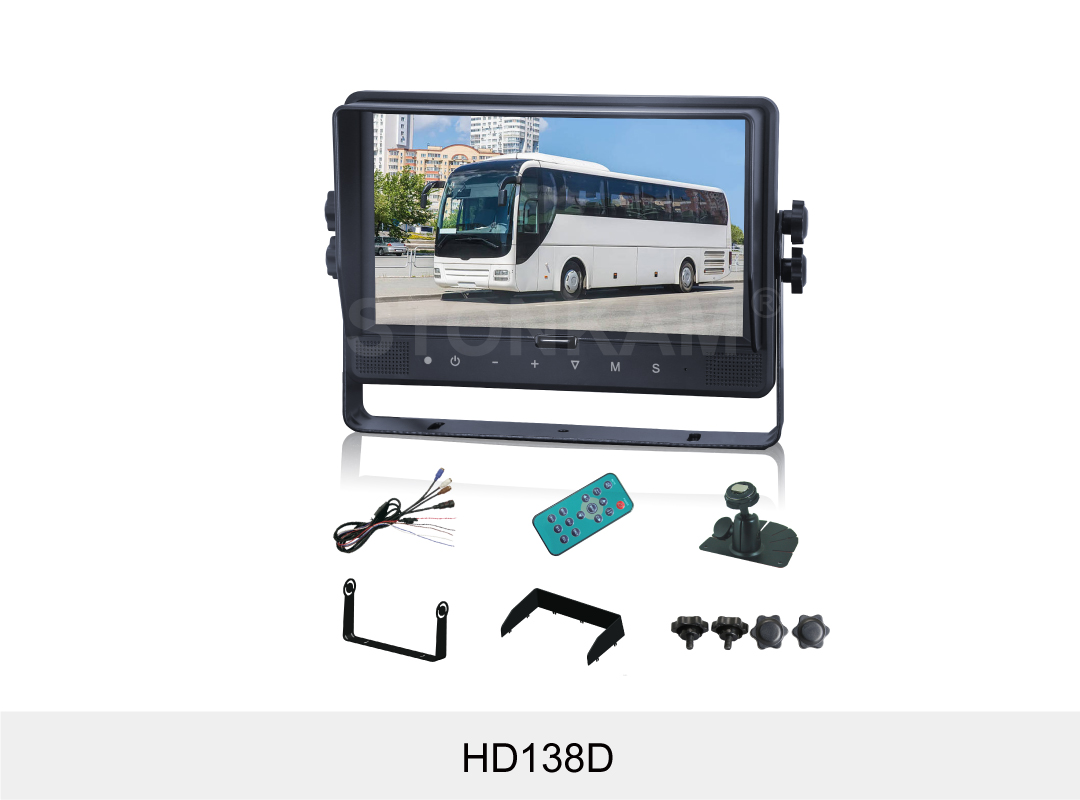

Accessories





AV and power supply adapter cable

IR remote control

Center mount bracket

U-support bracket

Sun shield






Angle adjustment screws
