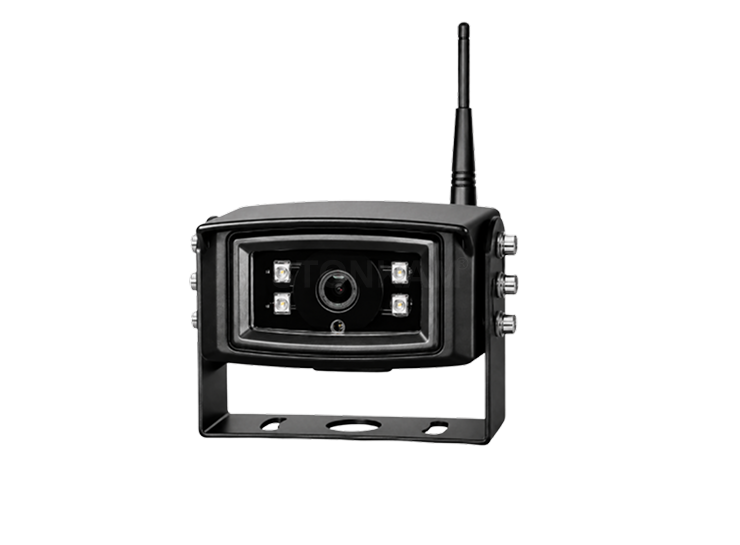

1080P Digital Wireless Vehicle Backup Camera

1080P Digital Wireless Vehicle Backup Camera

HDW873

STONKAM® 1080P digital wireless backup camera is convenient to use. It’s good for commercial vehicles like truck, trailer, RV, harvester, etc. Working with our Quad View Wireless Monitor can get better effects. Click to see more STONKAM® wireless camera products.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

• The open transmission distance is as far as 984ft, and the signal is stable and anti-jamming. Even in high-speed or long-distance operation, the monitor will display the surrounding environment in real time, making your driving or operation more convenient without interference, flicker, blur or delay.

• Support PAL/NTSC System

• The device also has night vision function, which provides you with a clear vision for 24 hours.

• With Microphone

• Waterproof: IP69K

• Wide range power supply: DC10-32V

• With magnet base, STONKAM HD Wireless Camera can be installed without drilling. The range of available vehicles is wide and the flexibility is high.

• Can be conveniently powered by an external battery

Image Device	1/2.9" CMOS
Effective Pixels	1920 (H) x 1080 (V)
Signal to Noise Ratio	38dB
White Balance	Auto
BLC	Auto
Dynamic Range	81dB
Operation Frequency	2403MHz-2478MHz
Transmision Distance (Barrier Free)	300m@20dBm
Receiving Sensitivity	-78dBm
Video Code	H.264
Transmission Power	10dBm/20dBm
Modulation	FHSS
Delay	170ms
RF Bit Rate	12Mbps
Operating Temp. & Humidity	–20℃ ~ 70℃, RH95%MAX.
Storage Temp. & Humidity	–30℃ ~ 80℃, RH95%MAX.
Minimum Illumination	0Lux/0.1Lux
Power Supply	DC10-32V
Power Consumption	Day：1.8W-2.5W Night：3.6W-4.3W
Night Vision Distance	NO IR LED/8-10m/12-15m/20-25m
Waterproof Rating	IP69K
Audio	Optional
Viewing Angle	35°/50°/70°/100°/130°/150°/170°
Heater	Optional
IR-Cut Function	Optional
Image Mode	Mirror/Normal

What are benefits of STONKAM® 1080P Digital Wireless Vehicle Backup Camera?

Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

Wireless Vehicle Backup Camera

1080P Digital Wireless Vehicle Backup Camera can help you solve your worries！

Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

wireless vehicle backup camera

Strong anti-interference, Stable connection

Operating frequency: 2403-2478MHz.

STONKAM® wireless backup camera adopts FHSS Technology to guarantee the privacy and anti-interference of communication.

2.4G wireless vehicle backup camera

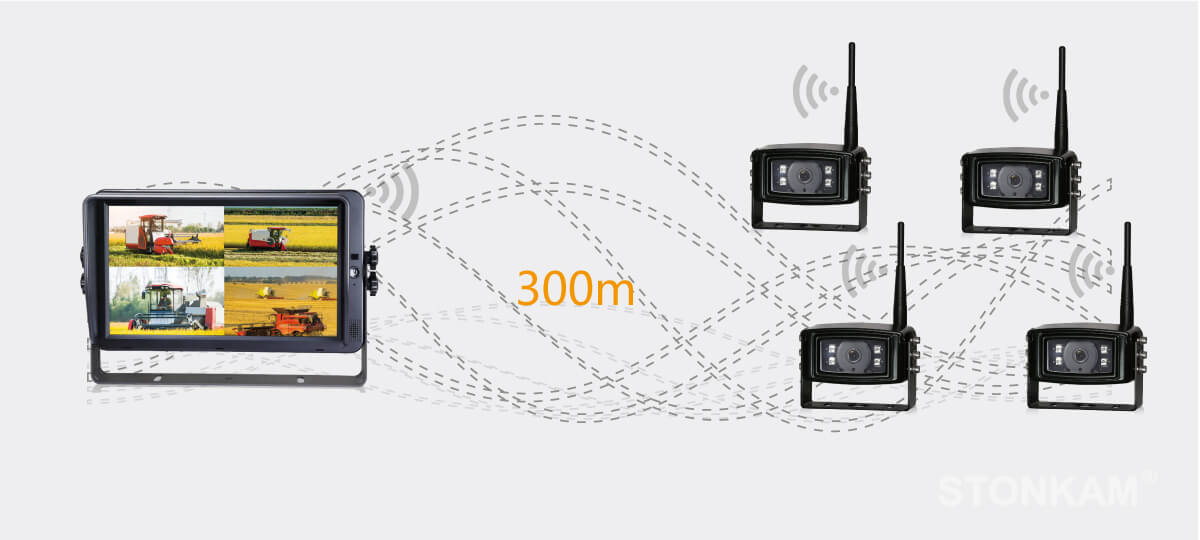

Open transmission distance up to 300 meters(barriers free)

Even in high-speed or long-distance operation, the monitor will display the surrounding environment in real time, making your driving or operation more convenient without interference, flicker, blur or delay.

wireless vehicle security camera

Can work with magnetic base and rechargeable battery

No need to run long cables through the whole car. Suitable for occasions when connecting to power cord is inconvenient.

Digital Wireless Camera System

Correct color deviation during the day and protect driving safety at night

STONKAM 1080P Digital Wireless Vehicle Backup Camera can support IR-CUT, thoroughly solving the problem of color deviation of green plants under sunlight and ensuring clear recording; And the night vision distance is up to 10 meters, ensuring safe driving!

HD Digital Wireless Camera

IP69K waterproof rated; weatherproof, suitable for outdoor use

wireless vehicle security camera

Multiple Application Scenarios

With top grade high quality, STONKAM® 1080P 2.4GHz digital wireless rear view camera can be applied to various vehicles, such as forklift, crane, harvester, etc.

For trucks:

digital wireless rear view camera

For harvesters:

digital wireless rear view camera

For planters:

digital wireless rear view camera

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

• Support PAL/NTSC System

• The device also has night vision function, which provides you with a clear vision for 24 hours.

• With Microphone

• Waterproof: IP69K

• Wide range power supply: DC10-32V

• With magnet base, STONKAM HD Wireless Camera can be installed without drilling. The range of available vehicles is wide and the flexibility is high.

• Can be conveniently powered by an external battery

Image Device

1/2.9" CMOS

Effective Pixels

1920 (H) x 1080 (V)

Signal to Noise Ratio

38dB

White Balance

Auto

BLC

Auto

Dynamic Range

81dB

Operation Frequency

2403MHz-2478MHz

Transmision Distance (Barrier Free)

300m@20dBm

Receiving Sensitivity

-78dBm

Video Code

H.264

Transmission Power

10dBm/20dBm

Modulation

FHSS

Delay

170ms

RF Bit Rate

12Mbps

Operating Temp. & Humidity

–20℃ ~ 70℃, RH95%MAX.

Storage Temp. & Humidity

–30℃ ~ 80℃, RH95%MAX.

Minimum Illumination

0Lux/0.1Lux

Power Supply

DC10-32V

Power Consumption

Day：1.8W-2.5W Night：3.6W-4.3W

Night Vision Distance

NO IR LED/8-10m/12-15m/20-25m

Waterproof Rating

IP69K

Audio

Optional

Viewing Angle

35°/50°/70°/100°/130°/150°/170°

Heater

Optional

IR-Cut Function

Optional

Image Mode

Mirror/Normal

What are benefits of STONKAM® 1080P Digital Wireless Vehicle Backup Camera?

Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

1080P Digital Wireless Vehicle Backup Camera can help you solve your worries！

Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

Strong anti-interference, Stable connection

Operating frequency: 2403-2478MHz.

STONKAM® wireless backup camera adopts FHSS Technology to guarantee the privacy and anti-interference of communication.

Open transmission distance up to 300 meters(barriers free)

Even in high-speed or long-distance operation, the monitor will display the surrounding environment in real time, making your driving or operation more convenient without interference, flicker, blur or delay.

Can work with magnetic base and rechargeable battery

No need to run long cables through the whole car. Suitable for occasions when connecting to power cord is inconvenient.

Correct color deviation during the day and protect driving safety at night

STONKAM 1080P Digital Wireless Vehicle Backup Camera can support IR-CUT, thoroughly solving the problem of color deviation of green plants under sunlight and ensuring clear recording; And the night vision distance is up to 10 meters, ensuring safe driving!

IP69K waterproof rated; weatherproof, suitable for outdoor use

Multiple Application Scenarios

With top grade high quality, STONKAM® 1080P 2.4GHz digital wireless rear view camera can be applied to various vehicles, such as forklift, crane, harvester, etc.

For trucks:
