Waterproof WiFi Transmitter Compatible with Any Camera

Waterproof WiFi Transmitter Compatible with Any Camera

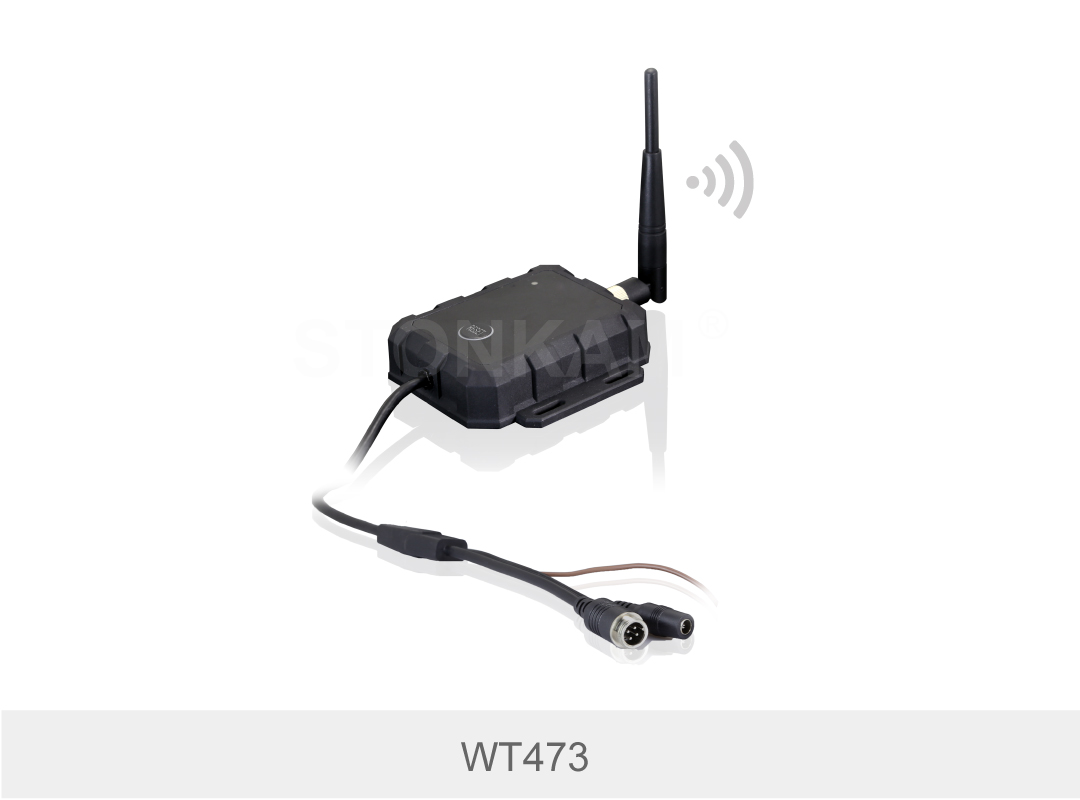

WT473

STONKAM® Waterproof Vehicle WiFi Video Transmitter can connect to any backup camera (1080P/ 720P/ D1) and makes it able to be viewed on your mobile device by hotspot; you don’t have to install a monitor.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

Support multiple types of camera signal input, compatible with any camera (1080P/ 720P/ D1)
IP69K waterproof and more durable
Transmission Distance (Barrier-free): 60m (196.8ft)
Reversing trigger function: when the vehicle is reversing, the APP will automatically display rear view image
With reset button
Adopt advanced image compression technology to produce data stream with high compression ratio, which will be transmitted to the display terminal by WiFi point to point
Support both Android and iOS system
Simply monitor your driving on the mobile device by our APP, including functions like video display and upgrading the firmware version of the WiFi transmitter
The Android APP also supports photographing, recording and querying on the device

Power Supply	DC 10~32V
Operating Current	12V/0.5A
Operating Temperature	-20 ~ 70℃
Storage Temperature	-30 ~ 80℃
Waterproof Rating	IP69K
Dimension	10510625.2(mm)
Weight	325 g
Video Input	CVBS / AHD / TVI / CVI
Operating Frequency	2.4GHz-2.4835GHz ; 5.12GHz-5.825GHz
Transmission Power	20 dBm
Receiving Sensitivity	-86 dBm
Transmitting Distance(Barrier-free)	60m
Decompression Form	H.264
Resolution	1080P / 720P / D1 / CIF
Frame Rate	2~30f/s
Audio Format	G.711A
Modulation	IEEE 802.11b/g/n/
Delay	200ms

WiFi Transmitter

What are the benefits of installing WiFi Transmitter System on vehicles?

To observe reverse image without monitors.

To conveniently monitor reversing parking videos via mobile devices without need of complicated wirings…

STONKAM® Vehicle WiFi Transmitter Fully Satisfy Your Requirements

Waterproof WiFi Transmitter Compatible with Any Camera

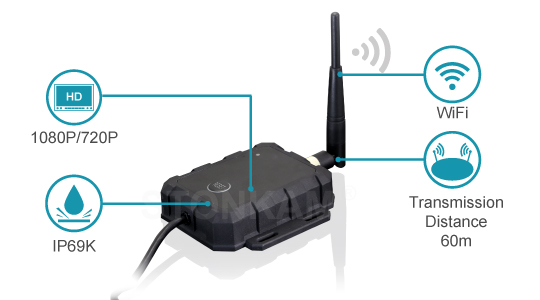

① Durable IP69K Waterproof Vehicle WiFi video transmitter.

WiFi Transmitter

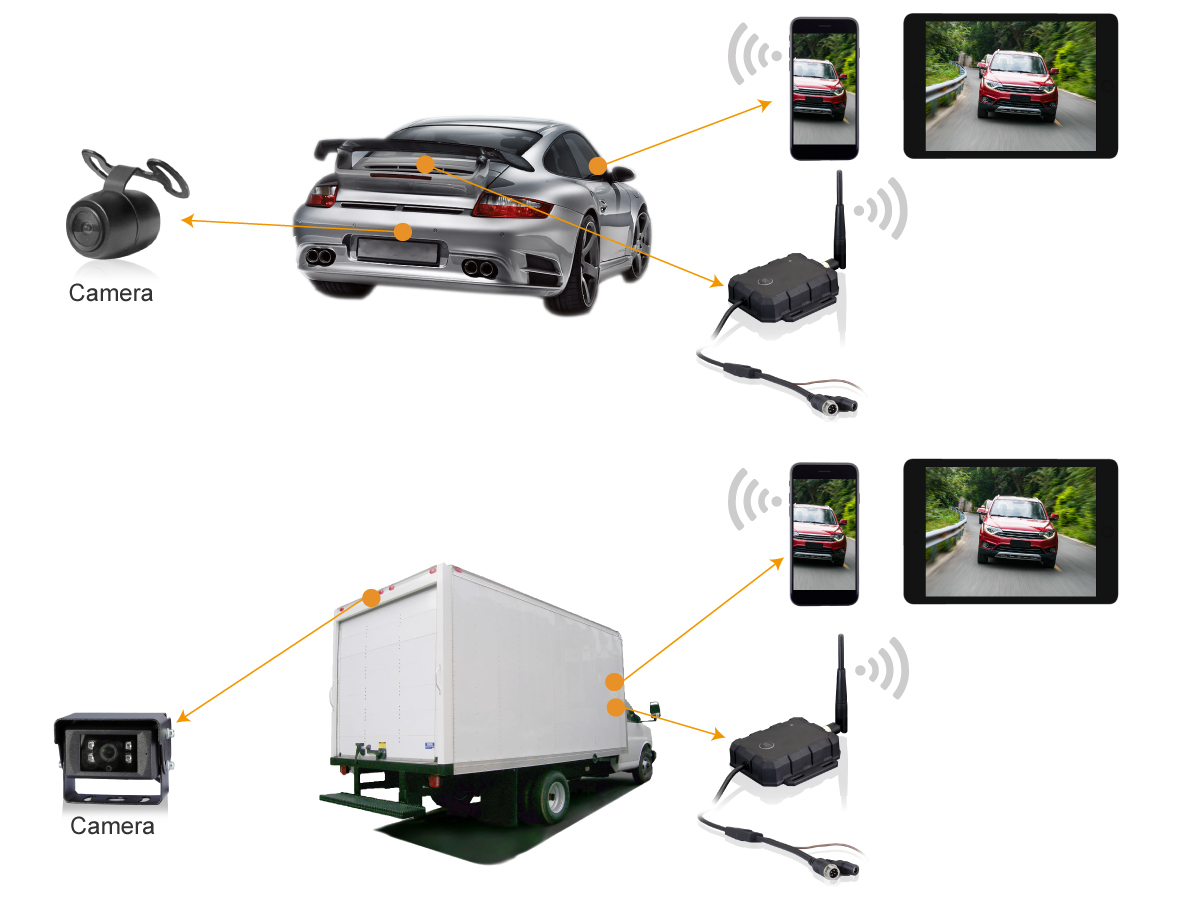

② STONKAM® WiFi video transmitter can be applied to various vehicles by easy installation, supporting 1080P/ 720P/ D1 cameras (up to 1080P@30fps) for diversified needs.

Waterproof WiFi Transmitter Compatible with Any Camera

③ STONKAM® WiFi video sender uses new method of transmission by applying camera self-built hotspot to deliver real-time videos, achieving real intelligent parking without any internet data needed.

STONKAM® WiFi Transmitter for Vehicles-Camera Self-built Hotspot to Send Images

④ Save video recordings and pictures in mobile devices by the Android APP.

STONKAM® WIFI Video Transmitter-Save Video Recordings and Screenshots by APP

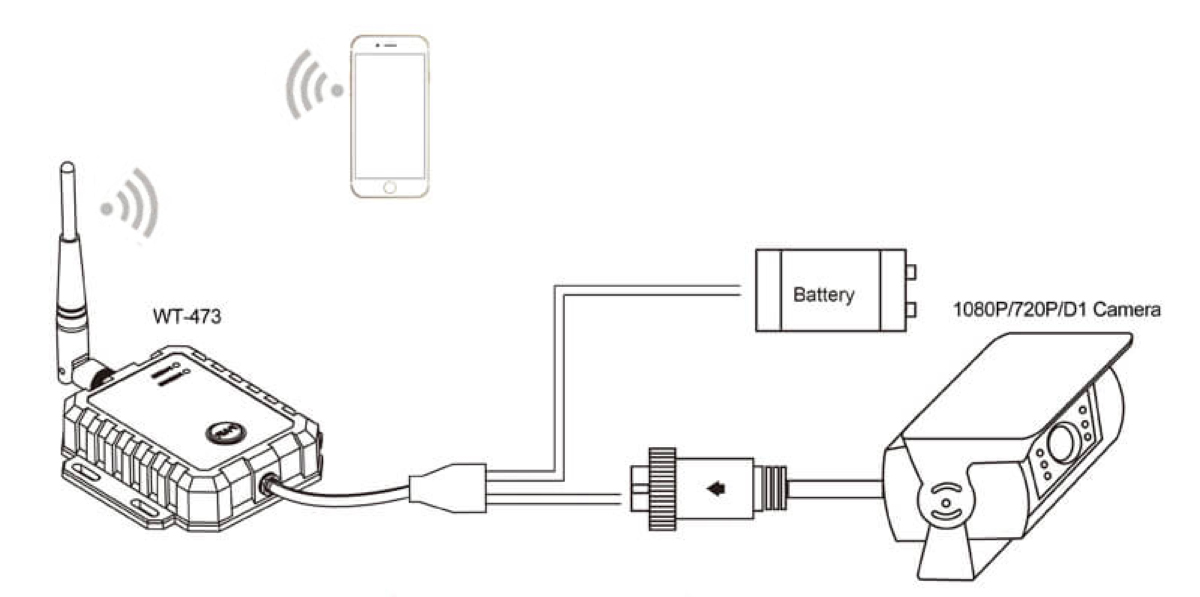

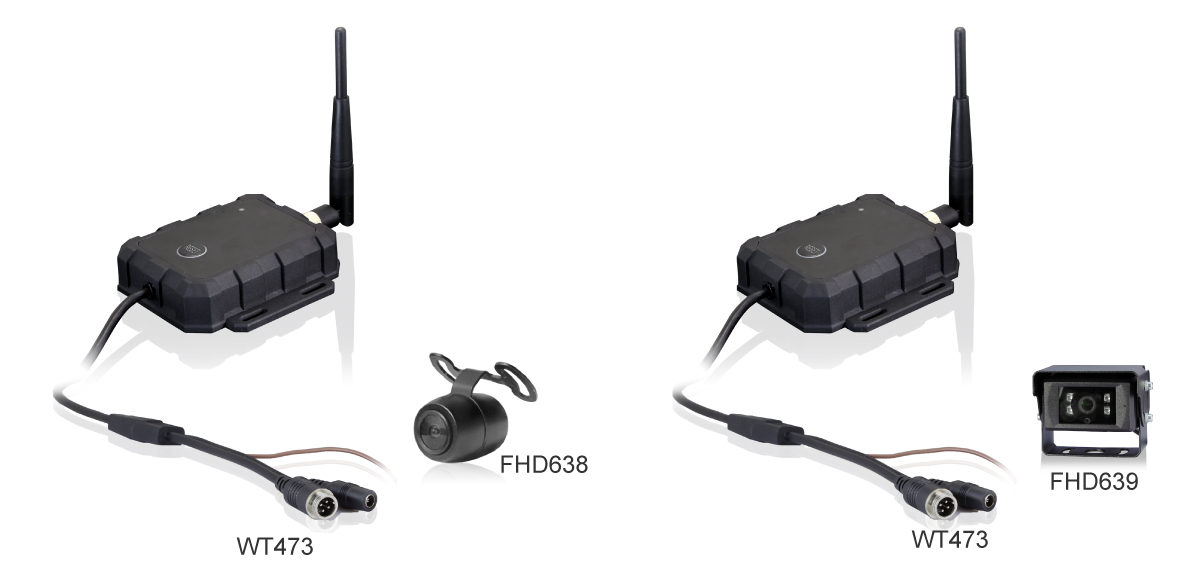

Connection

STONKAM® WiFi Transmitter-Connection

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Features

Support multiple types of camera signal input, compatible with any camera (1080P/ 720P/ D1)

IP69K waterproof and more durable

Transmission Distance (Barrier-free): 60m (196.8ft)

Reversing trigger function: when the vehicle is reversing, the APP will automatically display rear view image

With reset button

Adopt advanced image compression technology to produce data stream with high compression ratio, which will be transmitted to the display terminal by WiFi point to point

Support both Android and iOS system

Simply monitor your driving on the mobile device by our APP, including functions like video display and upgrading the firmware version of the WiFi transmitter

The Android APP also supports photographing, recording and querying on the device

Power Supply

DC 10~32V

Operating Current

12V/0.5A

Operating Temperature

-20 ~ 70℃

Storage Temperature

-30 ~ 80℃

Waterproof Rating

IP69K

Dimension

105*106*25.2(mm)

Weight

325 g

Video Input

CVBS / AHD / TVI / CVI

Operating Frequency

2.4GHz-2.4835GHz ; 5.12GHz-5.825GHz

Transmission Power

20 dBm

Receiving Sensitivity

-86 dBm

Transmitting Distance(Barrier-free)

60m

H.264

Resolution

1080P / 720P / D1 / CIF

Frame Rate

2~30f/s

Audio Format

G.711A

Modulation

IEEE 802.11b/g/n/

Delay

200ms

What are the benefits of installing WiFi Transmitter System on vehicles?

To observe reverse image without monitors.

To conveniently monitor reversing parking videos via mobile devices without need of complicated wirings…

STONKAM® Vehicle WiFi Transmitter Fully Satisfy Your Requirements

① Durable IP69K Waterproof Vehicle WiFi video transmitter.

② STONKAM® WiFi video transmitter can be applied to various vehicles by easy installation, supporting 1080P/ 720P/ D1 cameras (up to 1080P@30fps) for diversified needs.

③ STONKAM® WiFi video sender uses new method of transmission by applying camera self-built hotspot to deliver real-time videos, achieving real intelligent parking without any internet data needed.

Connection
