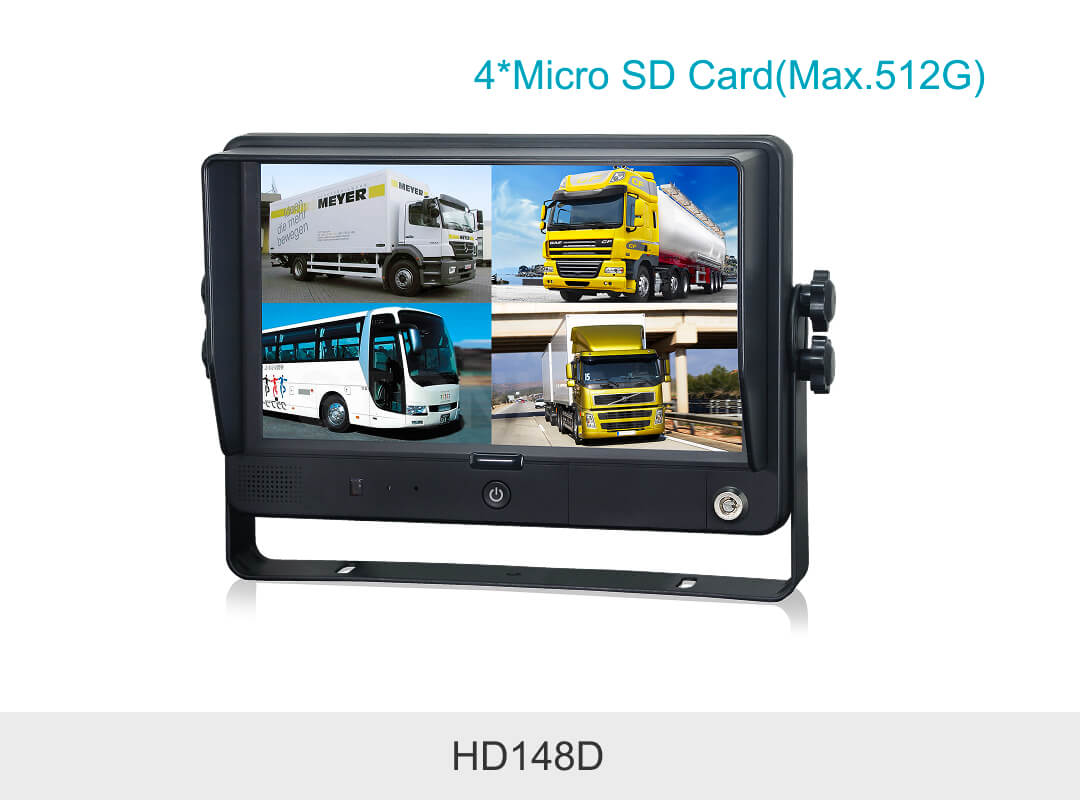

9 inch HD touch-screen Quad-view recording monitor

HD148D

STONKAM 9 inch HD touch-screen Quad-view recording monitor, in-vehicle plus monitor functions, standing for a major technical upgrade in in-vehicle monitor industry. It supports 4CH HD cameras input which allows the driver to see directly the environment around the vehicle while driving. This can reduce the possibilities of scratch and other accidents. This HD monitor can realize HD real-time monitoring, support GPS input, thus facilitates efficient fleet management.

Inquire Now

STONKAM® exclusively serves businesses. Please ensure accurate company email and country/region information. We will respond to you as quickly as possible!

Model No. Introduce yourself * Message *

Features

【Two-in-one that combines in-vehicle DVR and monitor】a major upgrade of invehicle monitor! It can record and replay driving videos, support multiple recording modes (regular recording, event recording, loop recording, time-planning recording, etc. ) With built-in G-sensor, support G-sensor alarm recording triggered by collision detection. Sufficient storage, support 4*512GB Micro SD card. All of these functions can help you free from unreasonable damage and responsibility.
【Efficient fleet management】support GPS input, can realize vehicle history track tracking, vehicle positioning and speeding alarm
【1080P high definition video】Supporting 4 CH HD camera input, provide very stable HD video, avoid vehicle-around blind spots.

【Multiple formats】Multiple video formats available to cameras: 1080P30/1080P25/720P30/720P25/PAL/NTSC.
【Multi-screen mode】9 inch wide screen, display mode supports single view, split view, quad view, and other views. Different viewing angles provide a 360 image for better driving experience.
【Data security】support menu Lock, ACC time-lapse recording, camera power short-circuit protection, super capacitor power-down protection, to prevent the loss of video data.
【Easy operation】support capacitive touch screen and infrared remote control;  WIFI function optional, support Web UI.
【Trigger function】5 trigger lines input, trigger line definition, trigger delay and priority can be adjusted freely.
【Some practical add-ons】Able to set reversing marking line, adjusting and calibrating freely; Multi languages available, able to be customized according to users' requirements.

LCD Dimension

9"

Resolution

1024x3(RGB)x600

Brightness

600 cd/m²

Contrast

600:1

Viewing Angle

U: 85°/ D: 85°, R/L: 85°

Aspect Ratio

16:9

Video Input

4-channel camera input, support mutiple resolutions (1080P25/1080P30/720P25/720P30/PAL/NTSC)

Storage

4 Micro SD Card, up to 512 GB each card

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

Power Consumption

Max.32W(with cameras)

Loudspeaker

1W/8Ω

Power Supply

10V-32V







How to realize blind spot monitoring around the car?
How to display mutiple views from different cameras at the same time on the monitor?
How to offer evidence quickly in case of a car accident or theft of vehicles ?
How to get an efficient vehicle management solution?
……

To solve such problems, you just need to install a system of in-vehicle monitoring display !

In-vehicle monitor





Two-in-one that combines in-vehicle DVR and monitor, make your driving safer

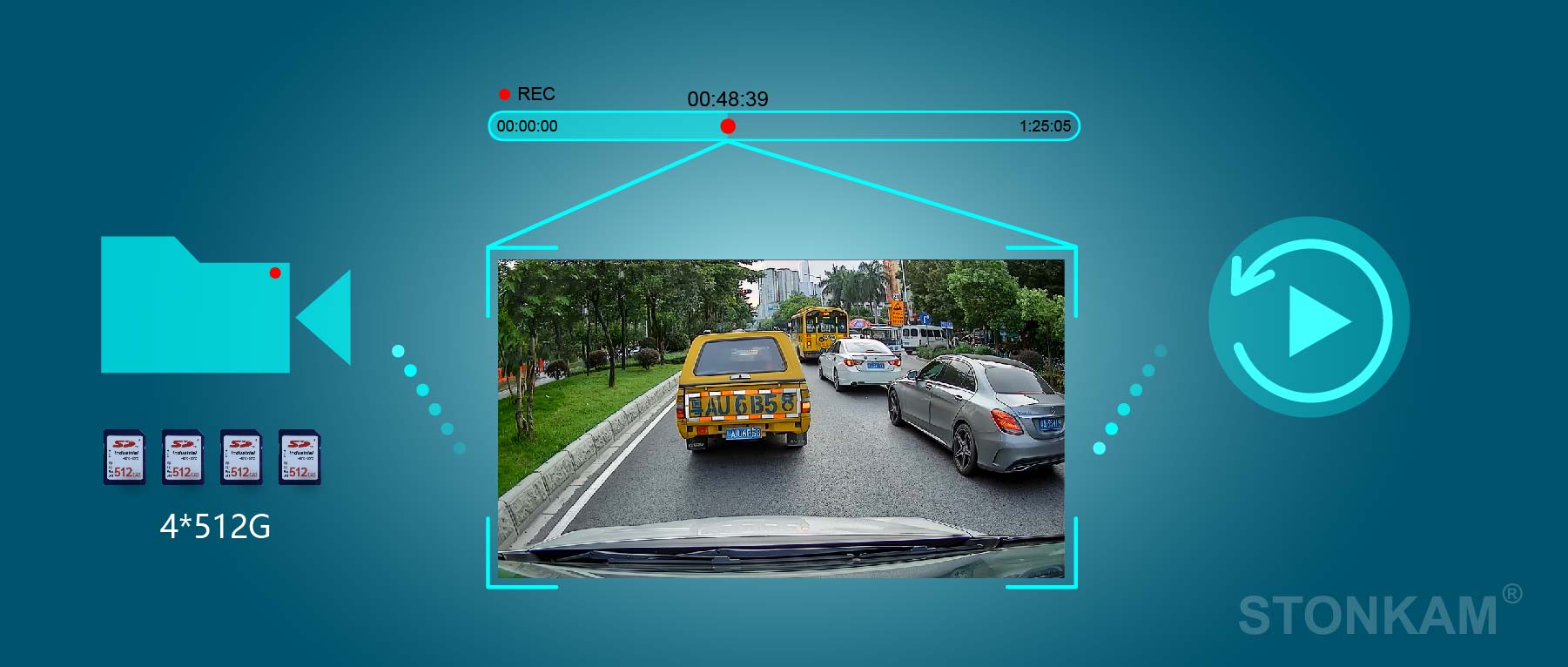

A major upgrade of in-vehicle monitor! It can record and replay driving videos, support mutiple rocording modes (regular recording, event recording, loop recording, time-planning recording, etc. ) With built-in G-sensor, support G-sensor alarm recording triggered by collision detection. Sufficient storage, support 4*512GB Micro SD card. All of these functions can help you free from unreasonable damage and responsibility.

In-vehicle monitor with touch screen





Efficient fleet management

Support GPS input, can realize vehicle history track tracking, vehicle positioning and speeding alarm. It can help you manage your fleet at ease, increase the efficiency.

Recording monitor





Real-time viewing of driving conditions, assisting in safe driving!

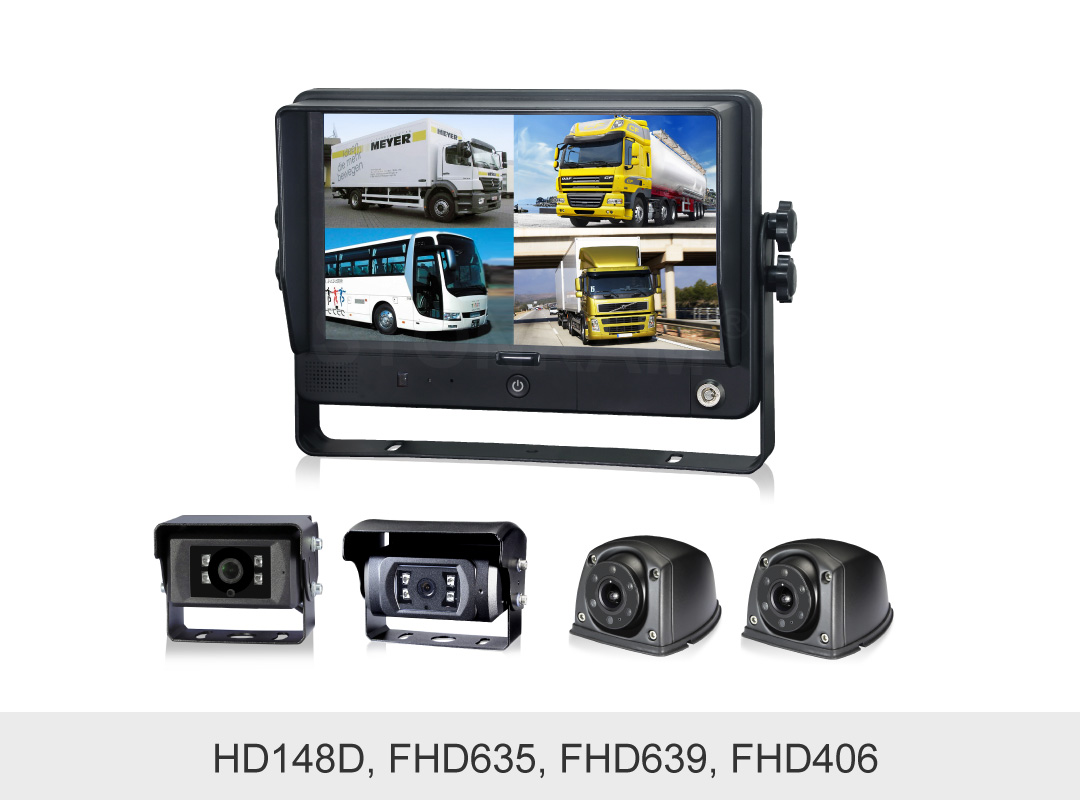

STONKAM vehicle HD monitor supports 4 CH HD cameras input, multi channels spliting the screen. Drivers can intuitively monitor the blind spots in the driving process, controllling the driving situation in real time. It greatly improves the driver's field of view, able to reduce the possibility of traffic accidents.

Rearview Monitor





Mutiple-display modes

9 inch wide screen supports single view, split view and quad view, and other views. Multi-display modes could switch automatically, meeting your various monitoring needs.

In-vehicle monitor





Data security is guaranteed

Support menu Lock, ACC time-lapse recording, camera power short-circuit protection, super capacitor power-down protection, to prevent the loss of video data.

In-vehicle monitor with touch screen





WIFI Direct Connection, convenient preview on the cell phone; touch screen control on the monitor interface, more convenient operation

The WIFI Function support STATION and AP mode. The AP mode allows the cell phone to connect directly to the device WebUI for easy preview and configuration; the monitor supports HD touch screen control and infrared remote control, flattening human-machine interaction and facilitating customer operation.

Recording monitor





Application

STONKAM 9 inch HD in-vehicle 4-channel recording monitor system is a major upgrade of in-vehicle monitoring industry. It has powerful functions and is widely used for various vehicles (trucks, buses, coaches, trailers, buses, RVs, school buses, tractors, etc.) as well as ship monitoring, which can guarantee safe driving and effectively improve operational efficiency.

Rearview MonitorIn-vehicle monitor
